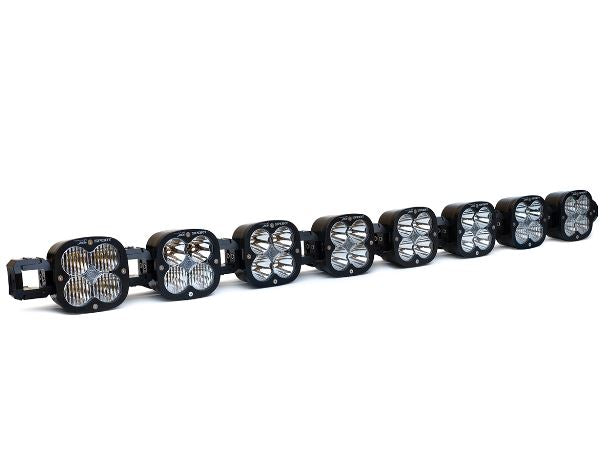

Aux LED Bar – XL Linkable Number of Lights 8 Set – Baja Designs – 740006
₹169,999.00
Available on backorder
Aux LED Bar – XL Linkable Number of Lights 8 Set – Baja Designs – 740006
Experience full adjustment and total performance with the Baja Designs XL Linkable LED light bar kit, engineered for enthusiasts seeking to take charge with a completely customizable lighting package. Built around our popular XL Sport shallow moto housing, each light offers up to 3,162 raw lumens from our next-generation LEDs, the XL Linkable can be built with 3 up to 8 forward projecting lights that provide a smooth blend due to the use of our wide cornering, driving combo and spot lenses illuminating zones 1, 2, 3 and 4 simultaneously. The unique feature of our XL Linkable system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment per light allows straight or arc configurations to perfectly match the lines of your vehicle’s bumper or roofline. The wiring comes fully crimped and trimmed, allowing for easy installation and the ability to add links down the road, and black rock guards are included to protect the lights when not in use if you’re looking to have a lighting system that performs as well as it looks, this is the auxiliary light kit for you!
Features:
- 45 degrees of vertical pitch adjustment within each light or the entire unit.
- Independent horizontal adjustment per light allows for straight or arc configurations.
- Pre-load kit included.
- Black rock guards included.
- Harness included (640115).
- NOTE: XL Linkable mounting brackets are not included. Applicable brackets will be (748000).
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
service – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
SKU: 740006
Dimensions
Depth (in.) | 2.8 |
Height (in.) | 4.43 |
Length (in.) | 51.52 |
Specifications
Amperage Rating (A) | 16 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Multi-Pattern |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 25,296 |
Description | 8XL Sport; Multi-Pattern; Clear |
Housing Color | Black |
Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 8 |
Lighting Modes | Beam |
Lighting Quantity | 32 |
Lighting Technology | LED |
Lighting Type | Forward Projecting |
Mounting Hardware Description | Pre-Load Kit; Links; Rock Guards |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | XL Linkable LED Light Bar |
Universal or Specific | Universal |
Wattage (W) | 208 |
Wiring Harness Included | Yes |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
