Prospec Easy Clutch for Benelli Imperiale 400 – EC Plus – EC 210
₹2,500.00
Or 3 interest free payments of ₹833.34 with
Prospec Easy Clutch for Benelli Imperiale 400 – EC Plus – EC 210

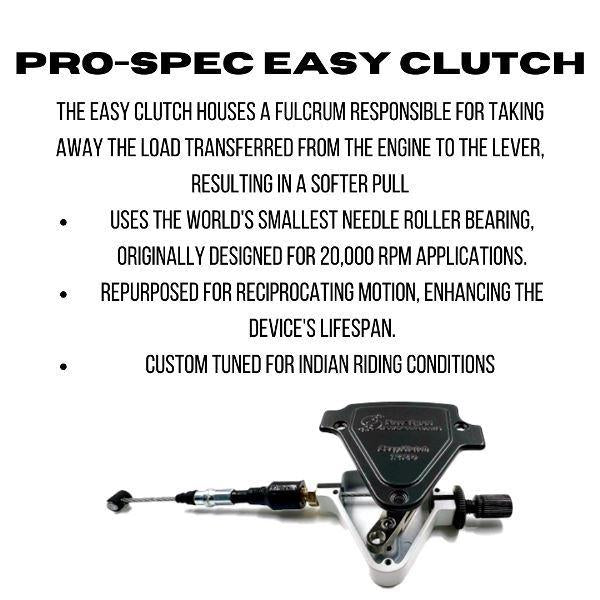

Commuting is made easy with the Easy Clutch Plus from Pro-Spec. It is a device that is designed to reduce 40 % of the clutch effort applied to the lever. This product is manufactured using Delrin reinforced with glass-filled fiber to ensure long-lasting durability and endurance.
Thank you for choosing the Pro-Spec Easy Clutch Plus for your ride. The Easy Clutch has been designed to
reduce the load applied on the clutch lever while shifting gears. This makes riding more comfortable in trafficconditions.
| SI. | DESCRIPTION | Part Number | QTY. |
| B03 ABS Housing with Cover | PS EC 200-1 | 1 NO | |
| 03×08 SS Allen Cap Screws | PS SSACS 0308 | 3 NOS | |
| 1 | Hardened Pin, Teflon Washer, Long Fulcrum, Bearing | PS EC BO 200-1/3/4/6 | 1 SET |
| 3mm Spring Washer | PS SS SW 03 | 3 NOS | |
| 2A/B | Easy Clutch Long Cable V5 | PS CLC V5 | 1 SET |
| 3 | Dust boot for lever end | PS DB 01 | 1 NO |
| 4 | 2.5 mm L Allen Key | PS HTAK 2.5 | 1 NO |
| 5 | Cable Tie | PS EC 200-7 | 2 NOS |
| 6 | Clutch Plug Adjuster | PS EC 200-2 | 1 NO |
1. Remove the cable head from the clutch lever as shown in Fig-A by loosening the Lock nuts (1) at the
Engine Yoke as shown in Fig – B. Remove the cable head from the engine yoke as well.
2. The Easy Clutch Pro Plus can now be installed by first inserting the 2B cable into the engine end in a
reverse procedure of removal as shown in Fig-B. Ensure the lock nuts are made to give maximum
slack for the cable.
3. Route the Easy Clutch cable following an unobstructed path to achieve smooth operation of the cable.
Insert the 2A cable head into the lever by following the reverse process of Step 1 shown in Fig-A.
• Should you find the release point below
40%, THREAD OUT THE ADJUSTER on the
right orthe left side of the Easy Clutch housing
(Fig -C) until the release point is achieved.
• Should you find the release point beyond
60%, THREAD IN THE ADJUSTER on the
right or the leftside of the Easy Clutch housing
(Fig – E) untilthe release point is achieved. Should you need any further adjustment in both the above cases you can also adjust the cable at the engine end as shown in Fig – D or
as per Fig – F, where “a” would bring the release point closer and “b” would take the release point away from the hand grip.
NOTE:For best results and safety of the clutch plate please follow the above adjustment guide strictly. If the clutch lever has excessive free
play, the clutch may not disengage fully. This will cause difficulty in changing gears and selecting neutral which would also relate to an early
clutch release point much below 40%. Conversely, if the clutch lever has Insufficient free play or a release point beyond 60%, the clutch
may not engage fully, causing the clutch to slip, which will reduce performance and cause premature clutch wear
Brand
Pro-Spec
