Pro-spec Easy Clutch for Honda CB500 X – EC Pro – EC220

Pro-spec Easy Clutch for Honda CB500 X – EC Pro – EC220

City commutes are made easier with the Easy Clutch Pro from Pro-Spec – a mechanical assist device that reduces clutch effort by up to 40% when applied to the lever. Designed with Indian traffic conditions in mind and built to global standards, this model is a game-changer for gear-shifting comfort in traffic and touring scenarios.

Manufactured using aerospace-grade aluminum, the Easy Clutch Pro is an inline extension of the OE clutch cable, making gear shifts smoother and reducing hand fatigue.

Key Features

• Aerospace-grade aluminum housing
• Universal fitment across many motorcycle models
• Custom-tuned for Indian road/riding conditions
• Simple mechanical extension of the OE cable
• Conforms to global standards

---

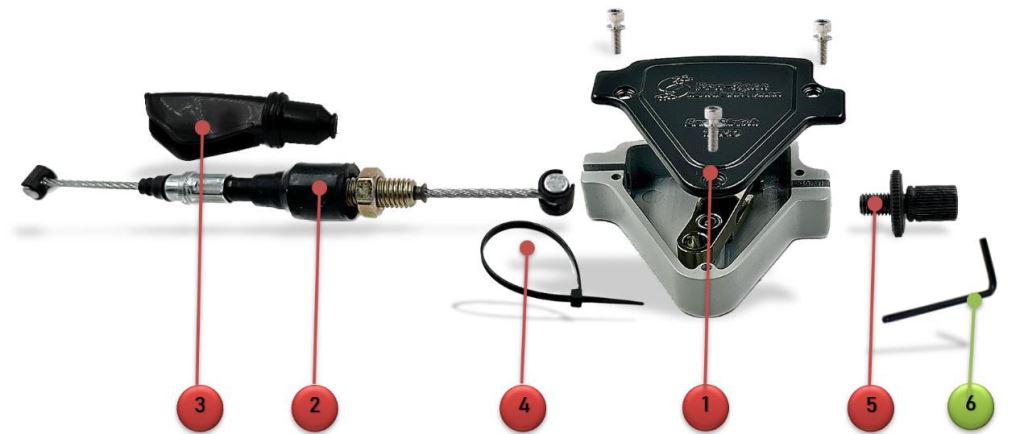

Kit Contents

---

🛠️ Installation Instructions

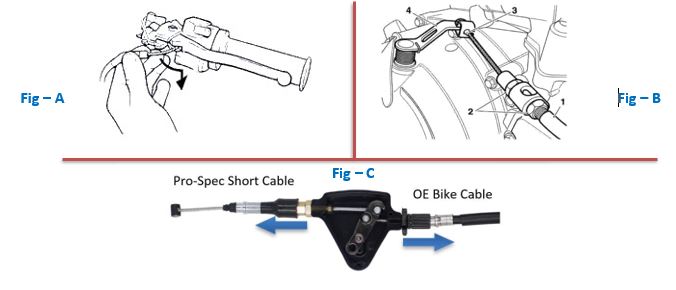

1. Remove the OE clutch cable from the lever (Fig. A) and loosen the engine yoke adjuster (Fig. B) to free the cable.
2. Disassemble the Pro-Spec housing by removing the 3 screws.
3. Insert the OE clutch cable head into the fulcrum inside the housing (Fig. C).
4. Connect the Pro-Spec short cable to the other side of the housing (Fig. C).
5. Fit the short cable to the clutch lever, placing the dust boot properly.
6. Secure and reassemble the housing using the screws provided.

---

Adjustment Guidelines

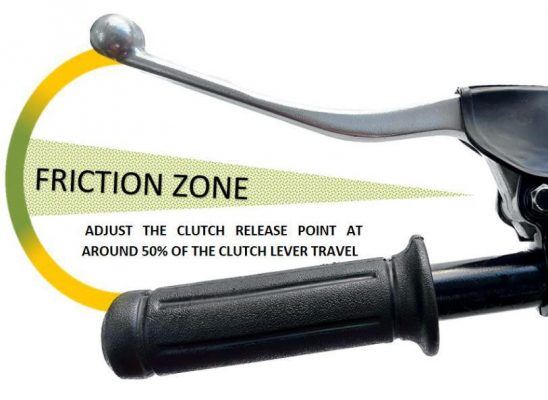

• Adjust the clutch release point to approximately 50% of lever movement.

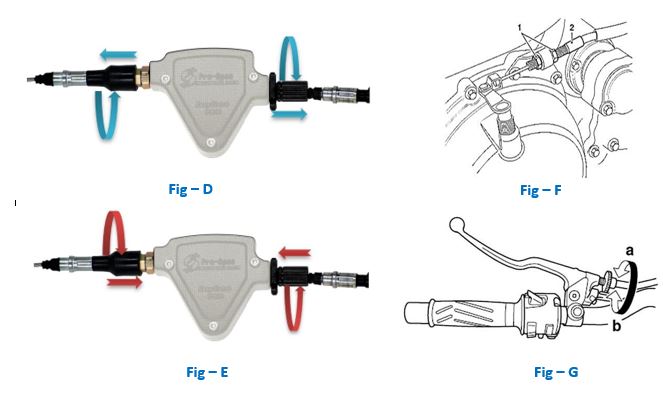

• If below 40% → Thread OUT adjuster (Fig-D)
• If above 60% → Thread IN adjuster (Fig-E)
• Fine-tune the engine-side yoke (Fig. F & G):
  • Adjust “a” to bring the release point closer to the grip
  • Adjust “b” to move the release point further

---

Compatible Motorcycles:-

---

⚠️ Important Tips

Ensure proper free play :

• Too much → clutch won’t disengage properly (hard shifting, poor neutral engagement)
• Too little → clutch slips (loss of performance, premature wear)

Lubricate the OE cable with WD-40 or cable lube for optimal performance.
