Pro-spec Easy Clutch for RE Thunderbird – EC Pro Plus – EC240

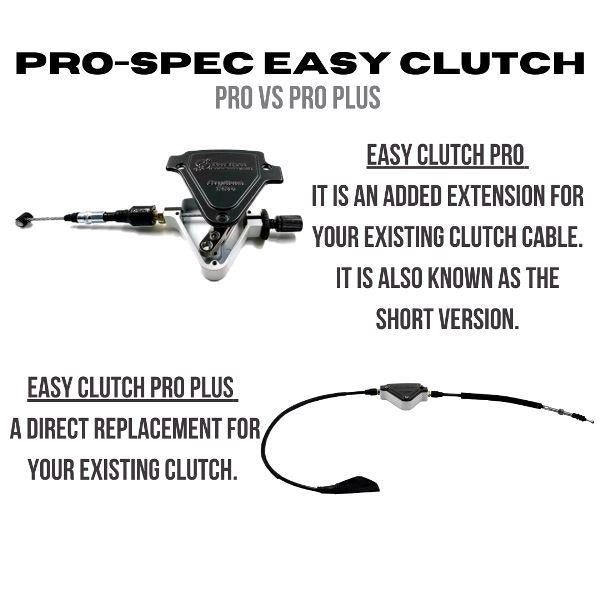

Make city commuting effortless with the Pro-Spec Easy Clutch Pro Plus.
Designed to reduce clutch lever effort by up to 40%, this device is custom-tuned for Indian riding conditions while adhering to global quality standards. Manufactured from aerospace-grade aluminum, the Easy Clutch Pro Plus is engineered specifically for motorcycles with engine capacities of 650cc or below

The Easy Clutch Pro Plus (Long) is compatible with bikes having clutch cable lengths between 900 mm to 1175 mm.

Key Features

• Reduces clutch lever effort by 40% for smoother gear shifts
• Aerospace-grade aluminum housing for durability and lightweight performance
• Custom-tuned for Indian traffic and riding conditions
• Suitable for motorcycles up to 650cc
• Compatible with cable lengths from 900 to 1175 mm

Package Contents

Installation Guide

Follow these instructions carefully to maximize the Easy Clutch’s benefits:

1. Remove the clutch cable head from the clutch lever (see Fig-A) by loosening the lock nuts at the engine yoke (see Fig-B). Detach the cable head from the engine yoke as well.
2. Install the Easy Clutch Pro Plus by first inserting the longer section of the cable (2B) into the engine end, reversing the removal procedure shown in Fig. Ensure lock nuts provide maximum cable slack.
3. Route the Easy Clutch cable along a smooth, unobstructed path to allow free cable movement.
4. Insert the shorter cable end (2A) into the clutch lever following the reverse of Step 1 (FFig Attach the dust boot to the lever.

Clutch Release Adjustment

Aim for a clutch release point at approximately 50% of clutch lever travel

• If the release point is below 40%, thread out the adjuster on either side of the Easy Clutch housing (see Fig. C) until the desired position is reached.
• If the release point is above 60%, the read is in the adjuster on either side of the housing (see Fig. E).
• For further fine-tuning, adjust the cable tension at the engine end (see DD and Fig. F-F). Position “a” moves the release point closer to the lever; position “b” moves it away.

Important Notes and Disclaimer

• Excessive free play at the clutch lever may prevent full clutch disengagement, causing difficulty in gear shifting and early clutch release points below 40%.
• Insufficient free play or release points beyond 60% can lead to incomplete clutch engagement, resulting in clutch slippage, reduced performance, and premature clutch wear.
• Always lubricate the original equipment (OE) clutch cable using WD-40 or a suitable cable lubricant before installation.
• Follow the adjustment guide strictly to ensure clutch safety and optimal performance.

Compatible Motorcycles:-

Disclaimer

The Pro-Spec Easy Clutch Pro Plus is designed to enhance clutch operation and rider comfort. Proper installation and adjustment according to the provided guidelines are essential to achieve the intended benefits and safe operation.

• Improper installation or adjustment can lead to incomplete clutch disengagement or engagement, resulting in gear shifting problems, clutch slippage, or premature clutch wear.
• Maintain the clutch release point between 40% and 60% of lever travel for optimal performance.
• Pro-Spec Performance Parts disclaims liability for damages or injuries resulting from improper use or failure to follow instructions.
• Users are advised to verify compatibility with their motorcycle manufacturer’s warranty policies.

By using this product, the rider accepts all associated responsibilities and risks.
