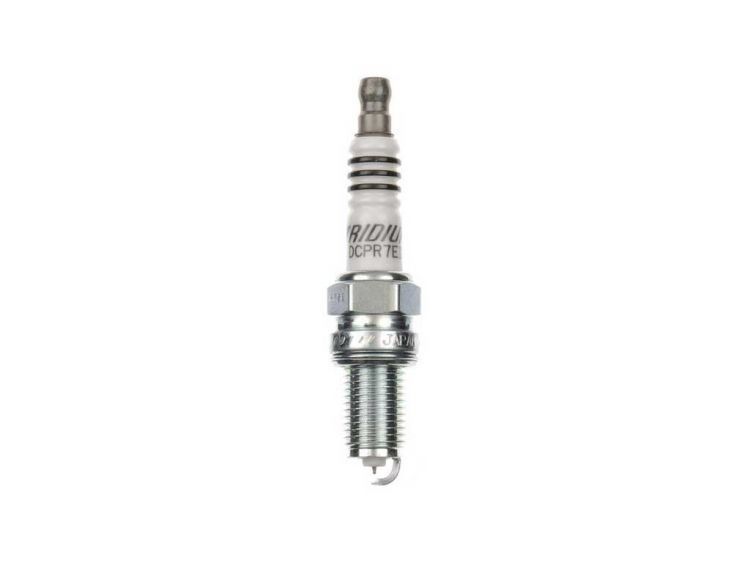

Part No. DCPR7EIX

NGK is known as the worldwide most important supplier of motorcycle spark plugs. Numerous (motorcycle) manufacturers, as well as many teams of the MotoGP and the entire Moto2 trust in these products. Even the standard version of NGK spark plugs offers outstanding quality, which stands for steady engine running, clean throttle response and a long life.

At the moment, the NGK Iridium spark plugs are the highest quality solution. Due to their extremely thin and resistant center electrode the Iridium spark plugs provide a better throttle response, more engine power and efficiency. Because of a special technology the soot formation on short distances is prevented.

Furthermore, the pollutant ejection and fuel consumption is reduced. While the distance between the electrodes of standard spark plugs becomes bigger with the time, the performance of the Iridium spark plugs stays constant for their whole lifetime.

The Facts:

• double lifetime
• high self-cleaning effect
• ideal and efficient combustion
• low soot formation
• better acceleration values
• constant distance of the electrodes

NGK IX Iridium Series plugs were designed specifically for the performance enthusiast. Fine wire center electrode ensures high durability and a consistently stable spark. Iridium alloy has an extremely high melting point, perfect for today's high-tech, high performance engines.

• Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
• Corrugated ribs prevent flashover
• Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
• Copper core aids in heat removal
• Triple seals prevent leakage

Product Specification

Shell

• Thread Diameter 12mm
• Thread Pitch 1.25mm
• Seat Type Gasket
• Reach 19mm (3/4")
• Hex Size 5/8" (16mm)
• Terminal Type Removable Nut
• Overall Height JIS
• Gap.031" (0.8mm)

Center Electrode

• Material Iridium
• Type Fine Wire
• Size0.6mm
• Projection Projected

Ground Electrode

• Material Nickel
• Type Standard
• Shape Taper Cut
• Quantity1

Specifications

• Resistor Yes
• Resistor Value 5k Ohm
• Heat Range7
• Torque Specs Cast Iron: 10.8-18 lb. ft. Aluminum: 10.8-14.5 lb. ft.

Part Information

• Brand NGK/NTK
• Warranty 60 Days
• Longevity 50k Miles

Part No : DCPR7EIX
