RAM Mounts Torque Medium Rail Base with 1″ Ball – 3/4″-1″

Product Description

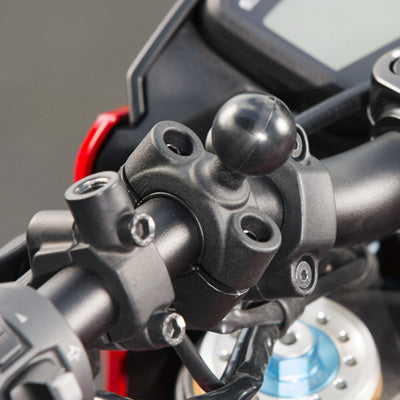

The RAM® Torque™ handlebar mounting base features a 25.4mm B size RAM® rubber ball and is compatible with rails 19.05mm to 25.4mm in diameter. Sizing inserts are included to provide a tight fit while also protecting the mounting surface. The RAM® Torque™ mounting base also includes nylon-insert locknuts to prevent loosening in high vibration environments.

It’s made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments.

Highlights

Handlebar mounting base with B size 25.4mm rubber ball
Includes sizing inserts to provide a tight fit; mount includes nylon-insert locknuts to prevent loosening
Made of powder-coated, marine-grade aluminum
Backed by a lifetime warranty

Required Accessories

Mount Base Only. RAM Arm Cradle/ Holder for Device sold separately

Product Specifications

Material: Marine-grade Aluminium / Rubber
Surface: Powder coated
Color: Black
Ball / Socket Size: B Size (25.4mm)
Clamp Range: 19.05mm to 25.4mm
Weight: 0.145kgs
Maximum Load:
Standard Use: 0.90kgs
Heavy-Duty Use: 0.45kgs

What’s in the box?

RAM Mounts Torque Medium Rail Base with 1″ Ball – 3/4″-1″ x 1
Hardware included:
#10-24 x 1″ Socket Head Cap Screws x 2
#10-24 Nylock Nuts x 2
.75″ Composite Bushings x 2
.9″ Composite Bushings x 2
88.9mm Rubber Strip x 1
