The DENALI CANsmart™ Controller GEN II harnesses the flexibility and intelligence of your KTM's CAN bus electrical system to make accessory installation easier. It provides plug-and-play installation and integrated control of up to four accessories, with dozens of customizable settings accessible through your KTM switch cluster or the CANsmart™ Accessory Manager Software.

Features

• Plug-and-play installation for compatible KTM motorcycles.

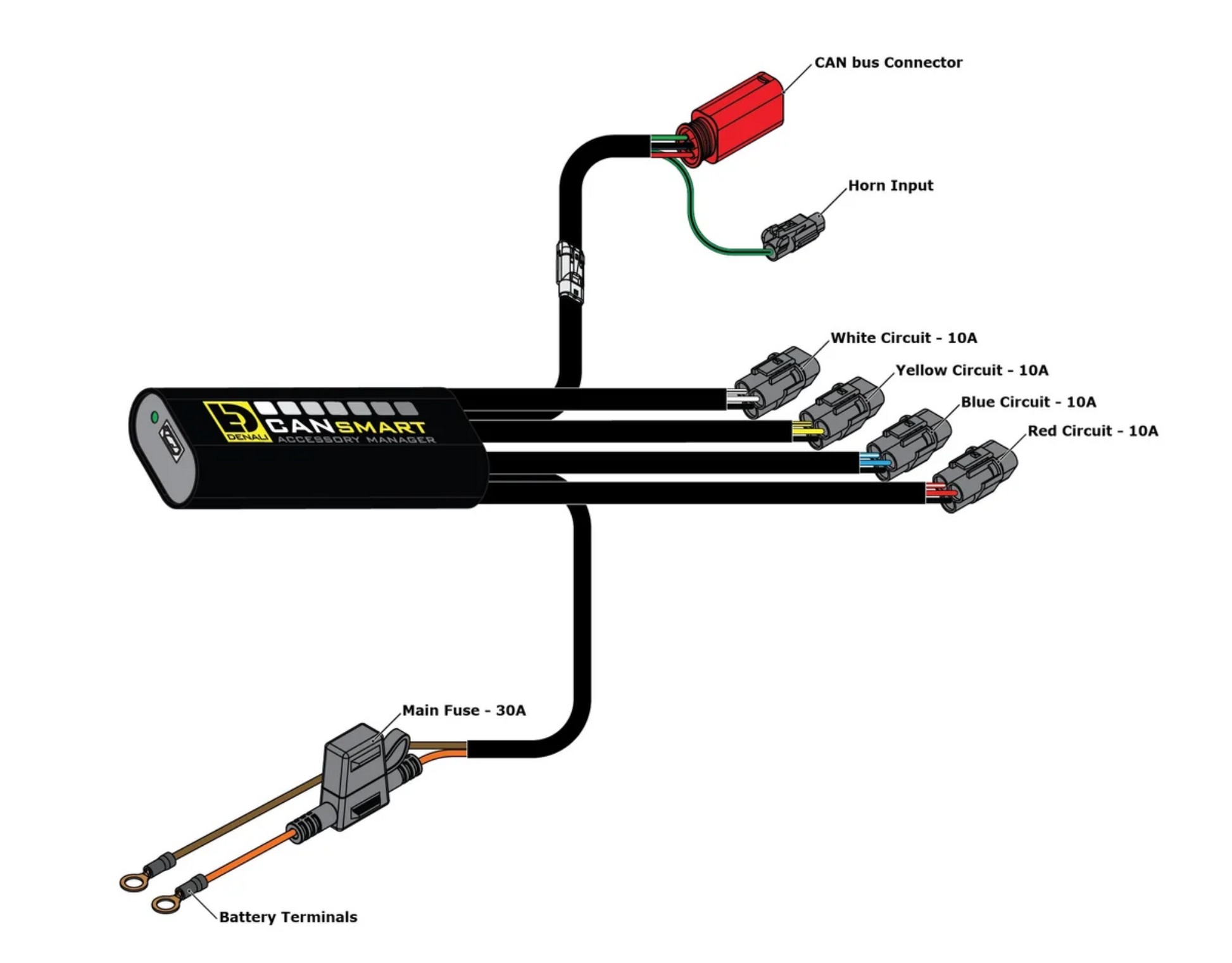

• Independently control up to four accessory circuits.
• All four Gen II circuits can provide up to 10 amps of continuous power each.
• Maximum total power output is 30 amps continuous.
• High/Low Sync allows auxiliary lights to switch between programmable high and low settings with the factory high beam switch.

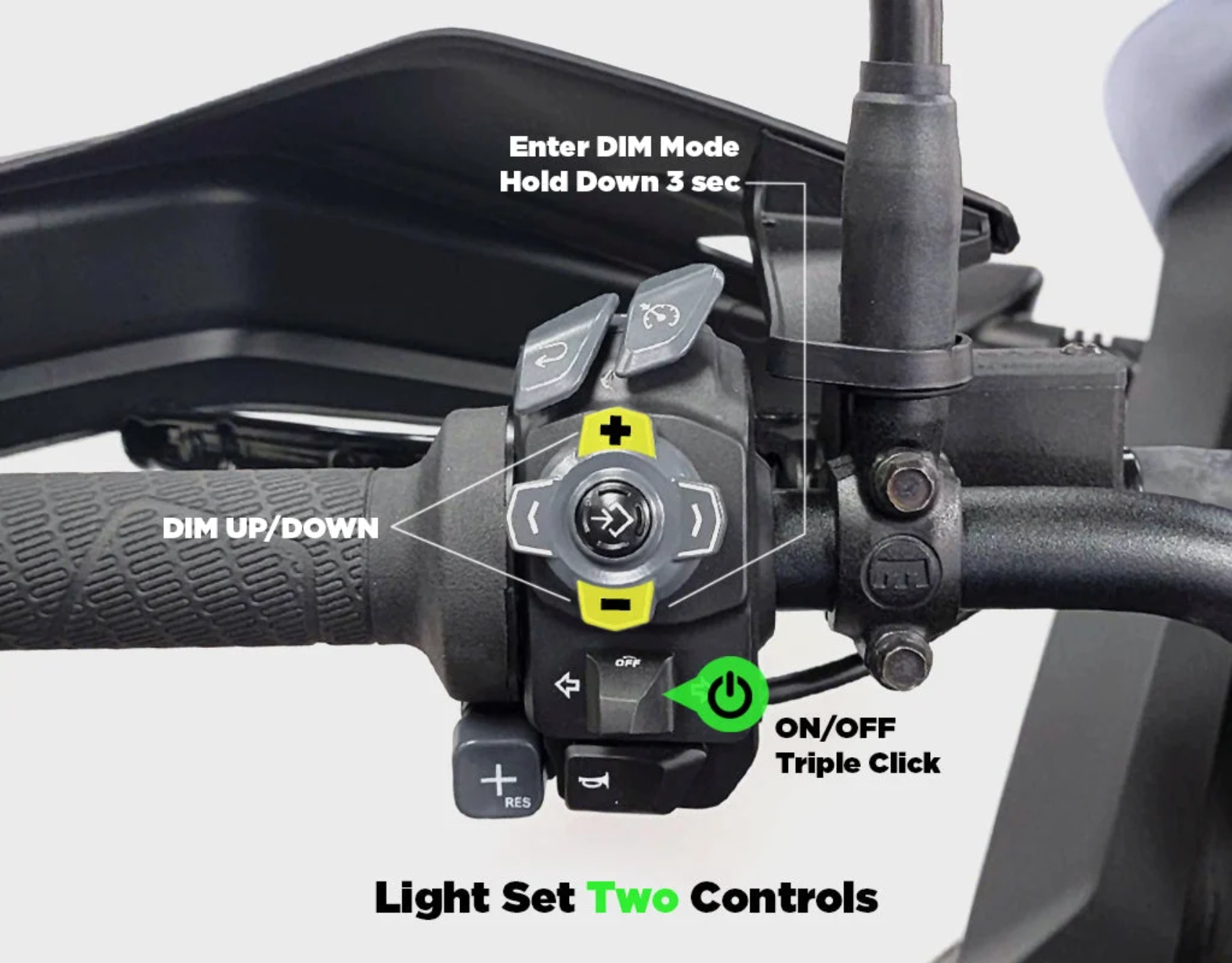

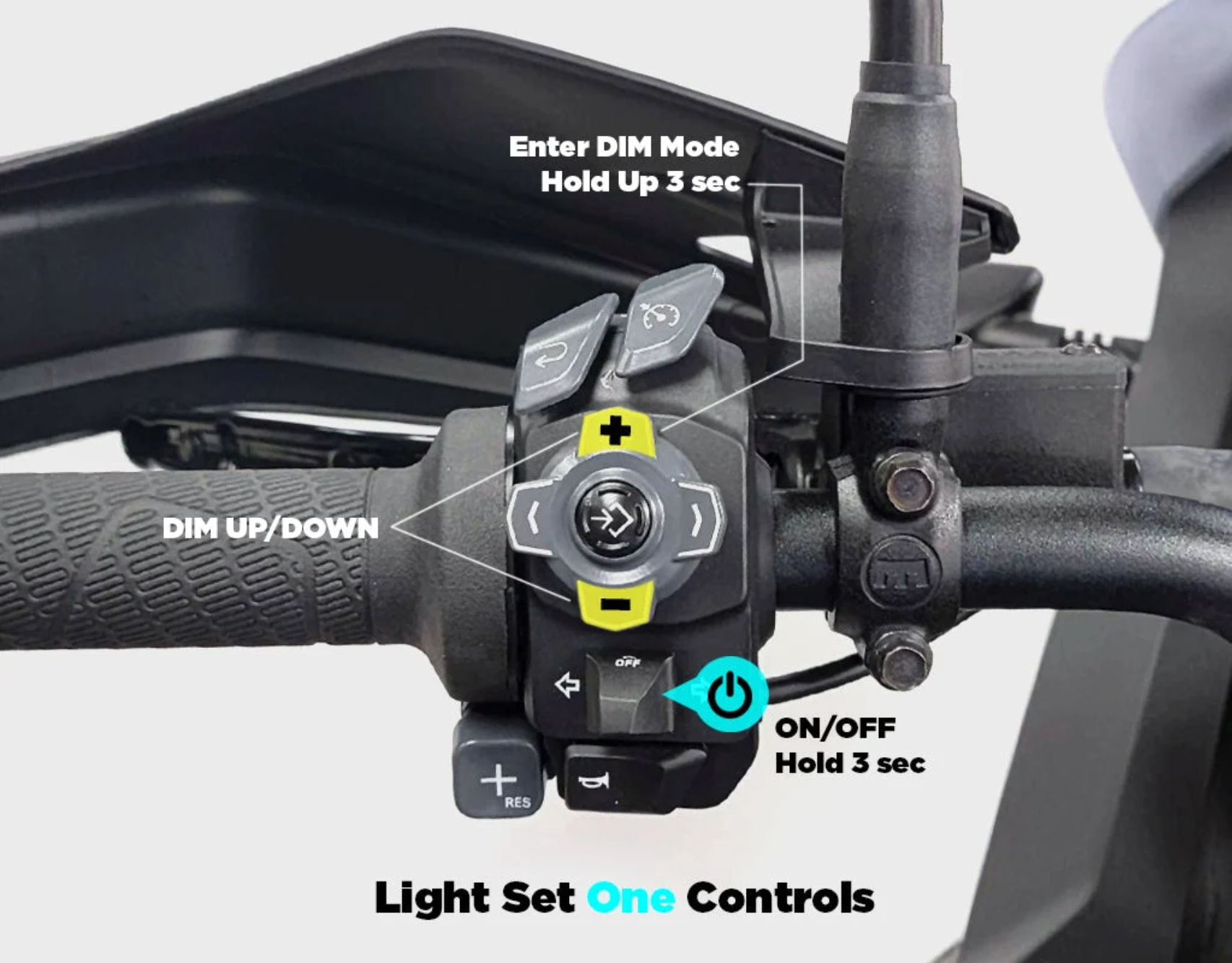

• ON/OFF and Dim functions allow independent control of two sets of auxiliary lights.
• Modulate Lights function increases visibility to other motorists.
• Flash to Pass pulses auxiliary lights when the high beam switch is activated three times.
• Cancel With Turn Signal can cancel the corresponding auxiliary light when the turn signal is activated.
• Inverse Flashing With Hazards can flash auxiliary lights inversely to the hazard lights.
• Plug-and-play horn installation for high-power aftermarket horns such as the DENALI SoundBomb™.
• Strobe with Horn can automatically strobe auxiliary lights when the horn is activated.
• Deceleration Activated Smart Brake technology can activate an auxiliary brake light during deceleration before the brake is applied.
• Flash Pattern Braking provides four selectable auxiliary brake light flash patterns.
• Circuit Function Selector allows any compatible accessory type to be assigned to any of the four circuits.
• Switched Power Source provides clean switched 12V power that turns on and off with the ignition.
• Delay Time Out can keep accessories powered for up to 30 seconds after the motorcycle is switched off.
• Accessory circuit can power GPS units, phones, heated gear and other electronic devices.

Pre-Configured Accessory Control

The four CANsmart™ circuits are preprogrammed to connect and independently control two sets of DENALI lights, a SoundBomb horn and a B6 auxiliary brake light.

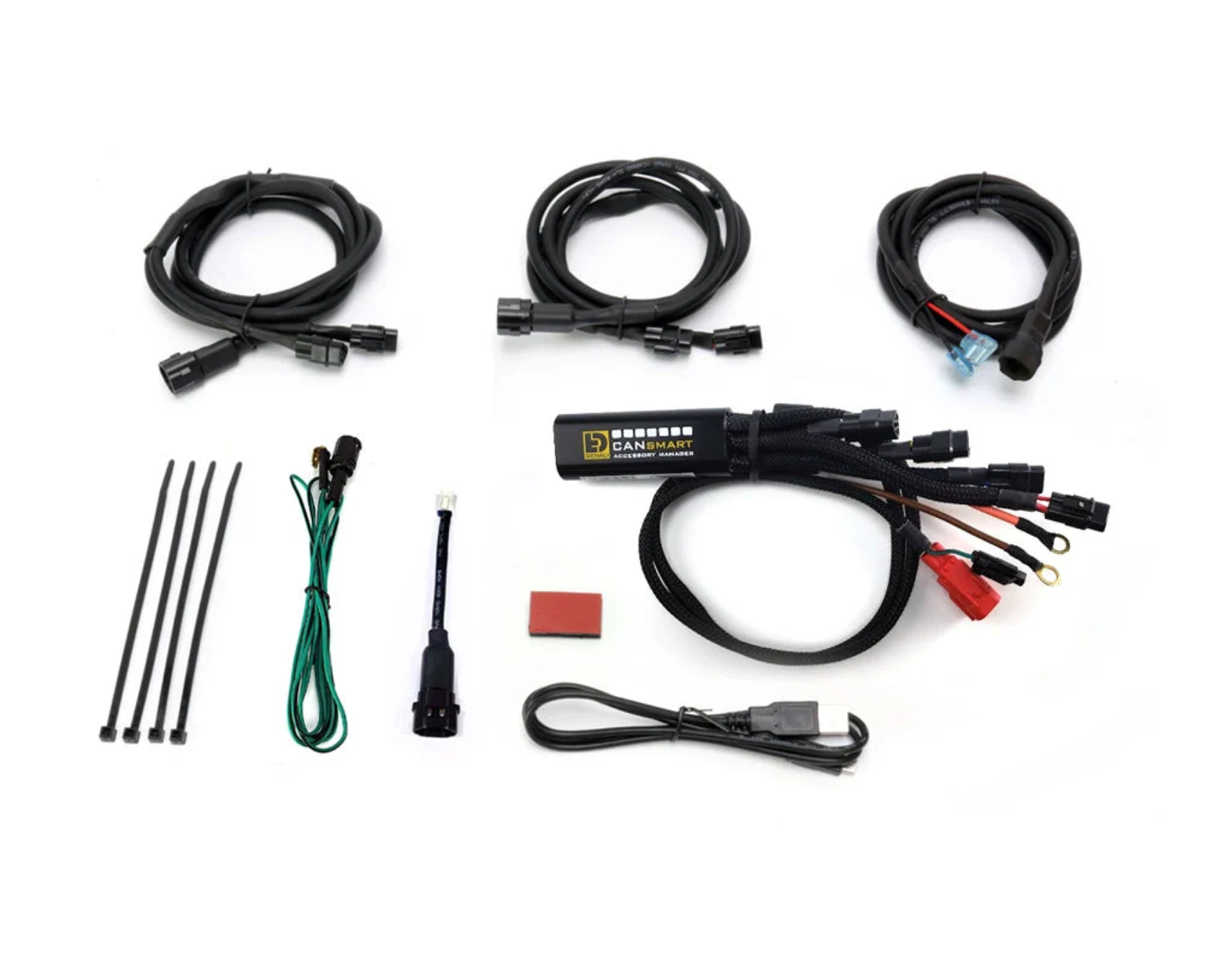

What’s In The Box?

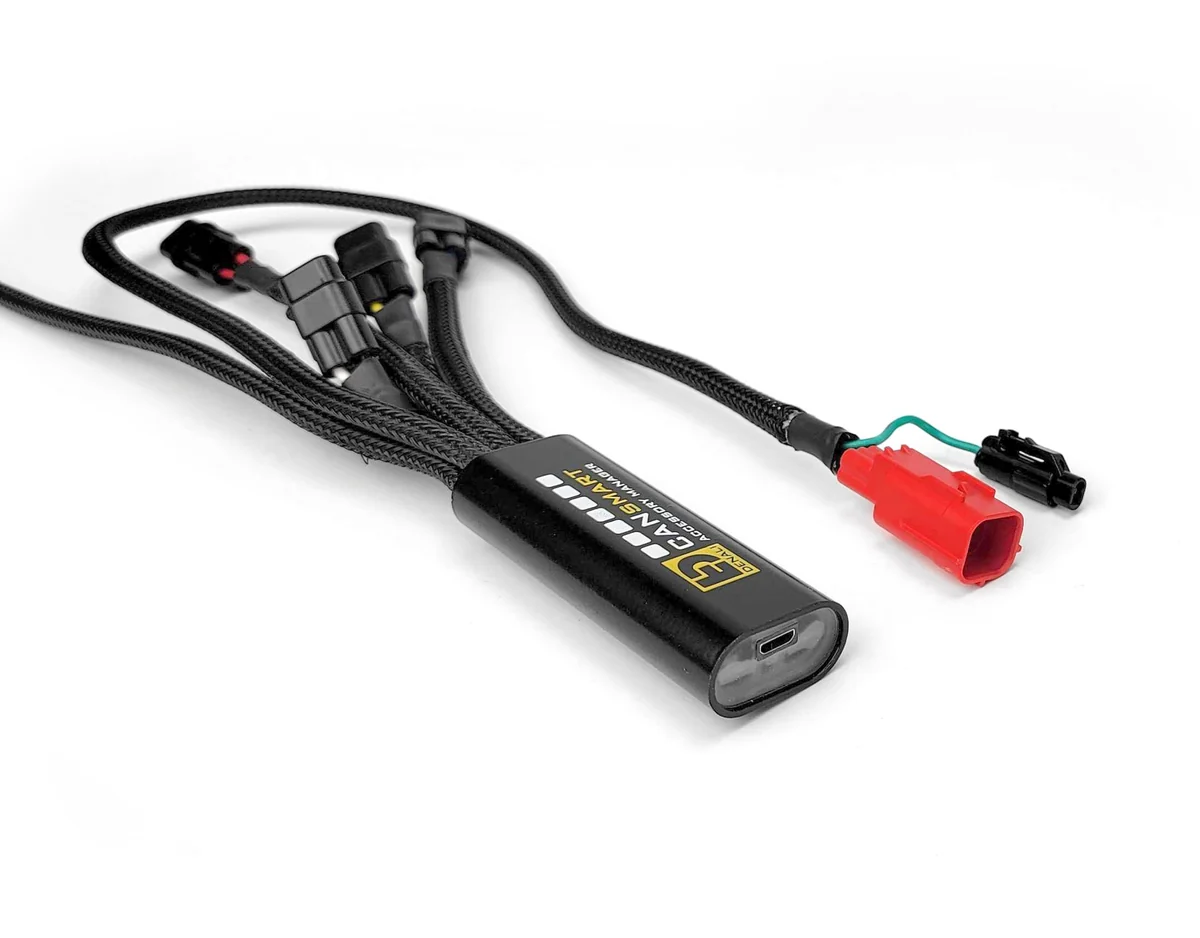

• CANsmart™ Controller
• 2 x 5.5 ft Extension Splitters
• 5 ft SoundBomb Horn Extension Cable
• Horn Trigger Wire
• B6 Brake Light Wiring Adapter
• Zip-ties
• Adhesive Hook-and-Loop Fastener
• Micro USB Programming Cable

Software

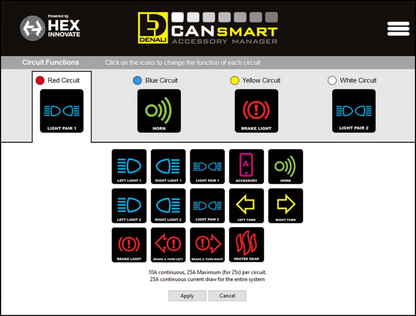

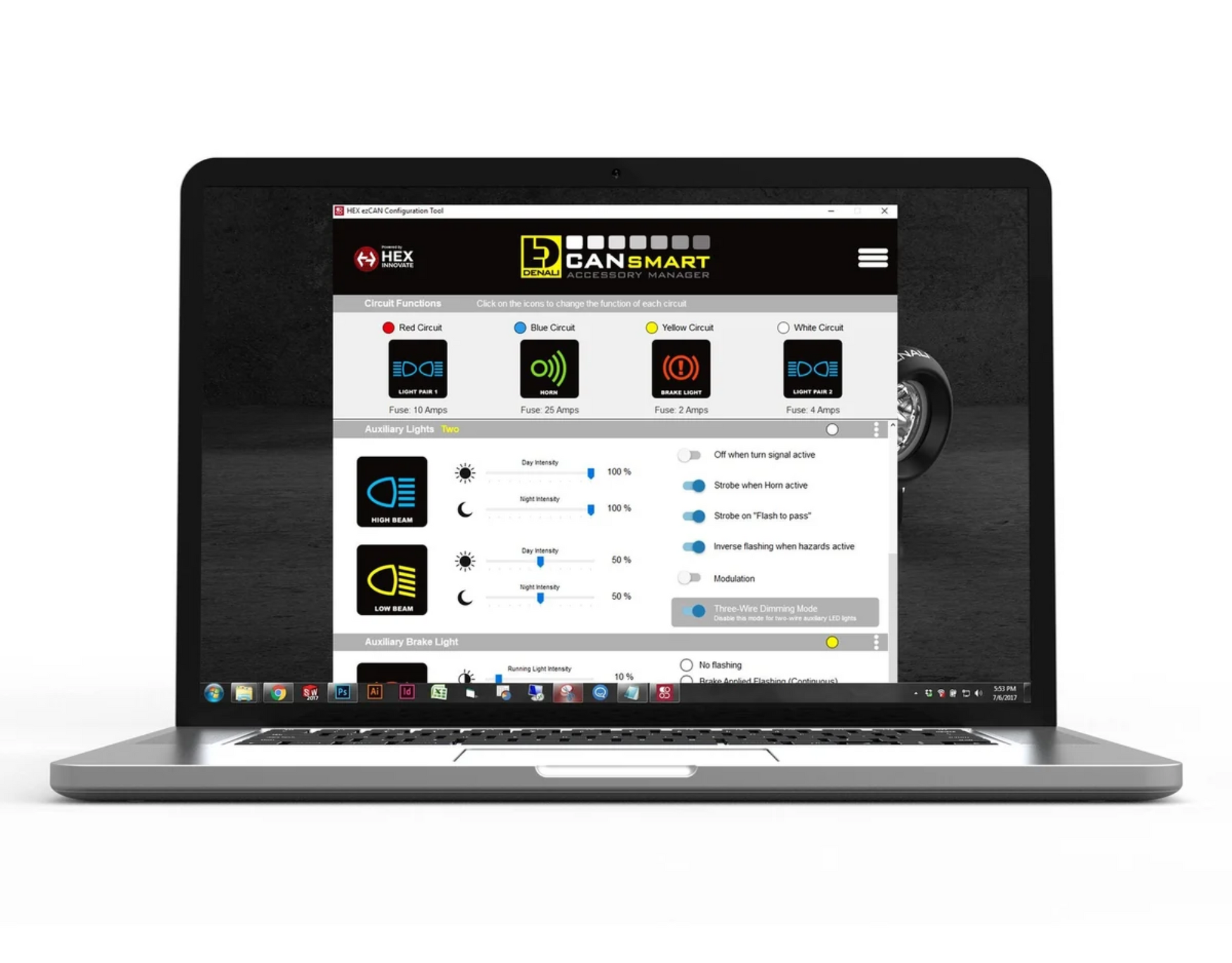

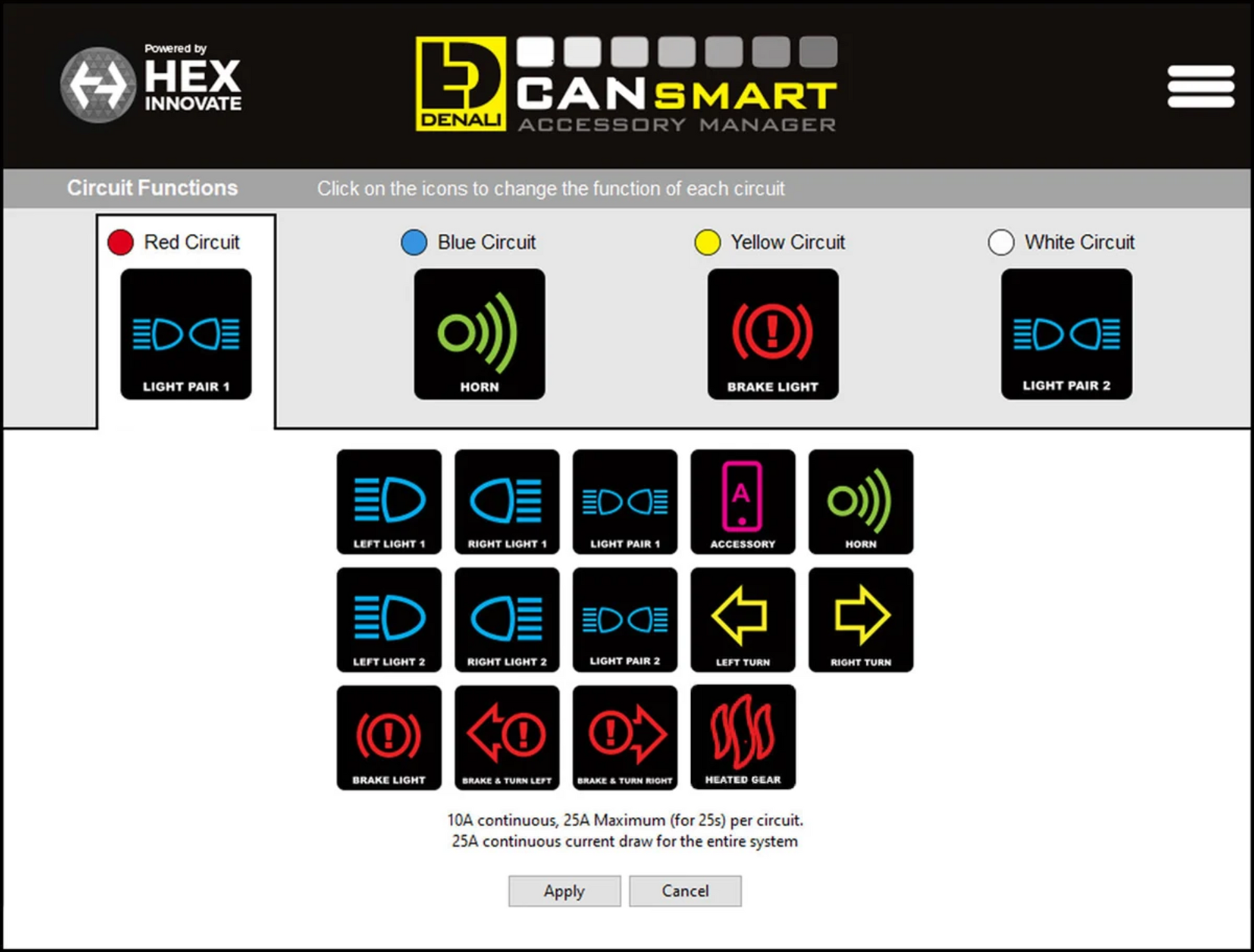

CANsmart™ Accessory Manager Software is available for Windows and Mac computers for configuring and customizing the controller.

Vehicle Fitment

• KTM 890 Adventure - 2020 to Current
• KTM 890 Adventure R - 2021 to Current
• KTM 890 Adventure R Rally - 2021 to Current
• KTM 890 Duke - 2020 to 2021
• KTM 890 Duke R - 2020 to 2023
• KTM 890 SMT - 2024 to Current
• KTM 1290 Super Adventure R - 2021 to Current
• KTM 1290 Super Adventure S - 2021 to Current
• KTM 1290 Super Duke GT - 2021 to 2024
• KTM 1290 Super Duke R Evo - 2022 to 2023

KTM 890 Limitations

• Auxiliary Light One and Two dimming and ON/OFF functions are not available from the factory controls. Light settings must be configured through the CANsmart™ Accessory Manager Software.
• Turn signal circuit function is not available.
• Cancel auxiliary lights with turn signal feature is not available.
• Flash auxiliary lights as turn signal feature is not available.
• Auxiliary brake light activates with the front brake lever only.
• KTM Dongle feature is not available.

Installation Information

If installing forward lighting and the CANsmart™ Controller on a KTM 1290 Adventure, the fuel tank must be drained and removed to route the wiring under the tank. Tank removal is not required for rear visibility or horn installation.

Expansion

A EURO 5 Pass Through Splitter, sold separately, can be used if you intend to install two CANsmart™ controllers on your motorcycle.

Alternative for On-the-Fly Lighting Control

For KTM 890 models where on-the-fly auxiliary lighting dimming is important, the DENALI DialDim Lighting Controller can be used alongside the CANsmart™ Controller. A practical setup can use DialDim for two sets of auxiliary lights while the CANsmart™ powers the horn, brake lights, DRLs or other accessories.

Product Specifications

SKU: DNL.WHS.21700

UPC: 810005873383

Weight: 0.0 lb

Product Type: Accessory Management

Variant: Default Title

Important Information

This is a vehicle-specific product. Fitment and available functions may vary depending on the KTM model and factory wiring configuration. Please verify your motorcycle model and year before installation.
