Barkbusters Hardware Kit – Two Point Mount-BHG-113-00-NP

Barkbusters Hardware Kit – Two Point Mount-BHG-113-00-NP

SPECIFICATIONS:-

• Designed specifically for the YAMAHA XTZ700 Tenere World Raid ( ’22 on) with OEM (Original Equipment Manufacturer)

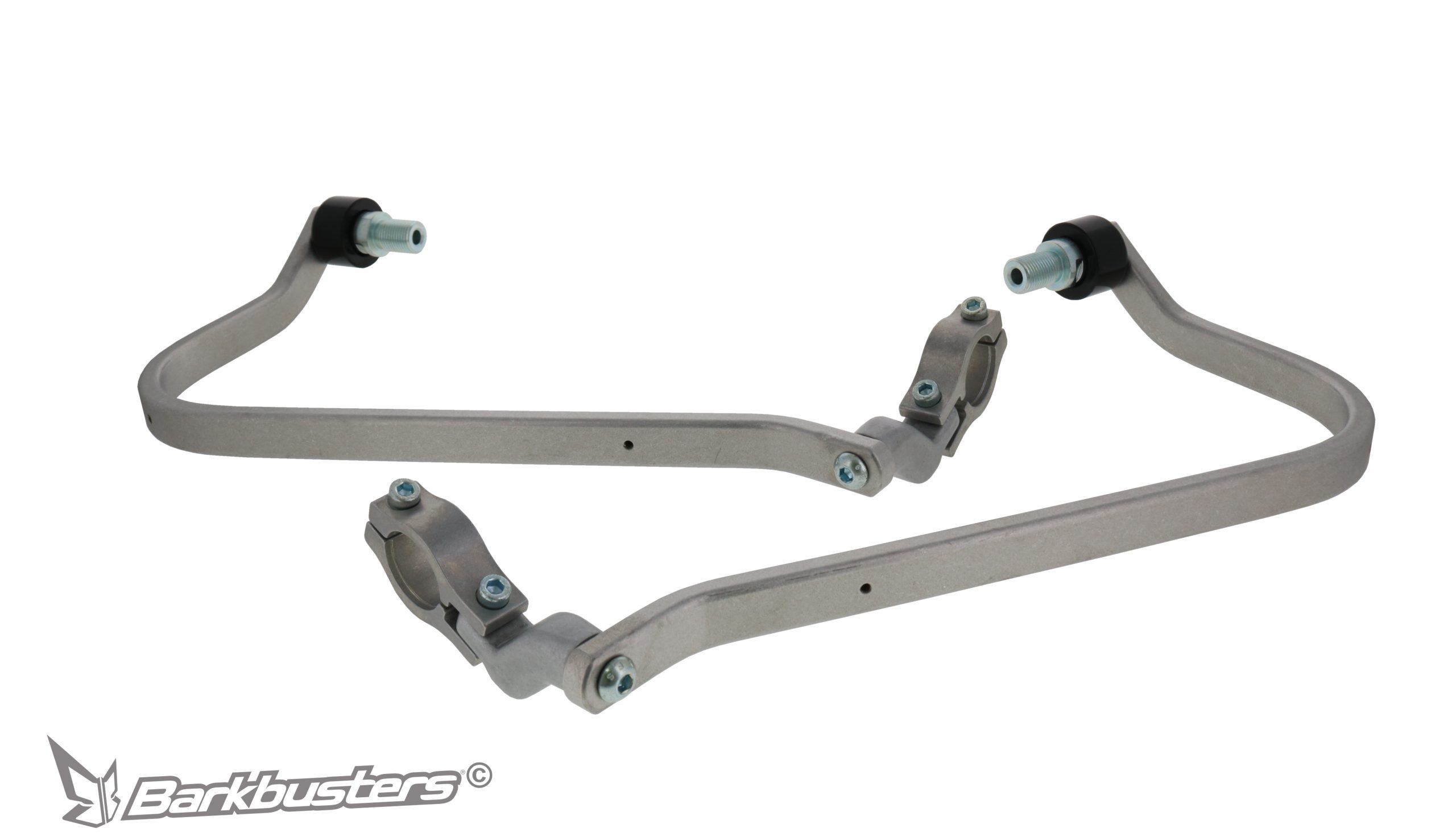

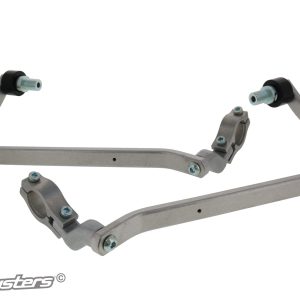

• Two mounting points secure the full wrap-around aluminum design.
• The heat-treated aluminum backbone for added strength and impact protection (backbone powder-coated BLACK).

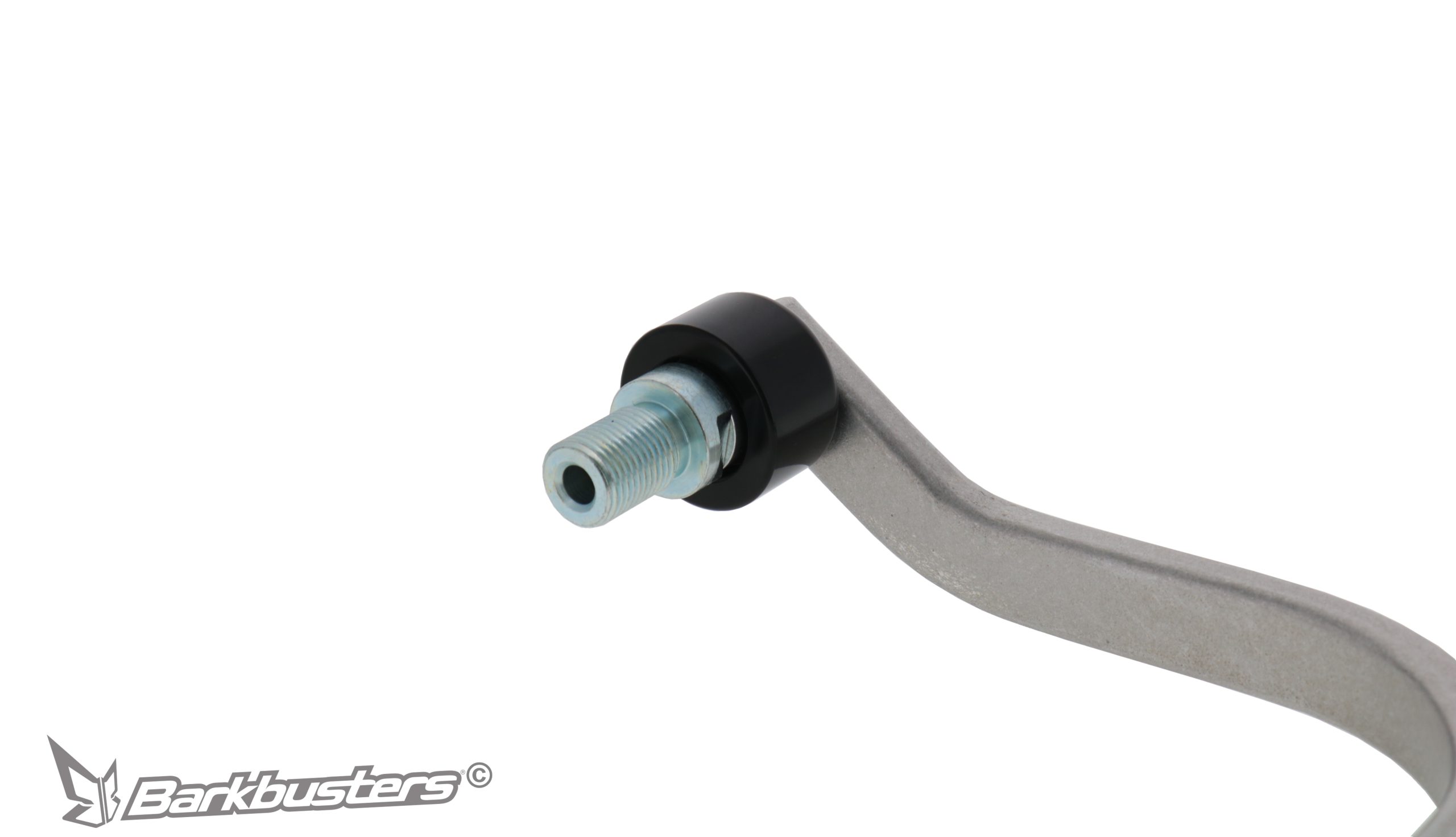

• Bar End Weights included.
• Easy installation.
• Hardware Kit only (NO plastic guards).

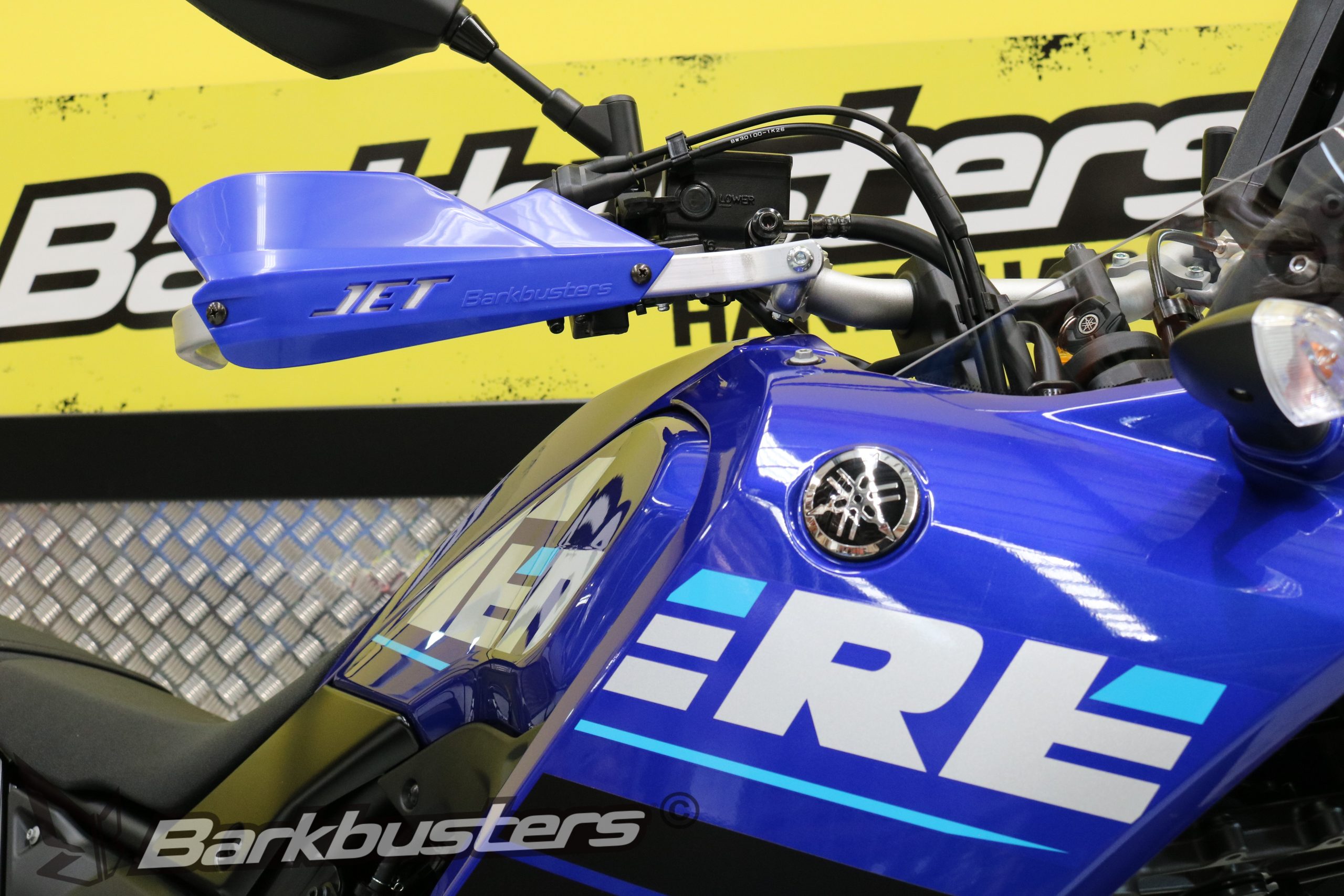

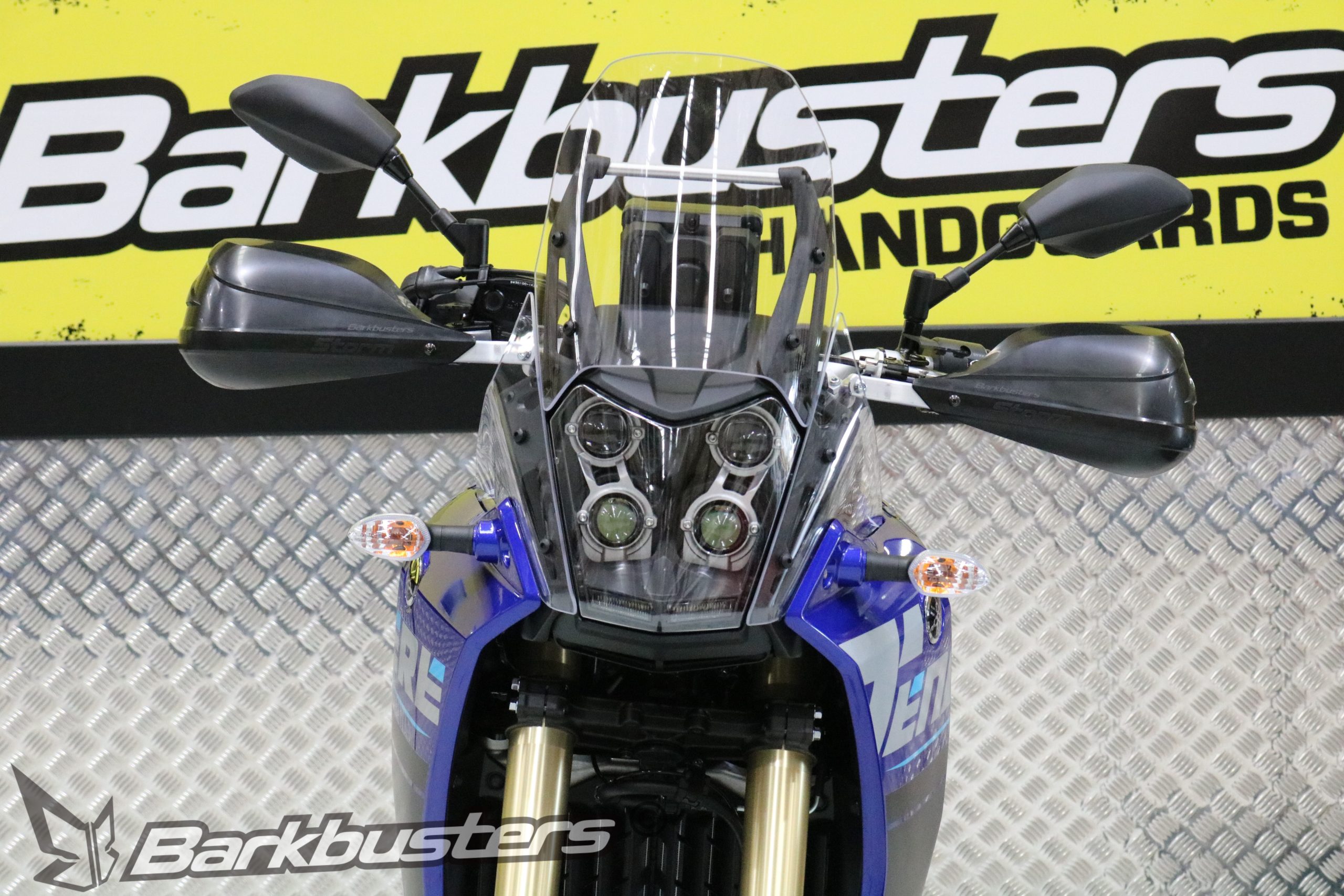

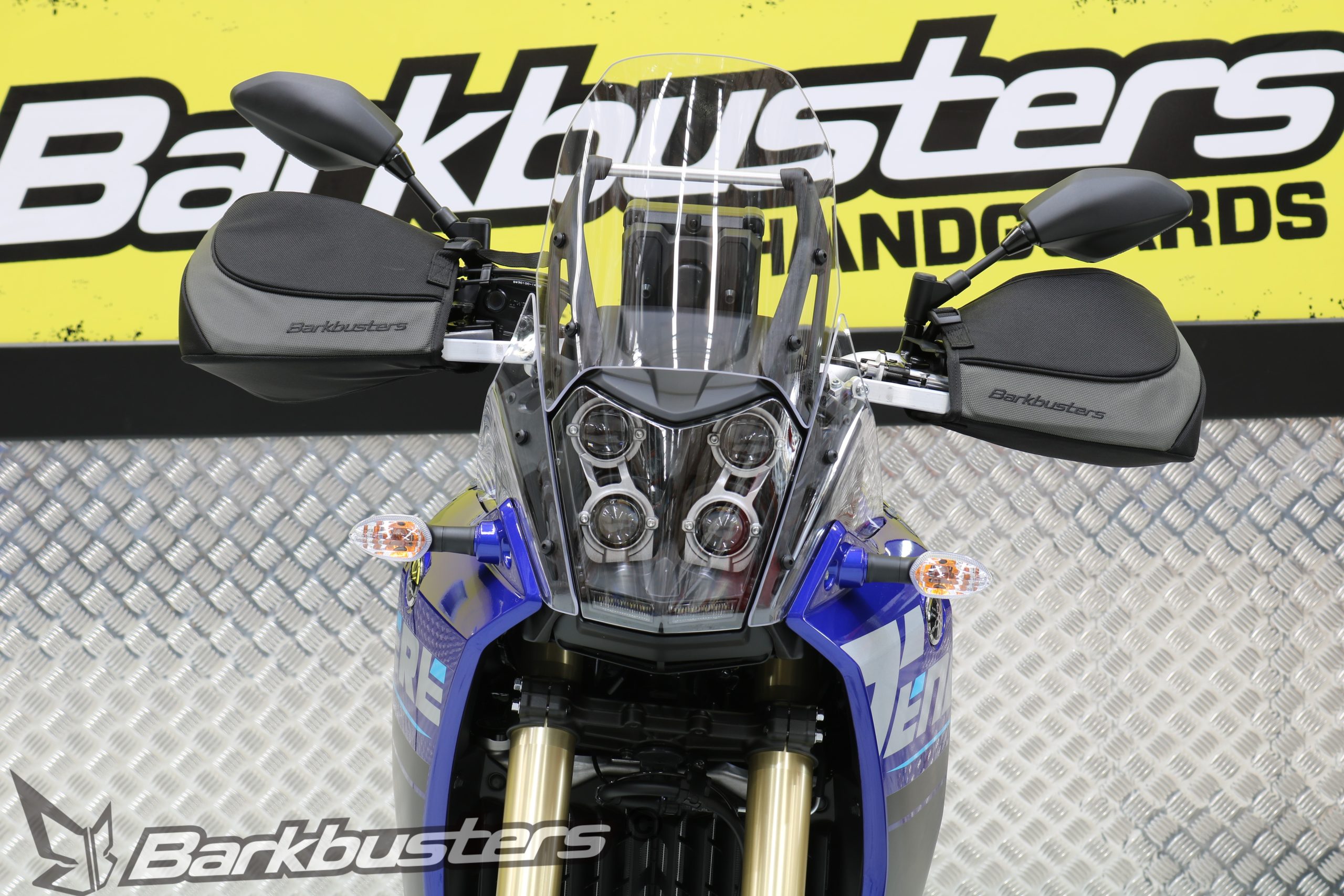

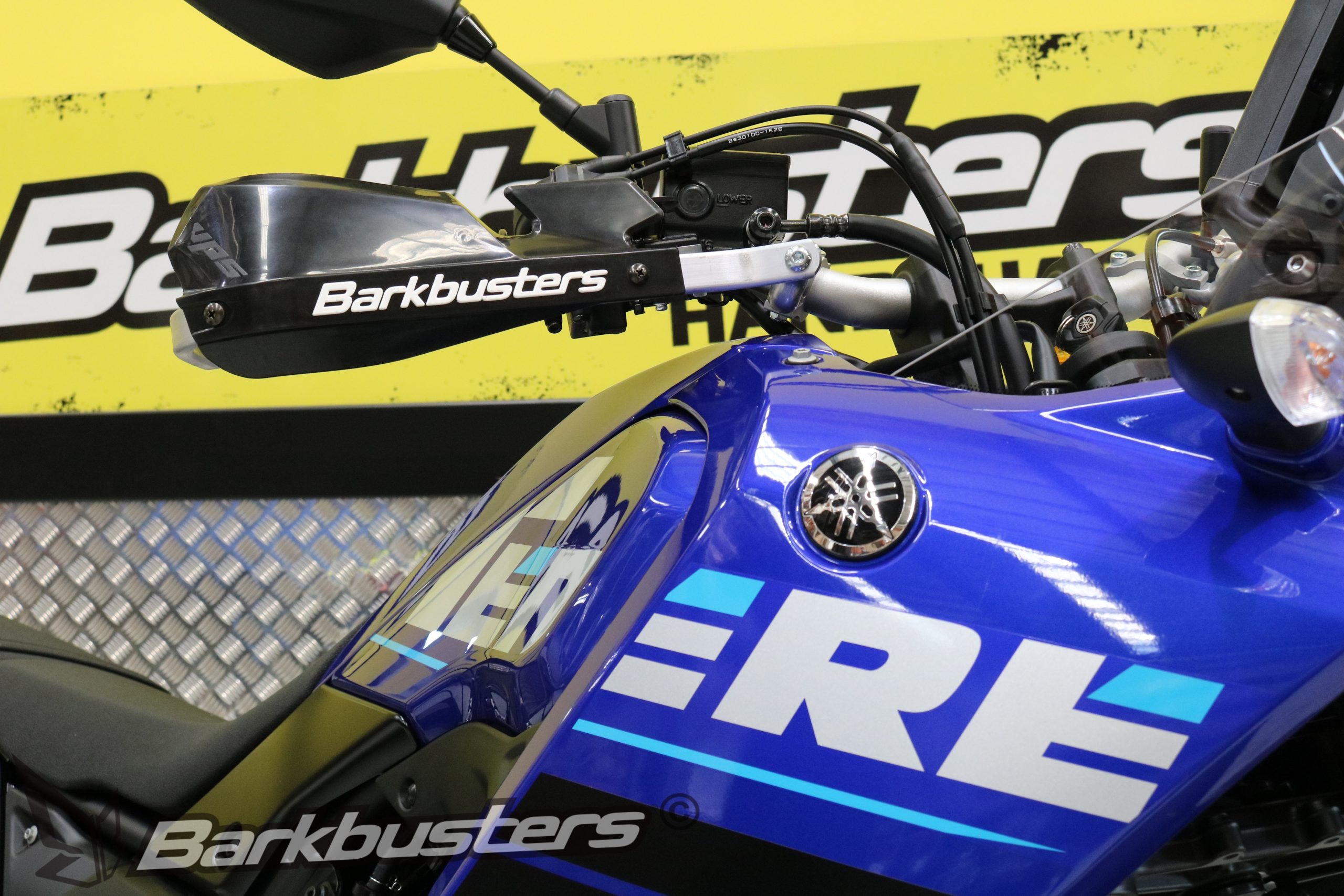

• Compatible with JET VPS, ORM or C, RBON guards (each sold separately).

To fit:
YAMAHA XTZ700 Tenere World Raid (’22 on)

Fitting Procedure shoes shown on the RIGHT side:-

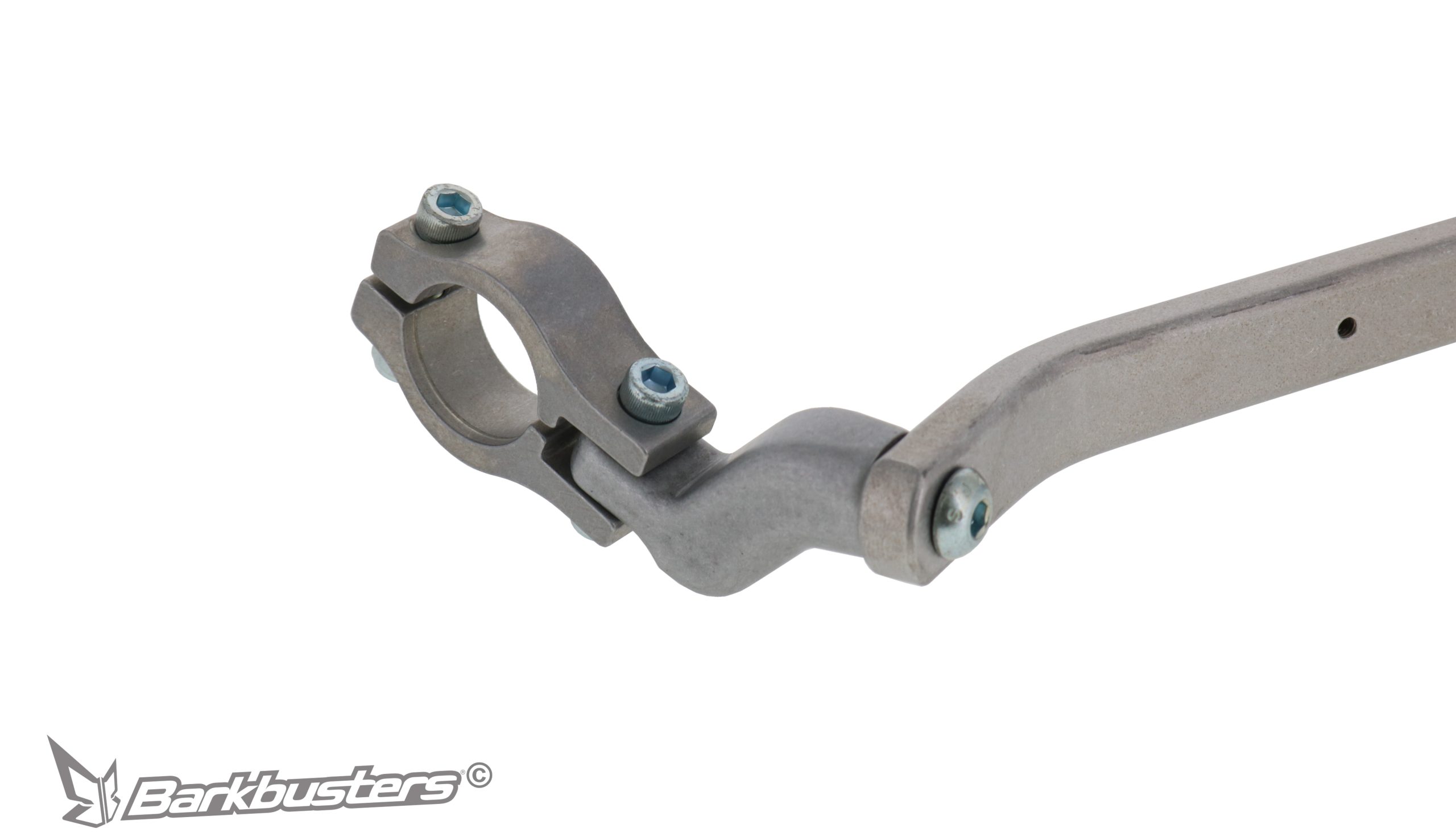

Fitting Procedure Important: There is a ring machined into the inside of the tapered clamp surface to assist with a correct fit. The ring on both halves of the clamp should line up with each other and be positioned towards the ccenterof the motorcycle on the left and right sides. Loosely assemble clamp tothe  handlebar as per diagram. Attach the backbone with applicable parts to the handlebar and the clamp connector (3). Note: The preferred backbone position is horizontal when viewed from the side. Tighten bolt (8) at the handlebar end. Tighten Clamp bolts in the following order: Tighten bolt (7) through the aluminum bar (1) to the clamp connector (3) of the clamp assembly. Tighten bolt (4) to solidly lock the clamp connector (3) between the clamp saddles (2). Tighten bolt (5) to secure the clamp assembly firmly to the handlebar. Note: The clamp is designed to allow the nut (6) on bolt (4) to pull into the recessed hole. This eliminates the need for a wrench after the bolt starts to tighten.

Disclaimer:

A failure to follow these fitting instructions could cause serious injury, death, or property damage. These handguards are intended solely for use with motorcyclesATVsV/snowmobiles/scooters that have not been modified. They are not designed to prevent injury or death while riding or in an accident or crash. The user must ensure that all controls are free of the handguards every time that they ride. By installing and/or using this product you acknowledge that you accept these terms and have followed the fitting instructions.

WARNING: Check the operation of all handlebar controls, specifically the throttle, front brake, kill switch, and clutch to ensure they are operating correctly and are by the OEM specifications. Do not ride the motorcycle if any controls are not operating correctly or if rear view mirror vision is obscured. Check periodically that all bolts are tight.

CAUTION:

Installation of the handguard is safety-relevant work and can be complicated. We recommend the installation be performed by a motorcycle service technician. Rideworx accepts no liability for damages caused by improper mounting. All screws, bolts, and nuts, including all replacement hardware provided by Rideworx, should be tightened to the torque specified in the table. After the first 50km of riding check all screws, bbolboltsnd nuts are tightened to the correct torque. We recommend a medium-strength liquid thread lock product on all fasteners.

Installation Instructions:-
