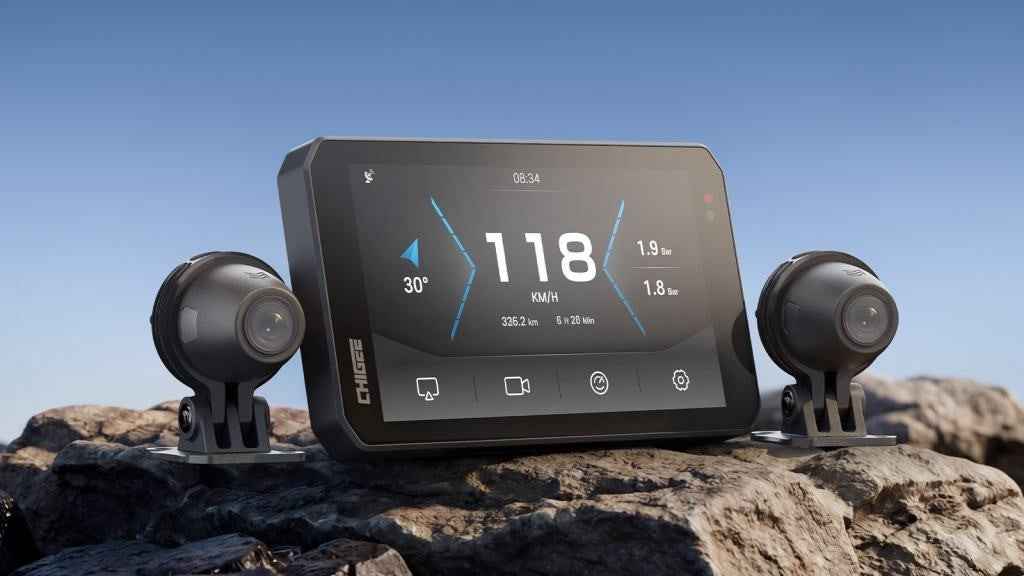

AIO-5 EVO Motorcycle Smart Riding System - MFP0231

AIO-5 EVO turns your cockpit into a smarter command center—bringing wireless CarPlay & Android Auto, dual 1080p dashcam recording, blind-spot alerts, and action camera preview + control to one bright, rugged 5" display.

Note: CGRC CAN / CGRC LIN are not supported on AIO-5 EVO.

Experience Smart and Safe Driving with AIO-5 EVO

The AIO-5 EVO is Chigee's more affordable version. It combines new graphical interfaces with excellent fluidity and performance. Despite being more affordable than the AIO-5 Lite version, it includes many features. The EVO version comes with built-in front and rear camera support, blind spot warning system, action camera control, and many more features.

Its 5-inch high-resolution, 1200nit brightness display, Bluetooth module, and 10Hz precise GPS positioning provide an excellent user experience. Its IP69K waterproof design ensures durability against harsh weather conditions. Furthermore, you can achieve a personalized driving experience with various optional accessories.

 AIO-5 Technical Specifications:

• Easy synchronization with smartphone.
• 2.4/5G Wi-Fi wireless screen mirroring
• Bluetooth 5.0
• 5" high-resolution HDR screen
• 1080P recording with front and rear cameras.
• 32GB internal storage, expandable up to 256GB.
• Blind spot detection with Sony IMX307 sensor and AI BSD.
• Vibration reduction feature
• 1.2GHz Dual-Core A53 processor and 4GB RAM
• Control unit and tire pressure sensor are optional.
• High-strength aluminum alloy frame
• Real-time maps and message notifications
• Rear view monitoring
• Guard Mode: Automatic video recording while parked.
• Mounting bracket suitable for handlebar diameters of 22-32mm.

Package Included:

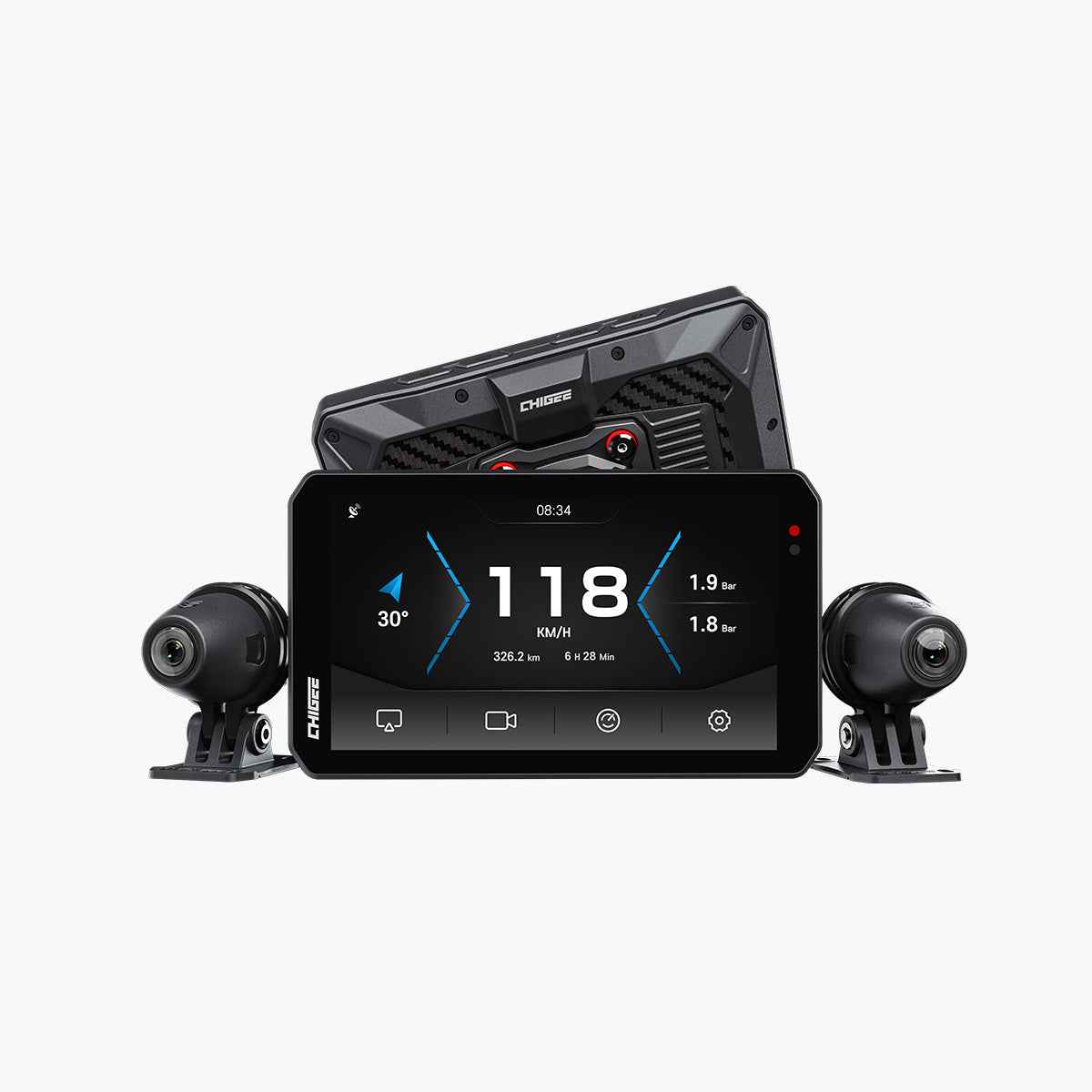

• AIO-5 EVO
• 2 x Cameras
• 22-32mm adjustable handlebar linkage
• Mounting hardware
• Power cord
• 2 x tightening buckles

Part No- MFP0231

Connect Your Phone. Keep Your Apps Right in Sight.

AIO-5 EVO delivers smooth, high-frame-rate mirroring with Apple CarPlay and Android Auto—so calls, music, and navigation stay clear, responsive, and easy to reach while you ride.

All the Ride Info—On One Screen

Customize your layout and view what matters most at the same time—navigation, speed, and camera view. With fewer screen changes and more at-a-glance clarity, you stay focused, react faster, and ride smoother and safer.

Action Camera MegaView & Control

Connect compatible action cameras and control them from your display—start/stop recording, trigger shots, wake the camera, and create highlights with a tap. See recording status and duration in sync, and overlay GPS ride data onto your footage for a clean, accurate route record.
Live preview is currently not available for DJI.

GPS Data Integration
Real-time positioning data syncs to your camera footage—so your video and route line up perfectly.

Pro-Grade Ride Data, Always in View

AIO-5 EVO puts your key riding metrics front and center—speed, trip distance, route, voltage, and more—in real time. Add optional modules for expanded data like tire pressure, and overlay ride stats on your recordings for easy review later.

Which phones are compatible with this device:

Compatible with devices running iPhone 6s (IOS 13) and later. Compatible with Android smartphones featuring Android 11.0 or later.

SD Card Requirement for AIO 5 Evo

Please note that the Chigee Display AIO-5 Evo does not include an SD card. You will need to purchase one separately, and an SD card is required for OTA firmware updates.

• If you do not plan to use cameras:
  A small-capacity card (8–16GB) is sufficient for OTA updates.

• If you also use cameras:
  Choose a larger-capacity card according to your recording needs.

Important: Even for OTA updates, we strongly recommend using a U3-grade SD card. Low-quality or slower cards may cause upgrade failures or trigger “insufficient read/write speed” warnings.

Chigee dashcams and Displays support microSD cards up to 256GB capacity. To ensure stable recording and safe file storage:

• Required standard: U3, V30 (minimum sustained write speed: 30 MB/s)

• Not recommended: U1, V10 (minimum sustained write speed: only 10 MB/s)
  • Using these cards may result in corrupted files, video loss, or even card damage.
• Even with a U3 V30 card, if the card is physically defective or degraded, the system may still report “insufficient write speed.” Always make sure your card is genuine and fully functional.

👉 We strongly recommend choosing reputable brands such as Samsung, SanDisk, or Kingston, and avoiding low-cost unbranded cards.

⚠️ Note for devices without dashcam function:
If your Chigee Display does not include a dashcam feature, you only need a standard, smaller-capacity SD card. This card is only used for OTA updates and does not require large storage space or high write speeds.

Recording Time Reference by Resolution & Card Size

The following values show approximate recording durations based on resolution, frame rate, and card size. Actual results may vary slightly depending on scene complexity and bitrate.

• 1080P / 60FPS (Independent Output)
  32GB ≈ 3.4 hours, 64GB ≈ 6.8 hours, 128GB ≈ 13.6 hours, 256GB ≈ 27.3 hours

• 1080P / 60FPS (Fusion Output)
  32GB ≈ 6.8 hours, 64GB ≈ 13.6 hours, 128GB ≈ 27.2 hours, 256GB ≈ 54.6 hours

• 720P / 60FPS (Independent Output)
  32GB ≈ 4.2 hours, 64GB ≈ 8.4 hours, 128GB ≈ 16.8 hours, 256GB ≈ 33.6 hours

• 720P / 60FPS (Fusion Output)
  32GB ≈ 8.4 hours, 64GB ≈ 16.8 hours, 128GB ≈ 33.6 hours, 256GB ≈ 67.2 hours

• 1080P / 30FPS (Independent Output)
  32GB ≈ 6 hours, 64GB ≈ 12 hours, 128GB ≈ 24 hours, 256GB ≈ 48 hours

• 1080P / 30FPS (Fusion Output)
  32GB ≈ 12 hours, 64GB ≈ 24 hours, 128GB ≈ 48 hours, 256GB ≈ 97 hours

• 720P / 30FPS (Independent Output)
  32GB ≈ 7.8 hours, 64GB ≈ 15.6 hours, 128GB ≈ 31.2 hours, 256GB ≈ 62.5 hours

• 720P / 30FPS (Fusion Output)
  32GB ≈ 15.6 hours, 64GB ≈ 32.2 hours, 128GB ≈ 62.5 hours, 256GB ≈ 125 hours
