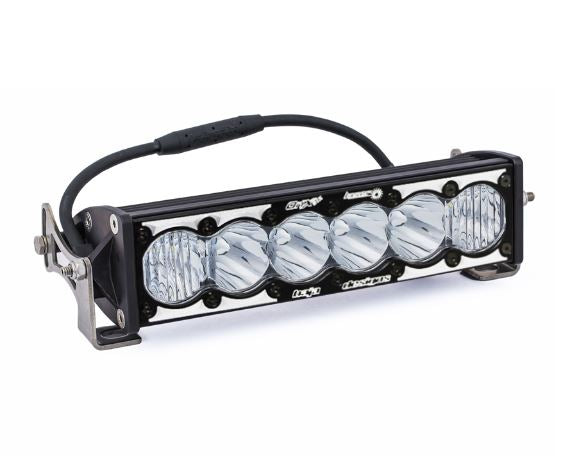

Aux Light Bar OnX6 LASER - High Speed Spot - Clear - 254mm (10 Inch) – Baja Designs - 451007

Aux Light Bar OnX6 LASER - High Speed Spot - Clear - 254mm (10 Inch) – Baja Designs - 451007

Baja Designs

Regular price Rs. 99,000.00
Regular price Sale price Rs. 99,000.00
Sale Sold out
Shipping calculated at checkout.

SKU:

Quantity
  • With Bill
  • Fast Shipping
  • Safe Packing

Aux Light Bar OnX6 LASER - High-Speed Spot - Clear - 254mm (10 Inch) – Baja Designs - 451007

The Baja Designs OnX6 Hybrid LED/Laser light bar gives enthusiasts the ultimate lighting package all in one bar. We have combined our next-generation LEDs with our laser technology to give off-roaders a versatile light that is capable of throwing light 30-40% farther than our current OnX6+ light bar. Each 10-inch segment of the OnX6 Hybrid bar projects two laser chips and four next-generation LEDs projecting through our high-speed spot optics to deliver a far-reaching, smooth blend of light that lights up Zones 2, 3, 4, all the way to Zone 51 for max distance when hitting high speeds on the dirt. Backed by our 30-day Satisfaction Guarantee and Limited Lifetime Warranty for the ultimate in-purchase protection.

Features/Notes:

  • Offered in multiple sizes, from 10in to 50in.
  • Only the 10in. Hybrid light bar allow for operation with two switches. One to control the four LEDs and one to control the two laser chips.
  • OnX6 Hybrid bars sized 20in and above only function with one on/off switch
  • Hybrid bars do not come with a harness. The proper harness will be PN:640119
  • NOTE: 40in/50in Hybrid light bars are extremely high output and are built as dual power cord/dual control. You will need two harnesses (PN:640119) to power the 40in/50in bars. Please verify that your vehicle has the electrical output to run these products before purchase.

service – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Only LED Driven At 100 Percent

5000K Daylight – Less Driver Fatigue, Natural Color

SKU: 451007

Dimensions

Depth (in.) 4.290
Height (in.) 2.690
Length (in.) 10
Weight (lbs.) 4.250

Specifications

Amperage Rating (A) 7.200
Average Rated Life (hr.) 49,930
Beam Pattern Hybrid Spot
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 3750
Description Hybrid Spot; Clear
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 6
Lighting Technology 2 Laser/4 LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type OnX6 10 Inch Hybrid LED/Laser Light Bar
Universal or Specific Universal
Wattage (W) 99.360
Wiring Harness Included No

Standards & Compliance

Patent No. 10,641,472
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
