Baja Designs Aux LED - SQUADRONS 2.0 PRO - Baja Amber (49-7813-2)

Baja Designs Aux LED - SQUADRONS 2.0 PRO - Baja Amber (49-7813-2)

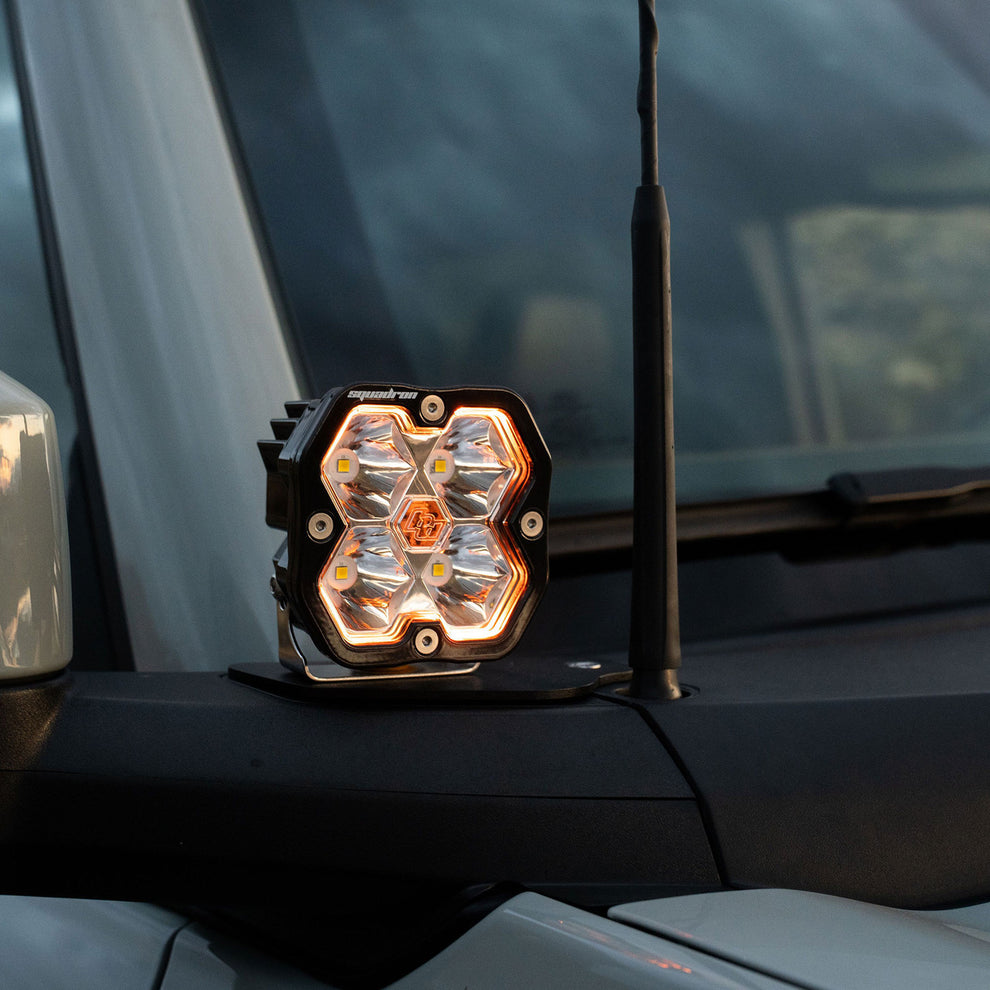

A complete redesign of Baja Designs' most trusted compact LED light pod. The Squadron 2.0 Pro delivers 5,921 lumens at 65W — a 41% performance boost over the previous generation — with next-gen optics that push light farther and wider with less spill.

Color Selectable Backlight
The Squadron 2.0 features an integrated 9-color selectable backlight. Drivers can toggle between red, green, blue, magenta, cyan, amber, yellow, pink, and white, all configurable through the included harness. Color settings are retained when the light is powered off, so your setup is always ready when you are.

What's New?

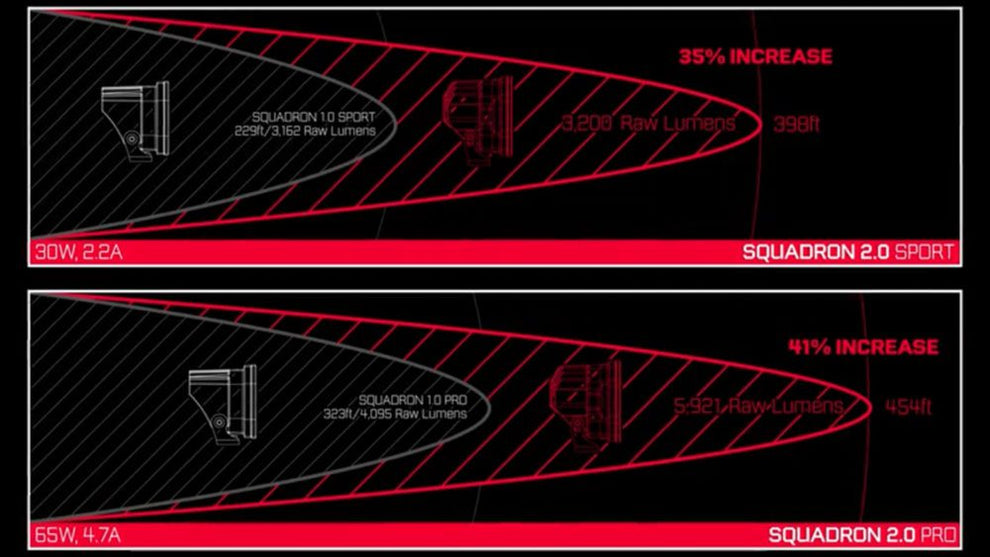

• Refined beam pattern for greater distance, wider coverage, and reduced spill
• 9-color selectable backlight to match your vehicle
• Rugged 4-pin Deutsch connector for wiring durability
• Clip-in reflectors for easier lens changes (uService®)
• Redesigned gasket for superior weather sealing
• New mounting bracket with increased vertical adjustability
• Gloss black aluminum housing

Specs

• Lumens: 5,921 | Watts: 65W / 4.7A @ 13.8V
• Voltage: 12–32V | IP69K Rated
•  Dimensions: 8.43 cm (H) × 8.35 cm (W) × 7.21 cm (D) ( Inches : DIM: 3.318”(H) X 3.289”(W) X 2.840”(D))

ELS™ Scores

• Spot Clear: 86° / 6.1 / 454 / 4930
• Driving Combo Clear: 128° / 7.4 / 403 / 4955
• Wide Cornering Clear: 132° / 7.6 / 159 / 4946
• Work/Scene Clear: 148° / 8.0 / 64 / 4575

NET QUANTITY WHEN CHOOSING Harness Kits Includes:

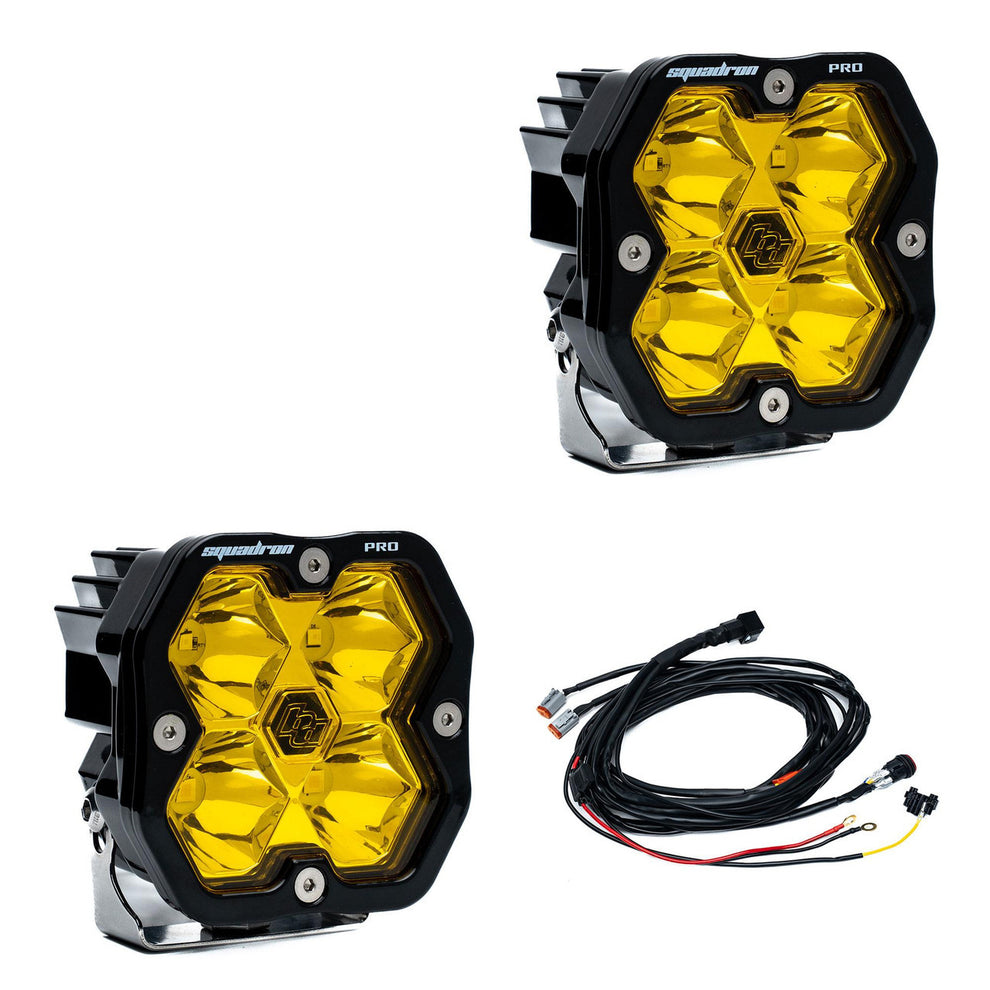

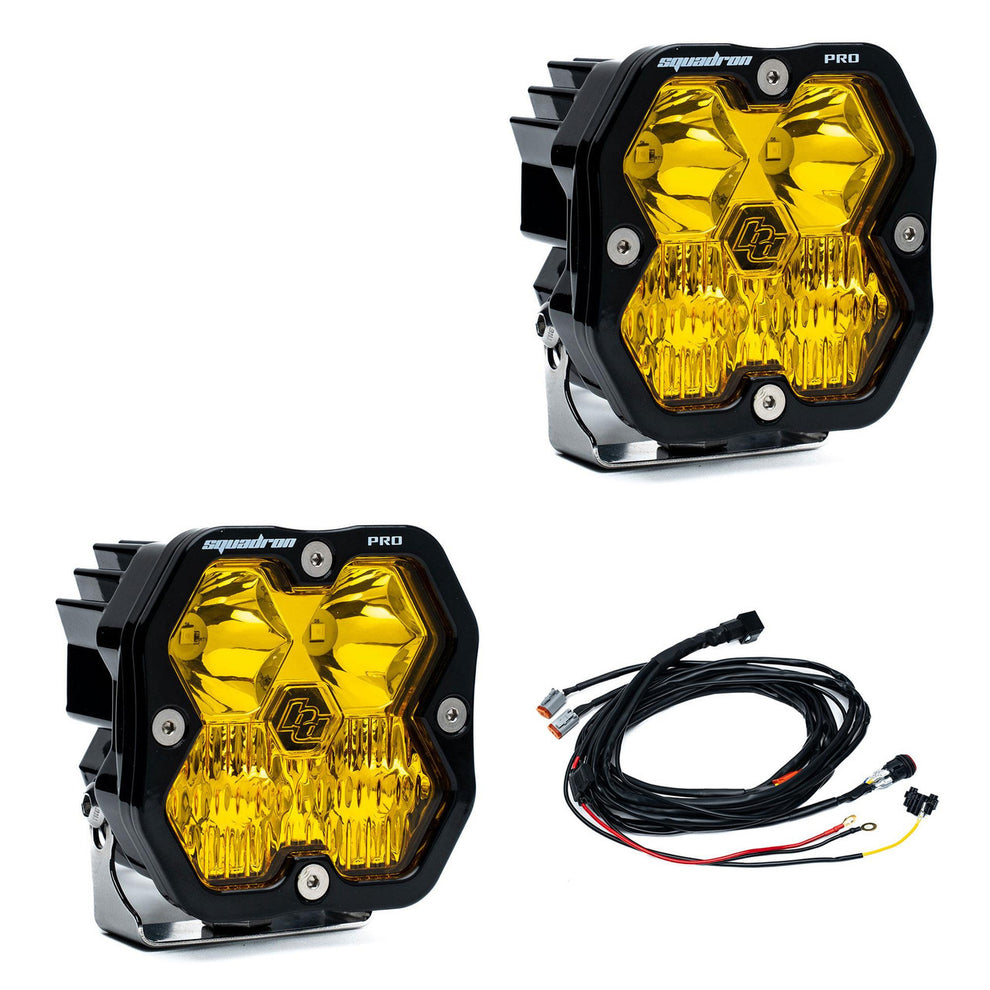

• 2N Squadron 2.0 Sport Light Pods and mounting hardware

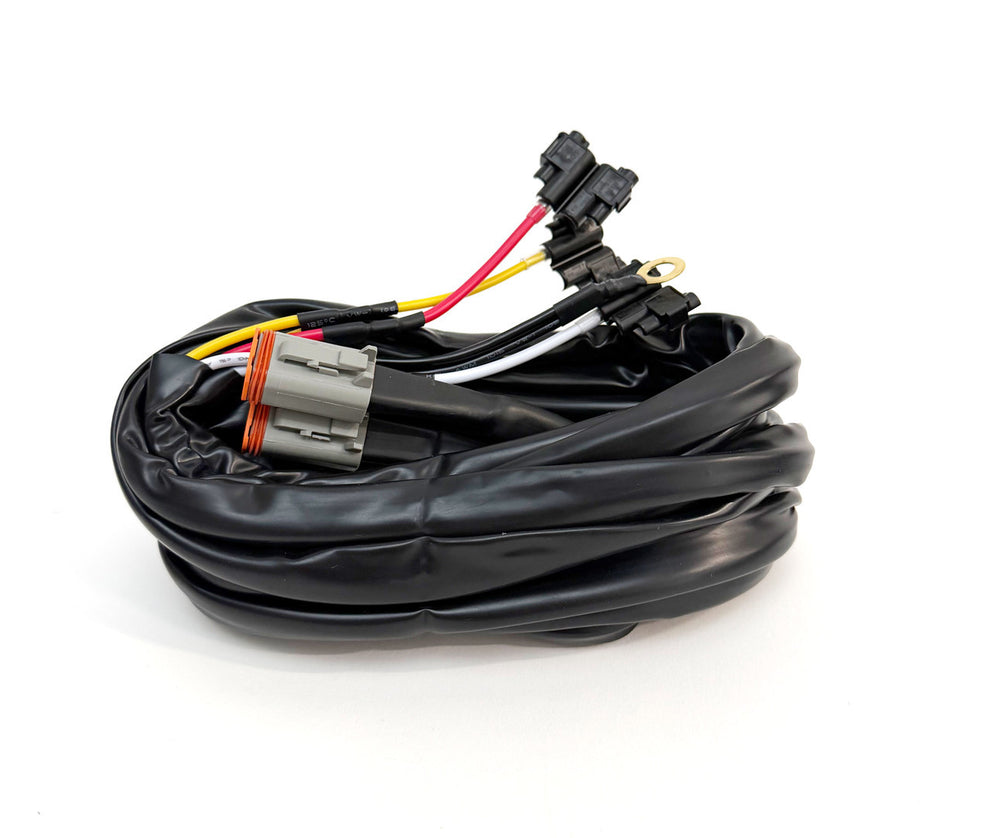

• 1N Wiring Harness

NET QUANTITY WITHOUT HARNESS Includes:

• 2N Squadron 2.0 Sport Light Pods and mounting hardware

WIRING DIAGRAM

ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSES ONLY. ACTUAL PRODUCT MAY VARY.
