SPECIFICATIONS:-

• Designed specifically for the HONDA CL500 (’23 on) with OEM (Original Equipment Manufacturer) specifications.

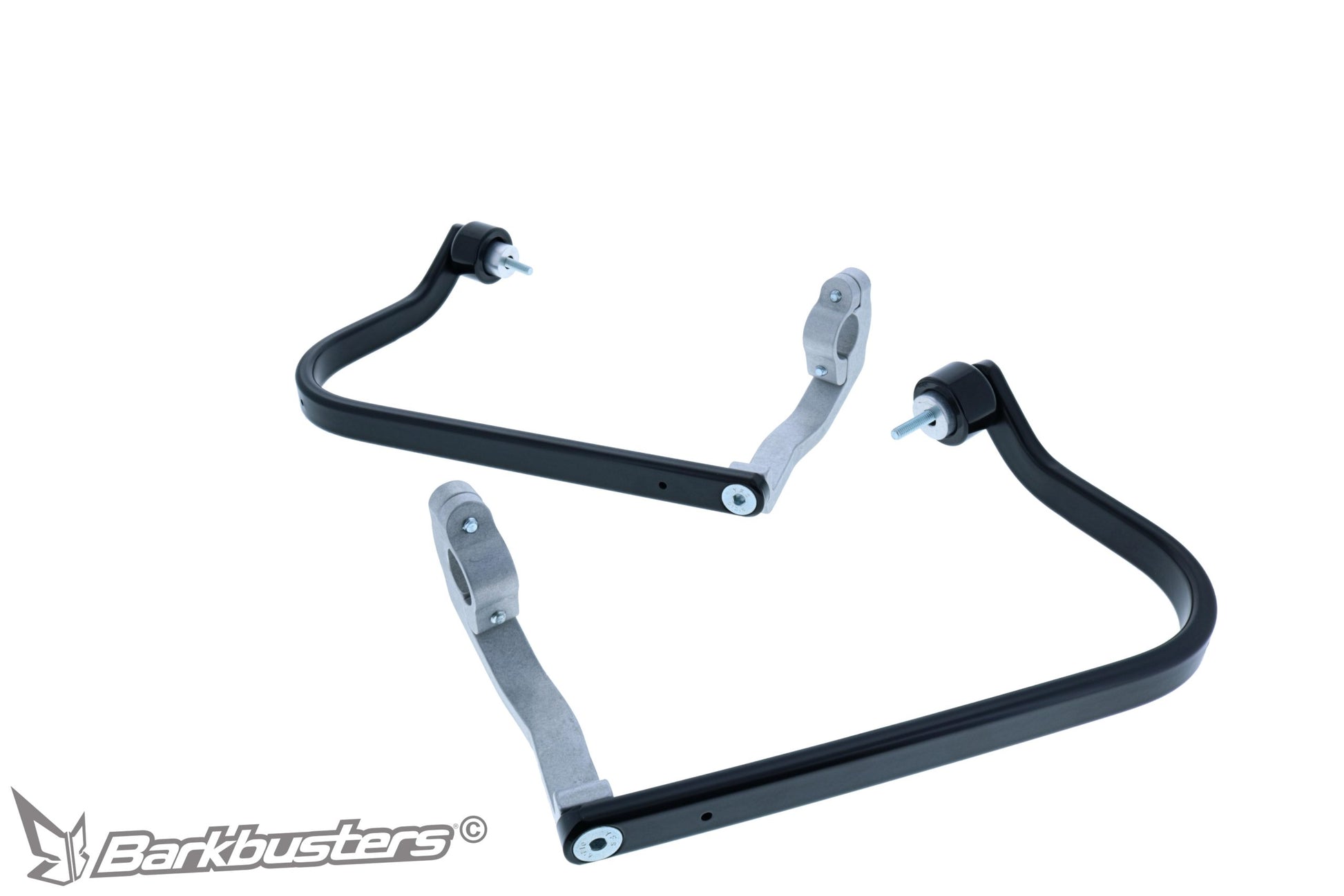

• Two mounting points secure the full wrap-around aluminum design.

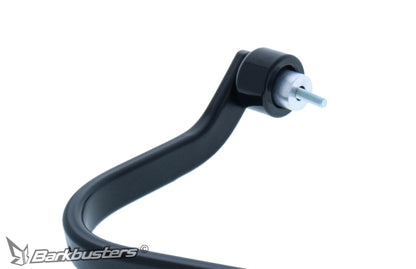

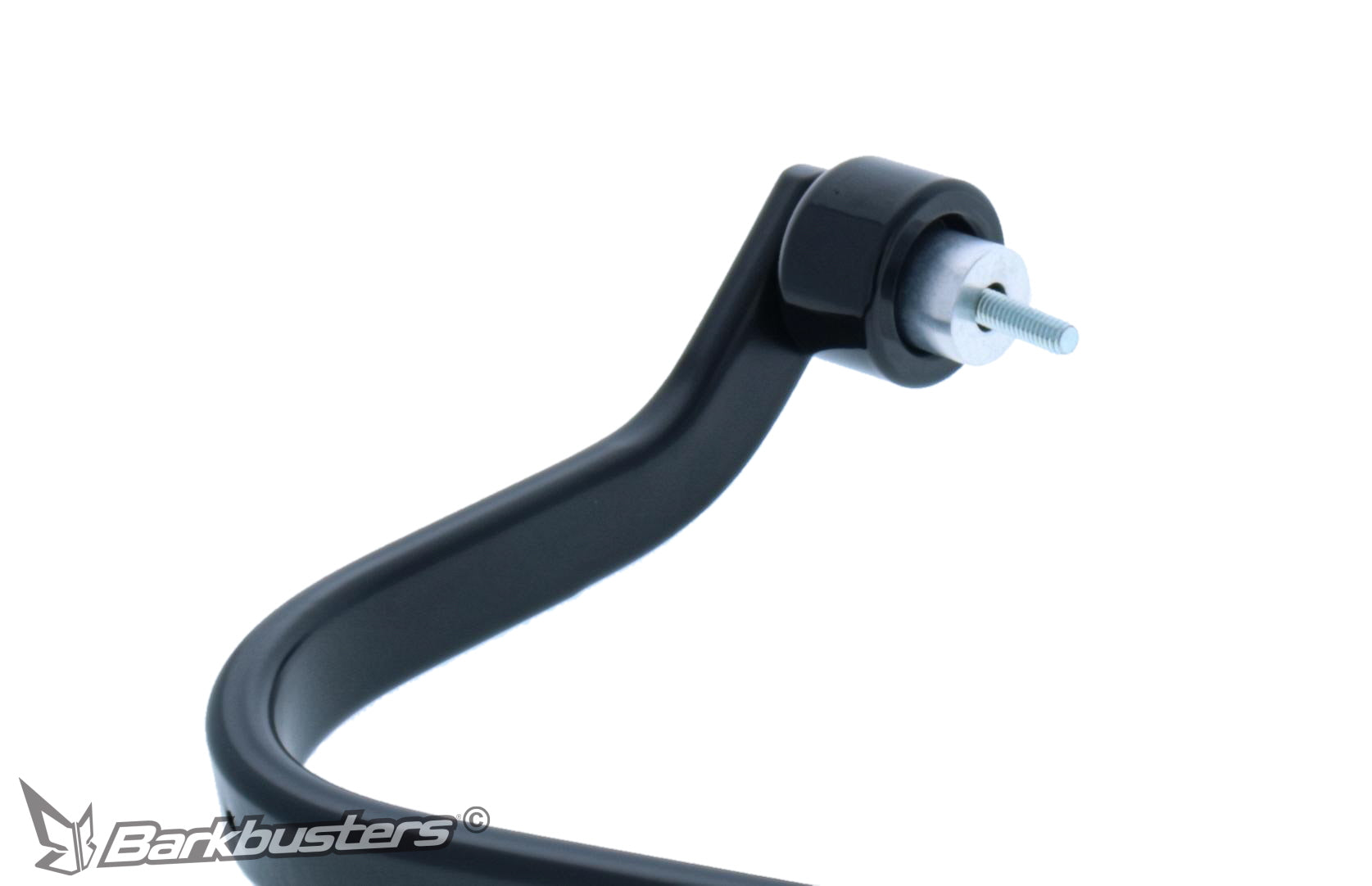

• The heat-treated aluminum backbone for added strength and impact protection (backbone powder-coated BLACK).
• Bar End Weights included.
• Easy installation.
• Hardware Kit only (NO plastic guards).
• Compatible with JET VPS, ORM or C, RBON guards (each sold separately).

To fit:

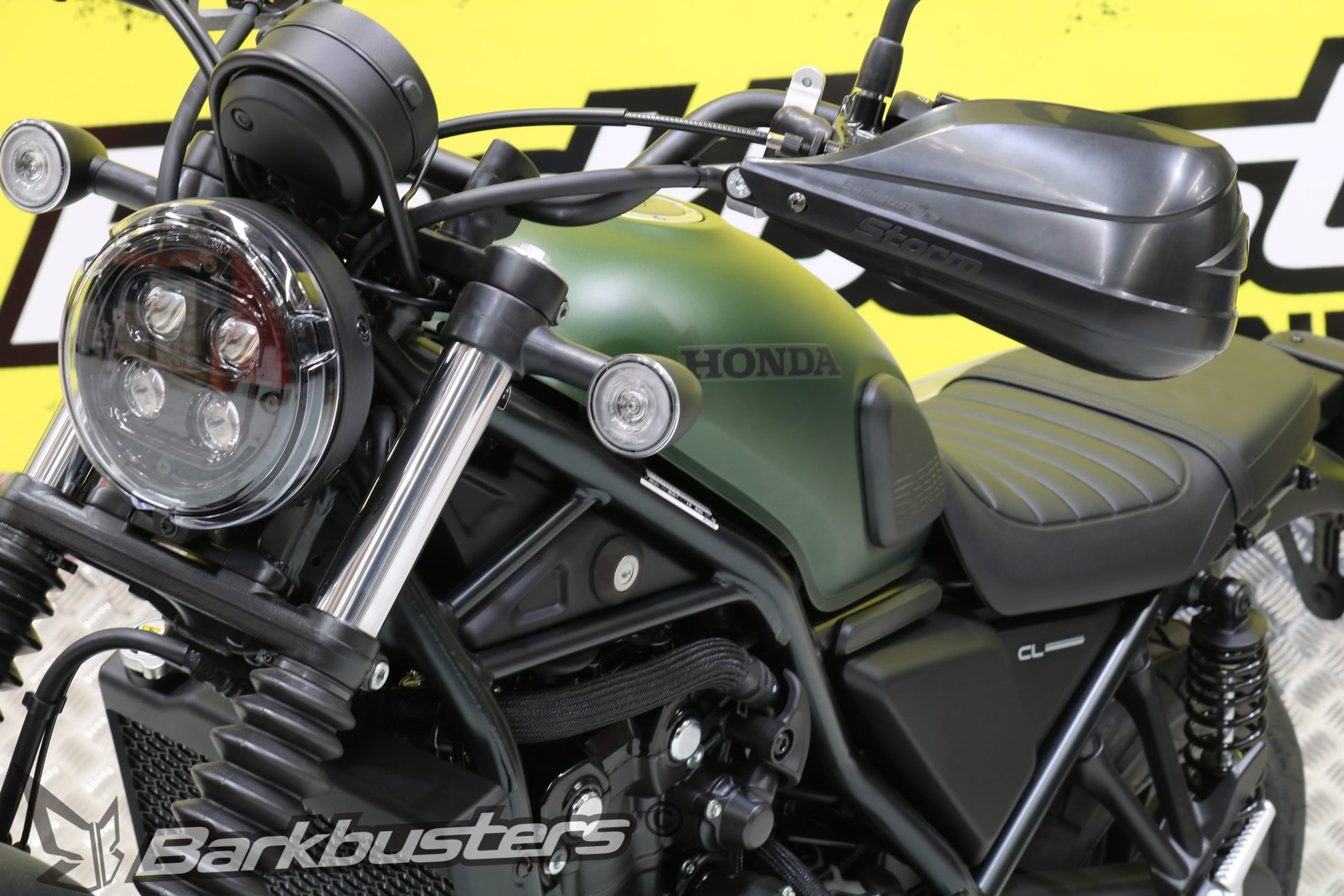

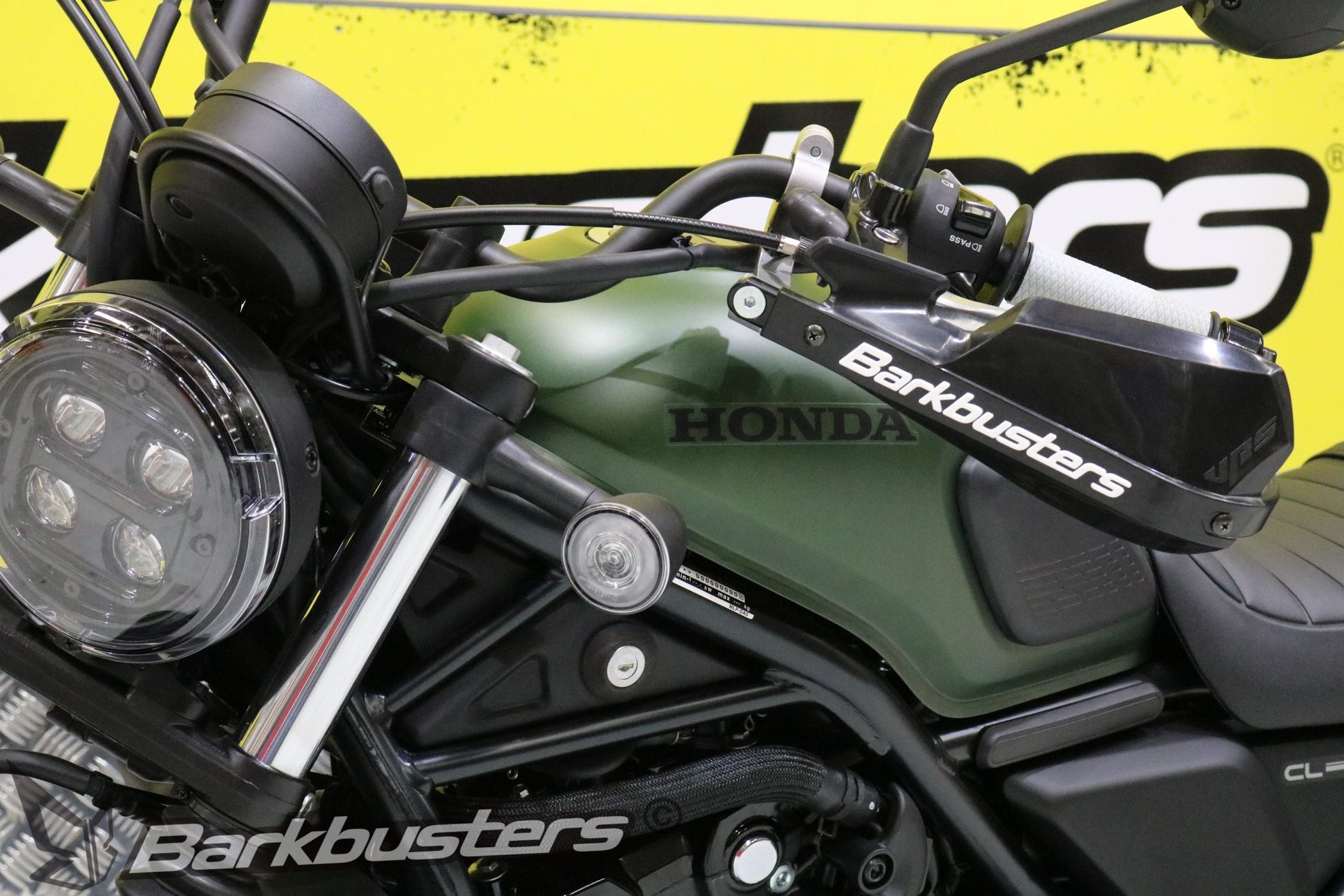

HONDA CL500 ('23 on)

Fitting Procedure shoes shown on the RIGHT side:-
(repeat for the Left side with applicable parts. Use spacer (10) instead of (8))

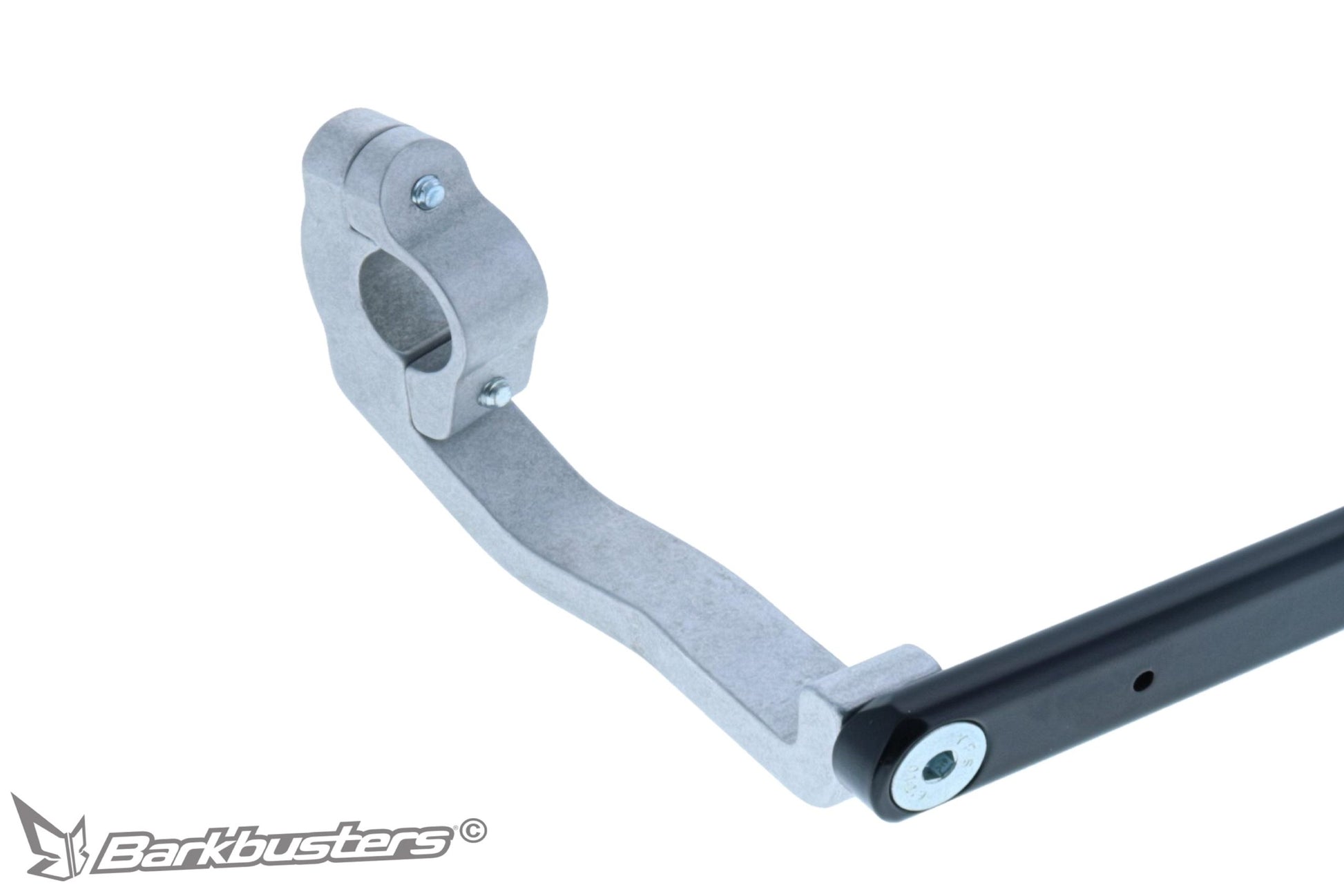

1. Loosely assemble clamp (3) to handlebar as per diagram.
2. Pre-assemble parts (7), (1), (9), and (8) and then present the
assembly to the end of the handlebar, making sure the clamp
(3) aligns with the end of the backbone (1).
3. Loosely tightscrewsw (7) and (6). While making sure the
assembly is in the right position,

Note: The preferred backbone position is horizontal when
viewed from the side.
Tighten all bolts in the following order (7), (6), then (4 and 5).
Use recommended torque specifications over the r the page.

Disclaimer:

A failure to follow these fitting instructions could cause serious injury, death, or property damage. These handguards are intended solely for use with motorcyclesATVsV/snowmobiles/scooters that have not been modified. They are not designed to prevent injury or death while riding or in an accident or crash. The user must ensure that all controls are free of the handguards every time that they ride. By installing and/or using this product you acknowledge that you accept these terms and have followed the fitting instructions.

WARNING: Check the operation of all handlebar controls, specifically the throttle, front brake, kill switch, and clutch to ensure they are operating correctly and are by the OEM specifications. Do not ride the motorcycle if any controls are not operating correctly or if rear view mirror vision is obscured. Check periodically that all bolts are tight.

CAUTION:

Installation of the handguard is safety-relevant work and can be complicated. We recommend the installation be performed by a motorcycle service technician. Rideworx accepts no liability for damages caused by improper mounting. All screws, bolts, and nuts, including all replacement hardware provided by Rideworx, should be tightened to the torque specified in the table. After the first 50km of riding check all screws, bbolboltsnd nuts are tightened to the correct torque. We recommend a medium-strengthth liquid thread lock product on all fasteners.

Installation Instructions:-
