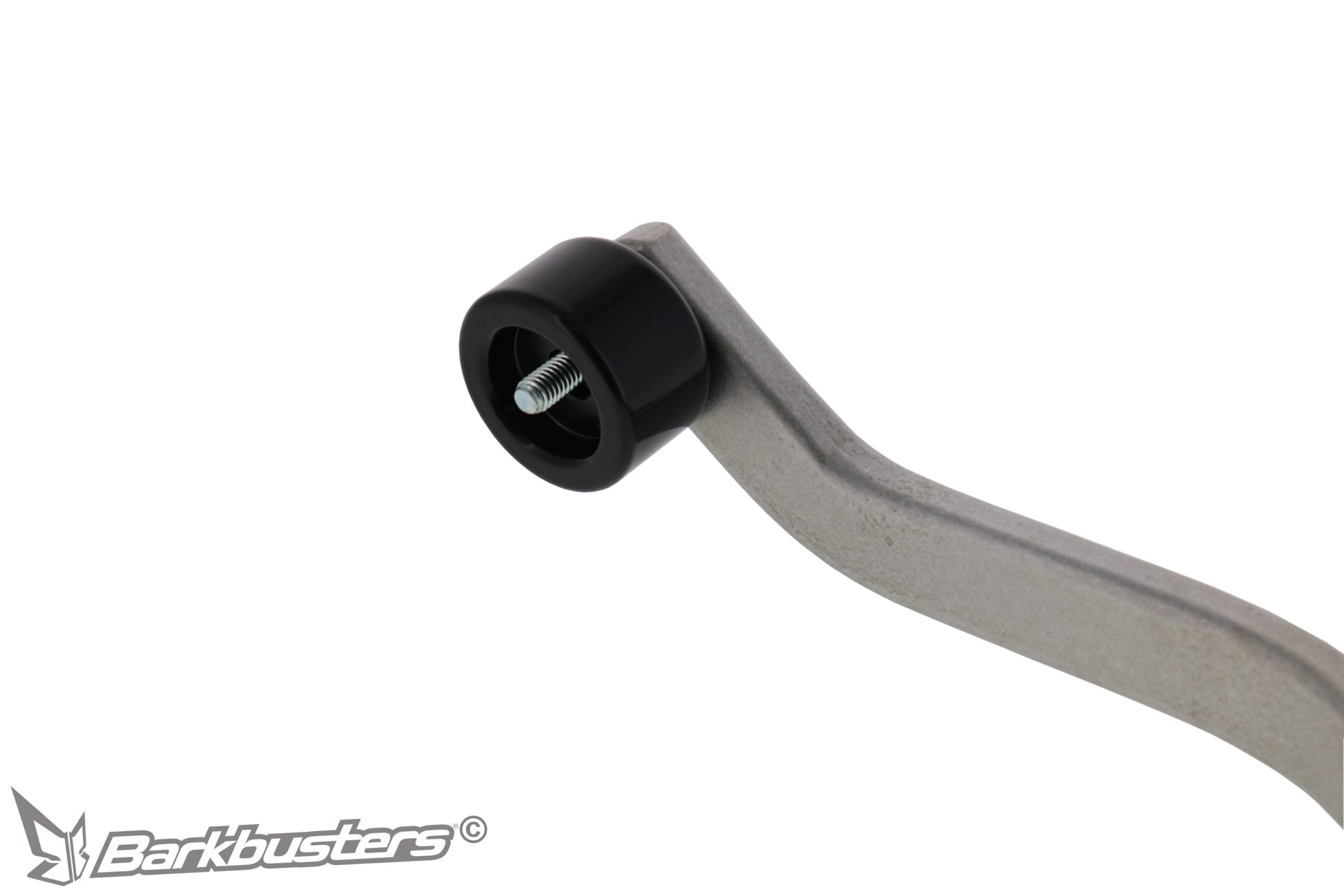

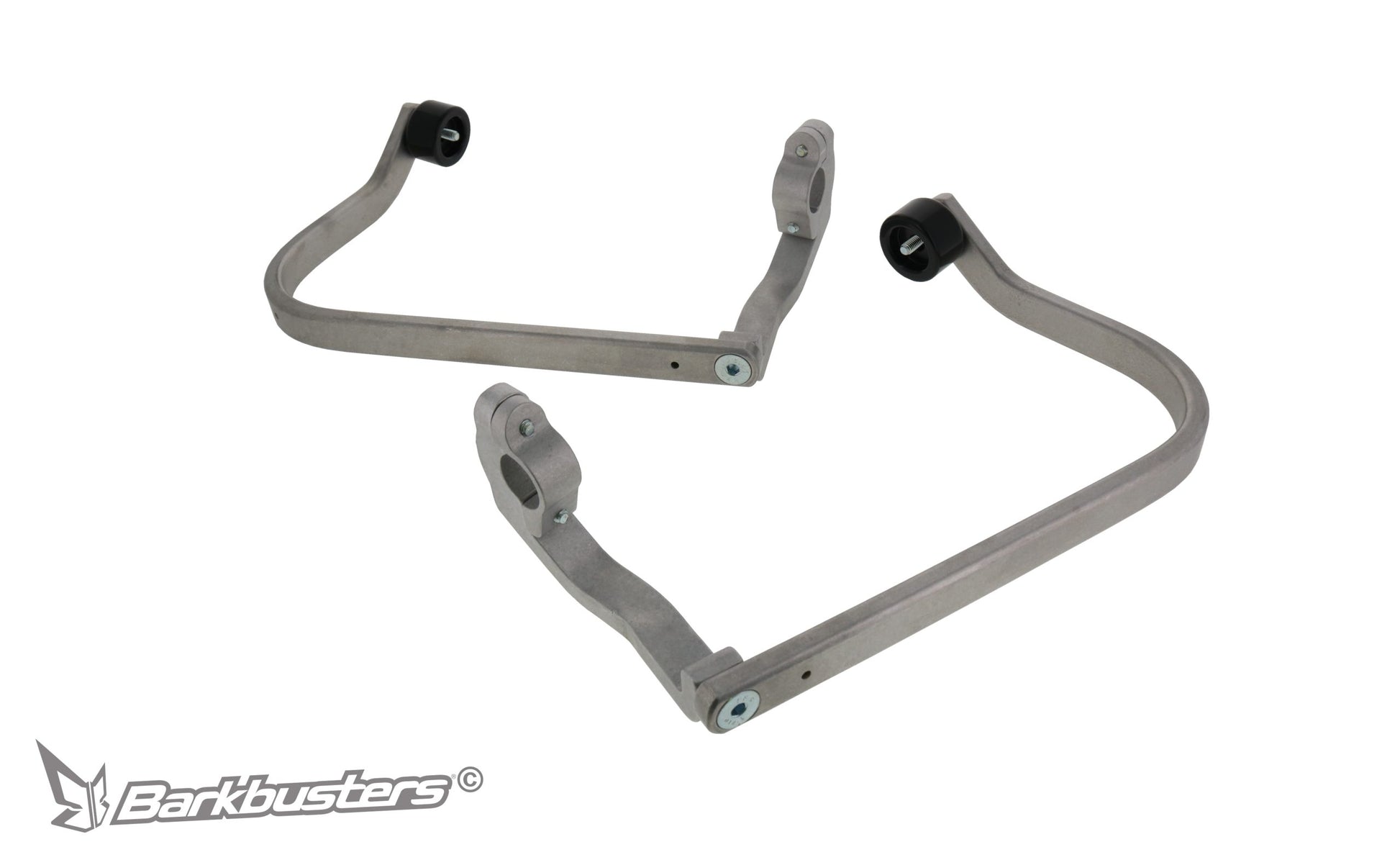

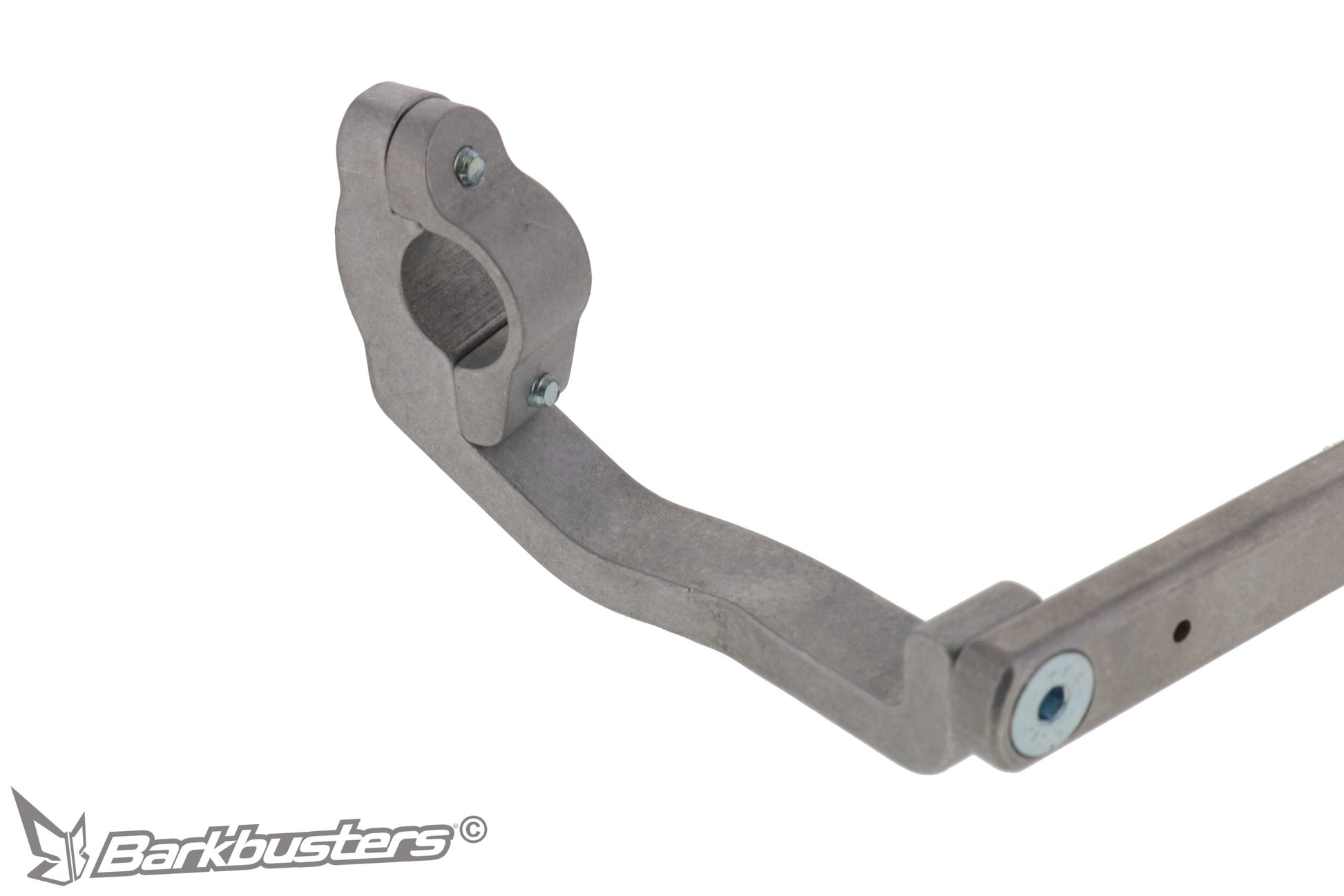

Barkbusters Hardware Kit – Two Point Mount-BHG-112-00-NP

Barkbusters Hardware Kit – Two Point Mount - BHG-112-00-NP

The Barkbusters Hardware Kit – Two Point Mount is specifically designed for selected Honda, Kawasaki, and Suzuki motorcycles with OEM equipment. Featuring a strong two-point mounting system and a heat-treated aluminum backbone, this kit provides added strength and impact protection for a full wrap-around Barkbusters handguard setup.

Features

• Designed specifically for Honda CT125 (2020 onwards), Honda MSX125 GROM (2014-2020), Kawasaki Z125 Pro (2016 onwards), and Suzuki DS 250SX V-Strom (2023 onwards) with OEM equipment.
• Two mounting points securely support the full wrap-around aluminum design.
• Heat-treated aluminum backbone provides added strength and impact protection.
• Backbone features a durable black powder-coated finish.
• Bar End Weights are included.
• Easy installation.
• Hardware Kit only – plastic guards are not included.
• Compatible with JET, VPS, ORM or CARBON guards, each sold separately.

Compatibility

• Honda CT125 – 2020 onwards
• Honda MSX125 GROM – 2014-2020
• Kawasaki Z125 Pro – 2016 onwards
• Suzuki DS 250SX V-Strom – 2023 onwards

Fitting Procedure – Right Side

• Loosely assemble clamp (4) to the handlebar with the applicable parts.
• Fitting Tip: Position the clamp at the handlebar bend.
• Loosely attach the handguard backbone with the applicable parts to the handlebar end and the clamp.
• The preferred backbone position is horizontal when viewed from the side.
• Tighten all bolts in the following order: (9), then (7), then (5) and (6).
• Use the recommended torque specifications provided in the fitting instructions.

Fitting Procedure – Left Side

• Loosely assemble clamp (3) below the bend of the handlebar and position it as shown in the fitting diagram.
• Loosely attach the handguard backbone with the applicable parts to the handlebar end and the clamp.
• The preferred backbone position is horizontal when viewed from the side.
• Tighten all bolts in the following order: (8), then (7), then (5) and (6).
• Use the recommended torque specifications provided in the fitting instructions.

Important Safety Information

A failure to follow these fitting instructions could cause serious injury, death, or property damage. These handguards are intended solely for use with motorcycles, ATVs, snowmobiles, and scooters that have not been modified. They are not designed to prevent injury or death while riding or in an accident or crash.

The user must ensure that all controls are free of the handguards every time they ride. By installing and/or using this product, you acknowledge that you accept these terms and have followed the fitting instructions.

Warning

Check the operation of all handlebar controls, specifically the throttle, front brake, kill switch, and clutch, to ensure they are operating correctly and according to OEM specifications. Do not ride the motorcycle if any controls are not operating correctly or if rear-view mirror vision is obscured.

Check periodically that all bolts remain properly tightened.

Caution

Installation of the handguard is safety-relevant work and can be complicated. We recommend that installation be performed by a qualified motorcycle service technician.

Rideworx accepts no liability for damages caused by improper mounting. All screws, bolts, and nuts, including all replacement hardware provided by Rideworx, should be tightened to the torque specified in the fitting instructions.

After the first 50 km of riding, check that all screws, bolts, and nuts are tightened to the correct torque. A medium-strength liquid thread-locking product is recommended on all fasteners.

Installation Instructions

• View Installation Instructions

Important Information

This product is a hardware mounting kit only. Plastic handguard guards are not included and must be purchased separately. Compatible JET, VPS, ORM and CARBON guards are sold separately.
