Brake disc Front Galfer WAVE FLOATING with Aluminium centre - DF136CW

Brake disc Front Galfer WAVE FLOATING with Aluminium centre - DF136CW

The Galfer Front Floating Wave Aluminium Hub brake disc is designed to meet the highest demands of sport and racing motorcycle riders. Crafted from high-carbon stainless steel, it offers exceptional braking performance, durability, and thermal stability, making it ideal for both street and track use.

The exclusive Galfer Wave design, also known as petal shape, reduces the unsprung mass, improves heat dissipation, and enhances the contact between pad and rotor for smoother, more powerful braking. Each disc is laser-cut with extreme precision, following Galfer’s strict quality standards.

Key features:

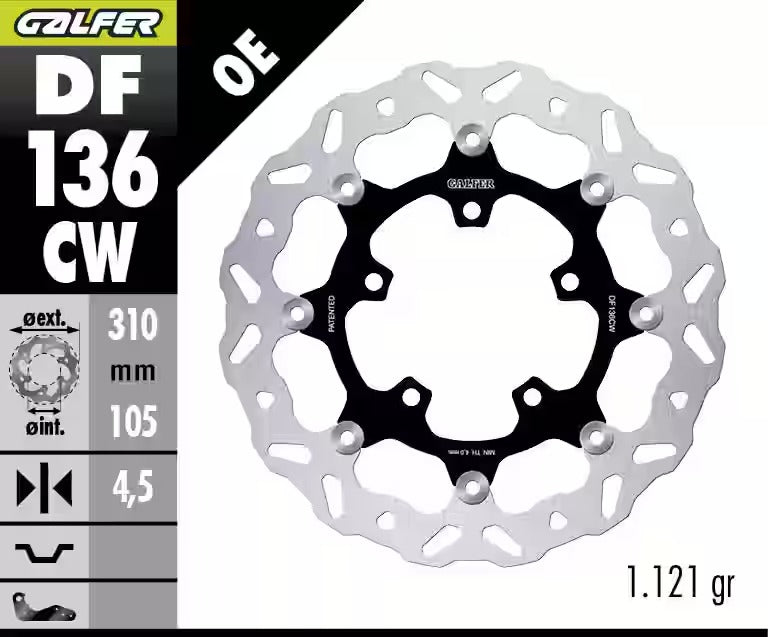

• External Diameter: 310mm
• Internal Diameter: 105mm
• Thickness: 4,5mm
• Number of holes: 5
• Galfer Wave petal design for maximum heat dissipation and cooling
• Reduced unsprung weight for sharper handling and bike control
• Improved braking power with progressive, responsive feel
• Minimized deformation during intense use

Traditional Wave® disk with Aluminium Hub for both front and rear applications. Replacement of original OEM disk.

General Features:

- Laser-cut high carbon stainless steel brake band and high-strength anodised aluminium core (7075 T6 - 6082 T6).
- TÜV certified (KBA No. 61148)
- 25% weight reduction to the original.
- The weight reduction (unsprung mass reduction; gyroscopic effect minimization) improves handling of the bike.
- Improved braking sensation thanks to the floating system.
- Cathaforesis-treated to prevent corrosion.
- Fit for daily use, track days, competition, etc.

The “Disc Wave®” represents the best example of research and development by Galfer. Laser cut, stainless steel. There is a direct application of competitive technology for any user. Direct replacement system that does not require brackets or any extra parts, it bolts just like a stock disc would.

All “Disc Wave®” models with the same original disc size of the motorcycle are certified by TÜV (KBA nº 61147 / 61148).

Compatible models:

• HONDA CB 500 X 500cc 2019 - 2021 front
• HONDA CB 650 R 650cc ≥ 2019 front
• HONDA CBR 650 R 650cc ≥ 2019 front

Note:

Kindly check measurements and reference image before placing order.
