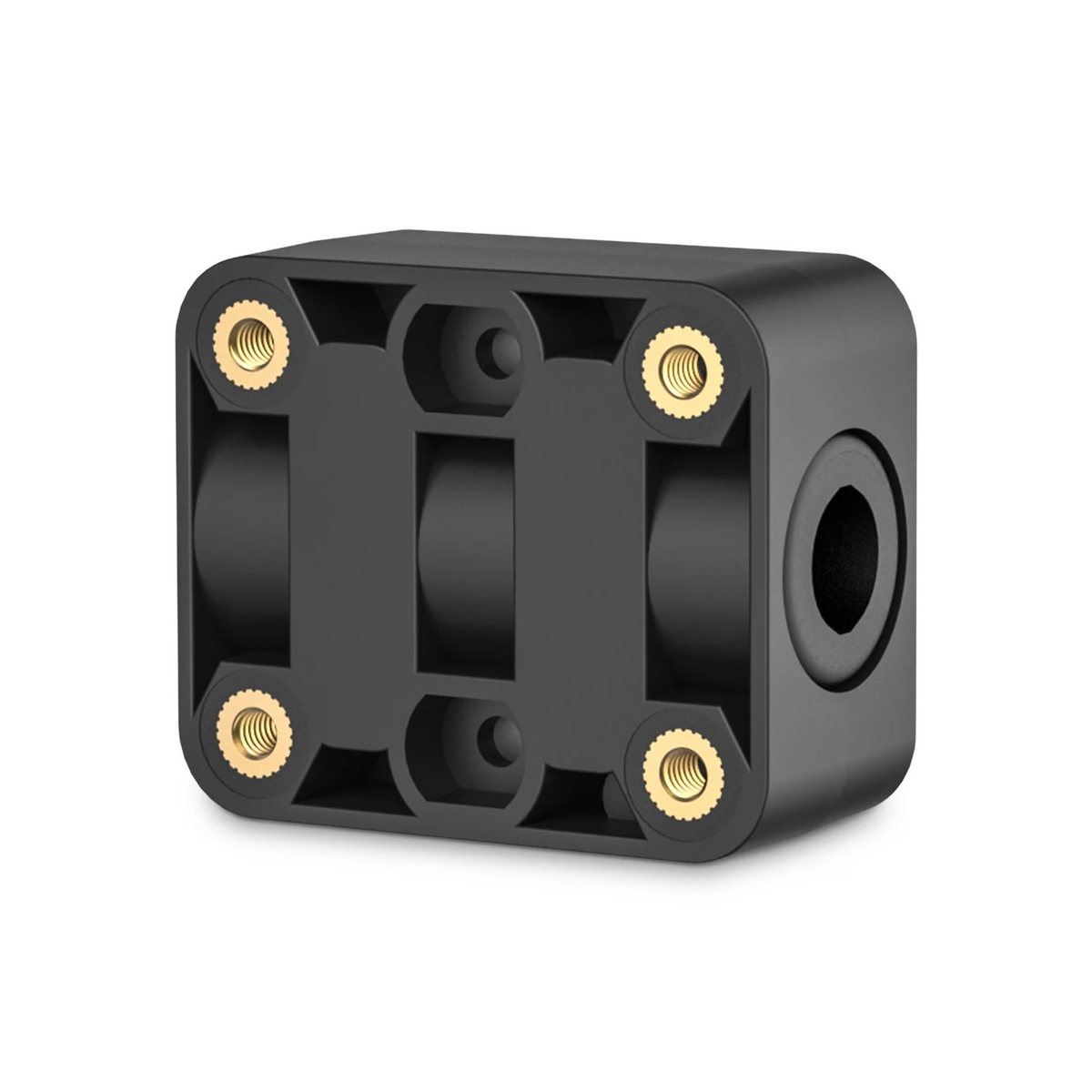

Carpuride Square Bracket

The Carpuride Square Bracket provides a secure and adjustable mounting solution for compatible Carpuride motorcycle displays. The bracket is designed to fit different motorcycle handlebar thicknesses using the supplied silicone pads.

Specifications

• Bracket Type: Square Motorcycle Handlebar Bracket
• Standard Silicone Pad: 12mm
• Adjustable Pad Thickness: Up to approximately 18mm when stacked
• Application: Compatible with Carpuride Motorcycle Displays
• Installation: Motorcycle Handlebar Mounting
• Mounting Method: Screw and Nut Fixing System

Square Bracket Installation Steps

1. Select the Appropriate Silicone Pad Thickness: Use the standard 12mm silicone pad. The supplied silicone pads can be stacked to provide up to approximately 18mm thickness. Select the appropriate configuration according to the thickness of your motorcycle handlebar.
2. Secure the Bracket to the Handlebar: Position the square bracket around the motorcycle handlebar. Align the bracket's screws and nuts correctly, then tighten them securely to fix the bracket firmly in place.
3. Attach the Motorcycle Display Bracket: Align the grooves at the connection point of the motorcycle screen bracket with the corresponding grooves on the square mounting bracket. Slide the components into position and secure them using the supplied screws.
4. Complete the Installation: Check that all screws, nuts and mounting connections are properly tightened. Confirm that the motorcycle display is securely mounted and positioned at a suitable viewing angle before riding.

Installation Tip: Before riding, verify that the bracket is firmly secured to the handlebar and that the display mount does not interfere with steering, switches, cables or other motorcycle controls.
