Carpuride Universal W712D with TPMS Rotatable Motorcycle Stereo with GPS Navigation & Dash Cam

Carpuride W712D 7-Inch Universal Motorcycle Wireless CarPlay Display with TPMS, GPS Navigation & Dual Dash Cam

Upgrade your motorcycle with the Carpuride W712D 7-Inch Wireless Motorcycle CarPlay Display — a full-featured smart motorcycle stereo and navigation system designed for riders who want convenient access to GPS navigation, Apple CarPlay, Android Auto, Bluetooth audio, tire pressure monitoring and front & rear dash camera recording.

Featuring a large 7-inch HD touchscreen, wireless Apple CarPlay and Android Auto, built-in motorcycle TPMS, dual 1080P HD cameras, IP67 waterproof protection, automatic light sensing, a wired controller and 360° adjustable mounting, the Carpuride W712D brings multiple motorcycle technologies together in one portable display.

Its landscape and portrait screen rotation allows you to choose the viewing orientation that best suits your riding style. Portrait mode can provide a taller navigation view, while landscape mode offers a wider interface for maps, media and other functions.

Key Features of Carpuride W712D

• 7-Inch HD Motorcycle Display: Large touchscreen interface designed for motorcycle navigation, smartphone connectivity, camera viewing and TPMS information.
• Wireless Apple CarPlay: Connect a compatible iPhone wirelessly and access supported navigation, music, calls, messages and other CarPlay features.
• Wireless Android Auto: Connect a compatible Android smartphone and use supported navigation, media, communication and voice-control functions.
• Built-In Motorcycle TPMS: Includes two tire pressure sensors for monitoring front and rear tire pressure in real time.
• Dual HD Dash Cameras: Front and rear cameras provide continuous road recording with 1080P HD video.
• Landscape & Portrait Rotation: Rotate the screen orientation according to your navigation and viewing preference.
• IP67 Waterproof Design: Designed for outdoor motorcycle use and protection against dust and water exposure.
• Bluetooth Connectivity: Supports compatible Bluetooth audio and motorcycle helmet communication setups.
• Wired Handlebar Controller: Conveniently access camera, phone and recording functions from the wired remote controller.
• Automatic Light Sensing: Adjusts screen brightness according to surrounding lighting conditions.
• TF/SD Card Support: Store dash camera recordings on a compatible memory card.
• 360° Adjustable Mount: Adjustable mounting system allows riders to position the display for improved viewing.
• Universal Motorcycle Installation: Designed for installation on a wide range of motorcycle handlebars.

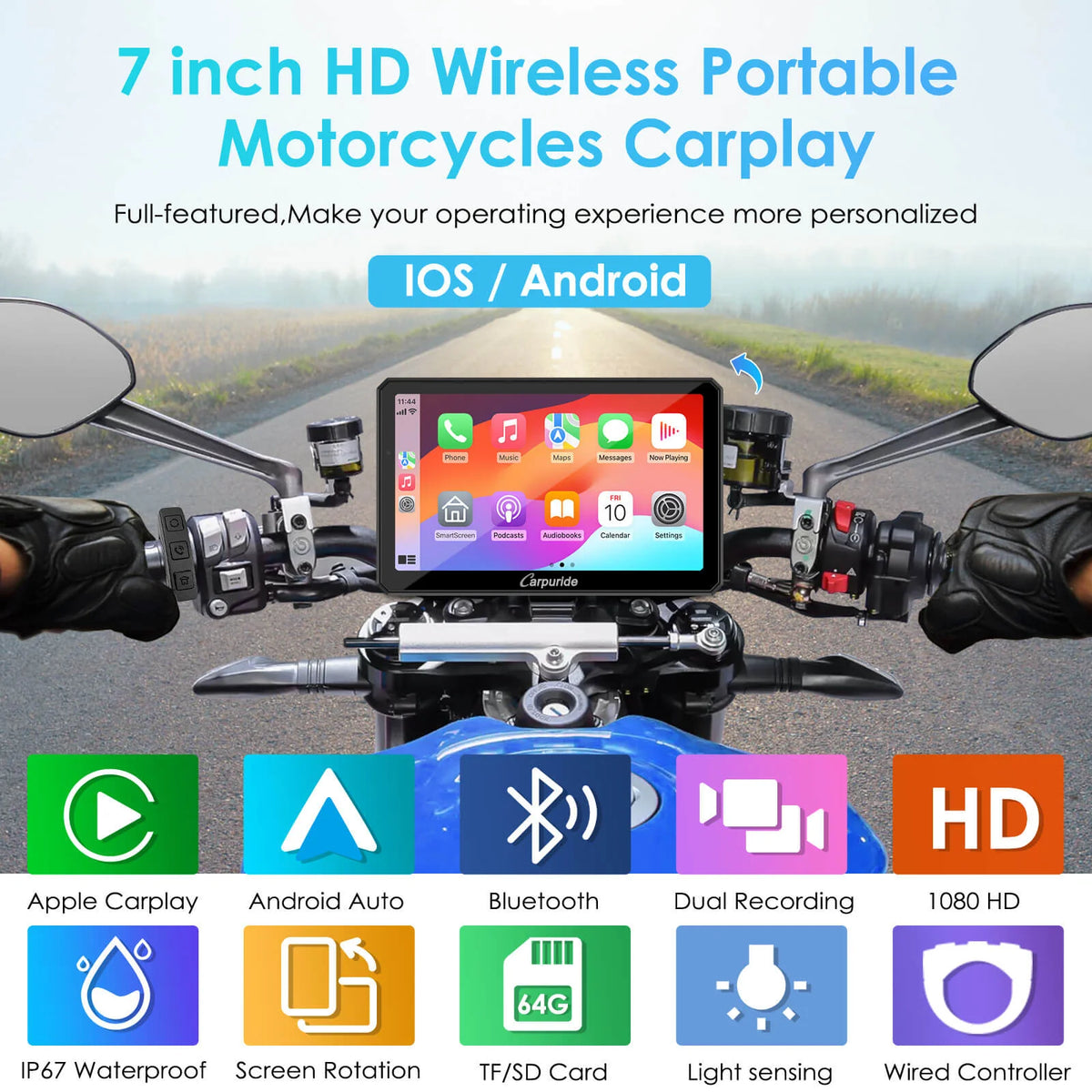

7-Inch HD Wireless Motorcycle CarPlay Screen

The Carpuride W712D motorcycle CarPlay display features a large 7-inch screen designed to provide a convenient view of navigation, media, calls, camera footage and tire pressure information.

The larger display is particularly useful for riders who prefer a more spacious navigation interface. The screen supports both landscape and portrait orientations, allowing you to select the layout that works best for your motorcycle setup.

Wireless Apple CarPlay & Android Auto

Stay connected without mounting your smartphone directly in front of you. The W712D supports wireless Apple CarPlay and Android Auto, allowing compatible smartphones to connect to the motorcycle display and provide access to supported applications and functions.

Depending on your smartphone and compatible applications, you can use the display for:

• GPS navigation
• Map directions
• Music streaming
• Hands-free phone calls
• Messages and notifications
• Voice commands
• Compatible navigation applications
• Compatible music and podcast applications

GPS Navigation for Motorcycle Touring & Daily Riding

Use your compatible smartphone's navigation applications through the W712D display while keeping the phone safely stored away. The large screen provides a convenient way to view maps and route guidance during motorcycle commuting, touring and long-distance journeys.

Portrait screen mode can be particularly useful for navigation because its taller orientation can provide a more vertically focused view of the road and route ahead.

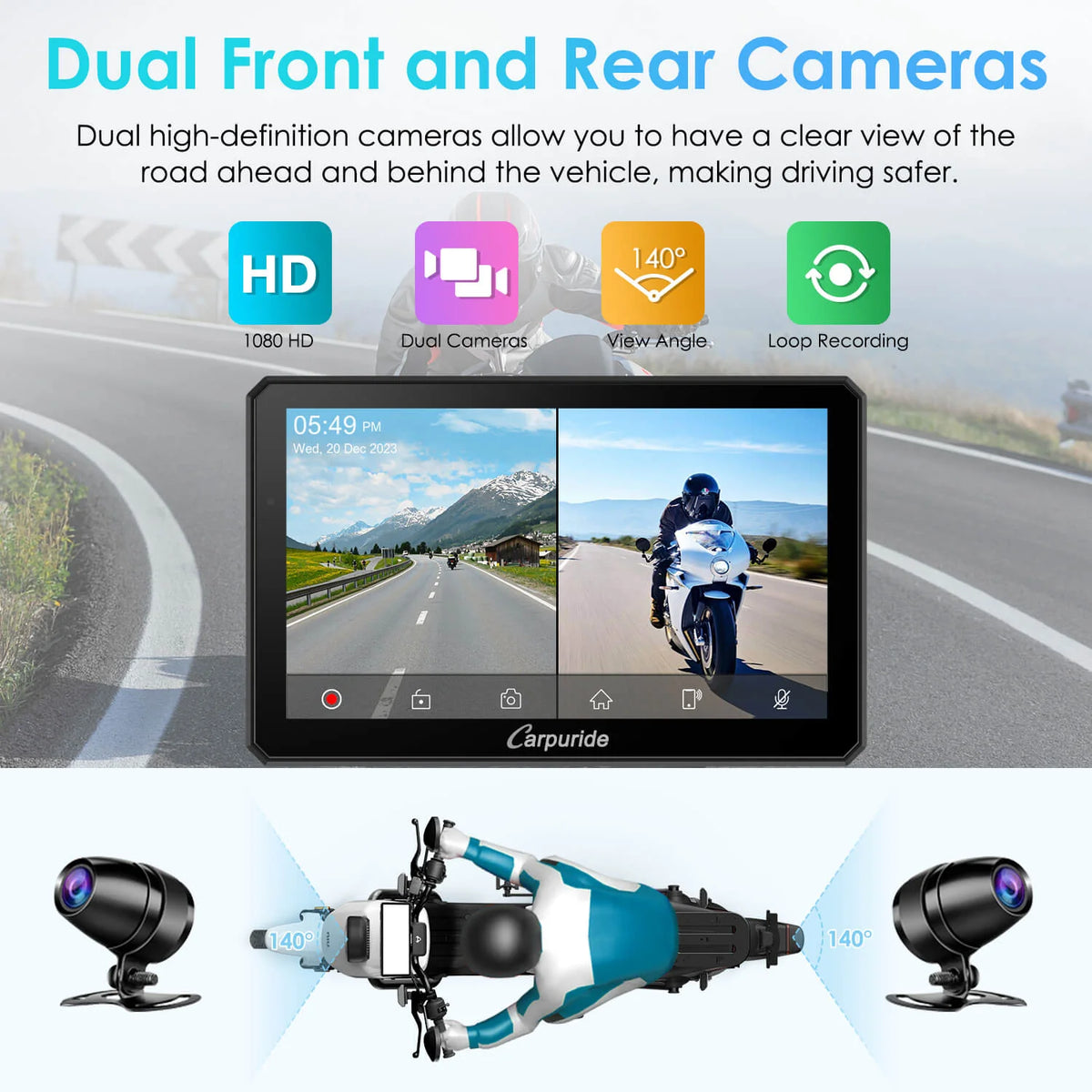

Dual 1080P Front & Rear Motorcycle Dash Cameras

The Carpuride W712D includes dual high-definition motorcycle cameras for front and rear road recording. The camera system allows you to view and record the road ahead and behind your motorcycle.

With 1080P HD recording and loop recording functionality, the system is designed for continuous dash camera use. When supported by the selected TF card and recording settings, older footage can be overwritten as storage becomes full.

• Front camera: HD motorcycle road recording
• Rear camera: Rear-view road recording
• Video quality: 1080P HD
• Recording: Loop recording
• Storage: TF card
• Camera orientation: Adjustable during installation

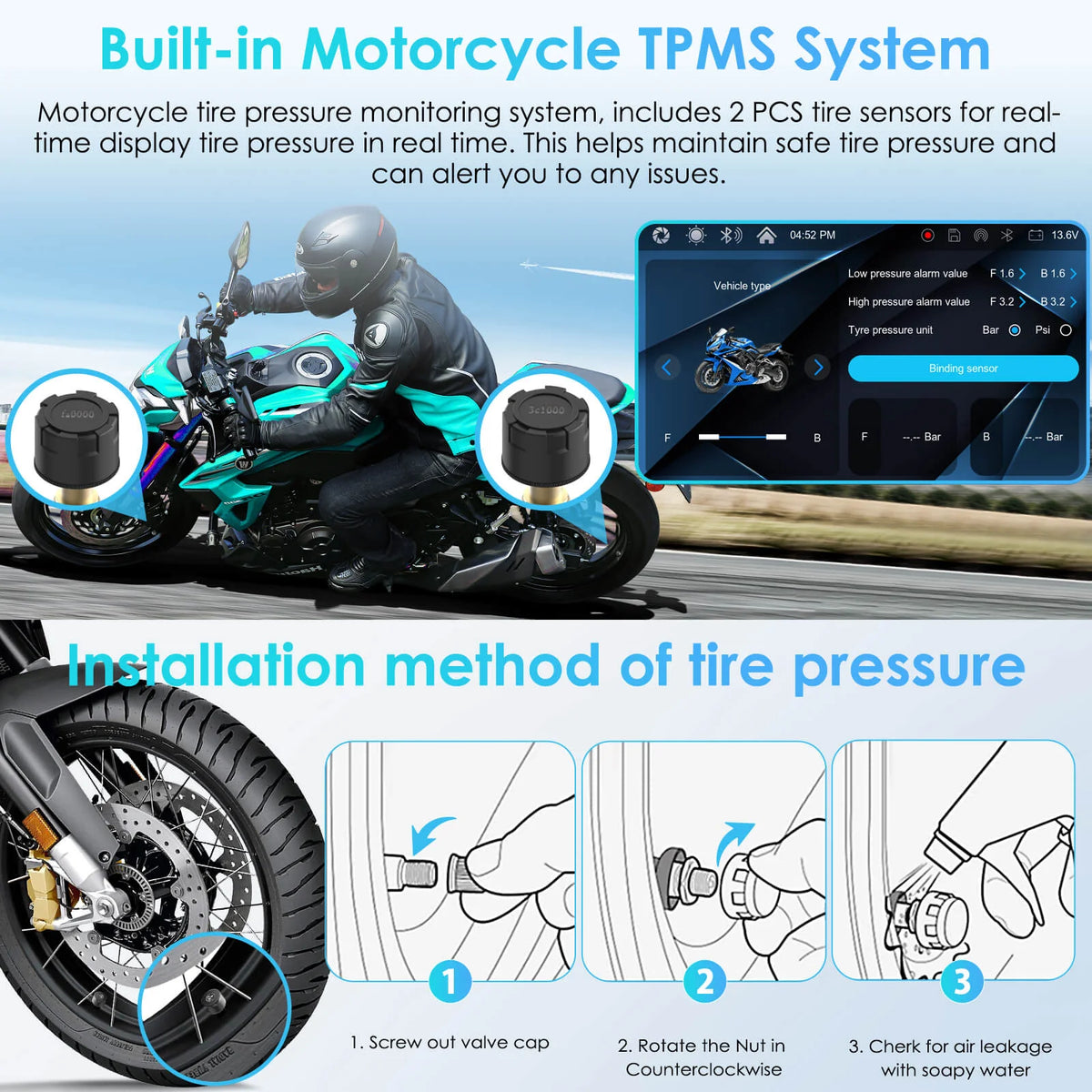

Motorcycle TPMS with 2 Wireless Tire Sensors

The W712D includes a built-in motorcycle tire pressure monitoring system with two wireless TPMS sensors. The system is designed to display front and rear tire pressure information in real time and can provide alerts when configured pressure thresholds are reached.

Real-time tire pressure information can help riders keep track of tire pressure during everyday commuting and motorcycle touring. Always follow the motorcycle manufacturer's recommended tire pressure specifications when setting TPMS alarm values.

How to Install the Motorcycle TPMS Sensors

1. Remove the existing tire valve cap.
2. Install the TPMS sensor onto the valve according to the supplied instructions.
3. Secure the sensor using the supplied components.
4. Check for air leakage with soapy water after installation.
5. Open the TPMS interface on the W712D.
6. Select the appropriate vehicle mode.
7. Enter the pairing codes for the front and rear sensors.
8. Bind the sensors to the display.
9. Configure the desired tire pressure alarm values.

Important: Always check that the sensors are securely installed and verify that there is no air leakage before riding.

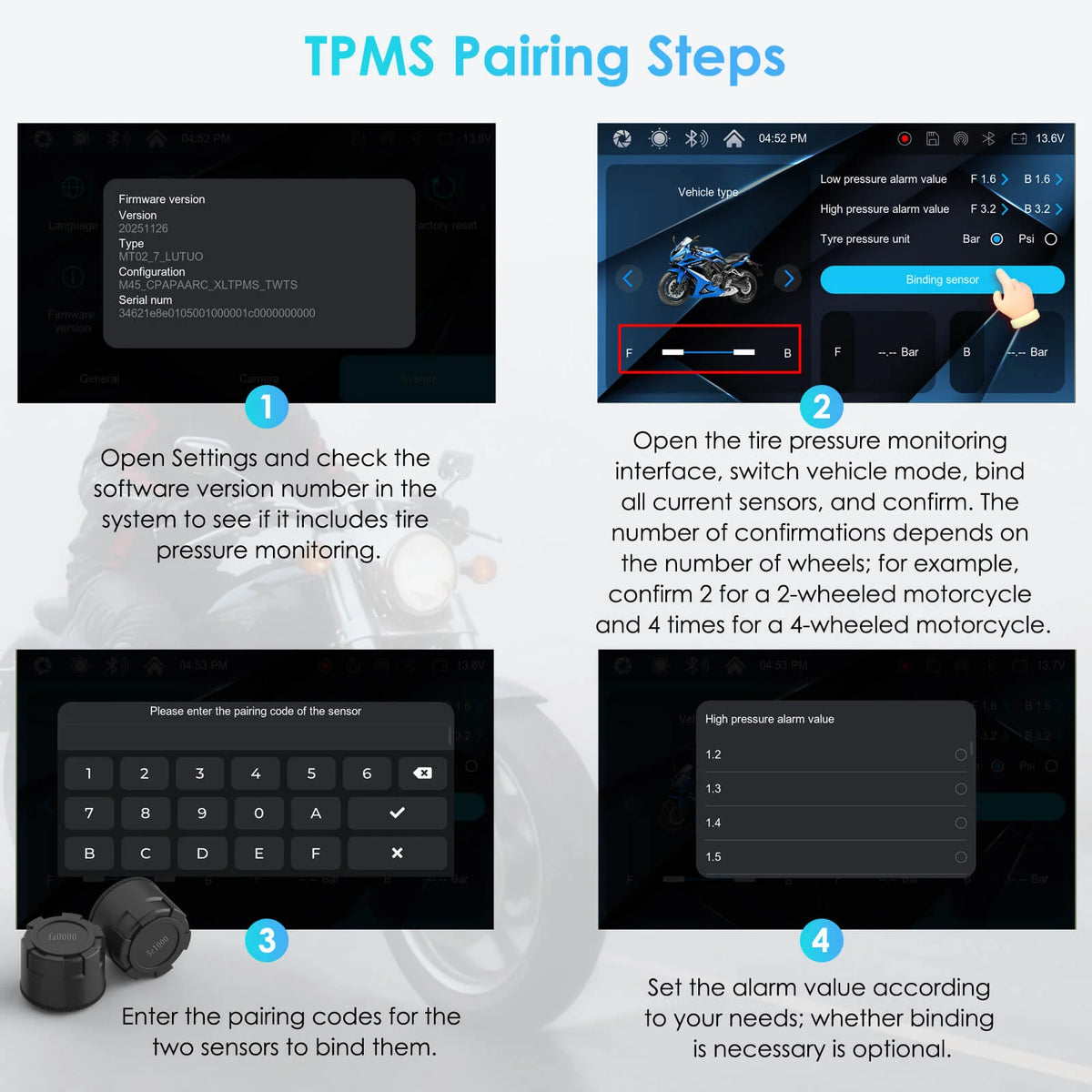

TPMS Pairing Process

1. Open Settings and check the device software version to confirm that tire pressure monitoring is supported.
2. Open the Tire Pressure Monitoring interface.
3. Select the appropriate vehicle mode.
4. Bind the currently installed sensors.
5. Enter the pairing codes for the two supplied sensors.
6. Confirm the sensors according to the number of wheels being monitored.
7. Set your preferred tire pressure alarm thresholds.

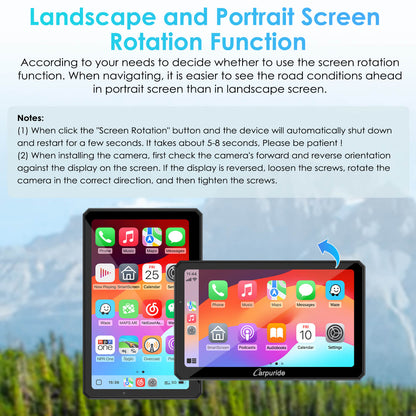

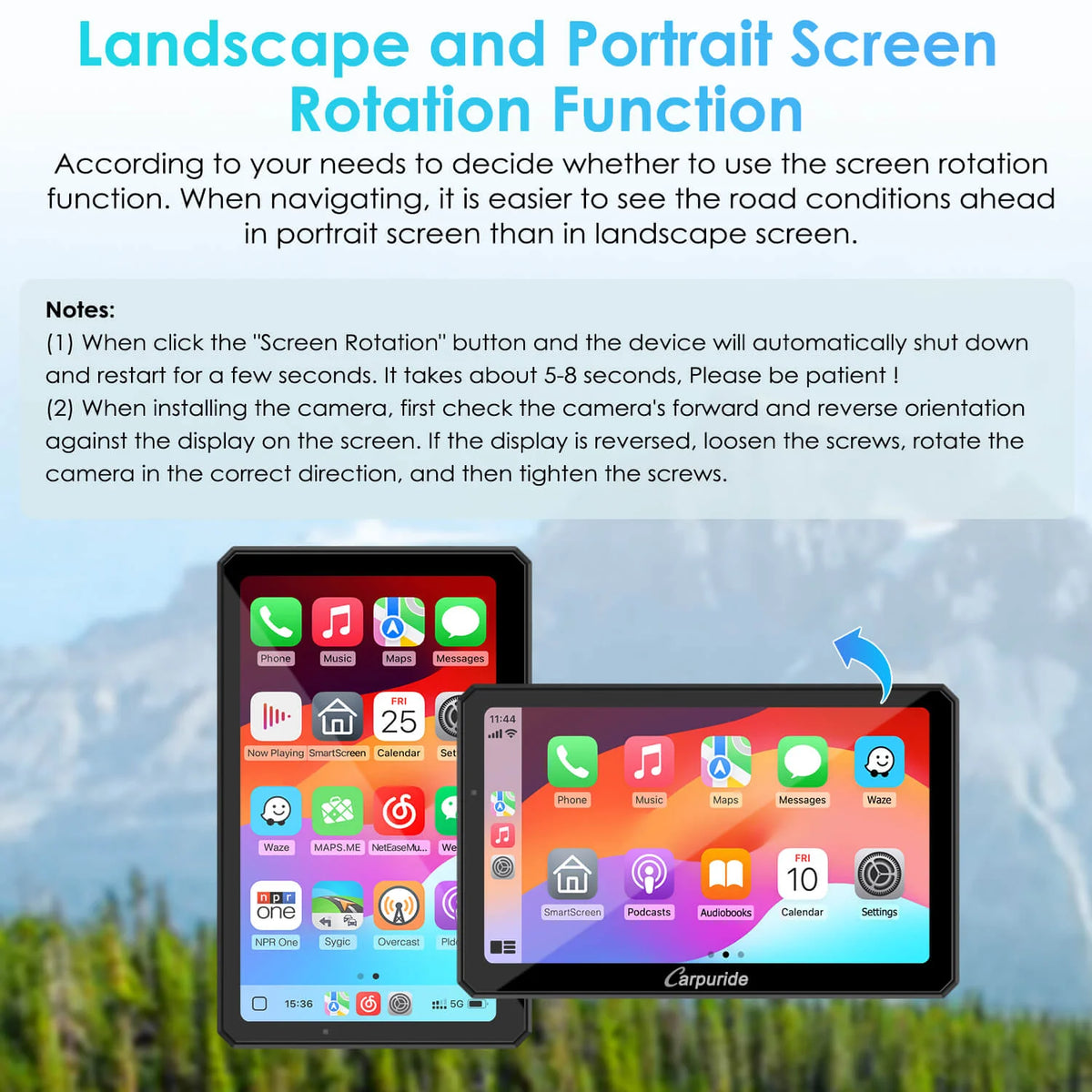

Landscape & Portrait Screen Rotation

The W712D features a rotatable motorcycle display that can be used in both landscape and portrait orientation. Choose the orientation that provides the most convenient view for navigation, media and other functions.

Portrait orientation can make navigation easier to view by providing a taller map layout, while landscape orientation provides a wider screen presentation.

Screen Rotation Note: When the Screen Rotation function is activated, the device automatically shuts down and restarts. The restart process may take approximately 5–8 seconds. Please allow the device to complete the restart before using the display.

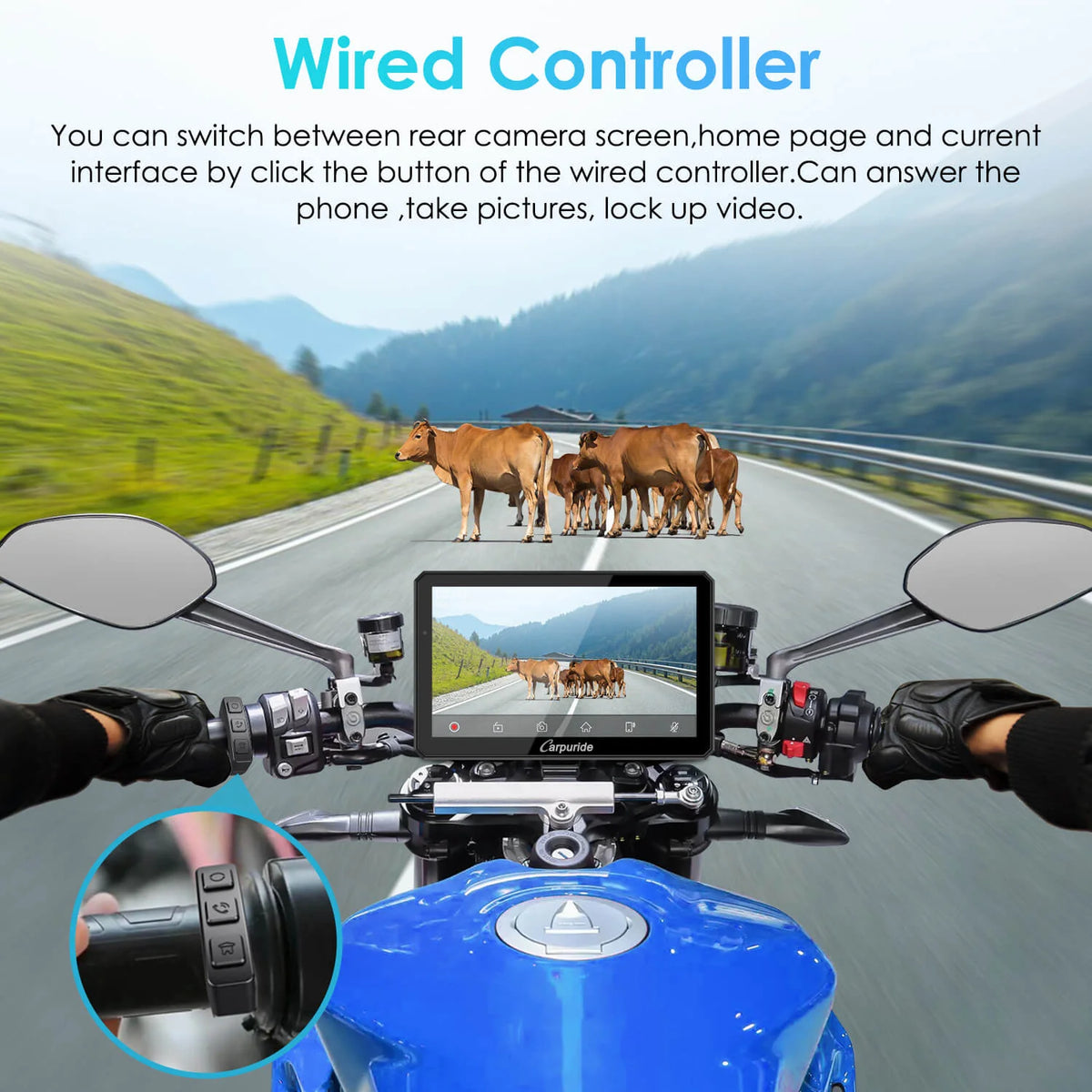

Wired Motorcycle Handlebar Controller

The included wired controller provides convenient access to selected W712D functions without having to operate the main display repeatedly.

Depending on the supported function, the controller can be used to:

• Switch to the rear camera screen
• Return to the home page
• Switch between interfaces
• Answer phone calls
• Take pictures
• Lock video recordings

360° Adjustable Motorcycle Handlebar Mount

The Carpuride W712D includes an adjustable mounting system designed for motorcycle handlebars. The supplied silicone pads accommodate different handlebar diameters and can be stacked when additional thickness is required.

Compatible mounting pad sizes: 12mm, 20mm, 25.4mm and 28mm.

The adjustable mounting system allows the screen to be positioned according to the rider's preferred viewing angle.

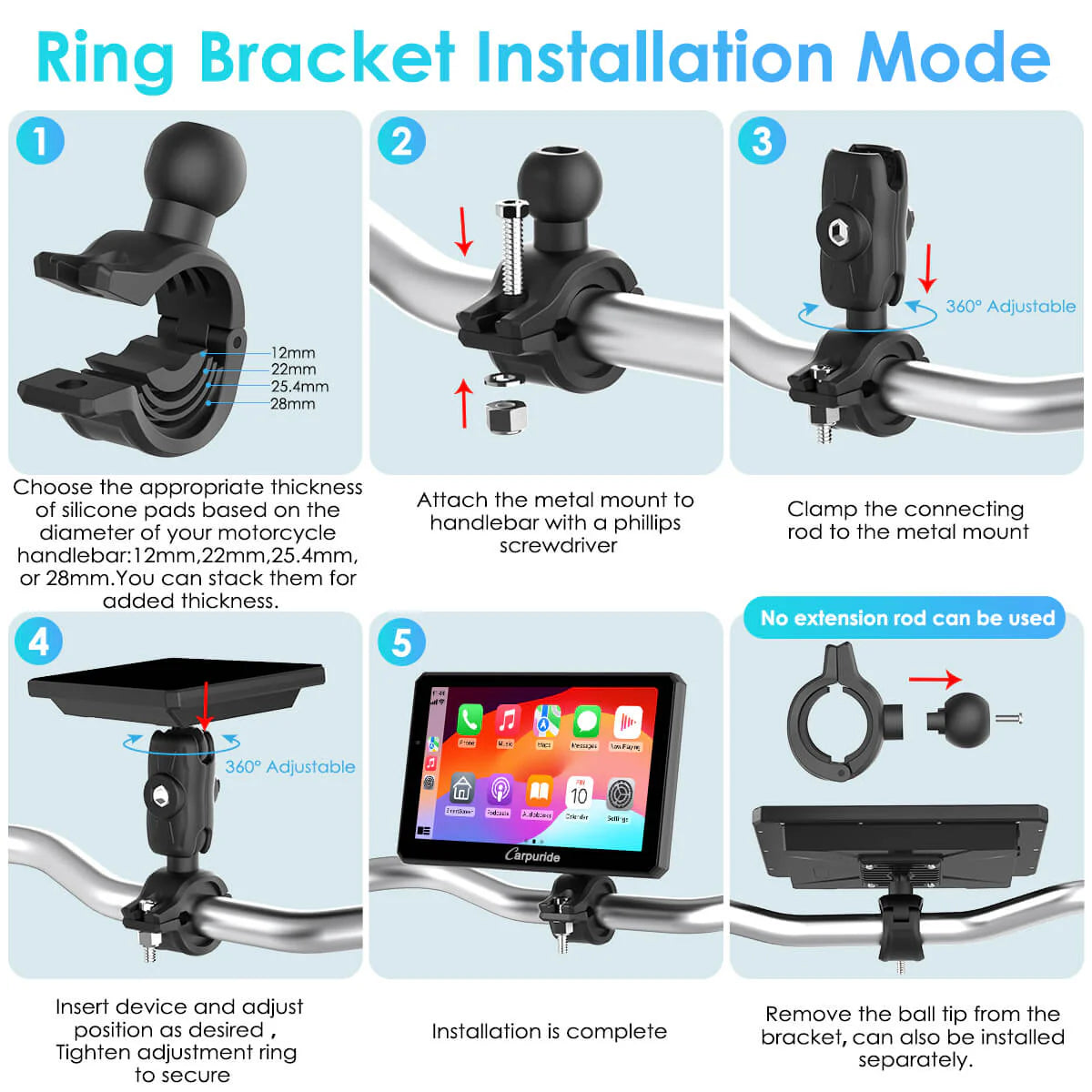

Motorcycle Handlebar Installation Steps

1. Select the correct silicone pad: Choose the appropriate pad thickness based on your motorcycle handlebar diameter.
2. Attach the metal mount: Secure the metal mounting bracket to the handlebar using a Phillips screwdriver.
3. Connect the rod: Clamp the connecting rod to the metal mount.
4. Install the display: Insert the device into the mounting mechanism.
5. Adjust the viewing angle: Use the adjustable mechanism to position the display as required.
6. Tighten the adjustment ring: Secure the display firmly in the selected position.
7. Complete installation: Check the mount and connections before riding.

Mounting flexibility: The ball tip can be removed from the bracket for alternative installation configurations. The supplied extension rod can also be used according to the supported mounting setup.

IP67 Waterproof Motorcycle Display

The Carpuride W712D is designed with IP67 waterproof protection for motorcycle use. This provides added protection against dust and water exposure, making the display suitable for outdoor riding conditions.

For best performance, ensure all connectors, cables and mounting components are correctly installed and secured according to the product instructions.

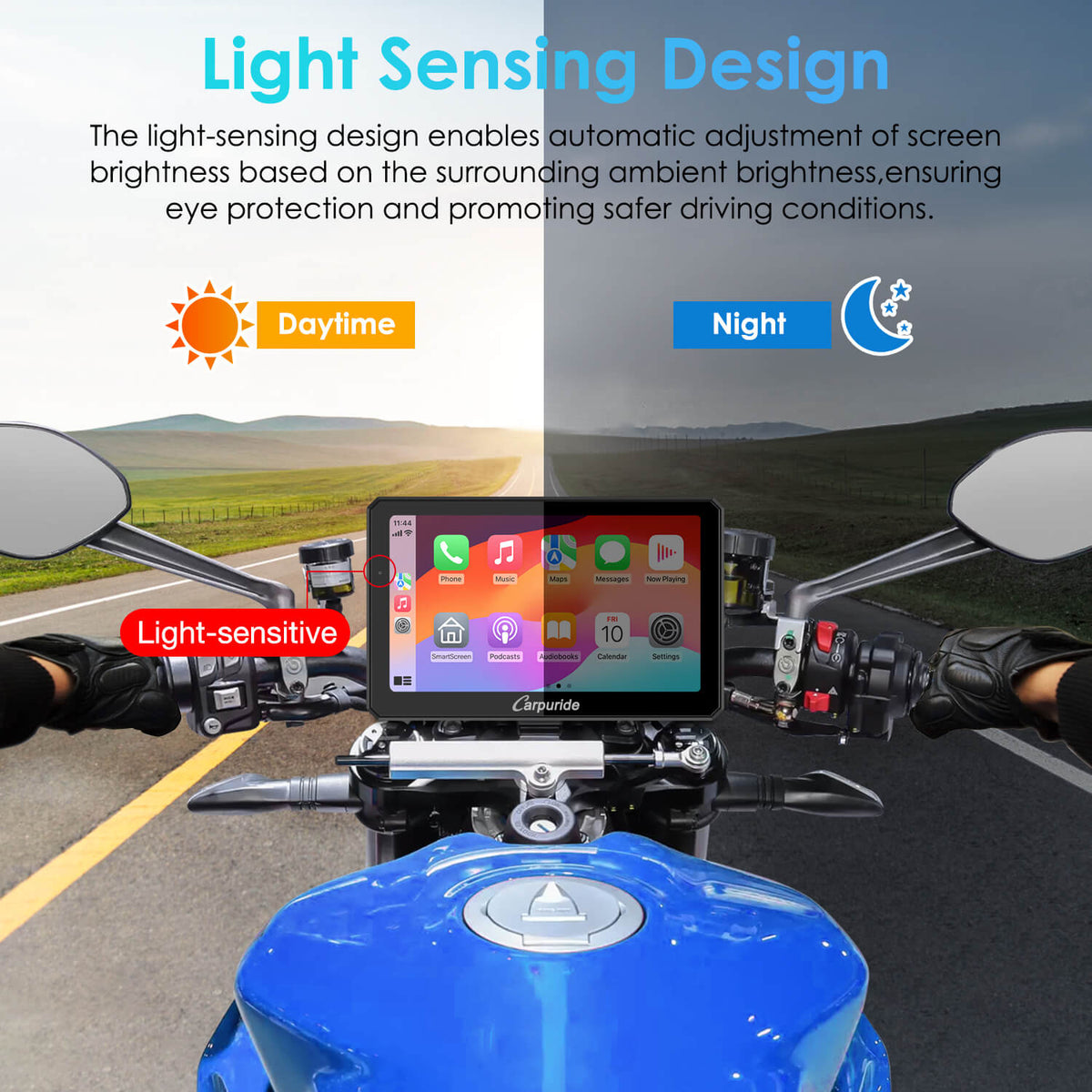

Automatic Light-Sensing Display

The built-in light sensor detects surrounding ambient brightness and supports automatic display brightness adjustment. This helps the screen adapt to changing lighting conditions between bright daytime riding and darker environments.

Bluetooth Motorcycle Audio

The W712D supports Bluetooth connectivity for compatible motorcycle audio and communication devices. Pair your smartphone and compatible Bluetooth helmet or headset according to the relevant connection instructions.

This allows riders to use supported hands-free functions, music playback, navigation audio and phone calls through a compatible Bluetooth audio system.

TF Card & Dash Cam Storage

The W712D supports TF/SD card storage for motorcycle camera recordings. The supplied package includes a 64GB TF card, according to the provided product specifications.

Loop recording helps manage available storage by allowing new footage to replace older recordings when the memory card becomes full, subject to the device's recording configuration.

Camera Installation & Orientation Guide

Before permanently securing the front and rear cameras, check their orientation on the W712D display. If the camera image appears reversed or incorrectly oriented, loosen the mounting screws, rotate the camera to the correct position and tighten the screws securely.

Always position both cameras so that they have a clear view and do not interfere with motorcycle controls, rider visibility or other safety-critical components.

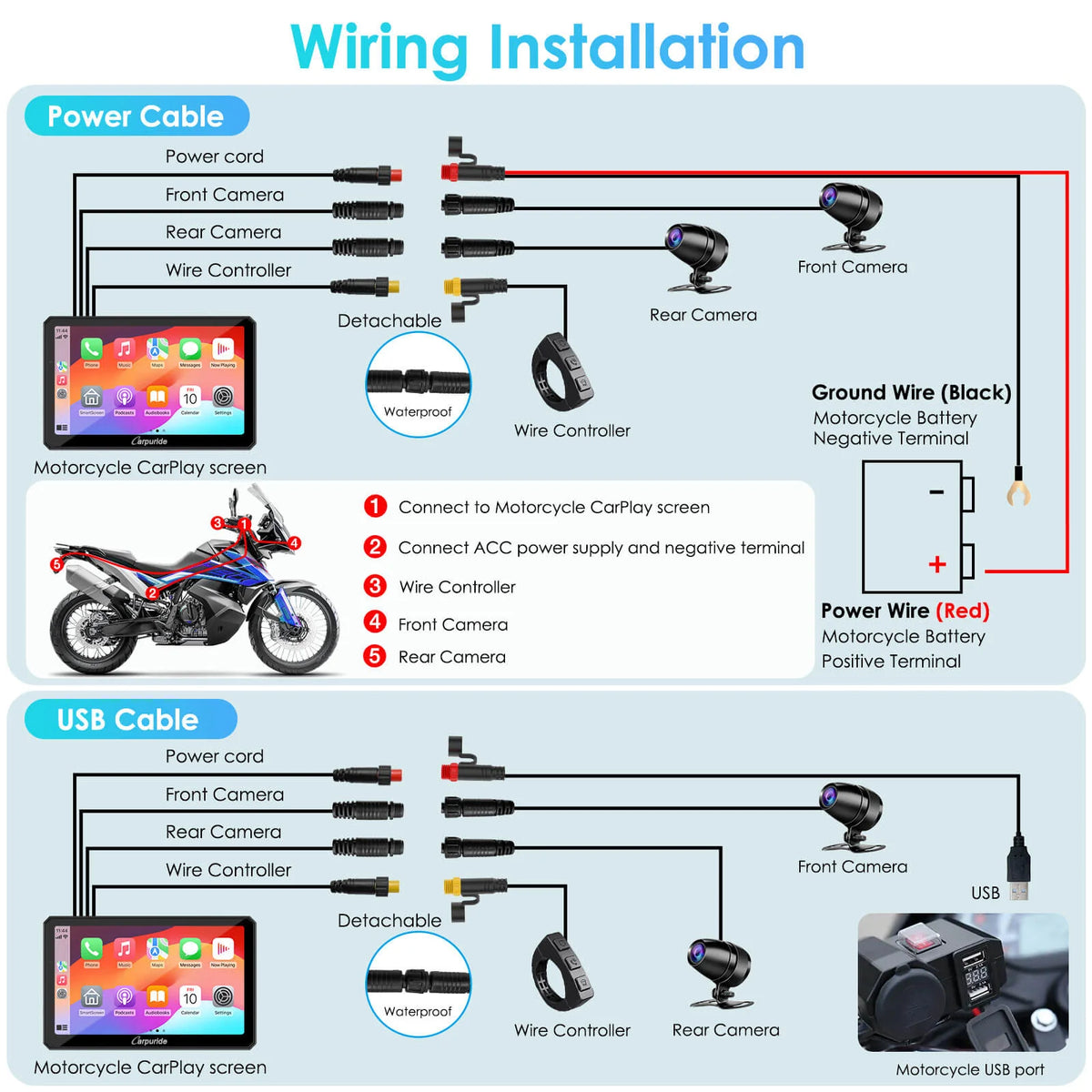

USB Power & Type-C Port

The W712D uses the supplied power cable for device power. The Type-C port is intended for software updates and is not designed to provide operating power or replace the dedicated power connection.

Carpuride W712D Specifications

• Product Model: Carpuride W712D
• Display Size: 7 inches
• Display Type: HD touchscreen
• Screen Orientation: Landscape & Portrait
• Screen Rotation: Supported
• Apple CarPlay: Supported
• Android Auto: Supported
• Bluetooth: Supported
• GPS Navigation: Through compatible smartphone navigation applications
• Front Camera: HD
• Rear Camera: HD
• Camera Recording: 1080P HD
• Recording: Loop Recording
• TPMS: Built-In Motorcycle Tire Pressure Monitoring System
• TPMS Sensors: 2 Wireless Sensors
• Water Resistance: IP67
• Memory: TF/SD Card
• Included Memory Card: 64GB TF Card
• Brightness: Automatic Light-Sensing Adjustment
• Controller: Wired Handlebar Controller
• Mount: Adjustable Motorcycle Handlebar Bracket
• Handlebar Pad Sizes: 12mm / 20mm / 25.4mm / 28mm
• Mount Adjustment: 360° Adjustable
• Power: USB Power Cable
• Type-C Port: Software Updates Only

Product Dimensions

• Display Width: Approximately 18.2 cm / 7.16 inches
• Display Height: Approximately 11.4 cm / 4.48 inches
• Mounting Interface: Approximately 11.5 cm / 4.5 inches
• Screen Size: 7 inches

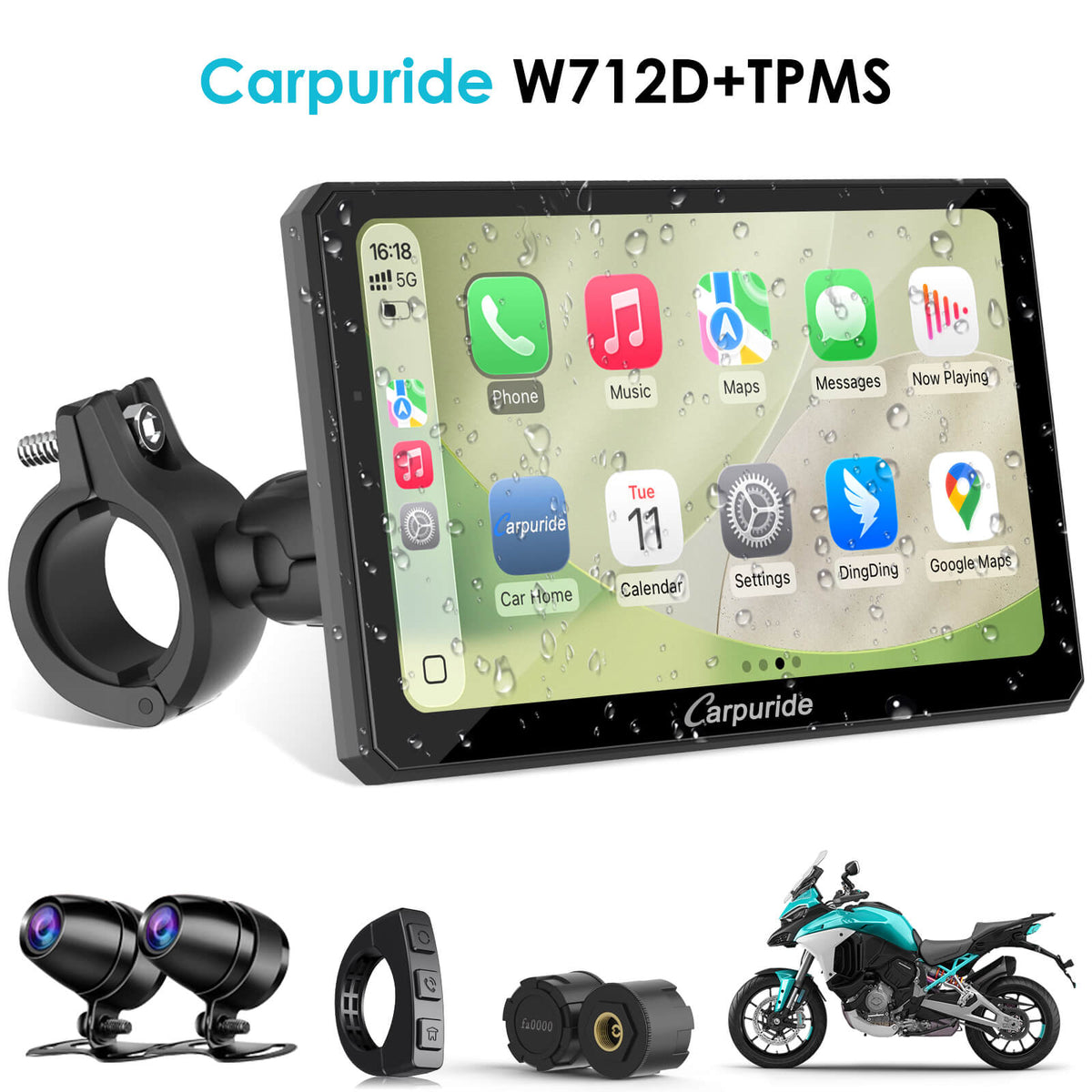

What's Included in the Box

• 1 × Carpuride W712D 7-Inch Motorcycle Display
• 1 × Front Camera
• 1 × Rear Camera
• 2 × Wireless TPMS Tire Sensors
• 1 × Wired Controller
• 1 × Power Cable
• 1 × 64GB TF Card
• 1 × Motorcycle Handlebar Mount
• 1 × Extension Rod Bracket
• Silicone Gaskets / Mounting Pads
• Mounting Accessories
• 1 × User Manual
• 1 × CarPlay Manual

Who Is the Carpuride W712D For?

The Carpuride W712D is designed for motorcycle riders looking for a large-screen wireless CarPlay and Android Auto display with integrated dash cameras and tire pressure monitoring. It is suitable for daily commuters, touring riders, adventure motorcycle users and riders who want a dedicated motorcycle navigation and entertainment screen.

With its combination of 7-inch display, wireless smartphone connectivity, GPS navigation, dual HD cameras, TPMS, Bluetooth, IP67 protection, screen rotation and adjustable handlebar mounting, the W712D provides multiple riding functions in a single portable motorcycle dashboard system.

Important Installation & Safety Information

Install the W712D securely and make sure the display, cameras, wiring and mounting bracket do not interfere with steering, braking, switches, controls or the rider's field of view.

Do not operate the touchscreen or configure navigation while the motorcycle is moving unless it can be done safely and legally. Always follow local traffic laws and the manufacturer's installation instructions.

For TPMS, use the motorcycle manufacturer's recommended tire pressure as the reference when setting pressure thresholds. After installing the sensors, check for air leakage before riding.
