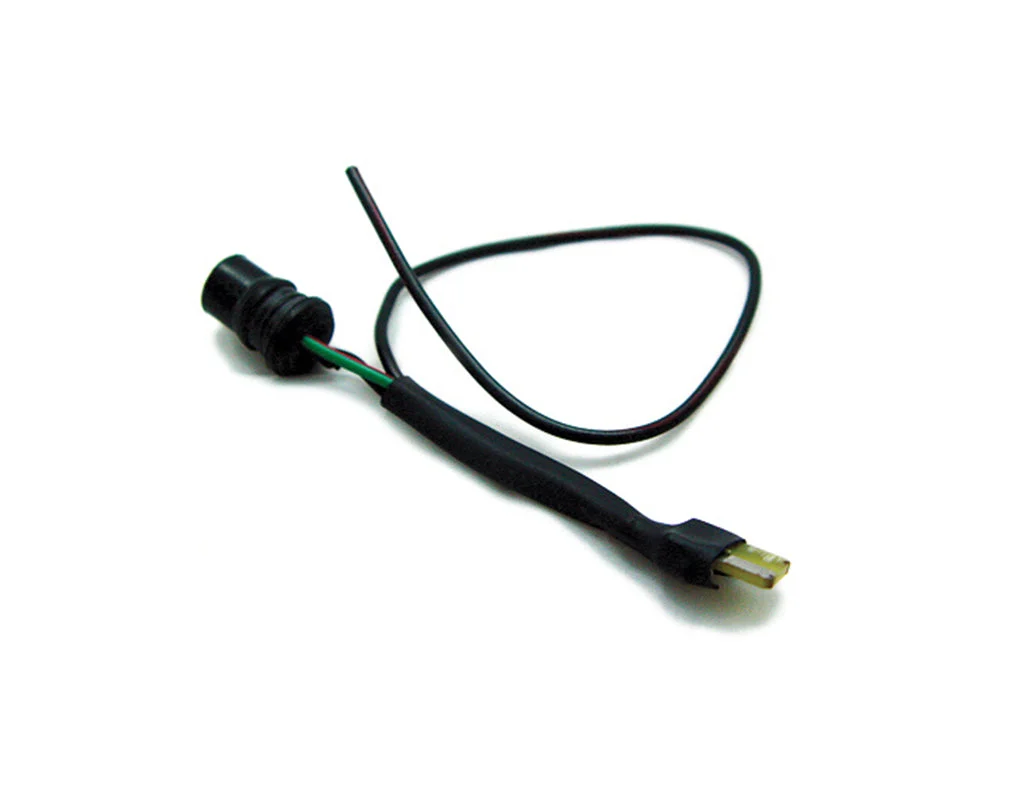

DENALI 194 Marker Bulb Plug-And-Play Trigger Wire Adapter – EC.02350

DENALI 194 Marker Bulb Plug-And-Play Trigger Wire Adapter – EC.02350

The DENALI 194 Marker Bulb Plug-And-Play Trigger Wire Adapter provides a convenient way to obtain a switched 12V trigger signal from motorcycles equipped with a 194 marker bulb. Commonly found inside headlight housings as a running light, this adapter allows connection to an external relay without cutting or tapping into the factory wiring harness.

Features

• Provides a switched 12V trigger to activate an external relay
• Built-in reverse polarity protection
• Plug-and-play installation without cutting or tapping the factory harness
• Designed for vehicles equipped with a 194 marker bulb

Installation

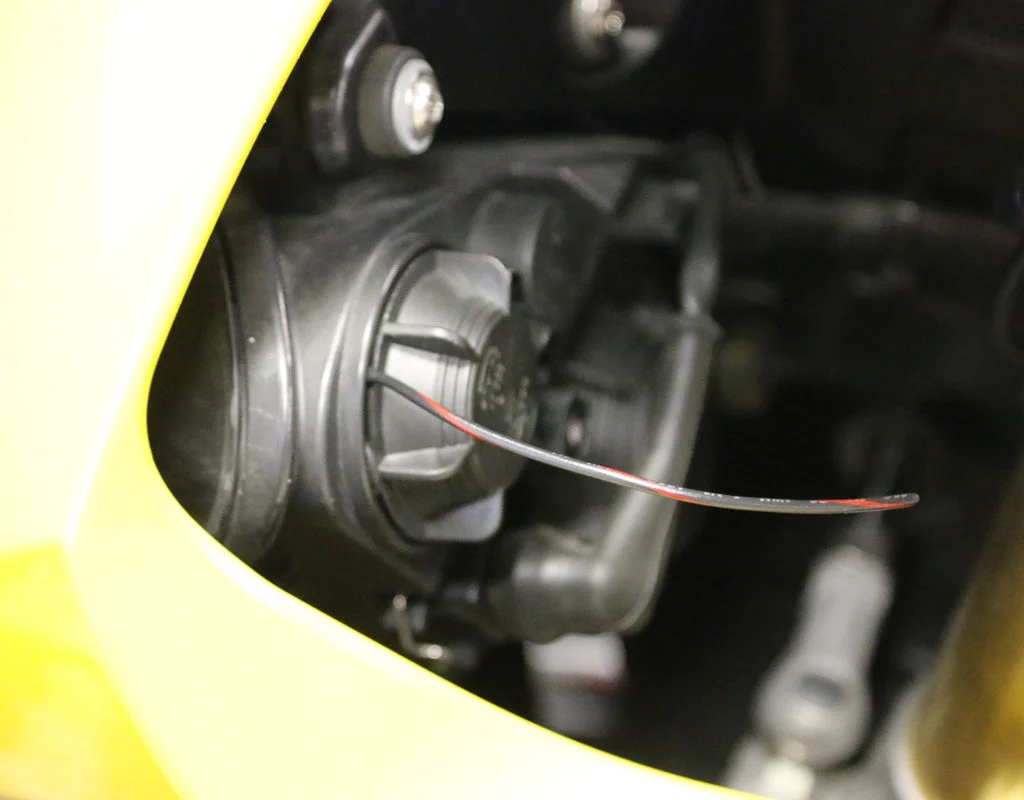

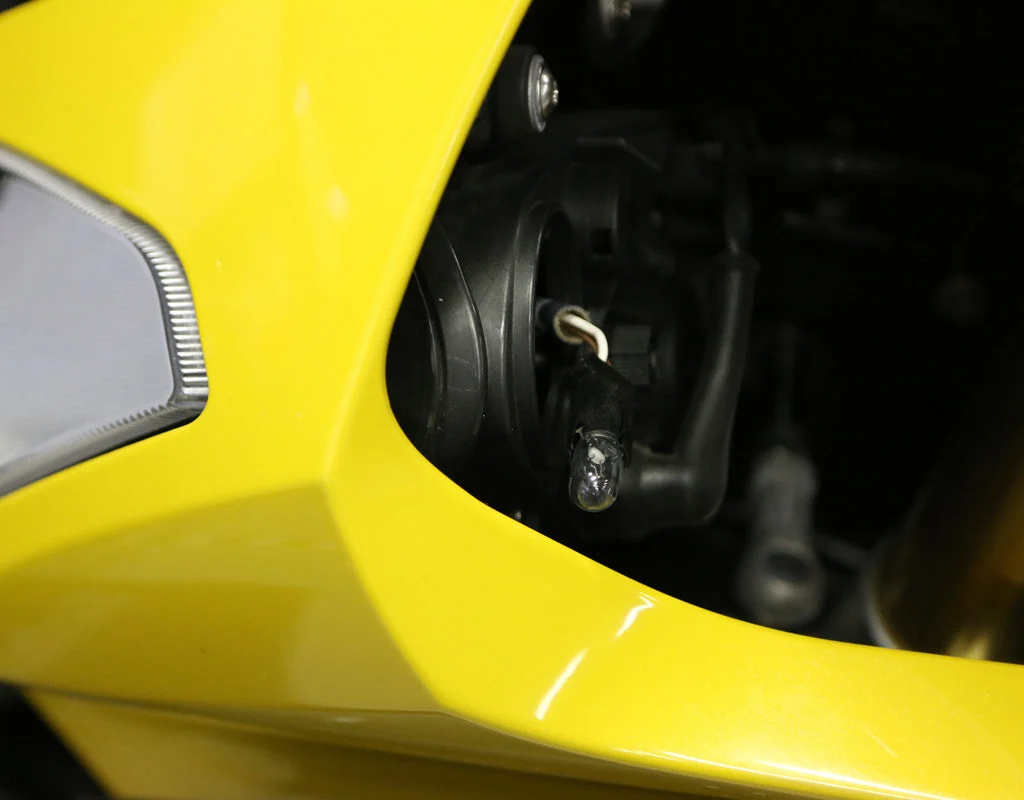

• Remove the socket from the headlight housing.
• Unplug the bulb from the socket.

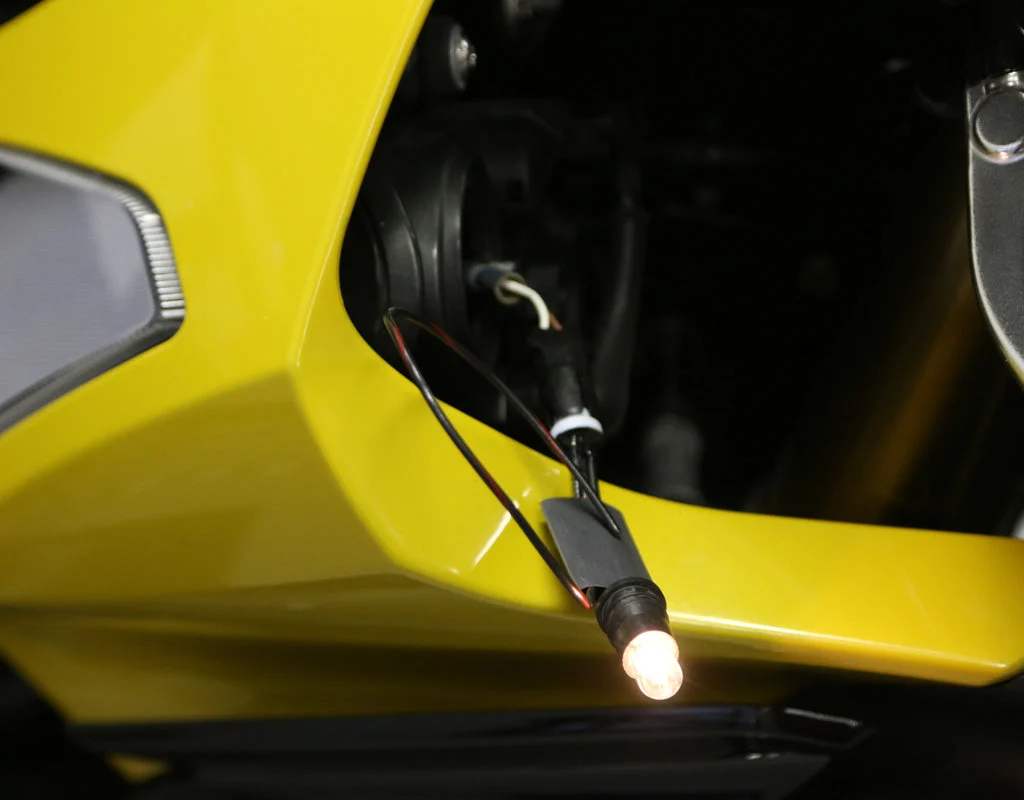

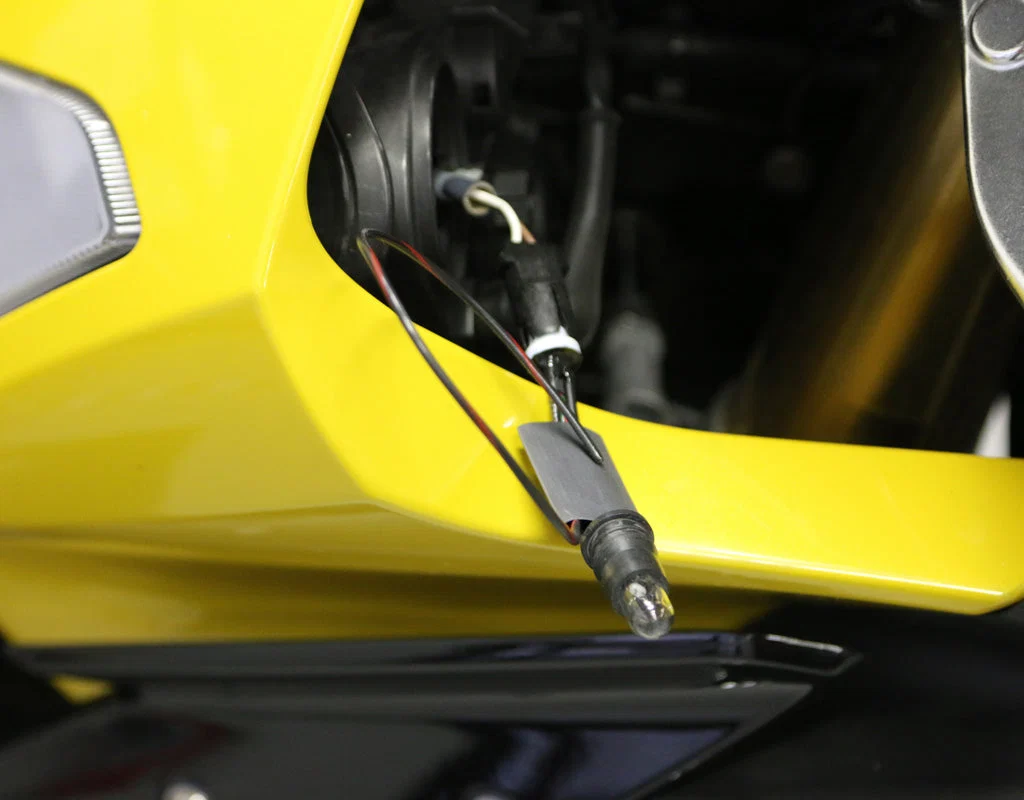

• Plug the circuit board into the socket from which the bulb was removed.
• Place heat shrink over the socket and circuit board and apply heat.
• Plug the bulb into the new socket.
• Use the lead coming from the socket to activate an external relay.

Fitment

Compatible with motorcycles that use a 194 marker bulb and a universal bulb connector. It will not fit motorcycles with a custom OEM 194 bulb connector.

Product Specifications

SKU: EC.02350

UPC: 641461023506

Weight: 0.1 lb

Important Information

External relay is not included. Fitment depends on the motorcycle using a 194 marker bulb with a universal bulb connector.
