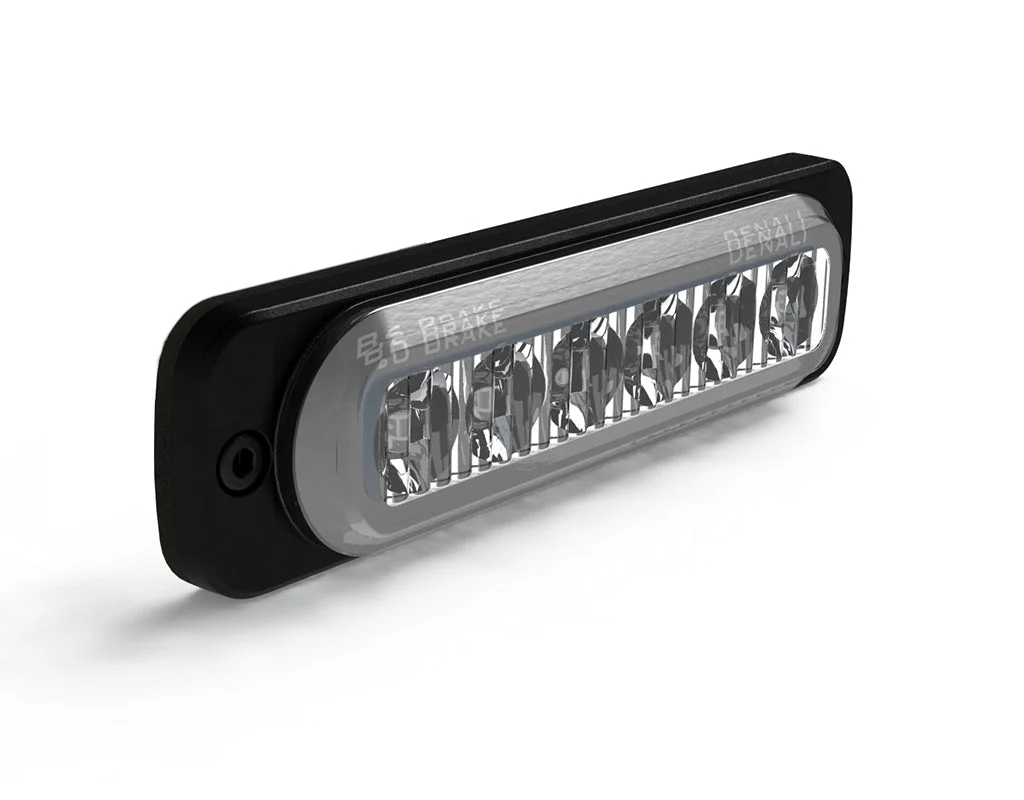

DENALI B6 Flush Mount LED Auxiliary Brake Light - DNL.B6.10200

DENALI B6 Flush Mount LED Auxiliary Brake Light - DNL.B6.10200

The DENALI B6 Flush Mount LED Auxiliary Brake Light Kit is designed to mount a single B6 Visibility Pod to virtually any flat surface on your vehicle. Its compact, low-profile design provides powerful auxiliary brake lighting while maintaining a clean and discreet appearance after installation.

The included silicone gasket helps create a watertight seal, while the supplied hardware supports both through-bolt installation and blind self-tapping installation into plastic surfaces. The B6 can connect directly to a DENALI CANsmart Controller or to a vehicle's existing brake light circuit.

Features

• Dual-circuit running and brake light functionality
• 180-degree viewing angle
• Six high-power LEDs
• Low 6-watt power consumption
• Compact, low-profile design
• Waterproof mounting gasket included
• Easy connection to the vehicle brake light circuit
• Waterproof micro connector
• Plug-and-play connection to DENALI CANsmart Controller

Product Specifications

Product: DENALI B6 Flush Mount LED Auxiliary Brake Light

Part Number: DNL.B6.10200

Power Draw: 0.5 Amp

Voltage: 12V DC

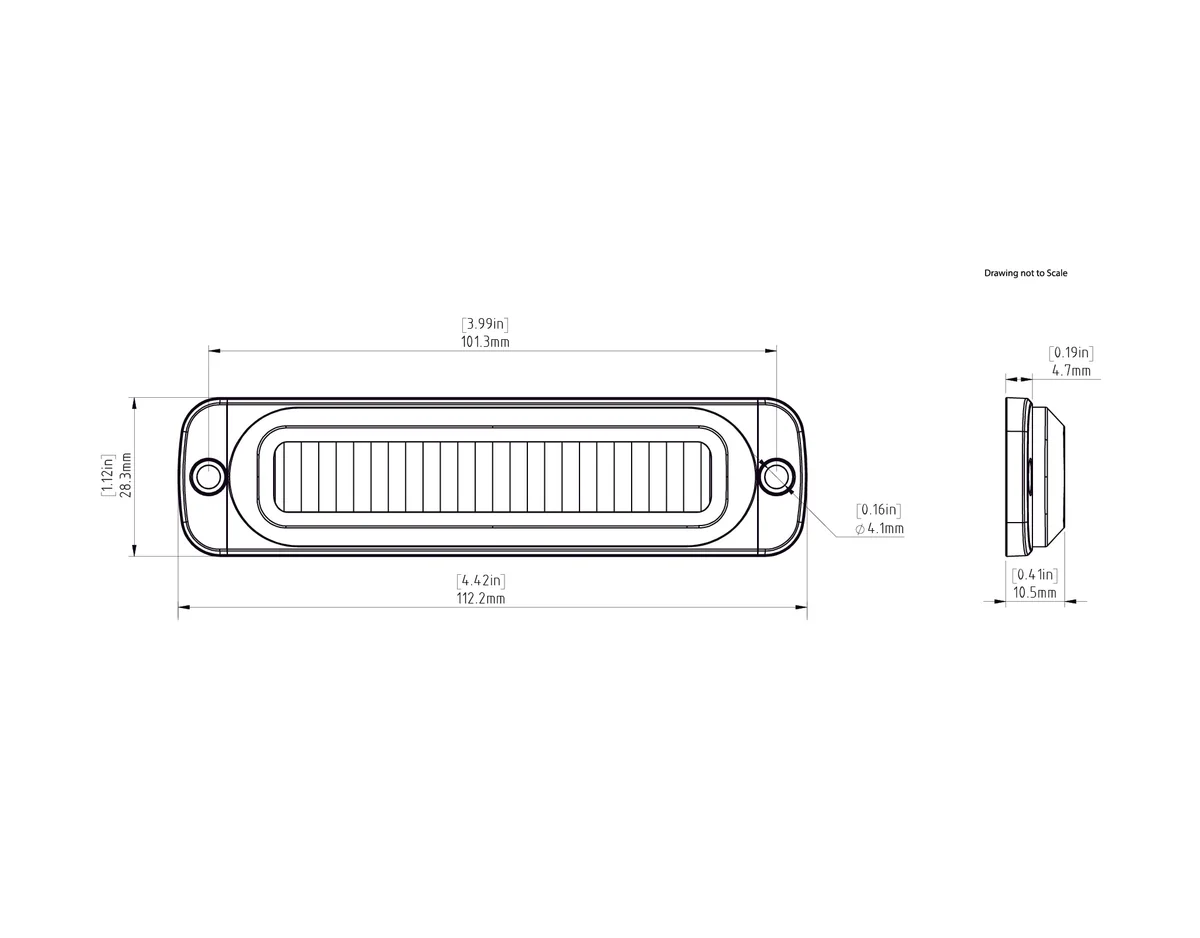

Size: 4.4" x 1.1" x 0.42"

Raw Lumens: 870

Waterproof Rating: IP67

Weight: 0.18 lb

Product Type: Brake Lights

Fitment: Universal

Additional Features with DENALI CANsmart Controller

• Programmable deceleration-activated brake light
• Programmable brake light flash patterns
• Plug-and-play waterproof connection to the CANsmart Controller

What's In The Box?

• DENALI B6 Brake Light Visibility Pod x 1
• Flush Mount for DRL & B6 Visibility Pods x 1

Compatibility

This is a universal-fit product designed to mount to flat surfaces on many different vehicles. Universal products may require a vehicle-specific fit kit or other modifications for installation and are not guaranteed to fit every vehicle.

Installation

The included silicone gasket provides a watertight mounting seal. The supplied hardware allows for through-bolting as well as blind self-tapping installation into suitable plastic surfaces. Refer to the installation manual for complete mounting and wiring instructions.

Important Information

The B6 light pod and flush mounting components are packaged separately and may ship in separate boxes.

Instruction Manual

DENALI B6 Flush Mount Installation Instruction Manual
