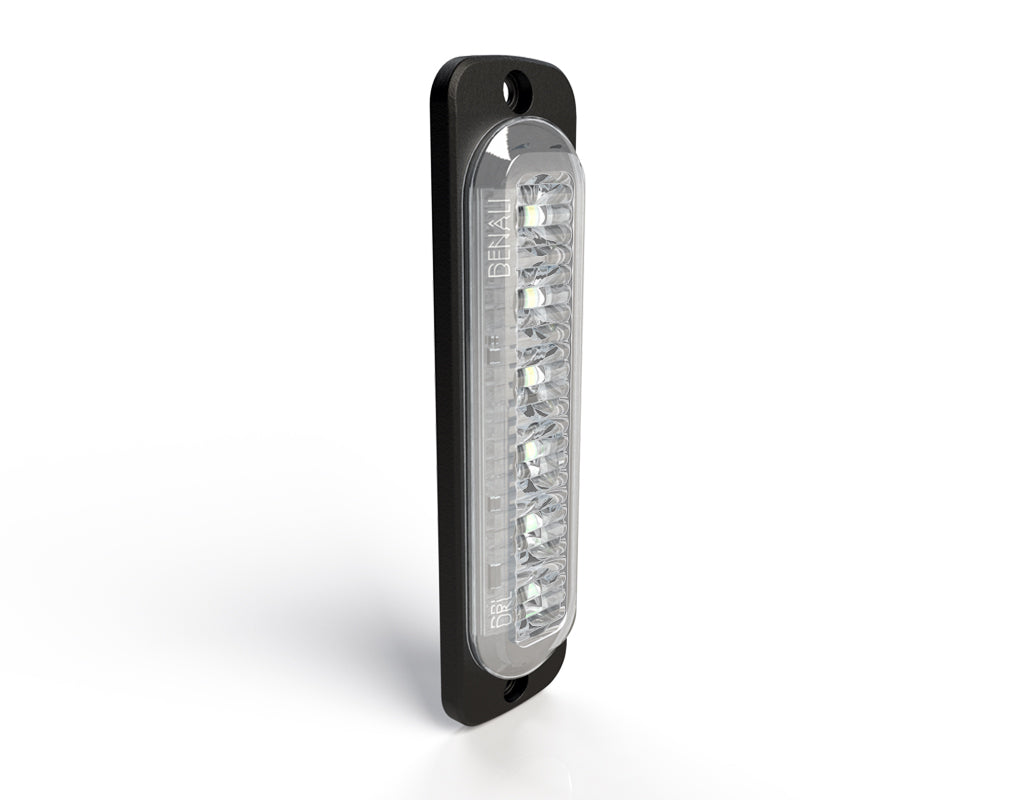

DENALI B6 LED Auxiliary Brake Light - DNL.B6.003

DENALI B6 LED Auxiliary Brake Light - DNL.B6.003

The DENALI B6 LED Auxiliary Brake Light is purpose-built to deliver an exceptional amount of light from an ultra-low-profile housing. Its compact design practically disappears once installed while providing powerful brake-light visibility. The three-wire B6 pod features an integrated running and brake circuit, operating at 50% intensity for running light and switching to 100% intensity when the brake circuit is activated.

The B6 is compatible with a variety of mounting kits for installation below or beside a license plate or flush mounting onto a flat surface. With a waterproof micro connector and included Posi-Tap connectors, the B6 is easy to integrate into a vehicle's brake-light circuit. It can also connect directly to a DENALI CANsmart Controller for programmable flash-pattern braking and deceleration-activated automatic brake-light functionality.

Features

• Dual Circuit: Integrated running and brake light circuits.
• 180-Degree Viewing Angle: Provides excellent visibility from a wide range of angles.
• Six High-Power LEDs: Delivers powerful auxiliary brake-light illumination.
• Low Power Consumption: Uses only 6 watts.
• Low-Profile Design: Compact housing provides a clean and discreet installation.
• Easy Brake Circuit Connection: Designed for straightforward connection to a vehicle's brake-light circuit.
• CANsmart Compatibility: Connects directly to the DENALI CANsmart Controller for programmable flash-pattern braking and deceleration-activated auto brake-light functionality.
• Waterproof Construction: IP67-rated housing for reliable performance in wet conditions.

Product Specifications

Power Draw: 0.5 Amp

Voltage: 12V DC

Size: 4.4 x 1.1 x 0.42 inches

Weight: 0.15 lbs

Raw Lumens: 870

Waterproof Rating: IP67

SKU: DNL.B6.003

UPC: 810005871174

Mounting Options

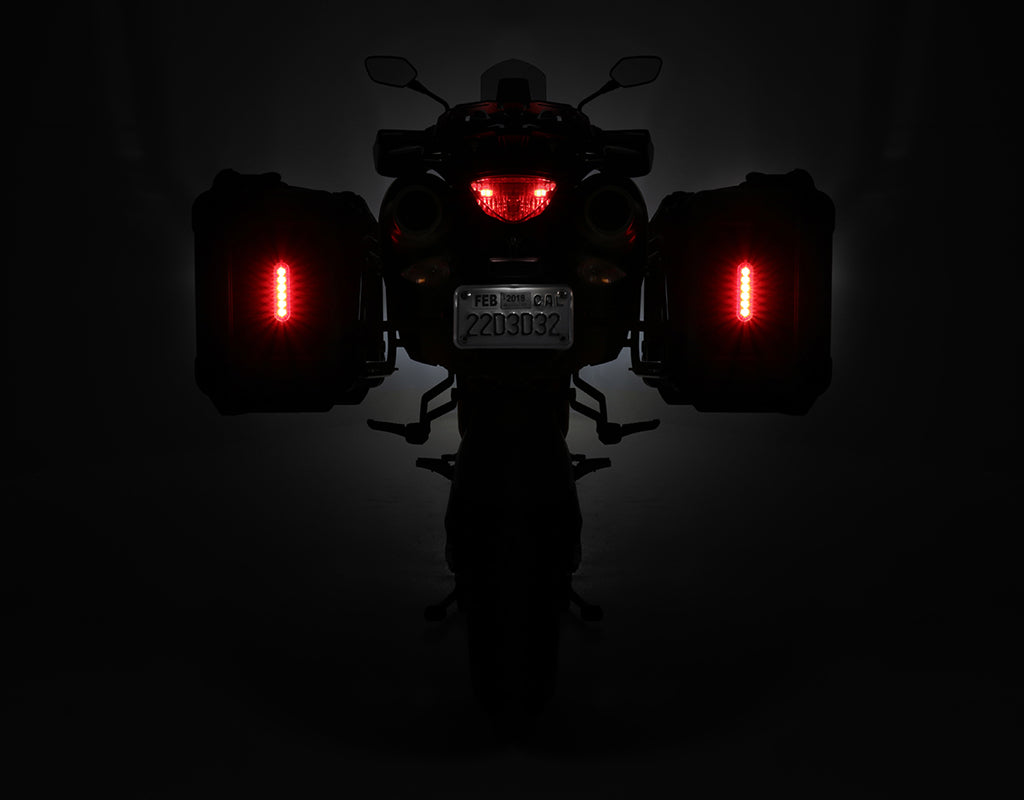

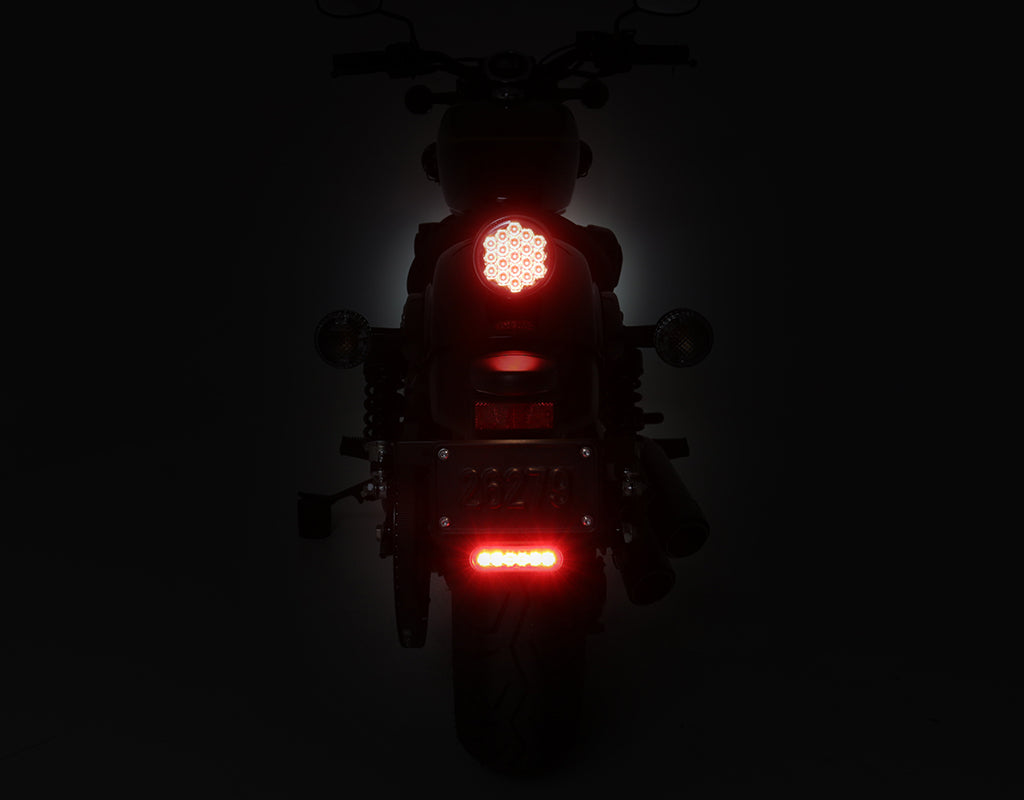

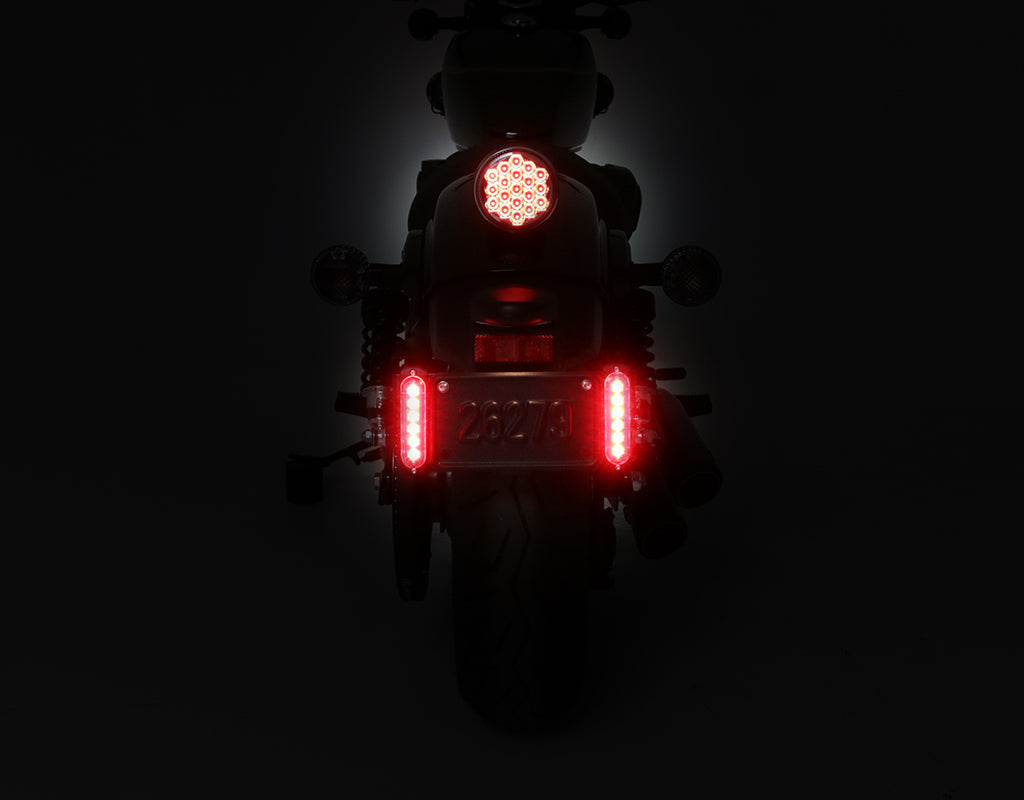

The B6 brake light pods are compatible with various mounting kits that allow installation below a license plate, beside a license plate, or flush-mounted onto a flat surface.

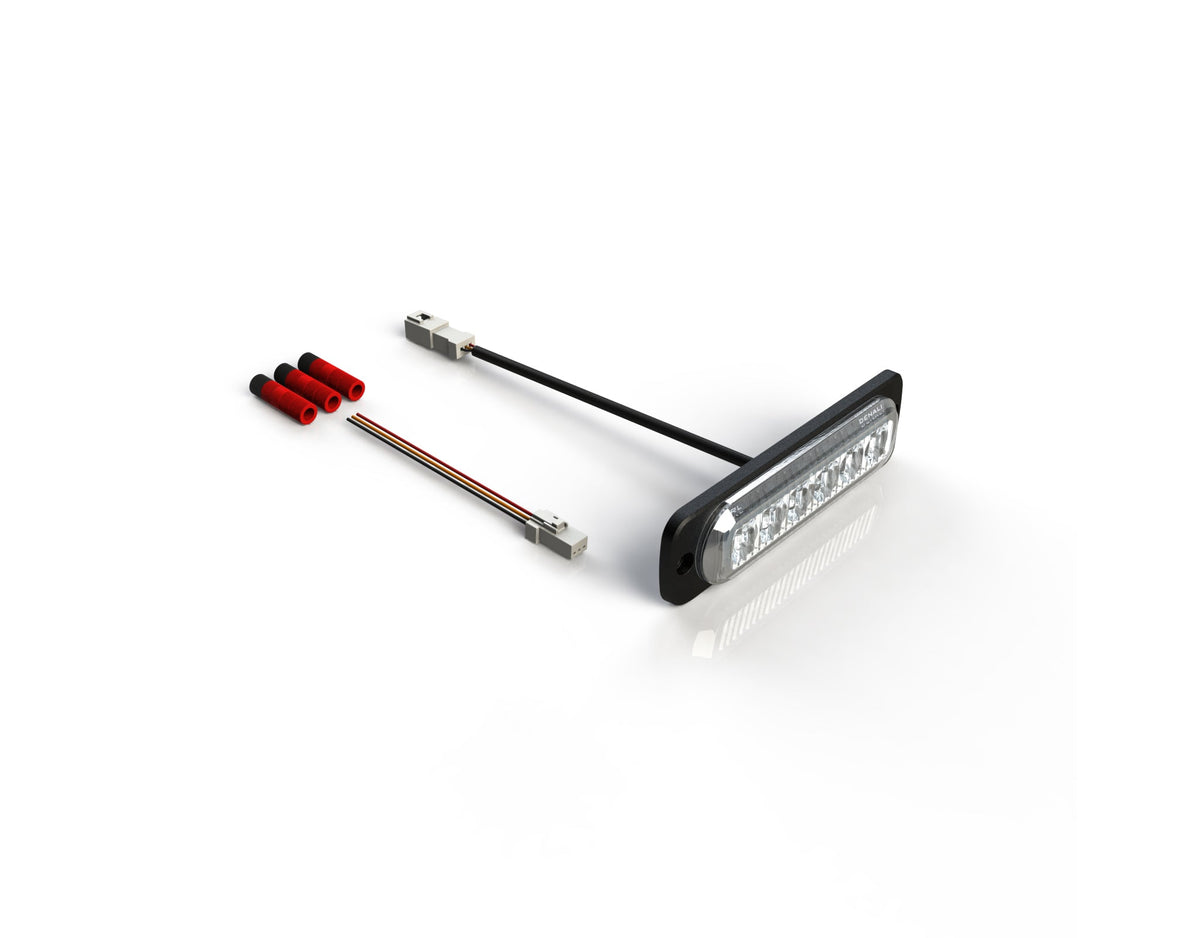

What's In The Box?

• 1 x DENALI Red B6 Brake Light Visibility Pod
• 1 x Wiring Pigtail
• 3 x Posi-Tap Connectors

Compatibility

This is a universal-fit product designed to work with a wide range of vehicles. A vehicle-specific mounting kit or additional modifications may be required for installation. Universal products are not guaranteed to fit every vehicle. Check the installation requirements before purchase.

Installation Instructions

Refer to the DENALI B6 LED Auxiliary Brake Light instruction manual for complete installation information and wiring instructions.
