DENALI D3 Auxiliary LED Lights - Driving (Spot) - Lights Only - Set of 2 - DNL.D3.050.2

DENALI D3 Auxiliary LED Lights - Driving (Spot) - Lights Only - Set of 2 - DNL.D3.050.2

DENALI D3 Auxiliary LED Driving Lights deliver high-performance illumination in a compact, durable housing. Built on years of DENALI lighting innovation, the D3 features a powerful 36-watt design and TriOptic™ beam system, giving you the flexibility to use a full spot beam, full hybrid driving beam, or a spot/hybrid combination.

The D3 Spot lens is engineered for maximum beam distance, reaching up to 1910 feet (582 meters) at 1 lux per pair. The included Hybrid lenses provide an SAE and ECE certified street-legal high beam for North American and European Union applications, while the Spot lens is ECE certified.

Features

• High-performance 36-watt auxiliary LED driving lights.
• TriOptic™ beam system allows spot, hybrid, or spot/hybrid beam combinations.
• 4200 raw lumens per pair.
• Spot beam reaches up to 1910 feet (582 meters) at 1 lux per pair.
• Hybrid beam is SAE and ECE certified.
• Spot lens is ECE certified.
• DataDim™ 3-wire smart-dimming technology compatible with DENALI dimming controllers.
• DrySeal™ waterproof and submersible housing rated IP67.
• Impact PC™ polycarbonate bezels resist cracking, fading, corrosion, and repeated stone and debris impacts.
• LiveActive™ Thermal Management helps keep the LEDs cool and maintain light output.

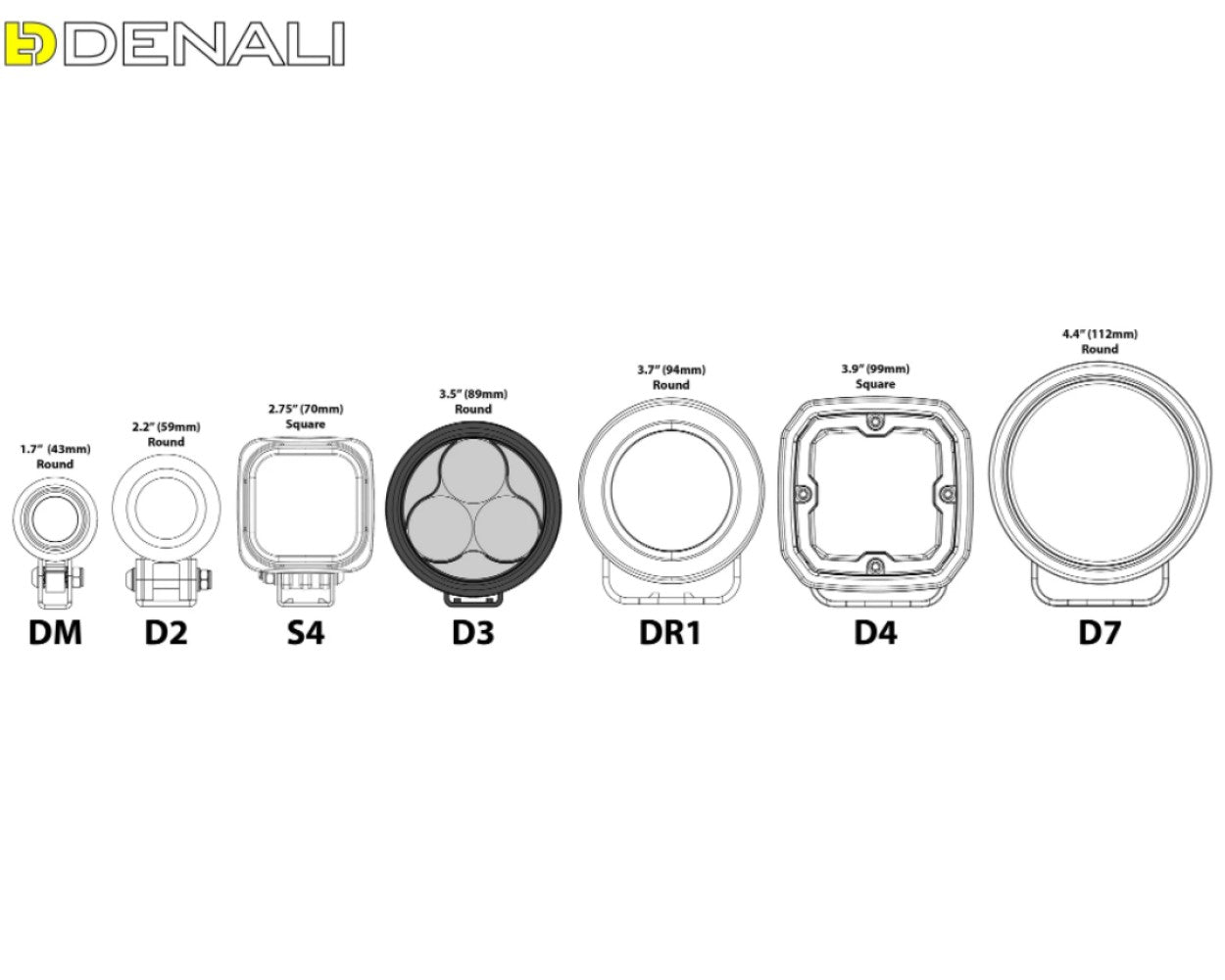

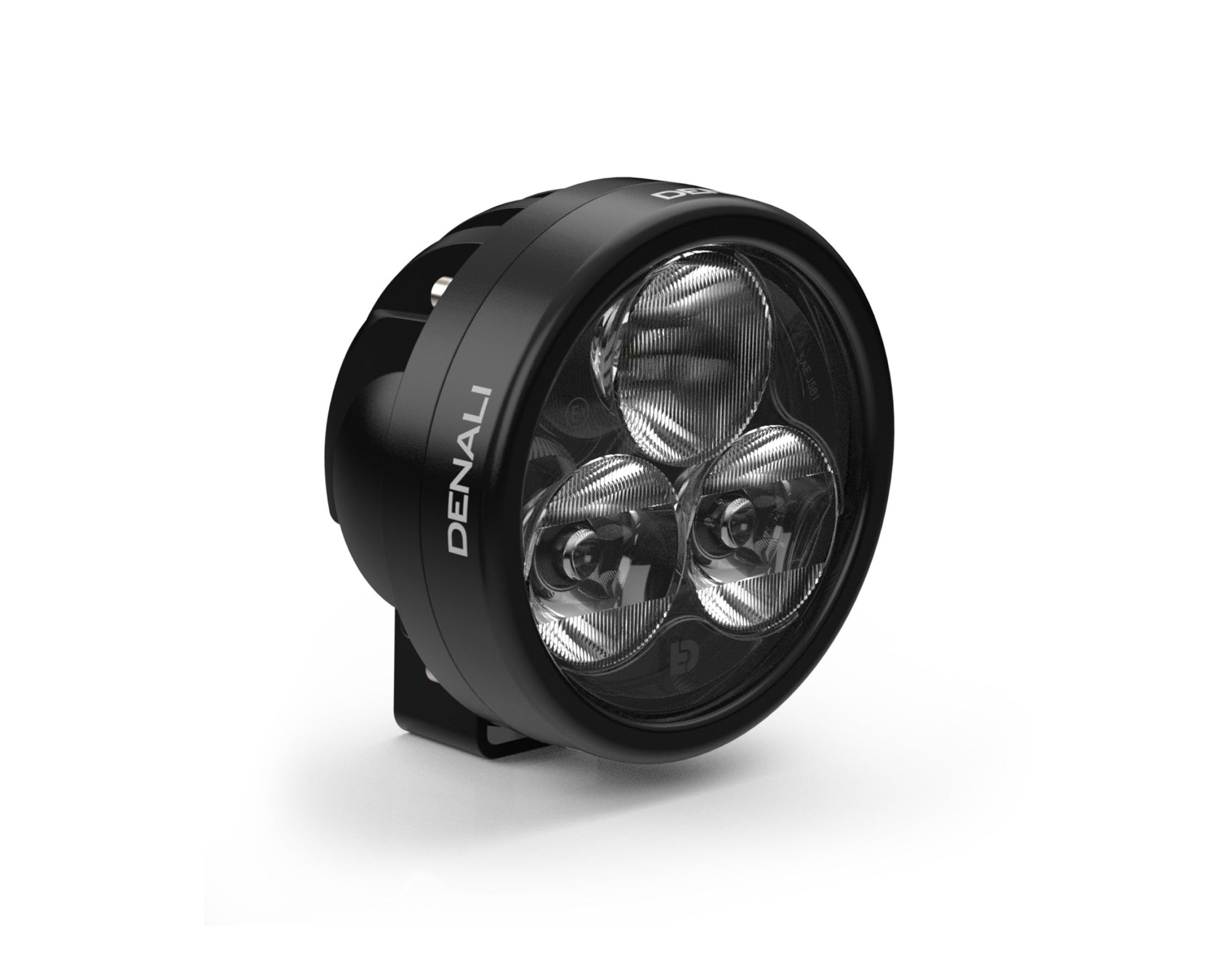

• Compact 90mm round x 66mm deep housing.

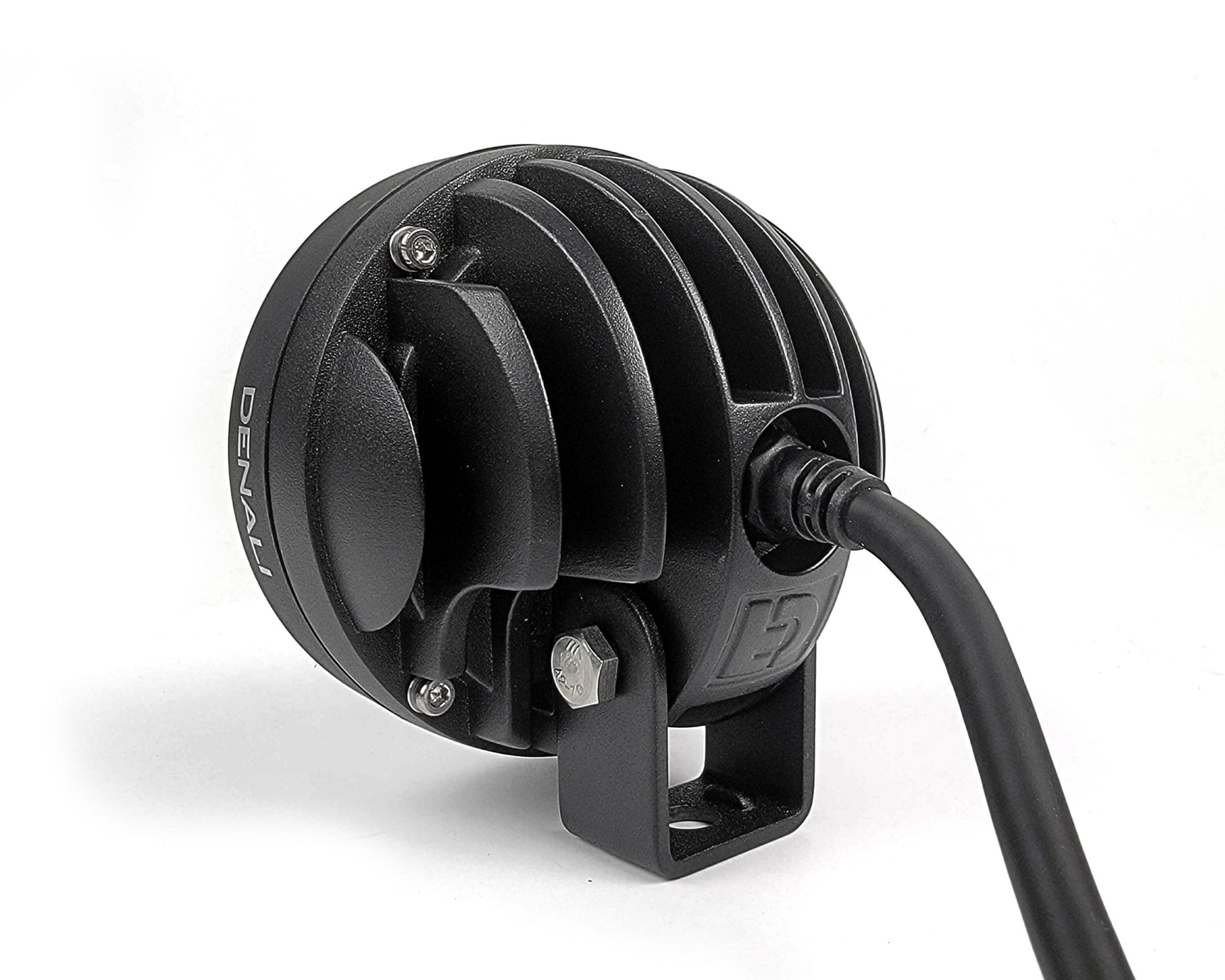

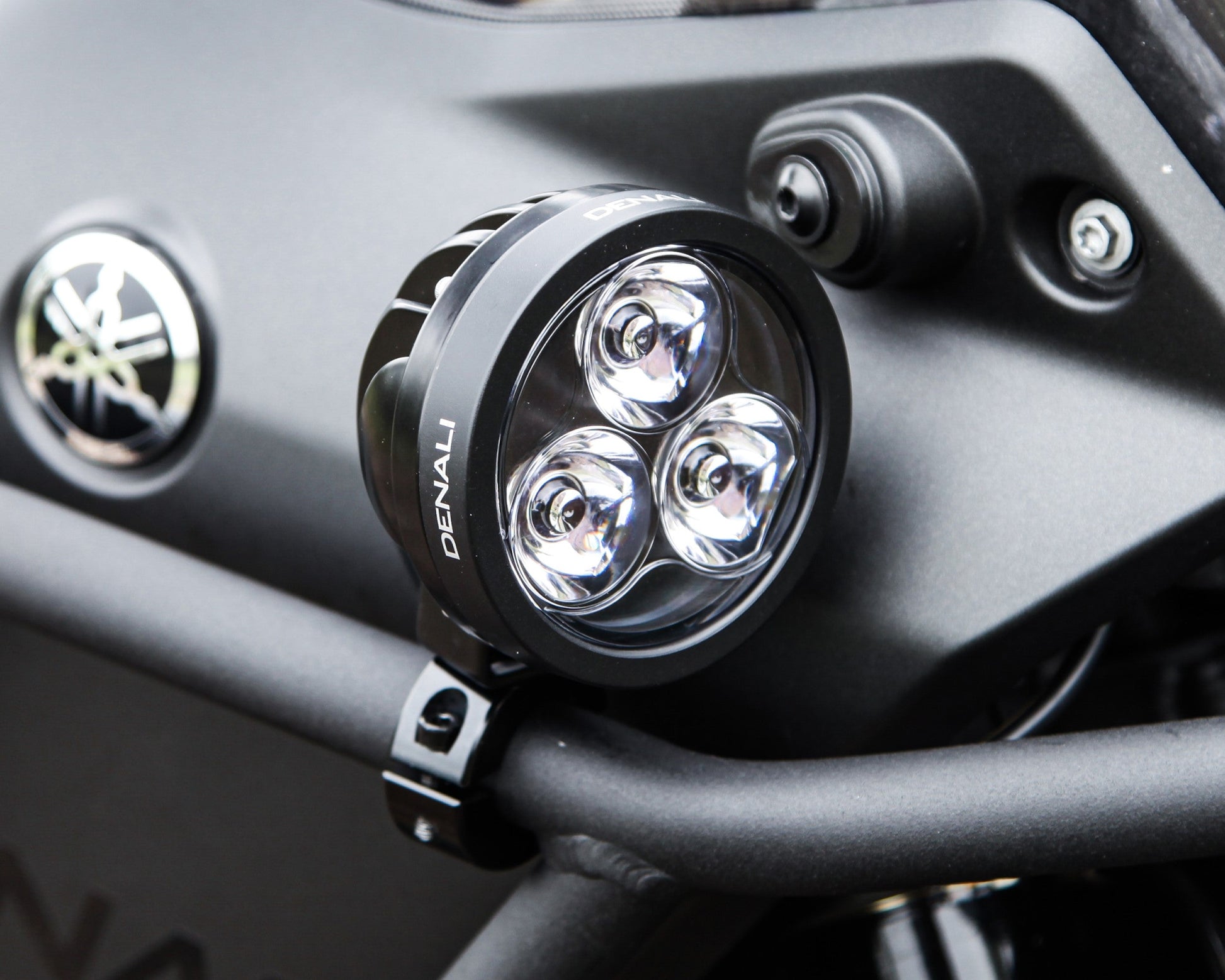

• Low-profile mounting brackets with stainless steel hardware included.
• Additional amber and selective yellow lens options are available separately.

Beam Performance

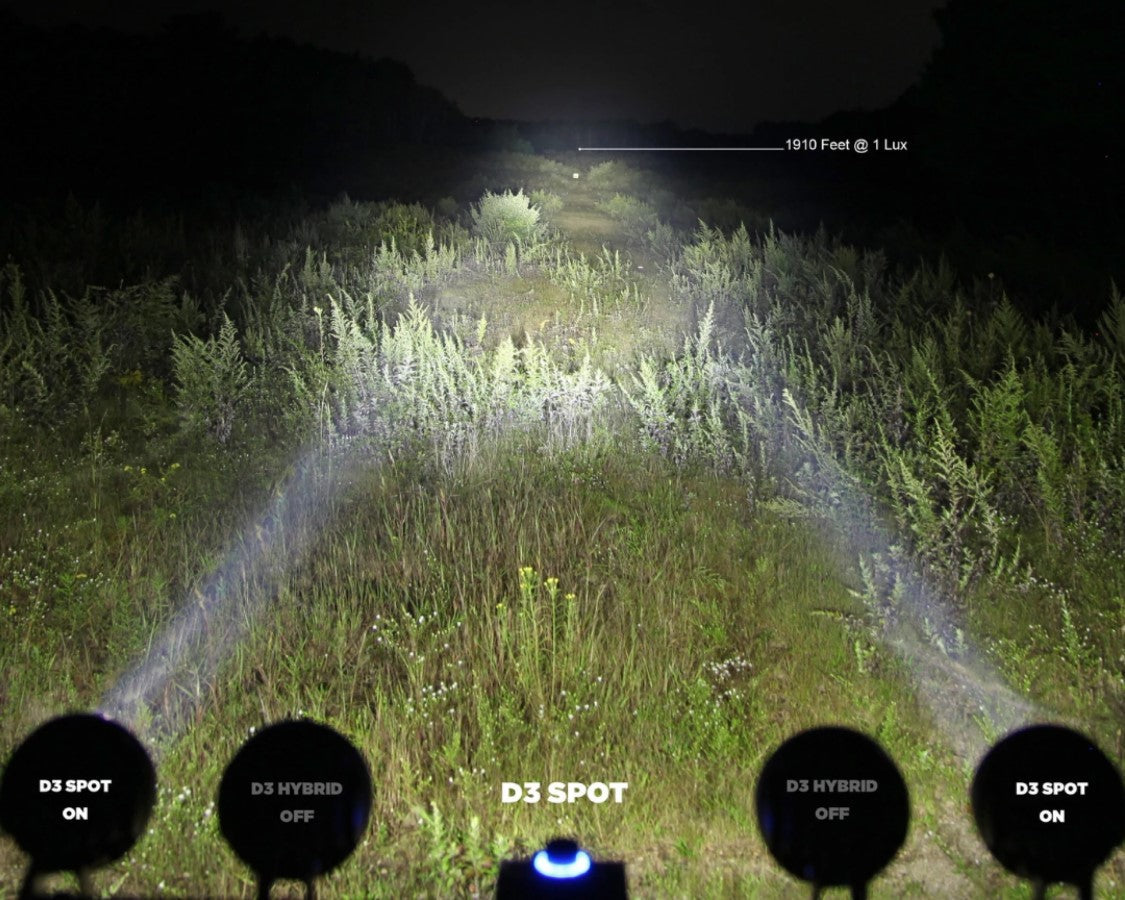

• Spot Beam: 1910 feet (582 meters) beam distance and 100 feet (30 meters) beam width at 1 lux per pair.
• Combo Beam: 1520 feet (463 meters) beam distance and 175 feet (53 meters) beam width at 1 lux per pair using one spot and one hybrid lens.

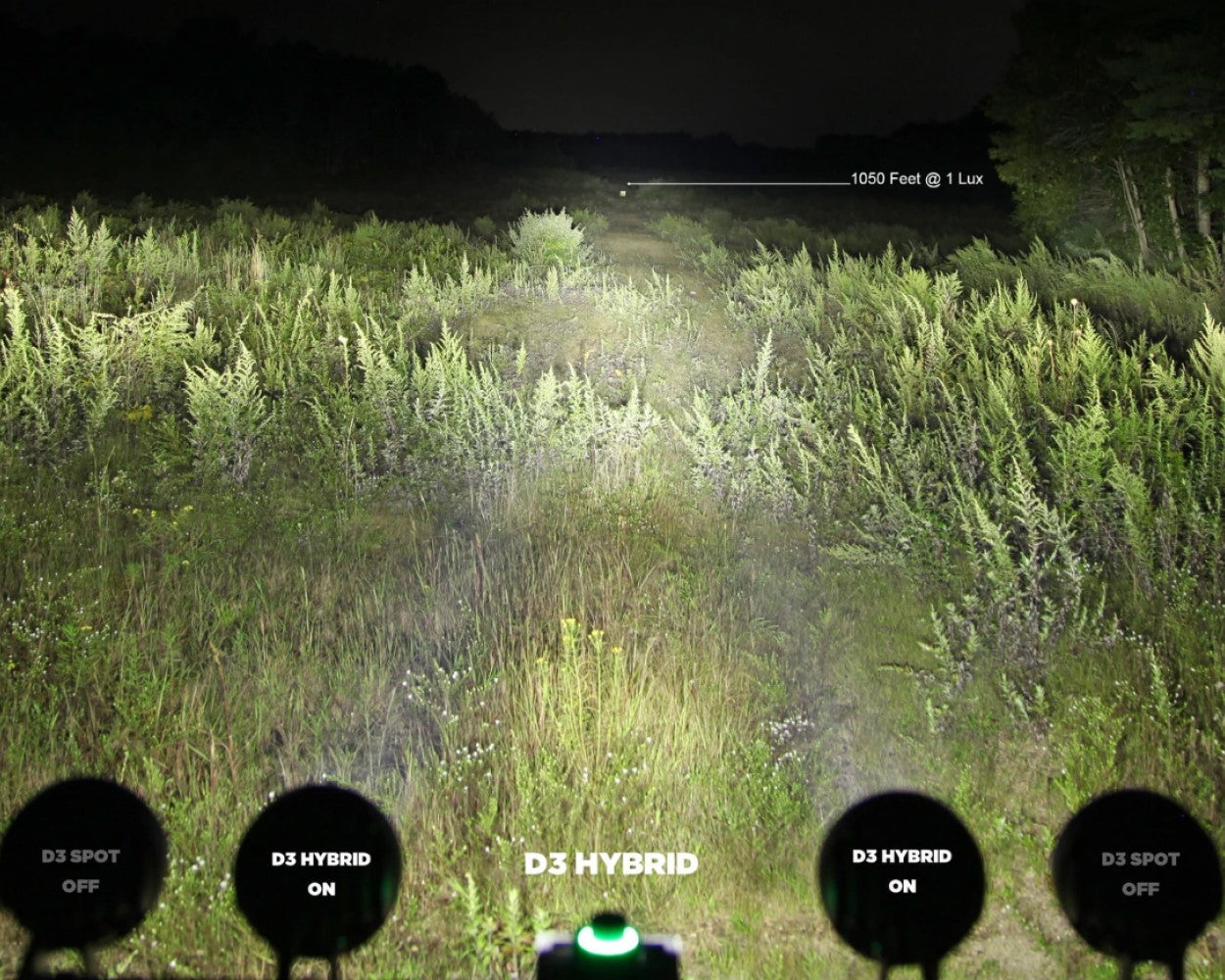

• Hybrid Beam: 1050 feet (320 meters) beam distance and 225 feet (69 meters) beam width at 1 lux per pair.

Product Specifications

Light Type: Auxiliary LED Driving Light

Beam System: TriOptic™

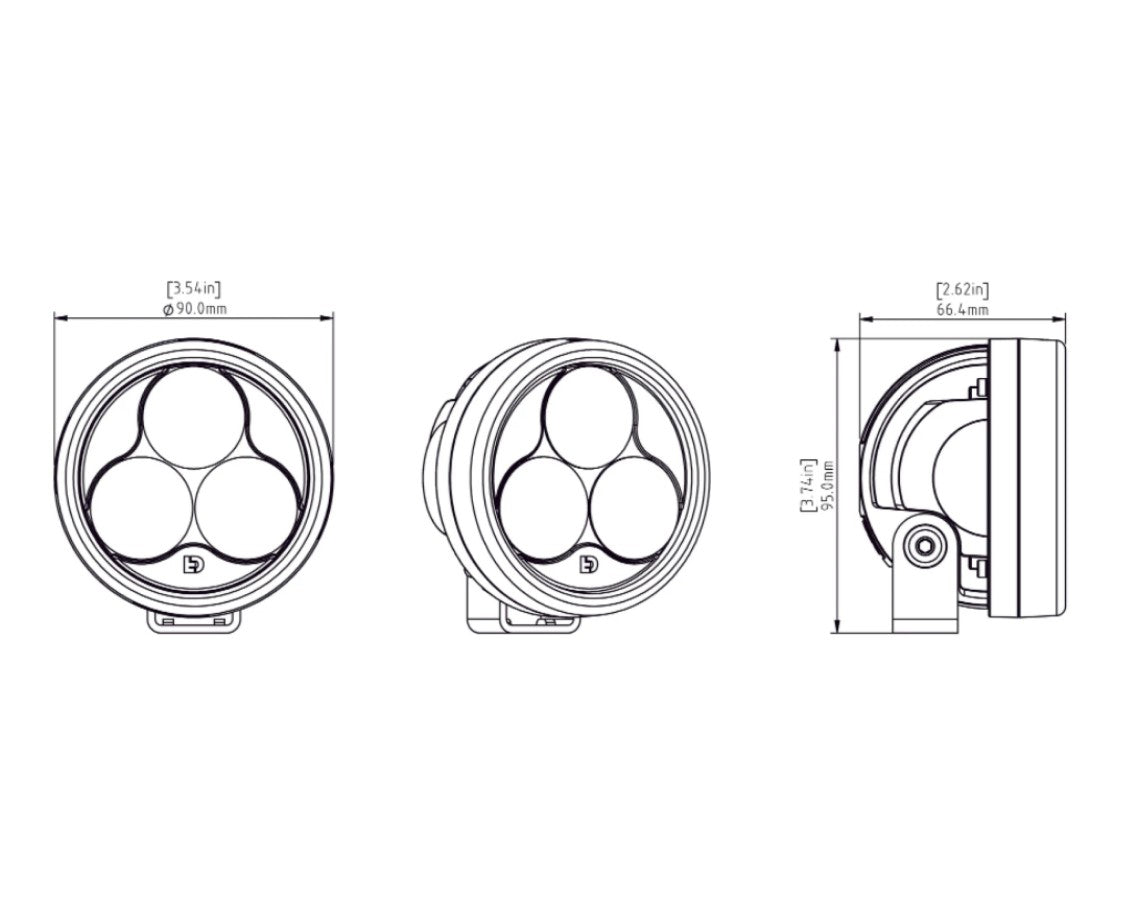

Size Per Pod: 90mm round x 66mm deep

Power Draw: 36 Watts / 3 Amps per pod

Total Load: 72 Watts / 6 Amps per pair

Raw Lumens: 4200 per pair / 2100 per pod

LEDs Per Pod: 3 x 11 Watt Cree XP-P LEDs

Beam Distance: 320m - 582m per pair, depending on lens combination

Beam Width: 30m - 69m per pair, depending on lens combination

Waterproof Rating: IP67 Waterproof & Submersible

DataDim™ Compatible: Yes

SKU: DNL.D3.050.2

Required Accessories

These lights are supplied as lights-only and require an appropriate DENALI wiring harness or lighting controller for installation. Available options include the Standard Powersports Harness, Standard Automotive Harness, Premium Powersports Harness, DataDim Dual-Intensity Controller, DialDim Lighting Controller, and CANsmart Controller.

Lighting Control Options

• Standard Powersports Harness: Low-profile waterproof switch for a basic single-intensity installation.
• Standard Automotive Harness: Extended-length harness with a flush-mount illuminated rocker switch for dash mounting.
• Premium Powersports Harness: Overmolded wiring with a premium illuminated switch and handlebar mounting kit.
• DataDim Dual-Intensity Controller: Enables the lights to change intensity in sync with the factory high-beam switch.
• DialDim Lighting Controller: Provides independent control and dimming of two sets of lights along with additional lighting functions.
• CANsmart Controller: Accessory manager capable of controlling DENALI lights and other electrical accessories.

What's In The Box?

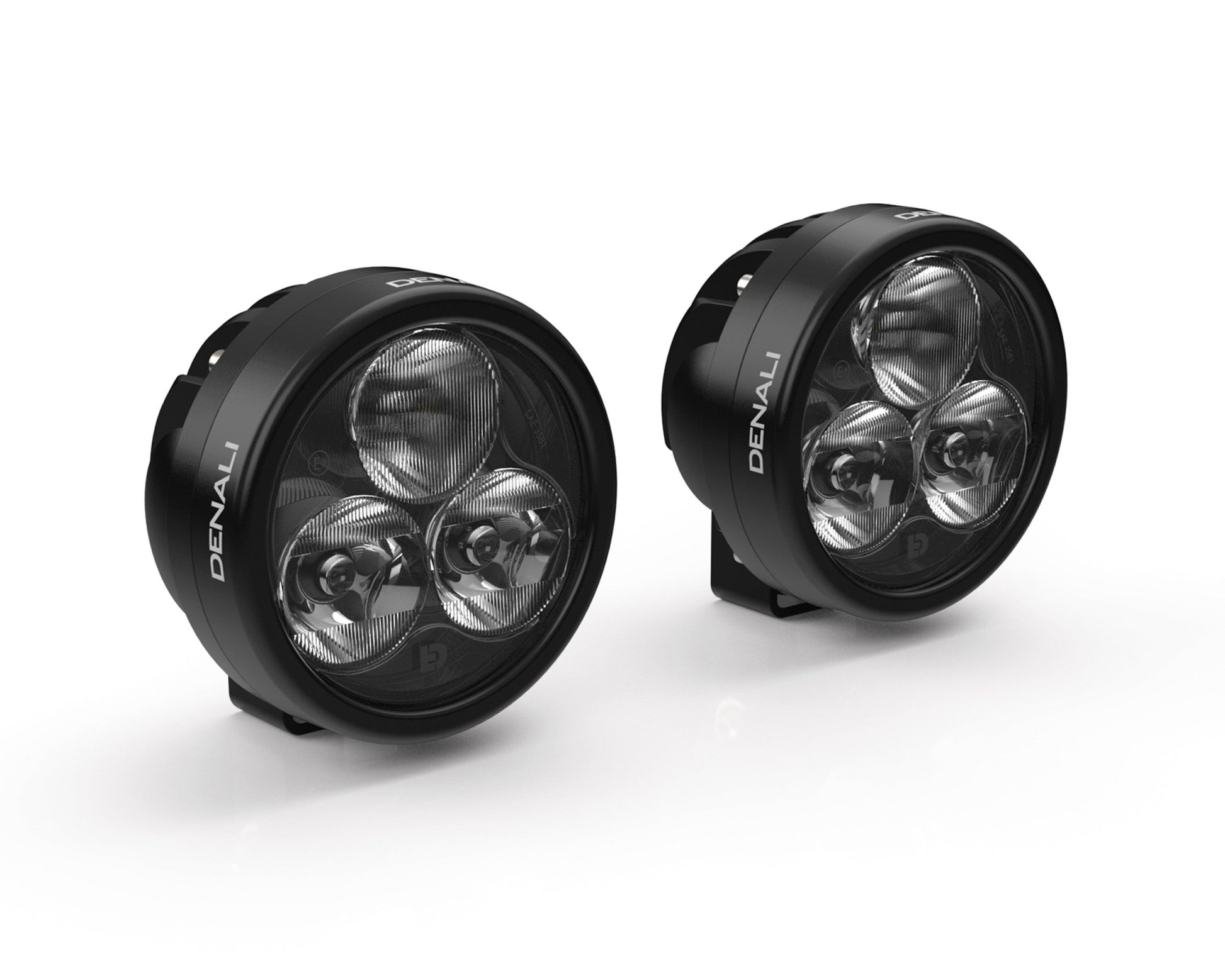

• 2 x DENALI D3 LED Light Pods with Spot Lens Installed
• 2 x DENALI D3 Hybrid Lenses
• 2 x Hinge Mounts with M8 Stainless Steel Hardware
• 2 x Wiring Pigtails
• Mounting Instructions

Installation

Installation instructions are included with the product. The DENALI D3 installation manual provides detailed information for mounting and wiring the lights.
