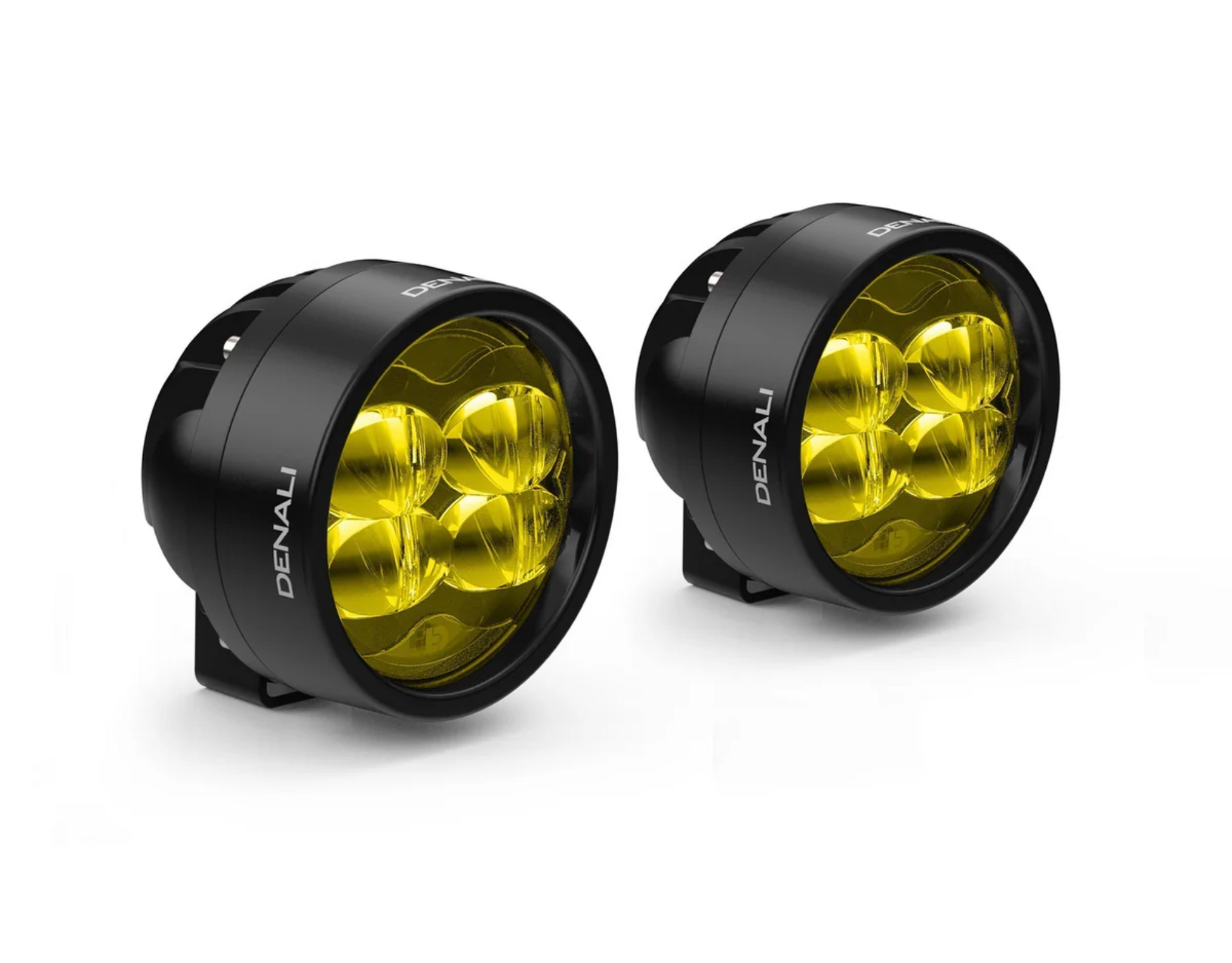

DENALI D3 Auxiliary LED Lights - Fog (Spread) - Lights Only - Single Pod Yellow - DNL.D3.051

DENALI D3 Auxiliary LED Lights - Fog (Spread) - Lights Only - Single Pod Yellow - DNL.D3.051

The DENALI D3 Auxiliary LED Fog Light is built upon a decade of DENALI innovation to deliver a high-performance, street-legal fog light. Its proprietary fog optics are engineered to reach the maximum allowable candela for regulated lighting zones under North American SAE/DOT and European Union ECE regulations. The result is a crisp and wide fog beam designed to provide excellent visibility in challenging weather and road conditions.

The D3 is also available with DENALI's signature TriOptic™ beam system, which provides spot and hybrid beam options in the same kit for riders seeking uncompromised light output.

Additional amber or selective yellow lenses can be added to enhance visibility in adverse weather conditions or make your motorcycle significantly more visible to other motorists.

Features

• Best-in-class street-legal fog beam with SAE/DOT and ECE certification.
• High-Intensity Series Cree LEDs producing 2800 lumens per pod.
• DataDim™ 3-wire smart-dimming technology compatible with DENALI dimming controllers.
• DrySeal™ submersible waterproof construction for extreme environments.
• Impact PC™ polycarbonate bezels designed to resist cracking, fading and corrosion.
• LiveActive™ Thermal Management helps keep the LEDs cool and maintain light output.
• Low-profile mounting bracket with stainless steel hardware included.
• Amber and selective yellow lenses are available separately.

Beam Performance

• Beam Distance at 1 lux: 450 feet (137 meters) per pair.
• Beam Width at 1 lux: 300 feet (91 meters) per pair.

Product Specifications

Pod Size: 3.5" (90mm) Round x 3.0" (76mm) Deep

LED: 4 x 11 Watt Cree XP-P LEDs

Power Draw: 40 Watts (3.3 Amps) per pod

Lumens: 2800 per pod

DataDim™ Compatible: Yes

Operating Voltage: 9-32V DC

Waterproof Rating: IP67 Waterproof & Submersible

Fog Lens Certifications: SAE/DOT J583 & ECE R19 with clear lens only. Amber and selective yellow lenses are not SAE/ECE certified.

Wiring & Switching Options

The D3 light pods can be combined with several DENALI wiring and lighting control options. Please select the appropriate wiring and control solution separately to complete your DENALI lighting kit.

• Standard Powersports Harness - A robust, inexpensive and low-profile waterproof switch for a basic single-intensity installation.
• Standard Automotive Harness - Includes added cable length and a flush-mount illuminated rocker switch for dash mounting.
• Premium Powersports Harness - Features overmolded wiring and a premium illuminated switch with handlebar mounting kit.
• DataDim™ Module - Allows the lights to change intensity in sync with the factory high-beam switch.
• DialDim™ Lighting Controller - Allows independent ON/OFF control and dimming of two sets of auxiliary lights from a single halo dimmer switch, along with additional lighting functions.
• CANsmart™ Controller - Provides customizable control of DENALI LED lights and can also power and control other electrical accessories such as horns, heated grips, dash cameras and GPS units.

Product Bundle Contents

This product page allows you to customize your light kit. The light pods, colored lens kits and wiring harnesses are packaged separately.

Light Pod Box Contents - DNL.D3.051

• 1 x D3 LED Fog Light Pod
• 1 x Hinge Mounts with M8 Stainless Steel Hardware
• 1 x Wiring Pigtail

Lens Kit Box Contents

• DNL.D3.10400 - Amber Fog Lens Kit
• DNL.D3.10500 - Selective Yellow Fog Lens Kit
• Each lens kit contains 2 x Fog Lenses.

Instruction Manual

PDF Instruction Manual (English)

Product Details

Variant: Selective Yellow (Pair)

SKU: DNL.D3.051.Y

Weight: 1.2 lb

Product Type: Driving Lights

Fitment

This is a universal fit item designed to fit many vehicles. Universal products may require a vehicle-specific fit kit or other modifications for installation. Universal products are not guaranteed to fit every vehicle. Check the product description for installation requirements.

Important Information

Amber and selective yellow lenses are not SAE/ECE certified. The clear lens is the certified lens for SAE/DOT and ECE applications.
