DENALI D7 Auxiliary LED Lights – Lights Only – Set of 2 - DNL.D7.050.2

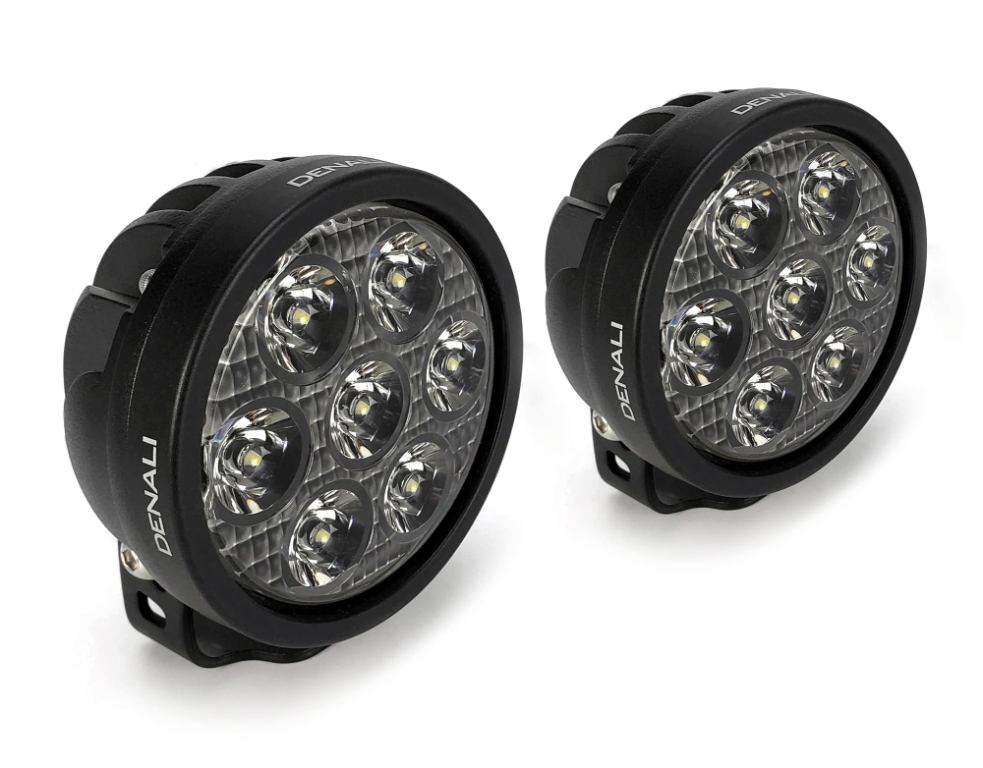

The DENALI D7 Auxiliary LED Light Kit delivers over 15,000 raw lumens from a compact 112 mm housing. Each pair features fourteen high-intensity 10-watt Cree LEDs focused through DENALI's proprietary single-piece optic system to produce a powerful beam reaching up to 460 metres. Designed for demanding powersports applications, the D7 combines high-output illumination with advanced thermal management, durable construction, and IP67 waterproof protection.
Highlights
- Set of 2 high-output DENALI D7 LED light pods
- 15330 raw lumens per pair
- 460 m beam distance
- 60 m beam width
- Fourteen high-intensity 10-watt Cree LEDs, seven per lamp
- Produces 7665 lumens per pod
- TriOptic™ Multi-Beam Lens System with Spot, Flood, and Hybrid beam options
- LiveActive™ Thermal Management helps prevent light output loss caused by overheating
- DrySeal™ submersible waterproof light housing
- IP67 waterproof and submersible construction
- Impact PC™ polycarbonate bezel resists cracking, fading, and corrosion
- Durable black powder-coated finish
- Low-profile mounting brackets with stainless steel hardware included
- Interchangeable lenses available in Clear, Amber, and Selective Yellow
- DataDim™ equipped for plug-and-play connection with compatible DENALI dimming and lighting controllers
More Flexibility, Maximum Control

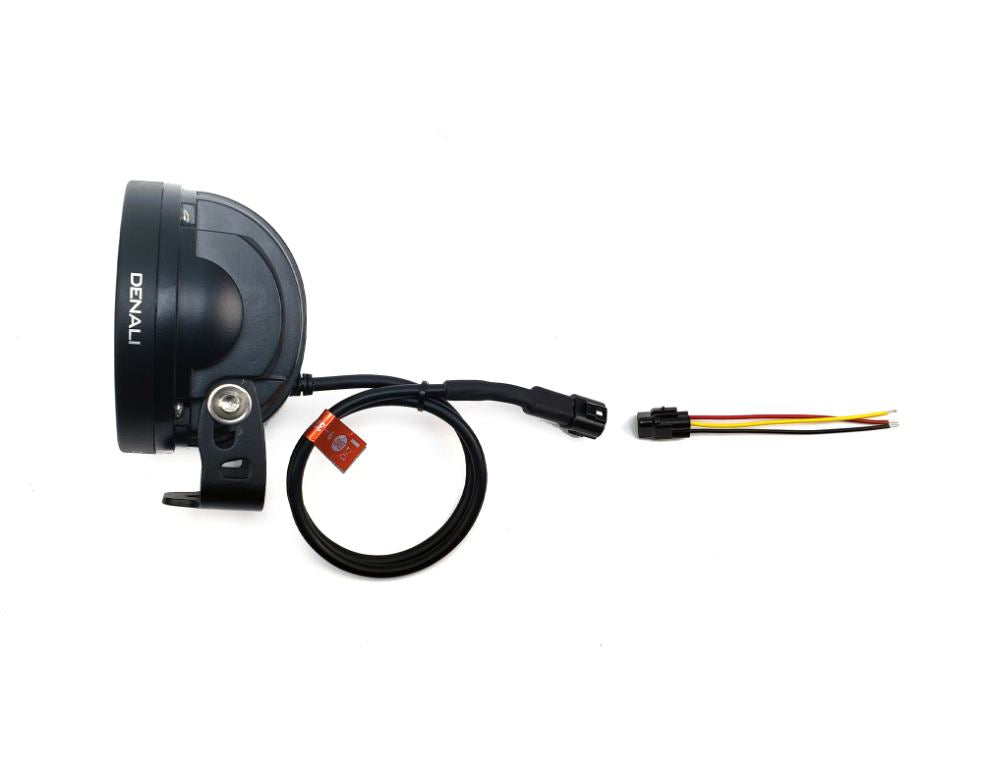

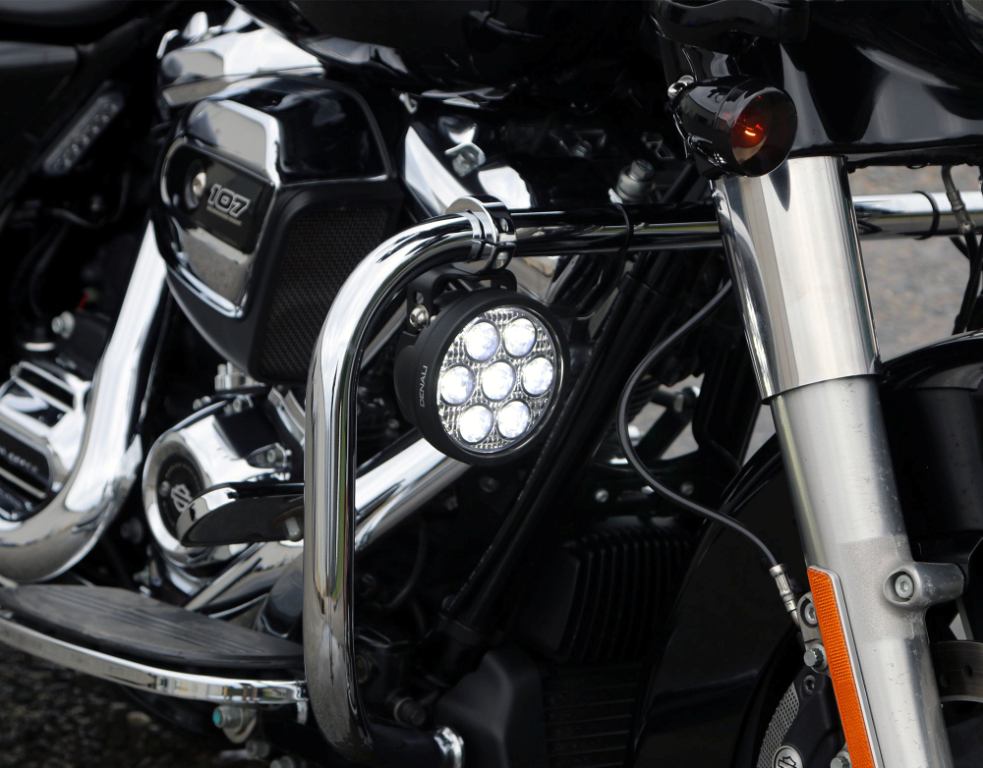

The D7 lights use a HotSwap™ modular wiring harness system, allowing you to select the wiring and lighting control solution that best suits your motorcycle and riding requirements. By default, the single-intensity lights operate at full brightness. Adding the appropriate dual-intensity controller allows the lights to operate at both half and full power.
Required Accessories
An appropriate wiring harness is required to complete your DENALI lighting installation. The following options are available:
- Standard Powersports Harness - Robust, inexpensive, low-profile waterproof switch for a basic single-intensity installation.
- Standard Automotive Harness - Robust harness with added length and a flush-mount illuminated rocker switch for dash mounting.
- Premium Powersports Harness - Features overmolded wire and a premium illuminated switch with handlebar mounting kit.
- DataDim Module - Adds dual-intensity functionality and allows the lights to change intensity in sync with the factory high-beam switch.
- DialDim Lighting Controller - Provides independent on/off and dimming control for two sets of lights, along with features including high/low beam synchronization, strobe with horn, flash with signal, cancel with signal, electronic fuse settings, and battery voltage monitoring.
- CANsmart Controller - A complete accessory manager with customizable settings for controlling LED lights and other electrical accessories such as horns, heated grips, dash cams, and GPS units.
D7 Pod Features
- High-Intensity Series Cree LEDs producing 7665 lumens per pod
- TriOptic™ Multi-Beam Lens System provides Spot, Flood, and Hybrid beam options
- DataDim™ equipped light pods support plug-and-play connection and integrated dimming with compatible DENALI controllers
- DrySeal™ submersible waterproof light housings
- Impact PC™ polycarbonate bezels designed to resist cracking, fading, and corrosion
- LiveActive™ Thermal Management helps keep LEDs cool and maintain light output
- Low-profile mounting bracket with stainless steel hardware included
- Interchangeable Clear, Amber, and Selective Yellow lenses available
Product Specifications
Product: DENALI D7 Auxiliary LED Lights
Part Number: DNL.D7.050.2
Quantity: Set of 2
Size: 112 mm square x 100 mm deep
Power Draw: 140 W, 10 amps total

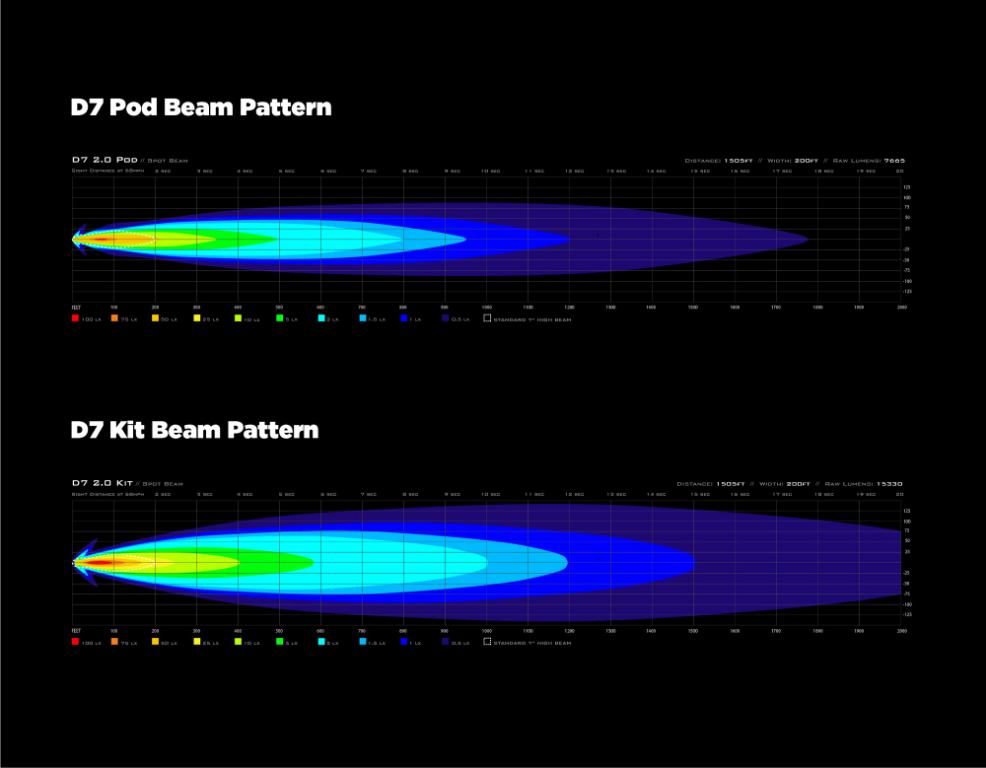

Beam Distance: 460 m
Beam Width: 60 m
Raw Lumens: 15330
LED: 10 Watt Cree XPL HI, 14 LEDs total (7 per lamp)
What's in the Box
- DENALI D7 LED Light x 1 Pair
- Low-profile mounting brackets
- Stainless steel mounting hardware
- Mounting Instructions
