DENALI D7 Auxiliary LED Lights - Lights Only - Single Pod - DNL.D7.050

DENALI D7 Auxiliary LED Lights - Lights Only - Single Pod - DNL.D7.050

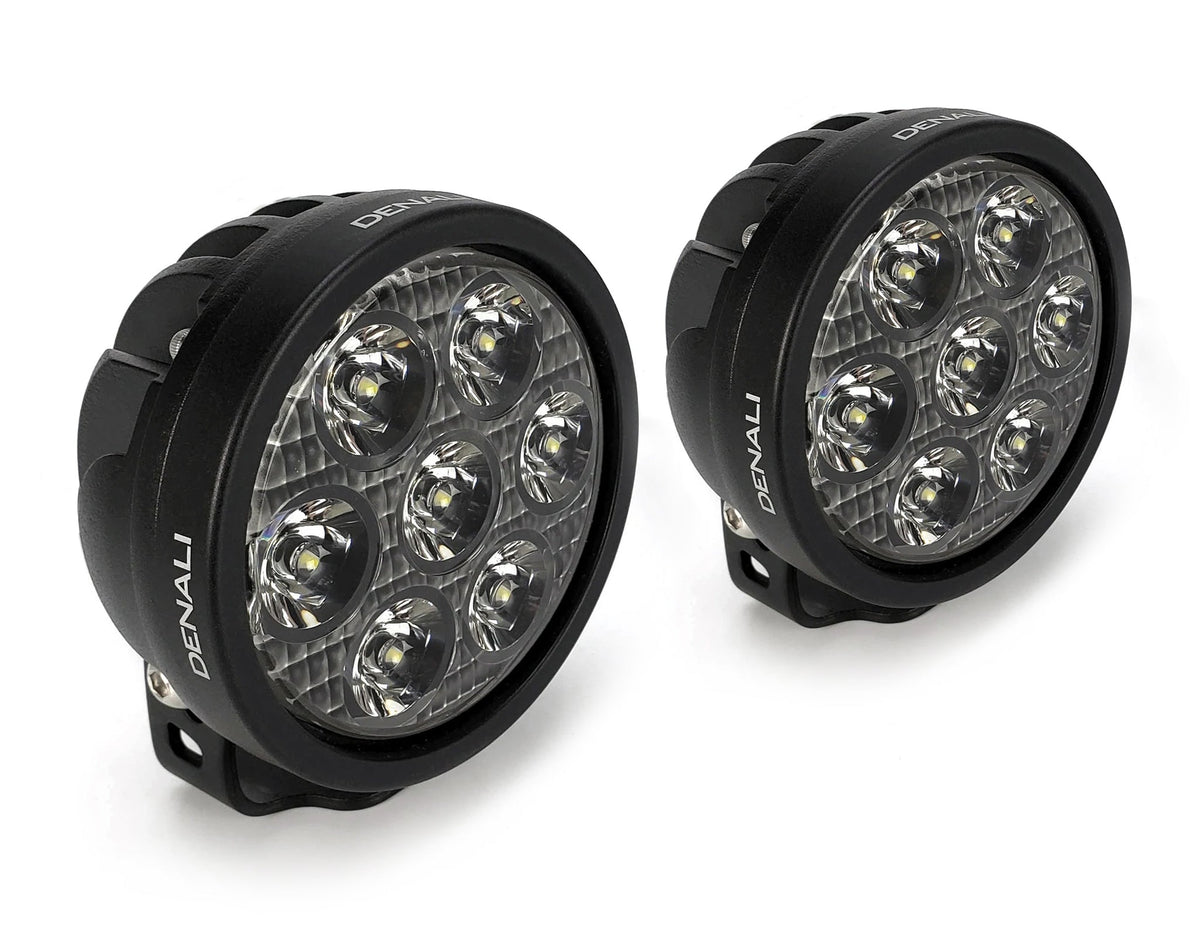

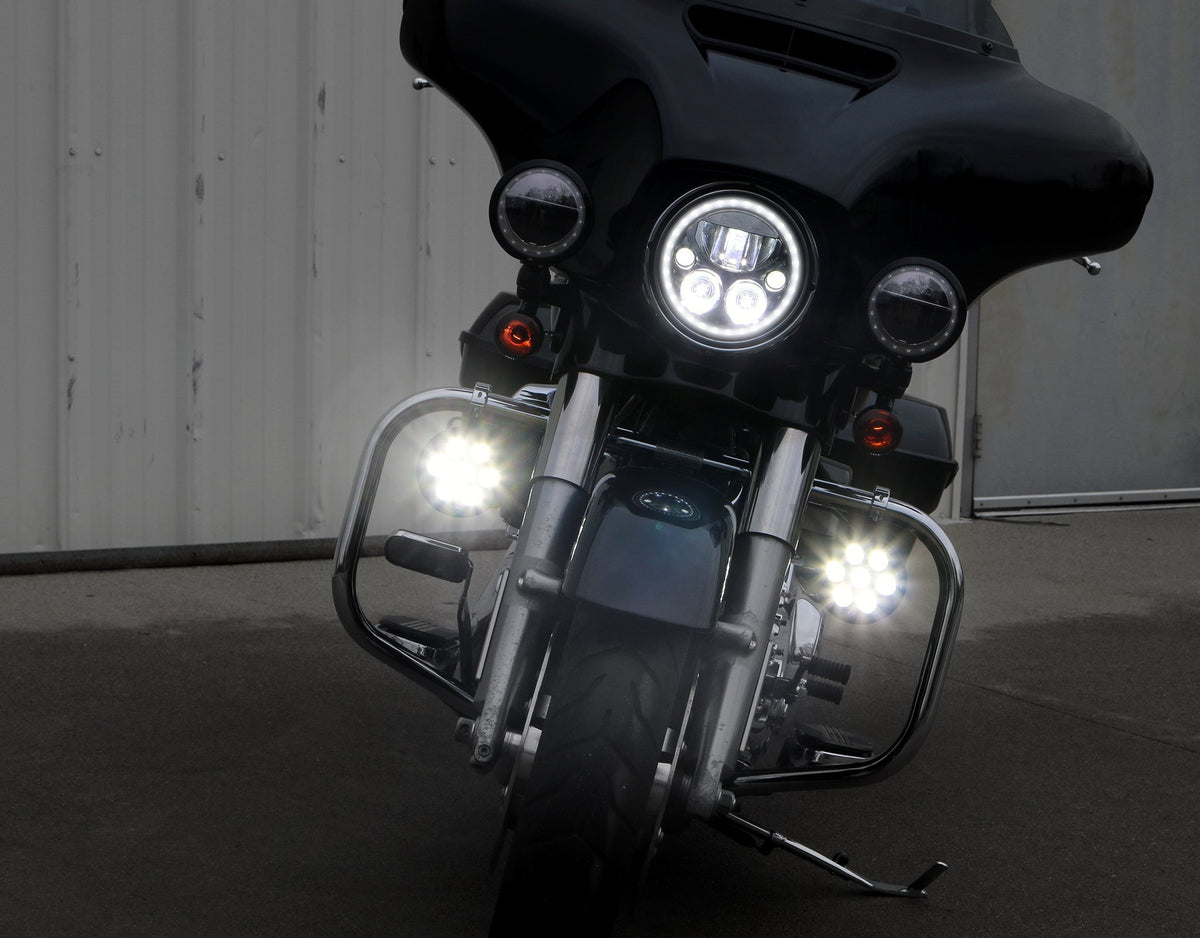

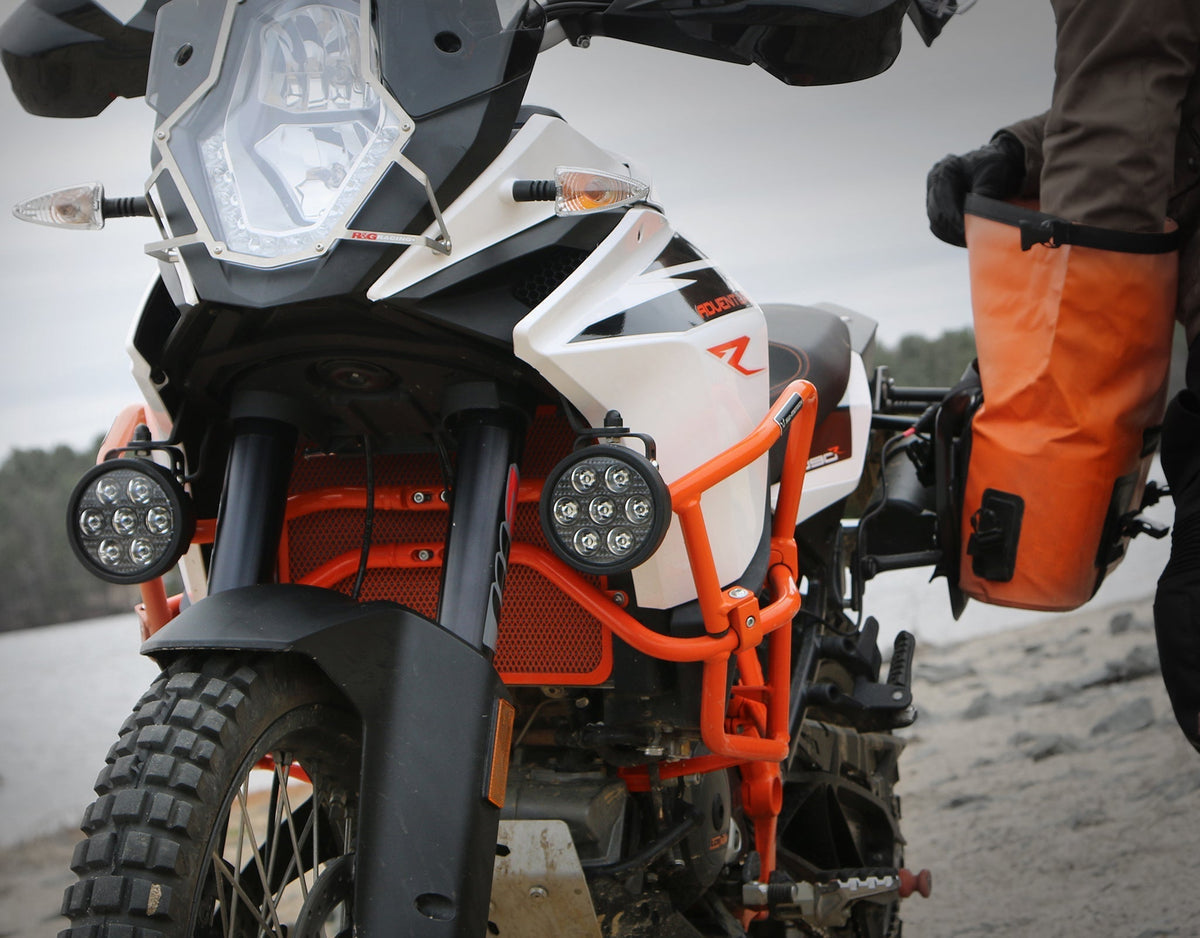

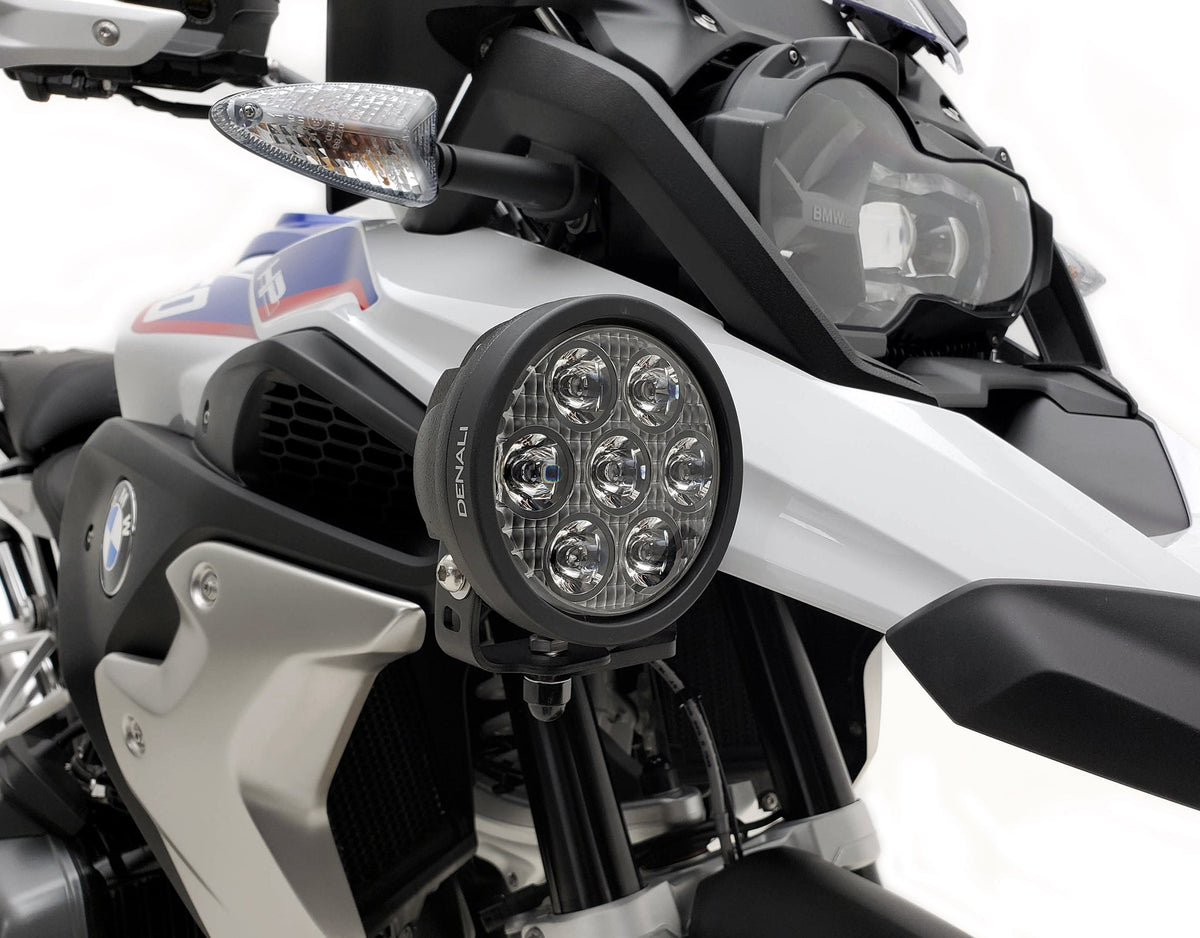

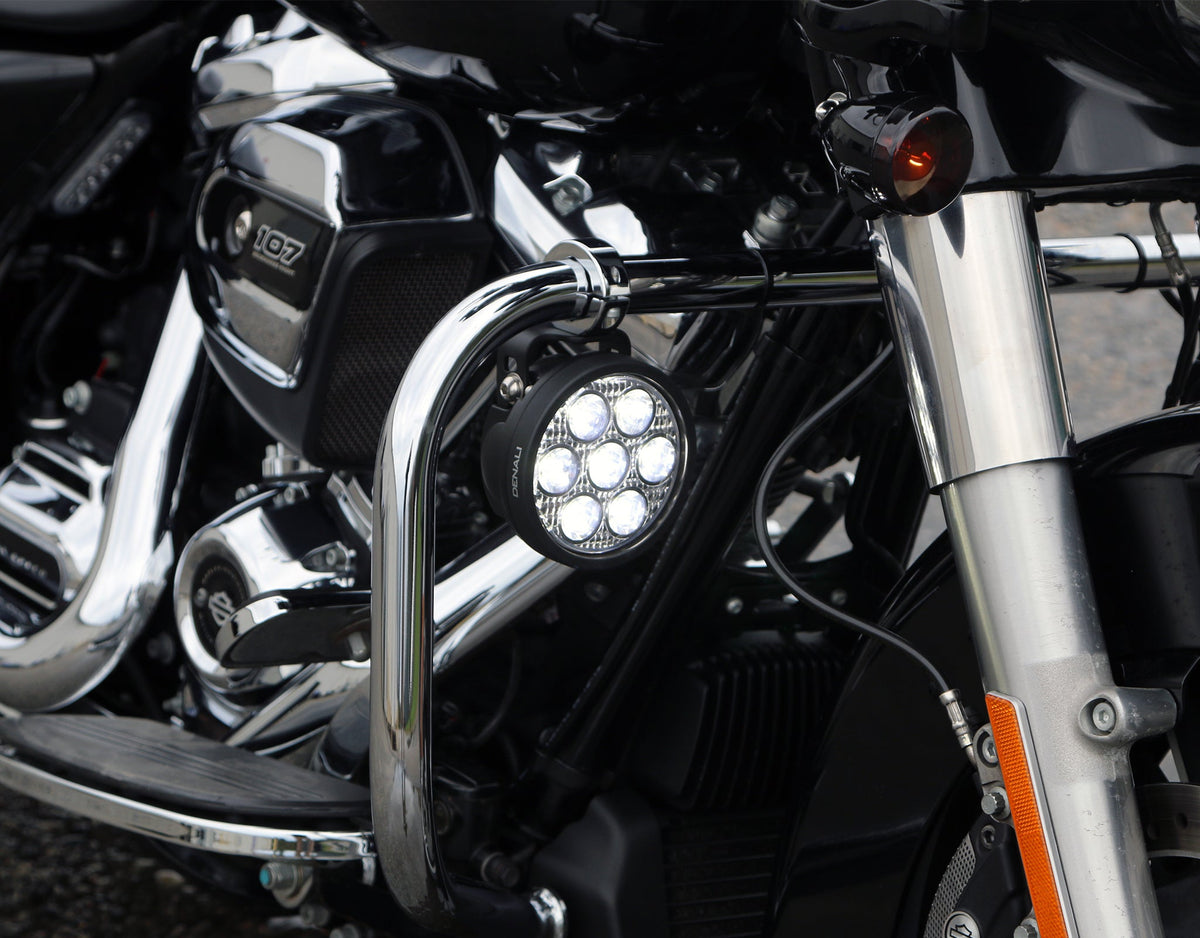

The DENALI D7 Auxiliary LED Light Pod delivers an exceptional combination of high output, long-range illumination, and compact design. Producing up to 7,665 raw lumens per pod, the D7 uses seven high-intensity 10-watt Cree LEDs and a proprietary single-piece optic engineered to produce a powerful full-bodied spot beam. The D7 can reach over 1,200 feet at one lux while its robust heatsink and LiveActive™ Thermal Management help maintain maximum light output during extended operation.

The D7 is also DataDim™ compatible, allowing plug-and-play connection and integrated dimming when paired with compatible DENALI lighting controllers. Interchangeable clear, amber, and selective yellow lenses provide additional flexibility for different riding and weather conditions.

D7 Pod Features

• High-intensity Cree LEDs producing 7,665 lumens per pod.
• DataDim™ equipped for plug-and-play connection and integrated dimming with compatible DENALI controllers.
• DrySeal™ submersible waterproof housing designed for extreme environments.
• Impact PC™ polycarbonate bezel resists cracking, fading, and corrosion.
• LiveActive™ Thermal Management helps prevent loss of light output from overheating.

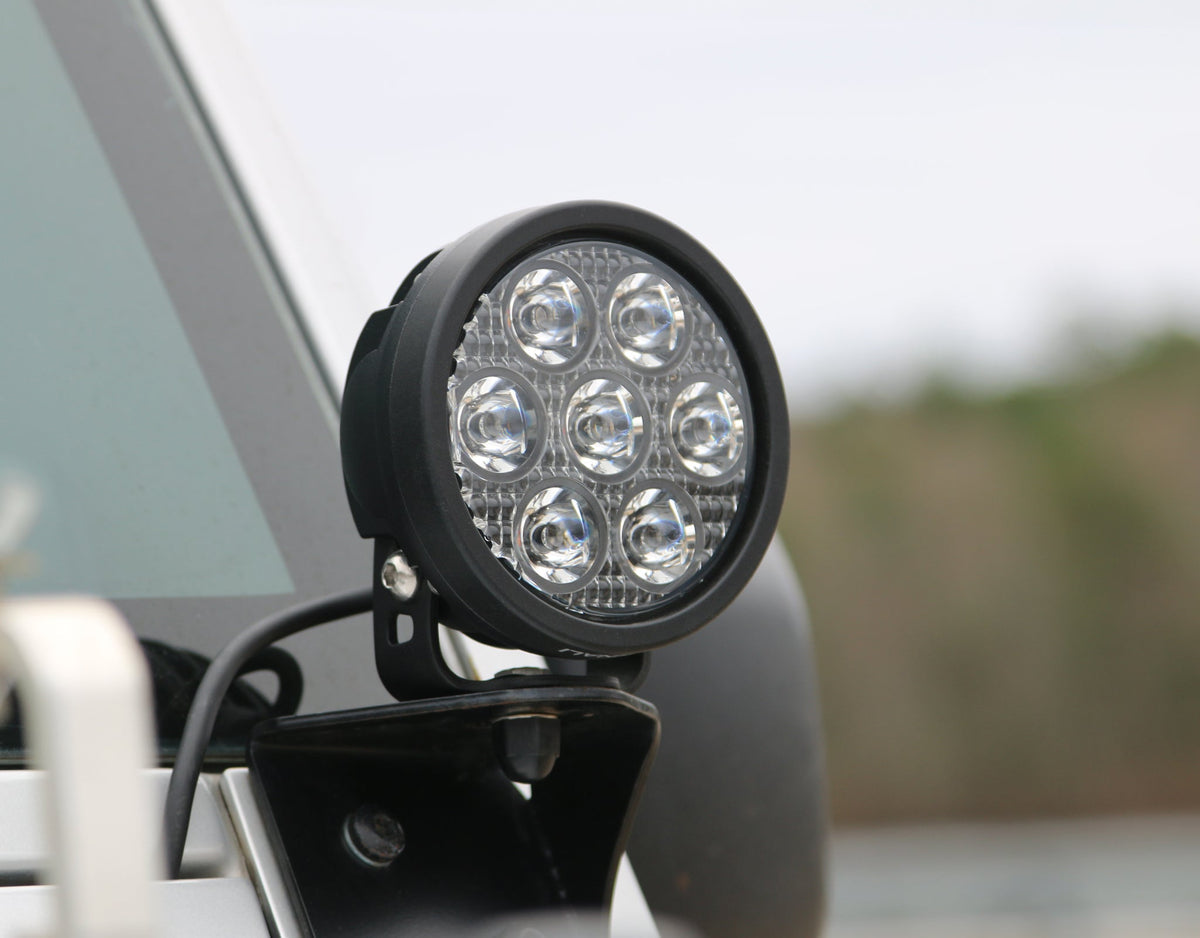

• Low-profile mounting bracket with stainless steel hardware included.
• Interchangeable clear, amber, and selective yellow lenses available.

Lighting & Control Options

• Standard Powersports Harness: Robust, low-profile waterproof switch for a basic single-intensity installation.
• Standard Automotive Harness: Added wiring length with a flush-mount illuminated rocker switch for dash mounting.
• Premium Powersports Harness: Overmolded wiring and an illuminated switch with handlebar mounting kit.
• DataDim™ Module: Enables the lights to change intensity in sync with the factory high beam switch.
• DialDim™ Lighting Controller: Provides independent control and dimming of two sets of lights along with features including high/low synchronization, strobe with horn, flash with signal, cancel with signal, electronic fuse settings, and battery voltage monitoring.
• CANsmart™ Controller: Provides customizable control of DENALI LED lights and other electrical accessories such as horns, heated grips, dash cameras, and GPS units.

D7 Specifications

LEDs: 14 x 10 Watt Cree XPL HI for pair

Power Draw: 10 Amps for pair

Raw Lumens: 15,330 for pair

Beam Distance: 1,505 feet

Beam Width: 200 feet

DataDim™ Compatible: Yes

Operating Voltage: 12 VDC

Pod Size: 4.4" Round x 2.9" Deep

Pod Weight: 1.8 lbs

Waterproof Rating: IP67 Waterproof & Submersible

Lens: E-Mark Approved Spot Lens

What's Included

The D7 Light Pod Box includes:

• 1 x D7 LED Light Pod
• 1 x Hinge Mounts with M8 Stainless Steel Hardware
• 1 x Wiring Pigtail

Optional D7 Lens Kit:

• 2 x Spot Lenses in Amber or Selective Yellow, depending on the selected lens kit.

The default product options labeled as a pair include two light pods with clear lenses installed. An additional set of amber or selective yellow lenses can be selected separately. Wiring harness and lighting control options are available separately to complete the DENALI lighting system.

Compatibility

This is a Universal Fit Item. It is designed to fit many vehicles. Universal products may require a vehicle-specific fit kit, sold separately, or other modifications for installation. Universal products are not guaranteed to fit every vehicle. Check the product description for installation requirements.

Product Details

Variant: White (Pair)

SKU: DNL.D7.050.W

Product Type: Auxiliary LED Light Pod

Brand: DENALI

Instruction Manual

PDF Instruction Manual (English)
