DENALI D7 PRO Multi-Beam Auxiliary Light Pods with Modular X-Lens System – Set of 2 - DNL.D7P.050.2

DENALI D7 PRO Multi-Beam Auxiliary Light Pods with Modular X-Lens System – Set of 2 - DNL.D7P.050.2

The DENALI D7 PRO is a high-performance, feature-rich auxiliary driving light designed to deliver exceptional illumination in a compact 4.4-inch housing. With over 23,000 raw lumens per pair, the D7 PRO combines powerful spot and flood beams with advanced control and modular X-Lens technology for maximum flexibility.

The split dual-circuit design provides independent ON/OFF and dimming control of the center flood beam and outer spot beam. Use the DENALI DialDim™ Switch or CANsmart™ Controller to control the lighting functions from a single halo dimmer switch or compatible vehicle OEM controls.

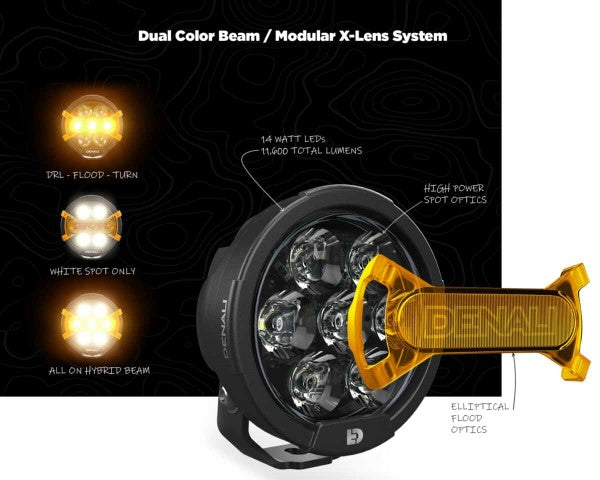

The patent-pending modular X-Lens system allows the center flood or DRL beam color to be changed between white, amber and selective yellow. The D7 PRO also features DRL Boost Mode, allowing the center optics to operate as a low-intensity DRL or deliver a high-intensity flood beam when required.

D7 PRO Pod Features

• HiDrive LEDs: 11,900 raw lumens per pod from seven 14-watt LEDs combined with proprietary TIR optics.

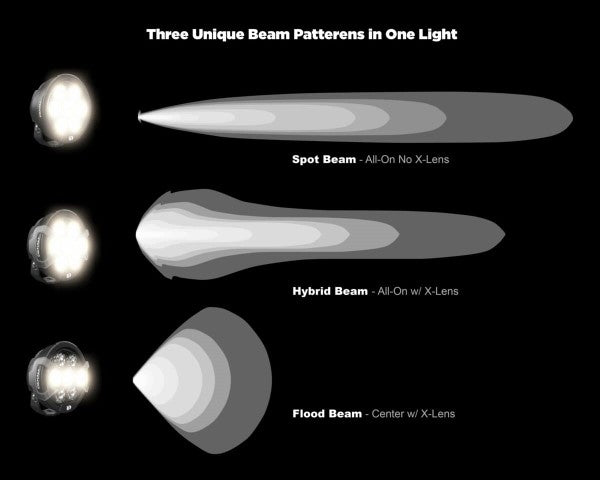

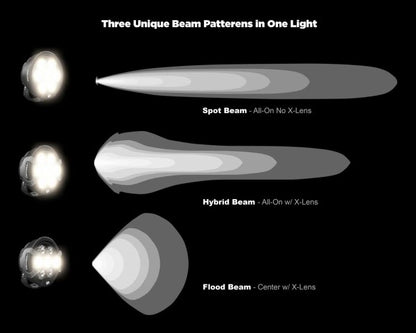

• Dual-Beam Technology: Independently control and dim the center flood beam, outer spot beam, or both together for a hybrid beam.

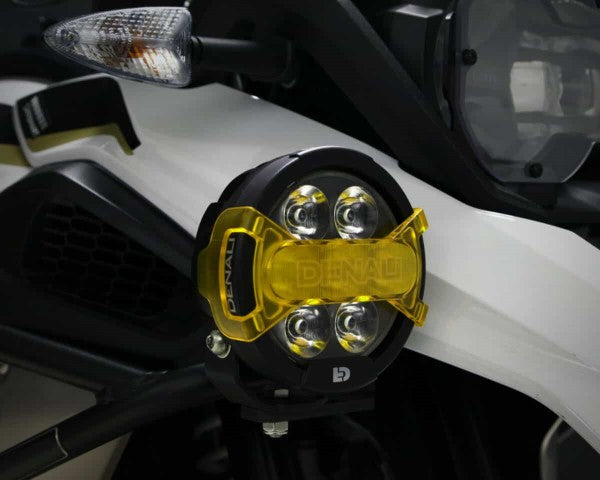

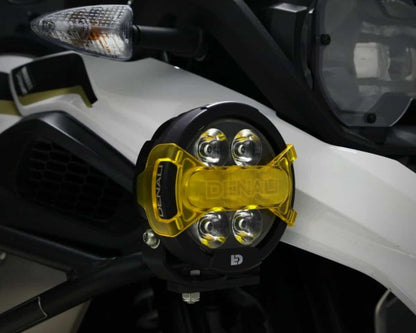

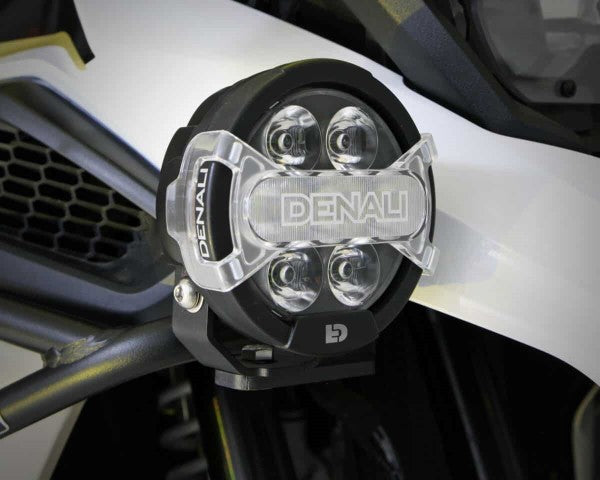

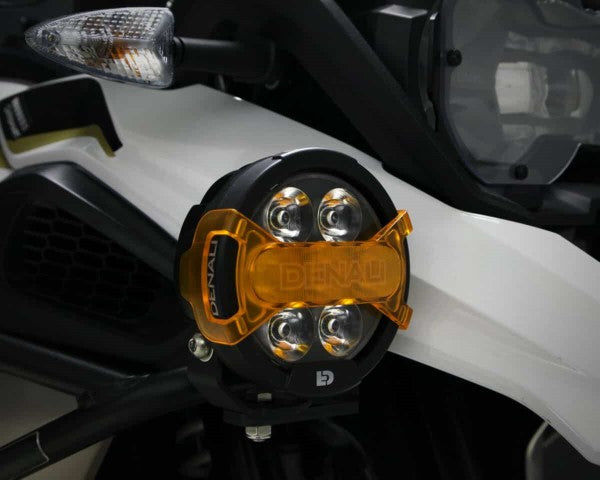

• Modular Snap-On X-Lens: Change the center flood beam color between white, amber and selective yellow.

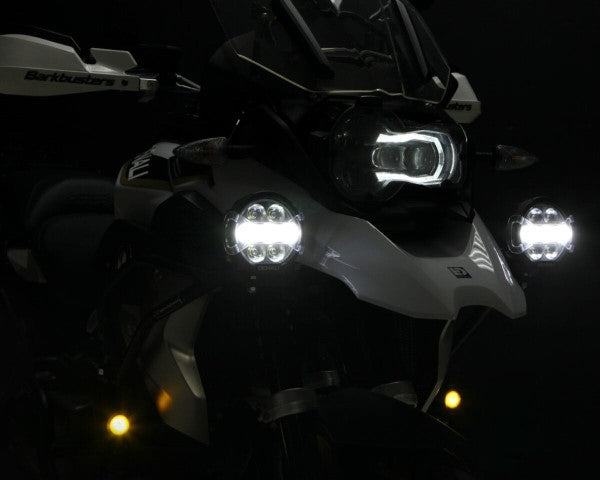

• DRL Boost Mode: Run the center LEDs as a low-intensity DRL or increase output for a high-intensity flood beam.

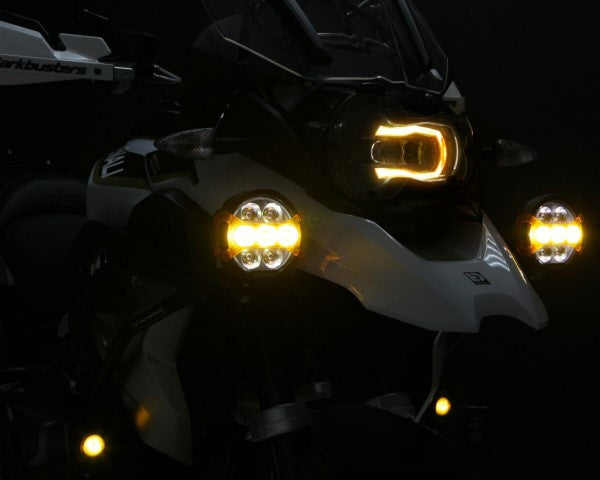

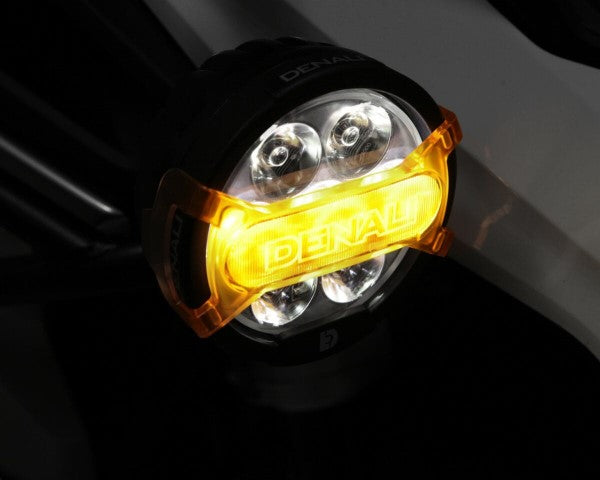

• Integrated Turn Signal Mode: Use the center flood optics as an amber DRL or flood light that can flash in sync with the vehicle turn signals.
• CANsmart™ & DialDim™ Compatible: Control both lighting circuits using a DialDim switch or unlock advanced lighting features through the CANsmart Accessory Manager.

Highlights

• High-performance 4.4-inch auxiliary driving light.
• Over 23,000 raw lumens per pair.
• 11,900 raw lumens per pod.
• Spot Beam Distance: 1250 feet (380 meters).
• Flood Beam Width: 250 feet (75 meters).
• 7 x 14 Watt Cree XML3 LEDs per pod.
• Dual-Beam Technology with independent control and dimming.
• Modular Snap-On X-Lens System.
• DRL Boost Mode.
• Integrated Turn Signal Mode.
• CANsmart™ and DialDim™ compatible.

Required Accessories

Make sure you choose an appropriate wiring harness to complete the installation of these lights.

Product Specifications

This set includes two light pods. The specifications below are for a single pod.

LEDs: 7 x 14 Watt Cree XML3

Power Draw: 98 Watts / 8 Amps

Raw Lumens: 11,900

Spot Beam Distance: 1250 feet (380 meters)

Flood Beam Width: 250 feet (75 meters)

DataDim™ Compatible: Yes

Operating Voltage: 9-32 VDC

Pod Size: 112 mm (4.4") Round x 74 mm (2.9") Deep

Pod Weight: 0.81 kg

Waterproof Rating: IP68 & IP69K Waterproof, Submersible & High-Pressure Spray Resistant

Spot Lens: E-Mark Approved, ECE R112 Driving Beam

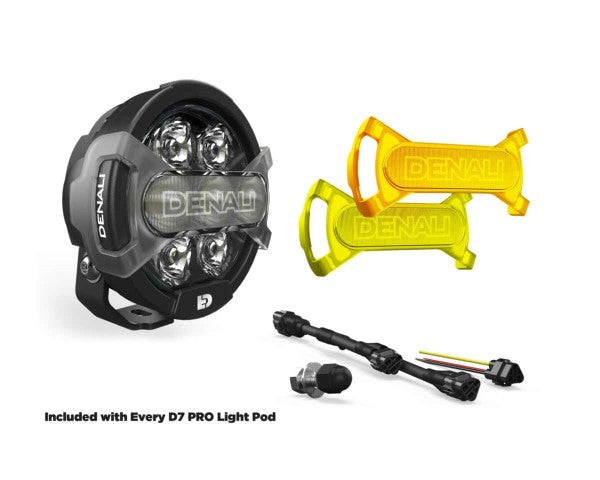

What's In The Box?

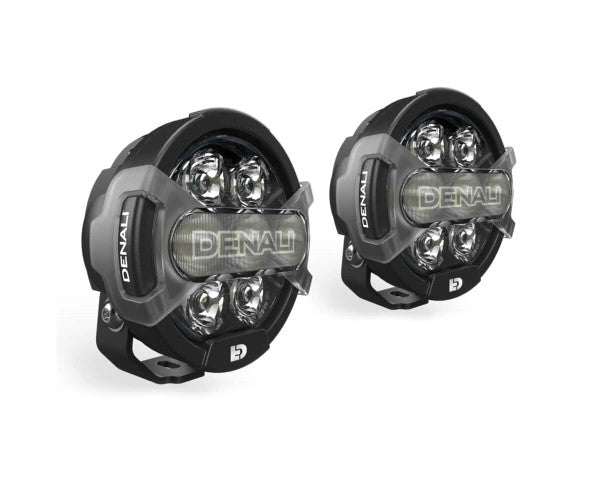

• DENALI D7 PRO Multi-Beam Auxiliary Light Pods with Modular X-Lens System – Set of 2 x 1 Kit
• D7 PRO Light Pod with mounting hardware x 2
• X-Lenses – Clear, Amber & Selective Yellow
• 2-into-1 Single-Circuit Wiring Adapter
• Mounting Instructions

Installation Instructions

View Installation Instructions
