DENALI DialDim Lighting Controller for BMW R1250GS - DNL.WHS.25600

DENALI DialDim Lighting Controller for BMW R1250GS - DNL.WHS.25600

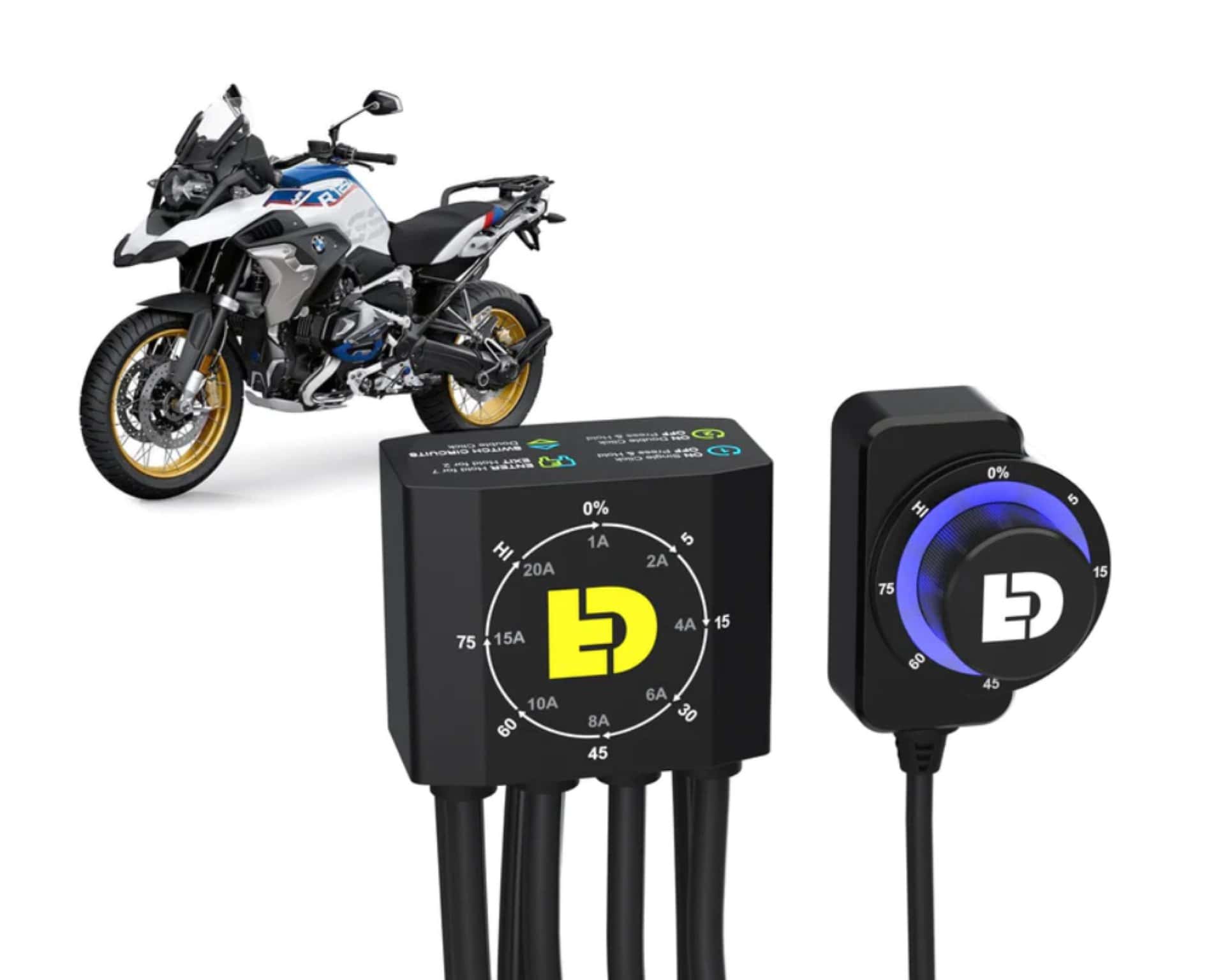

The DENALI DialDim Lighting Controller is a feature-rich lighting control system designed for the BMW R1250GS and other R1250-series motorcycles. This plug-and-play controller allows you to independently turn on, turn off, and dim two sets of DENALI auxiliary lights from a single multifunction switch while providing intelligent high beam, turn signal, and horn integration.

Features

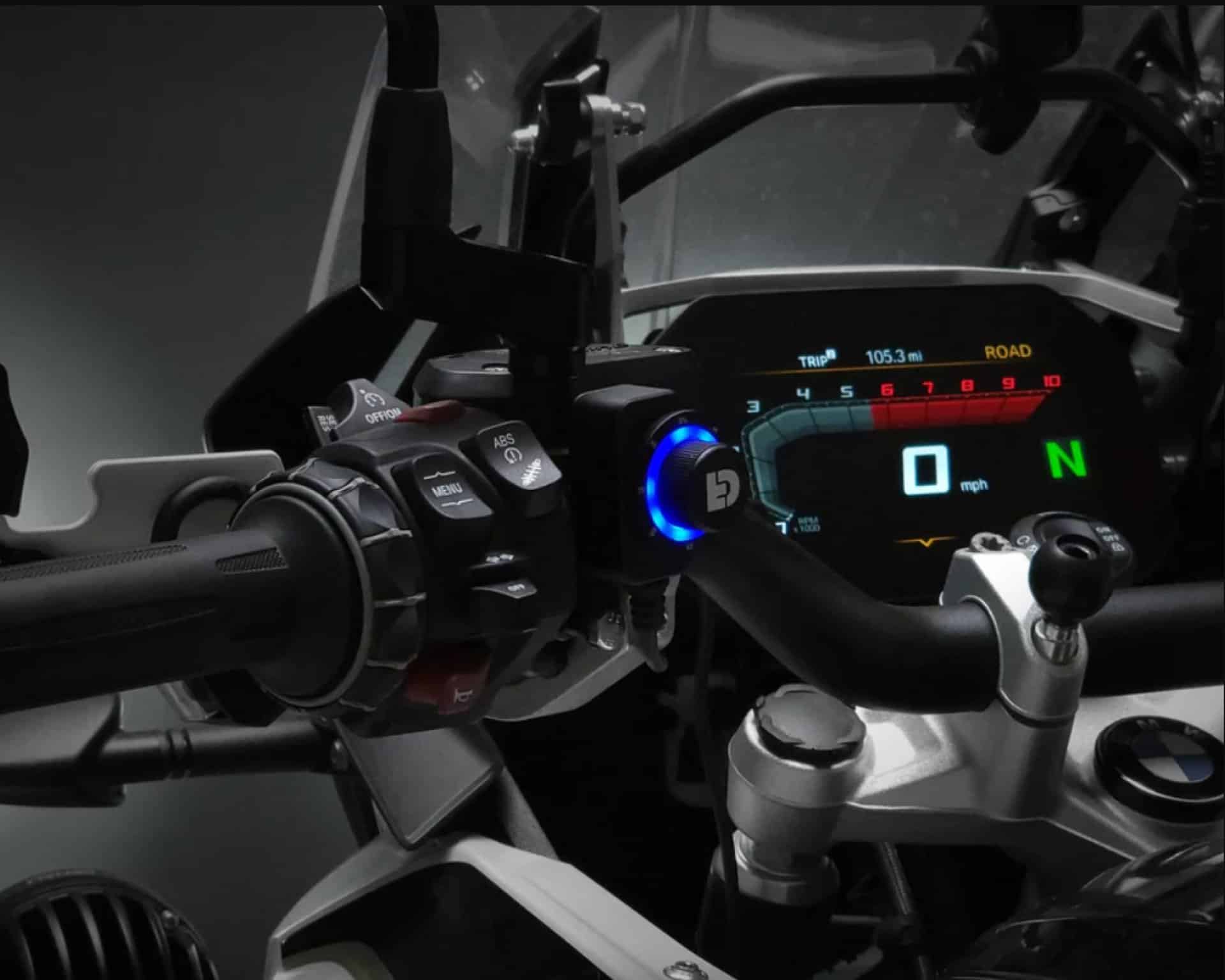

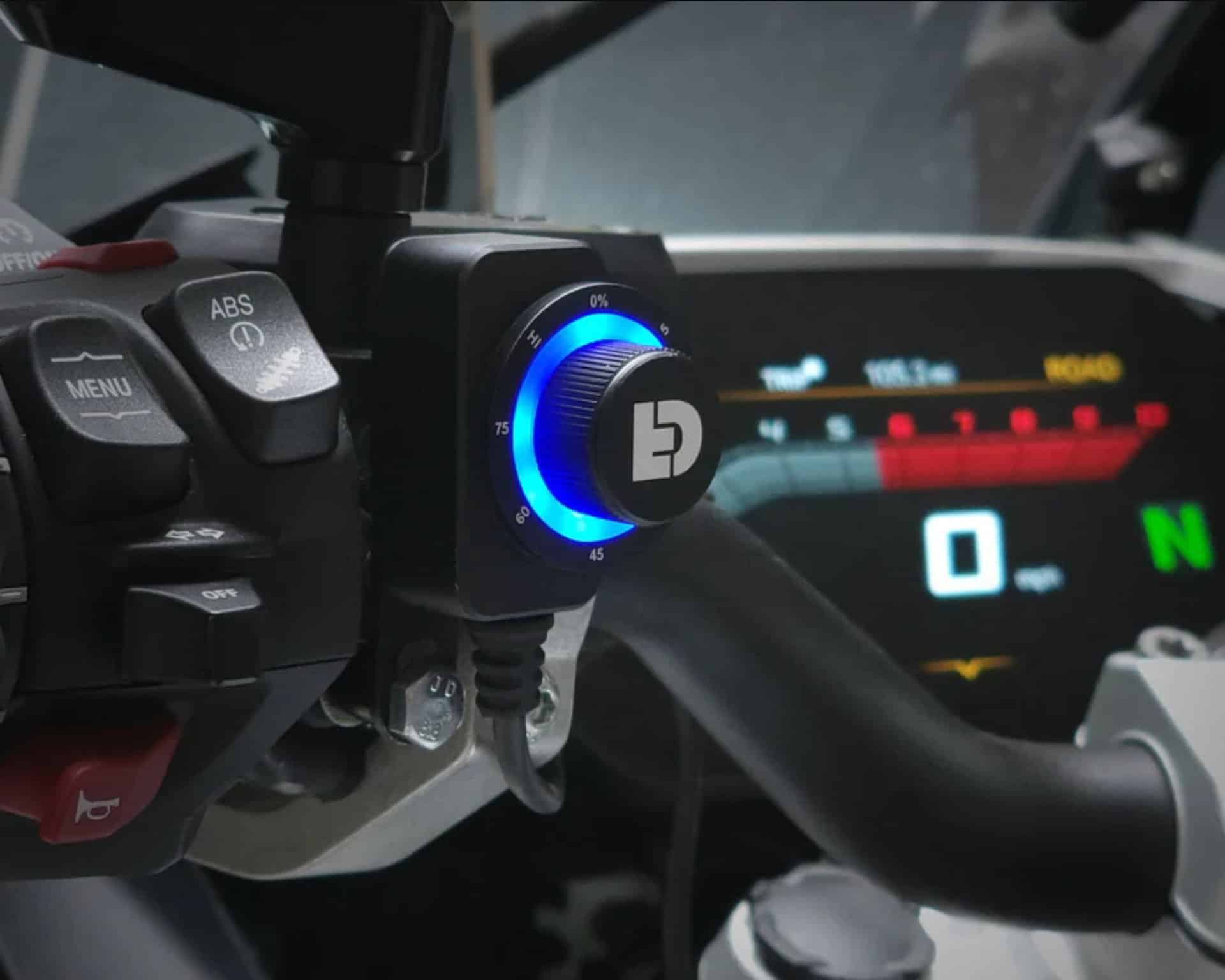

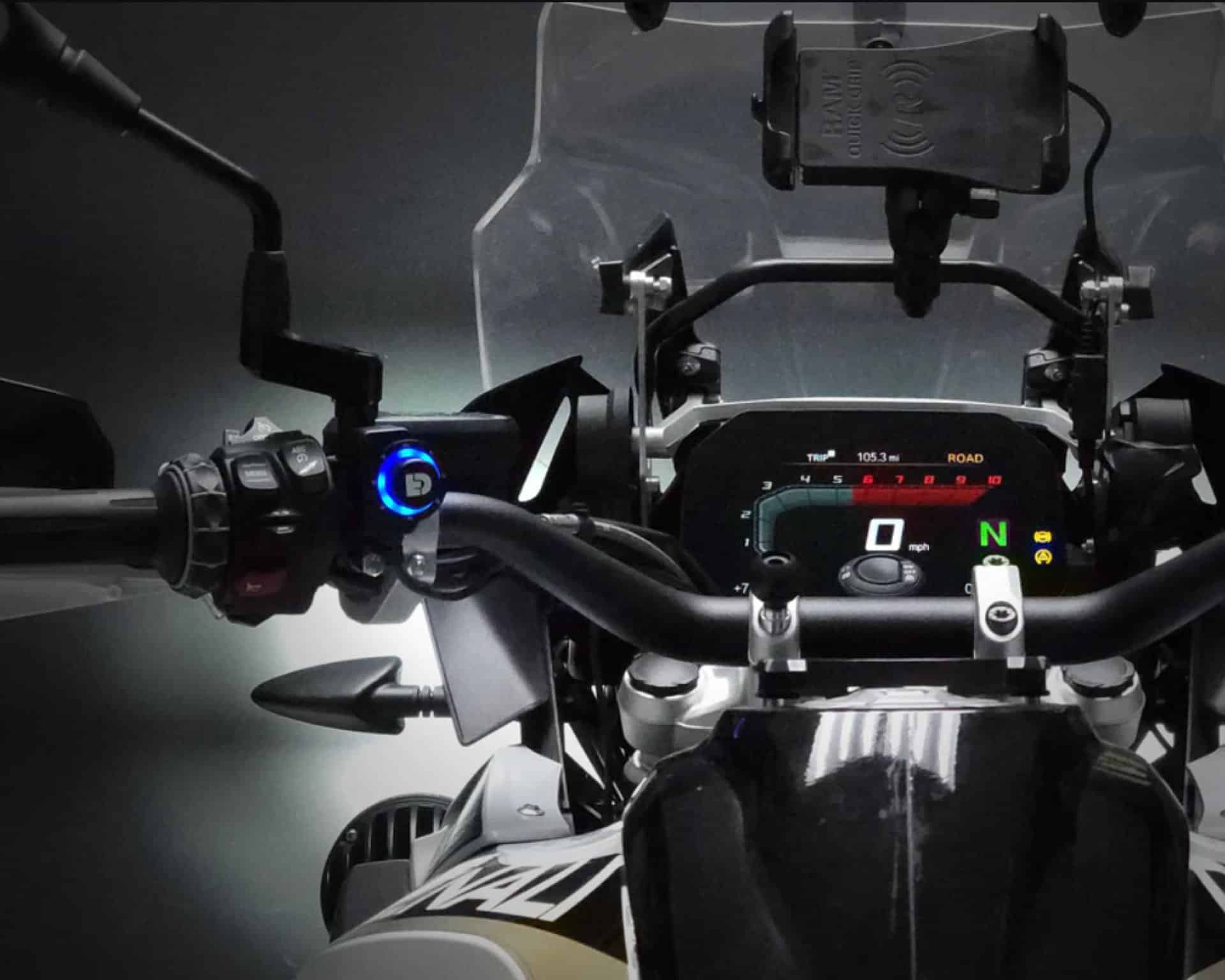

• ON/OFF & Dim: Independently control two sets of auxiliary lights and adjust their intensity using the single DialDim™ switch.

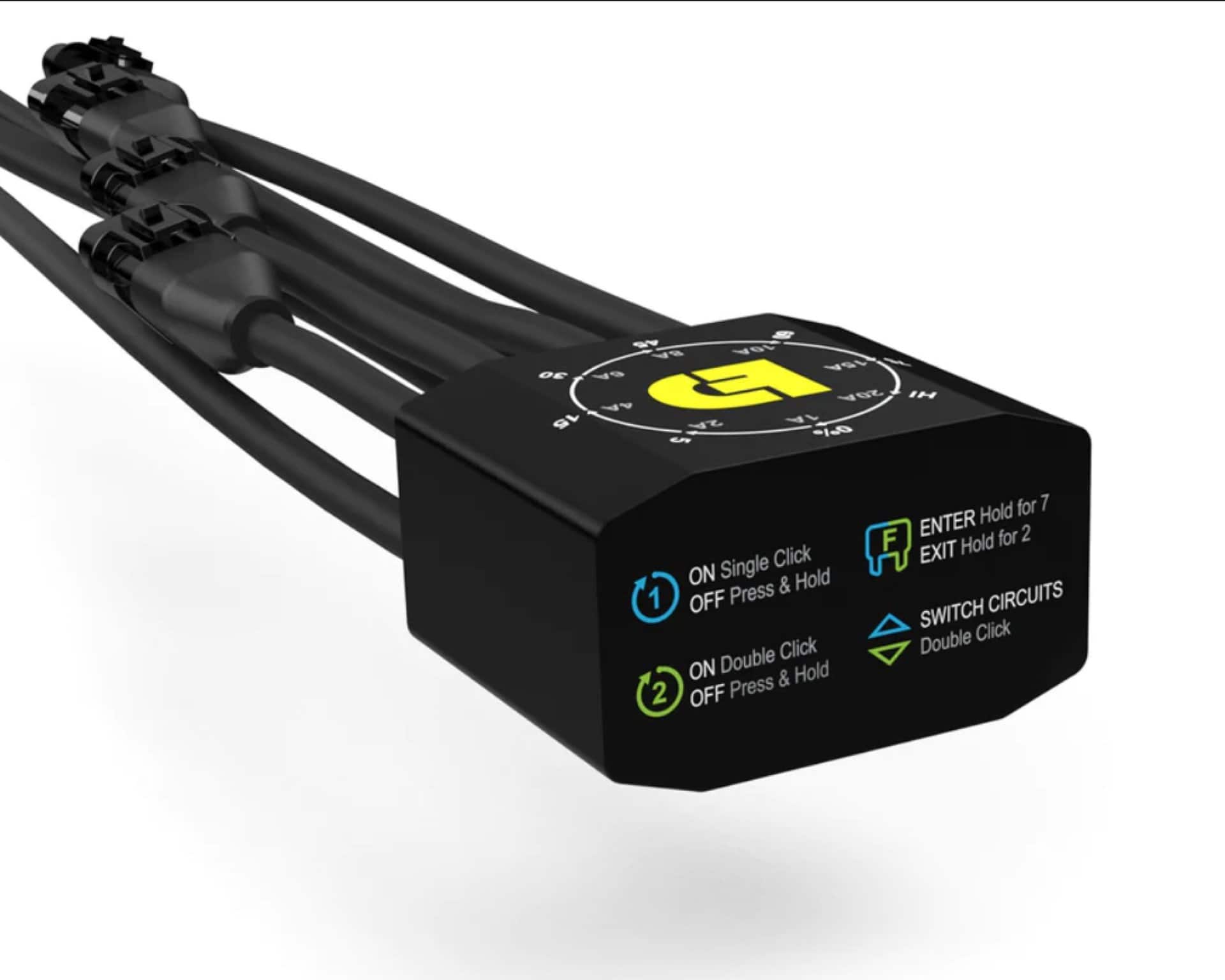

• Dual Circuit Control: The blue halo controls light set one and the green halo controls light set two. Double-click the switch to change between circuits.
• High/Low Sync: Automatically switch auxiliary lights from the selected dim setting to full intensity when the factory high beam is activated.
• Stealth Mode: Use the 0% dim setting to keep auxiliary lights off during normal riding while allowing them to activate at 100% intensity with the high beam.
• Cancel with Turn Signal: The main lights can automatically cancel in sync with the corresponding turn signal to prevent the auxiliary lights from overpowering the factory indicators.
• Flash as Turn Signal: Amber visibility lights can flash in sync with the motorcycle's factory turn signals.
• Strobe with Horn: Auxiliary lights on both circuits can strobe at 4Hz when the horn is activated.
• Electronically Fused Circuits: Both light circuits feature electronic protection and configurable fuse values.
• Voltage Display Indicator: The switch halo indicates battery voltage during vehicle startup.
• Low Voltage Cutoff: Automatically prevents the lights from powering on when battery voltage drops below 10.8V.

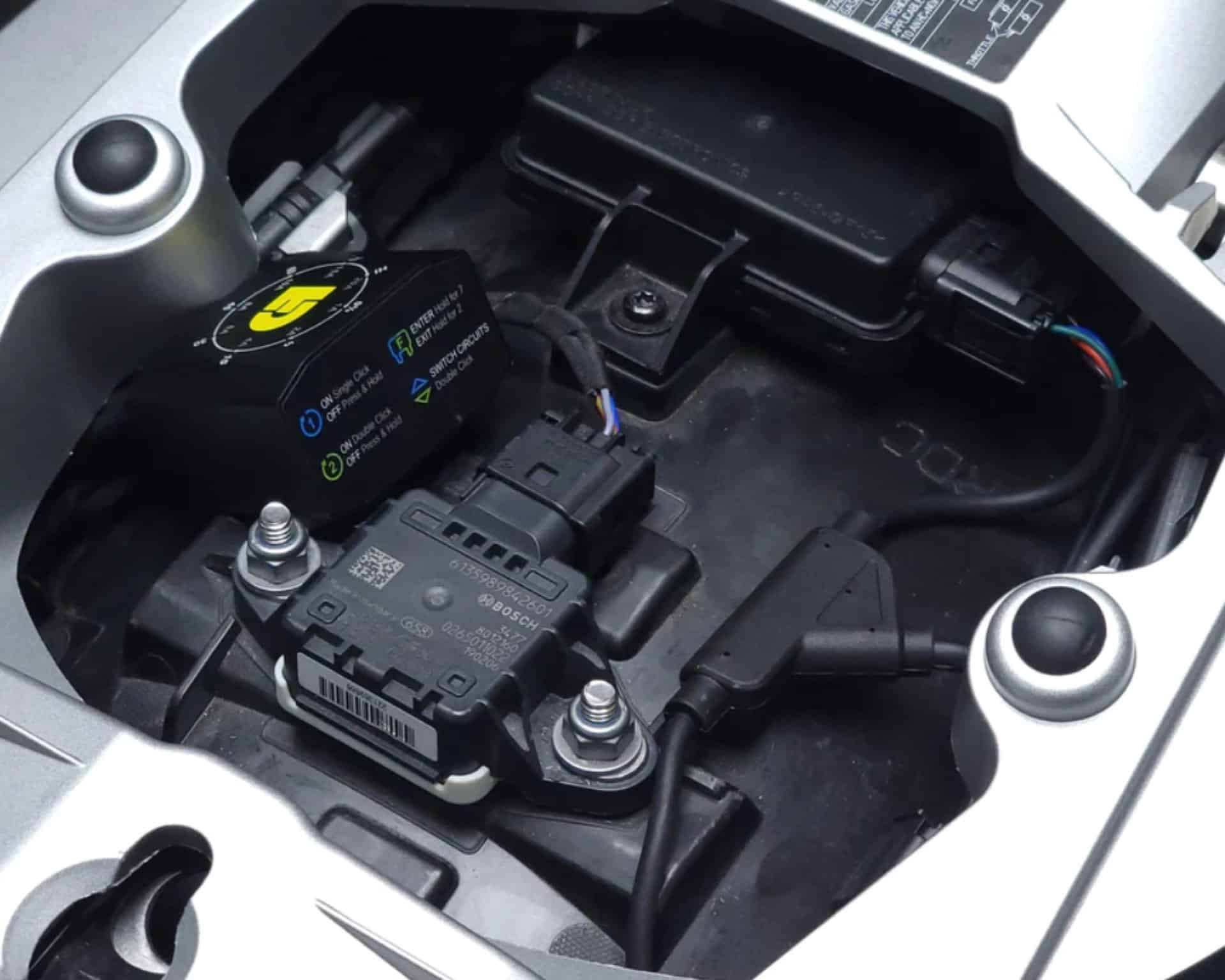

• Plug-and-Play Installation: Includes a wiring adapter designed for effortless installation on the BMW R1250GS and other R1250-series motorcycles.

Highlights

• Feature-rich lighting controller for BMW R1250GS
• Independently control two sets of auxiliary lights
• Adjust light intensity directly from the DialDim™ multifunction switch
• High beam, turn signal, and horn inputs for intelligent lighting functions
• Stealth Mode
• Flash as Turn Signal function
• Strobe with Horn function
• Electronic circuit protection
• Battery voltage monitoring with low-voltage cutoff

Product Specifications

SKU: DNL.WHS.25600

Two Fully Independent Light Circuits: Yes

Intensity Levels: 8 selectable levels per circuit (5%, 15%, 30%, 45%, 60%, 75%, 100%)

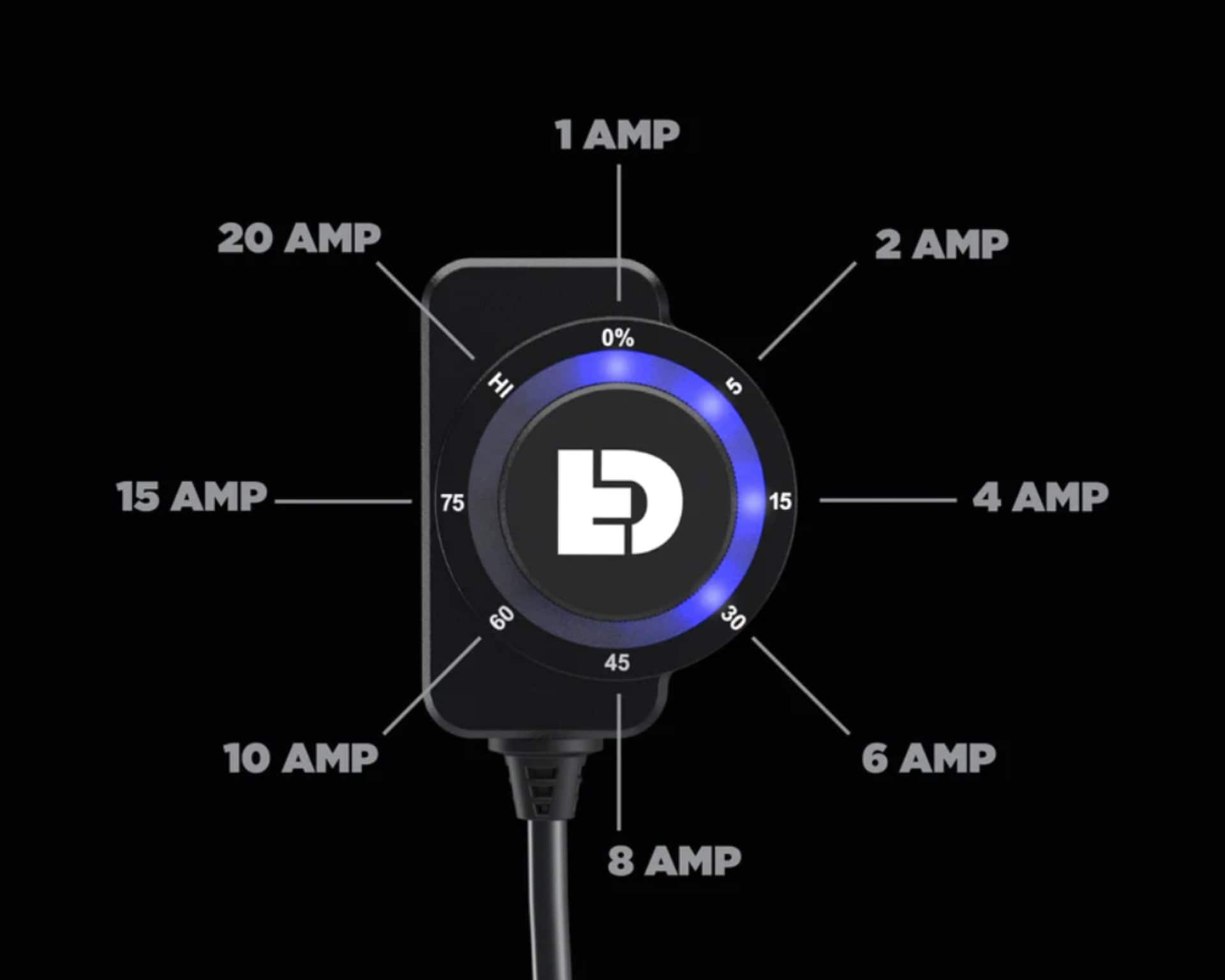

Electronic Fuse Values: 1A, 2A, 4A, 6A, 8A, 10A, 15A, 20A

Input Harness: One input harness for ignition, high beam, horn, left turn, and right turn

Maximum Current: 20A per circuit

Maximum Combined Current: 30A

Operating Voltage: 12 VDC

Switch Lead Length: 72 inches

Switch Extension: 48-inch switch extension available separately

Vehicle Compatibility

• BMW R1250GS
• Other BMW R1250-series motorcycles

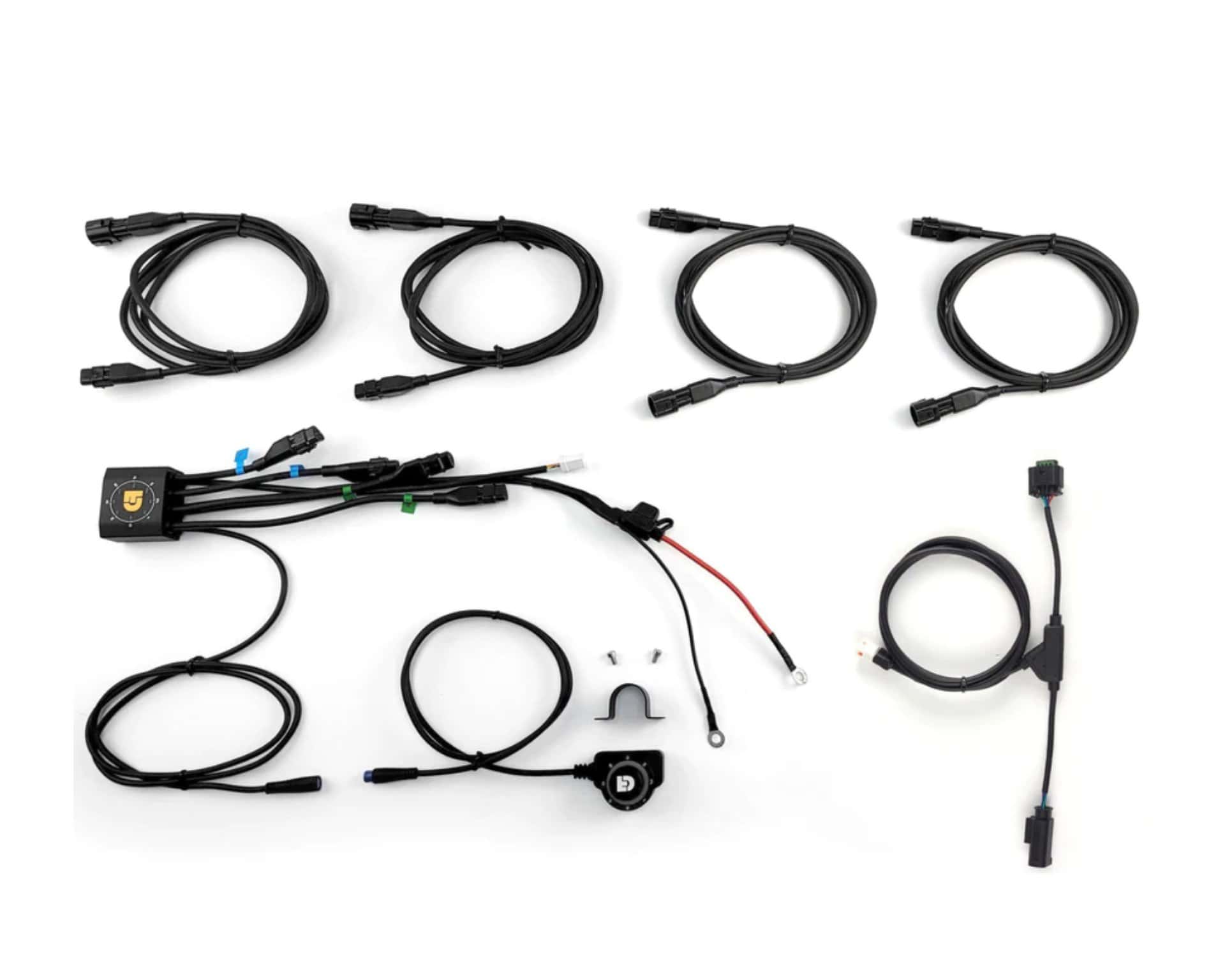

What's in the Box?

• DENALI DialDim™ Controller x 1
• DialDim™ Multi-function Switch x 1
• 7/8-inch Switch Mounting Band x 1
• M3.5×6 DIN 912 Screws x 2
• Trigger Harness x 1
• Light Extension Cables x 4
• Mounting Instructions

Installation Instructions

Installation Instructions: https://cdn.shopify.com/s/files/1/0030/3408/7524/files/Instructions_DNL.WHS.25600_Rev00.pdf?v=1695132024
