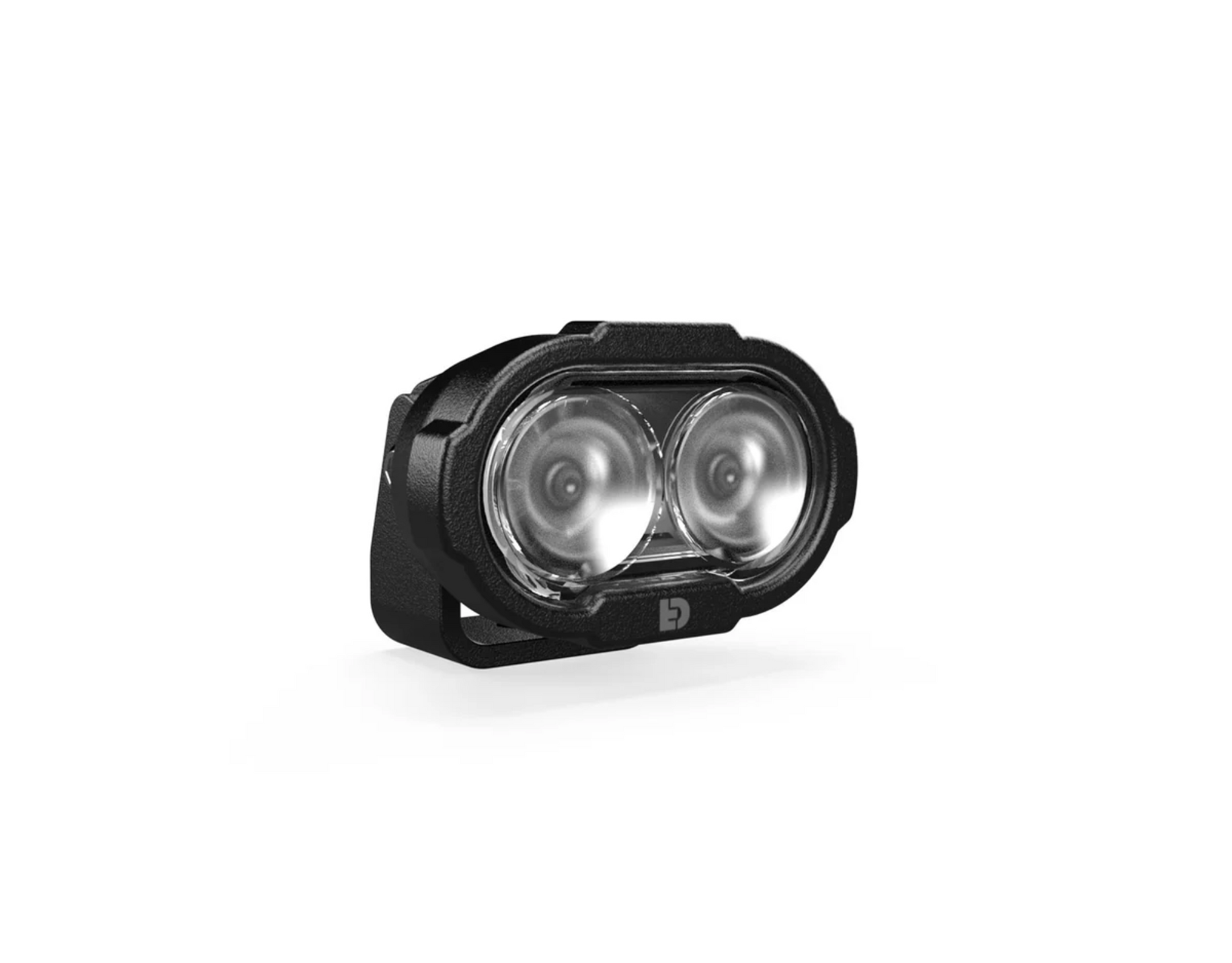

DENALI DL2 Auxiliary LED Lights - White - Lights Only - DNL.DL2.050.W

DENALI DL2 Auxiliary LED Lights - White - Lights Only - DNL.DL2.050.W

The DENALI DL2 Auxiliary LED Lights are the smallest lights in the DENALI DL Series, delivering powerful illumination and enhanced daytime visibility in a compact package. Featuring advanced TIR optics, DataDim™ plug-and-play dimming, and DrySeal™ sealed beam construction, the DL2 is designed to provide reliable performance in demanding motorcycle applications.

The DL2 features a dedicated visibility beam that produces a wide flood pattern at night while appearing exceptionally bright to oncoming drivers from multiple viewing angles during daytime riding. The lights are compatible with DENALI lighting harnesses, DialDim controllers, and CANsmart Controllers for flexible installation and control.

Features

• HiDrive LEDs delivering up to 3,400 lumens per pair
• Compact 2-LED design suitable for a wide range of motorcycles
• Visibility beam provides a wide flood pattern for improved nighttime illumination
• Designed for high daytime visibility from multiple viewing angles
• Oversized TIR optics for efficient beam distribution and improved distance and width
• DataDim™ plug-and-play dimming with dedicated 3-wire design
• Compatible with DENALI lighting harnesses, DialDim, and CANsmart Controllers
• DrySeal™ sealed beam construction for IP68 and IP69K waterproof performance
• 4mm thick powder-coated steel brackets and robust heatsink construction
• Polycarbonate lenses with UV hard coating
• 21G vibration rating
• EMC compliant to R10, CISPR 25, CE, and UKCA standards

Product Specifications

LEDs: Cree XPL2 HD (8W each)

Power Consumption: 16W single / 32W pair

Amp Draw: 1.3A single / 2.7A pair

Raw Lumens: 1,700 single / 3,400 pair

Beam Distance: 130 ft (40m) single / 173 ft (53m) pair

Beam Width: 85 ft (26m) single / 113 ft (35m) pair

Connector: DataDim compatible 3-wire DT

Color Temperature: 6000K

Operating Voltage: 9-32 VDC

Pod Size: 2" x 3" rectangle x 2" deep

Pod Weight: 0.8 lbs single / 1.6 lbs pair

IP Rating: IP68 & IP69K waterproof, submersible, and high-pressure spray resistant

EMC: R10, CISPR 25, CE, UKCA compliant

Wiring and Switching Options

The DENALI DL2 light pods are compatible with a range of DENALI wiring and lighting control options. A suitable harness or controller should be added separately to complete the lighting installation.

• Standard Powersports Harness for a basic single-intensity installation
• Standard Automotive Harness with extended wiring and illuminated rocker switch
• Premium Powersports Harness with overmolded wiring and illuminated handlebar switch
• DataDim Module for synchronizing light intensity with the factory high beam
• DialDim Lighting Controller for independent control and dimming of two sets of lights with additional lighting functions

What’s Included

• Single light pod includes 1 light pod with mounting hardware
• Single light pod includes 1 three-wire pigtail
• Pair of light pods includes 2 light pods with mounting hardware and pigtails

Installation

The DENALI DL2 is designed for flexible mounting on a wide range of motorcycles. Depending on the vehicle and selected installation location, additional vehicle-specific mounting hardware or modifications may be required.

Important Information

• The light pods and harness options are packaged separately in their respective retail packaging.
• DL-series lamps are not compatible with DENALI fender mount LAH.00.10700.B.
• This is a universal fit product and is designed to fit many vehicles.
• Universal products may require a vehicle-specific fit kit, sold separately, or other modifications for installation.
• Universal products are not guaranteed to fit every vehicle. Check the installation requirements before purchase.

Instruction Manual

PDF Instruction Manual (English) is available from DENALI for installation guidance.

Product Details

Variant: White

SKU: DNL.DL2.050.W

UPC: 887009961996

Product Weight: 1.01 lb

Product Type: Driving Lights
