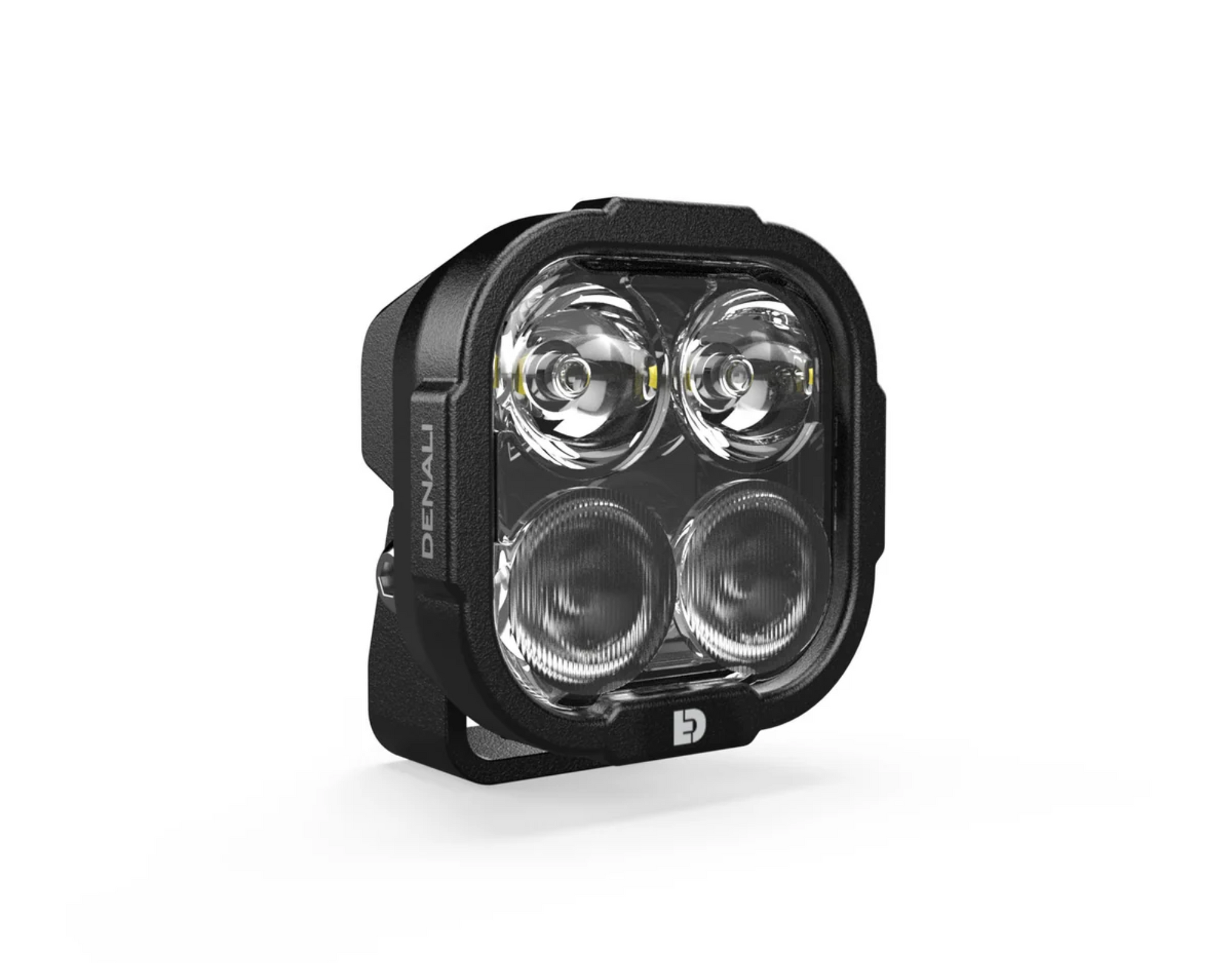

DENALI DL4 Auxiliary LED Lights - White - Lights Only - DNL.DL4.050.W

DENALI DL4 Auxiliary LED Lights - White - Lights Only - DNL.DL4.050.W

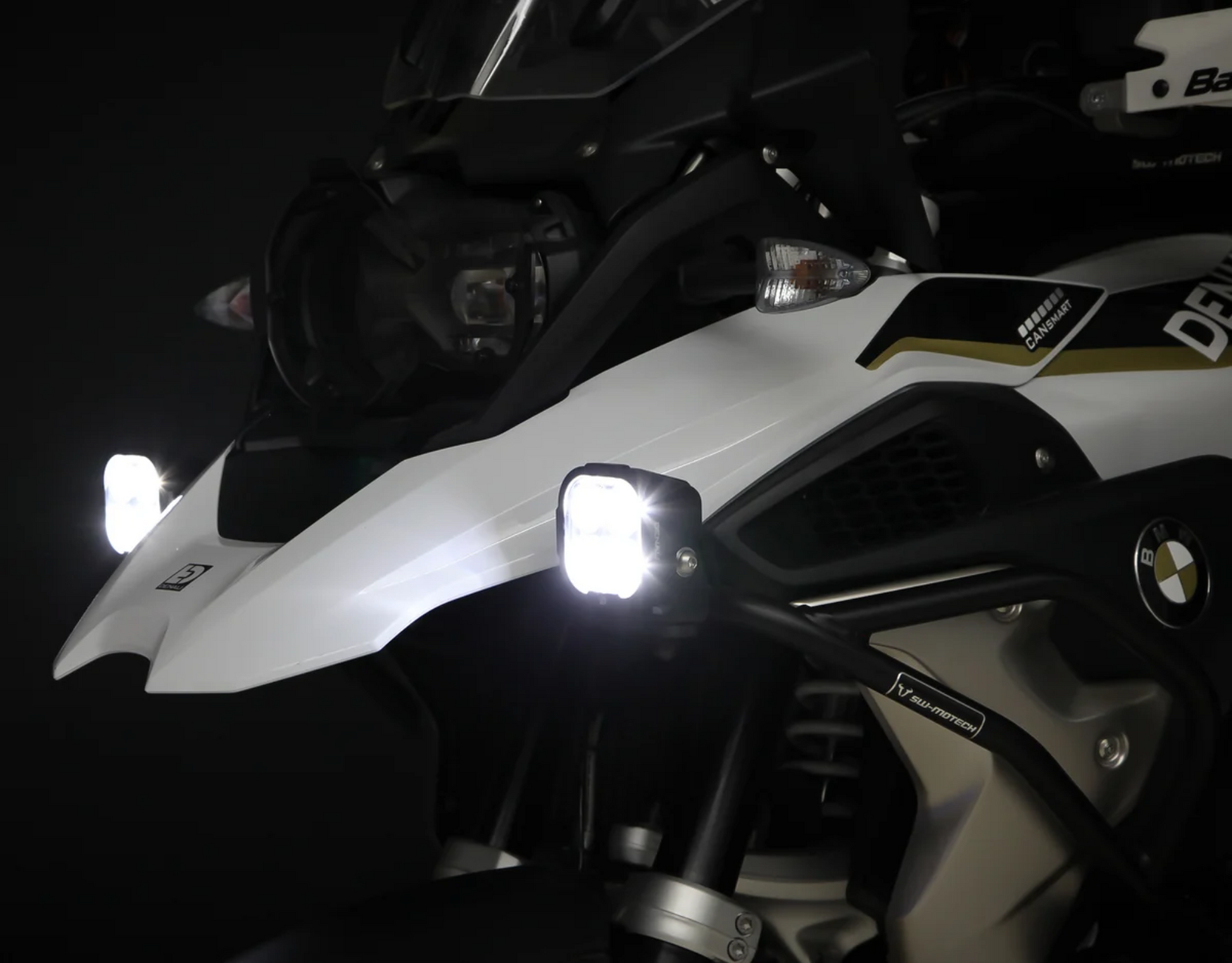

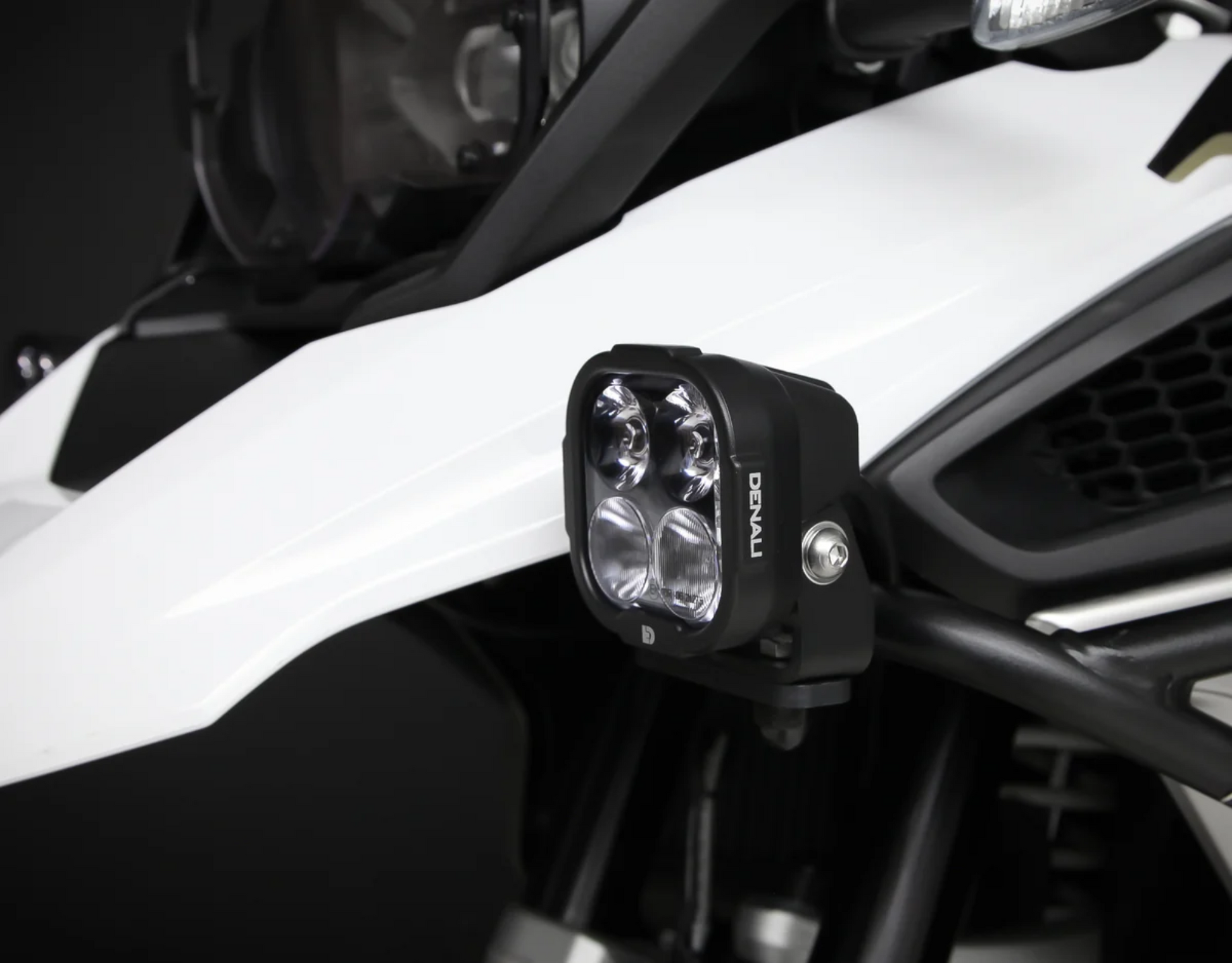

The DENALI DL4 Auxiliary LED Lights are high-performance motorcycle driving lights designed to deliver powerful beam performance, exceptional durability, and reliable visibility at an accessible price. The DL4 features a perfected hybrid driving beam and is an ideal choice for primary auxiliary driving lights on small to medium-sized motorcycles, while its compact and lightweight design also makes it suitable for lower fender applications on larger adventure bikes.

Built with a single-piece TIR optic and robotically sealed DrySeal construction, the DL4 reduces the number of components without compromising LED performance, circuitry, or optical design. The result is a rugged, waterproof and submersible auxiliary light engineered for demanding motorcycle applications.

Features

• HiDrive LEDs delivering 6,800 lumens per pair
• Top-bin CREE XPL HI LEDs driven at 8 watts each
• Oversized TIR optics with a perfected hybrid driving beam
• Efficient beam distribution for excellent distance and width
• DataDim plug-and-play dimming compatibility
• Dedicated 3-wire design for reliable dimming control
• Plug-and-play compatibility with DENALI lighting harnesses, DialDim, and CANsmart controllers
• DrySeal sealed beam construction for waterproof and submersible performance
• Internal potting at the cable entry for additional protection
• 4mm thick powder-coated steel brackets
• Robust heatsink construction
• 21G vibration-rated construction
• UV hard-coated polycarbonate lenses
• Available with white, amber, or selective yellow beam options
• ECE-compliant hybrid driving beam for street-legal primary or auxiliary high-beam use in the European Union

Product Specifications

Variant: White

SKU: DNL.DL4.050.W

UPC: 887009962023

LEDs: Cree XPL HI, 8W each

Power Consumption: 32W per light / 64W per pair

Amp Draw: 2.7A per light / 5.4A per pair

Raw Lumens: 3,400 per light / 6,800 per pair

Beam Distance: 820 ft (250m) per light / 1,091 ft (333m) per pair

Beam Width: 157 ft (48m) per light / 209 ft (64m) per pair

Connector: DataDim-compatible 3-wire DT

Color Temperature: 6000K

Operating Voltage: 9-32 VDC

Pod Size: 3" x 3" square x 2" deep

Pod Weight: 1.2 lbs per light / 2.4 lbs per pair

Product Weight: 1.52 lbs

IP Rating: IP68 & IP69K waterproof, submersible, and high-pressure spray resistant

Beam Certification: ECE R149 Driving Beam (Auxiliary High Beam)

EMC: R10, CISPR 25, CE, UKCA Compliant

Product Type: Driving Lights

Beam Performance

The DL4 uses oversized TIR optics to create a hybrid driving beam that efficiently distributes light for a combination of distance and width. Its compact square housing delivers a powerful beam while remaining suitable for a wide range of motorcycle mounting applications.

Dimming & Control

The DL4 features DENALI DataDim plug-and-play dimming technology. Its dedicated 3-wire design allows compatibility with DENALI lighting harnesses, DialDim lighting controllers, and CANsmart controllers for customizable lighting control.

Wiring & Switching Options

• Standard Powersports Harness: Robust, low-profile waterproof switch designed for a basic single-intensity installation.
• Standard Automotive Harness: Provides additional wire length and an illuminated flush-mount rocker switch for dash mounting.
• Premium Powersports Harness: Features overmolded wire and an illuminated switch with a handlebar mounting kit.
• DataDim Module: Enables the lights to change intensity in sync with the factory high-beam switch.
• DialDim Lighting Controller: Allows independent control, on/off switching, and dimming of two sets of lights, along with additional lighting functions.

What’s Included

• 1 x DENALI DL4 Auxiliary LED Light Pod
• Mounting Hardware
• 1 x 3-wire Pigtail

Installation Information

The light pods and harness options are packaged separately in their respective retail packaging. A compatible wiring harness or lighting controller should be selected separately to complete the DENALI lighting installation.

Important Information

DL-series lamps are not compatible with the DENALI LAH.00.10700.B fender mount.

The white DL4 hybrid driving beam is ECE R149 certified for use as a primary or auxiliary high beam in the European Union. Yellow and amber lens options are not compliant for street-legal high-beam use.

Instruction Manual

• PDF Instruction Manual (English)
