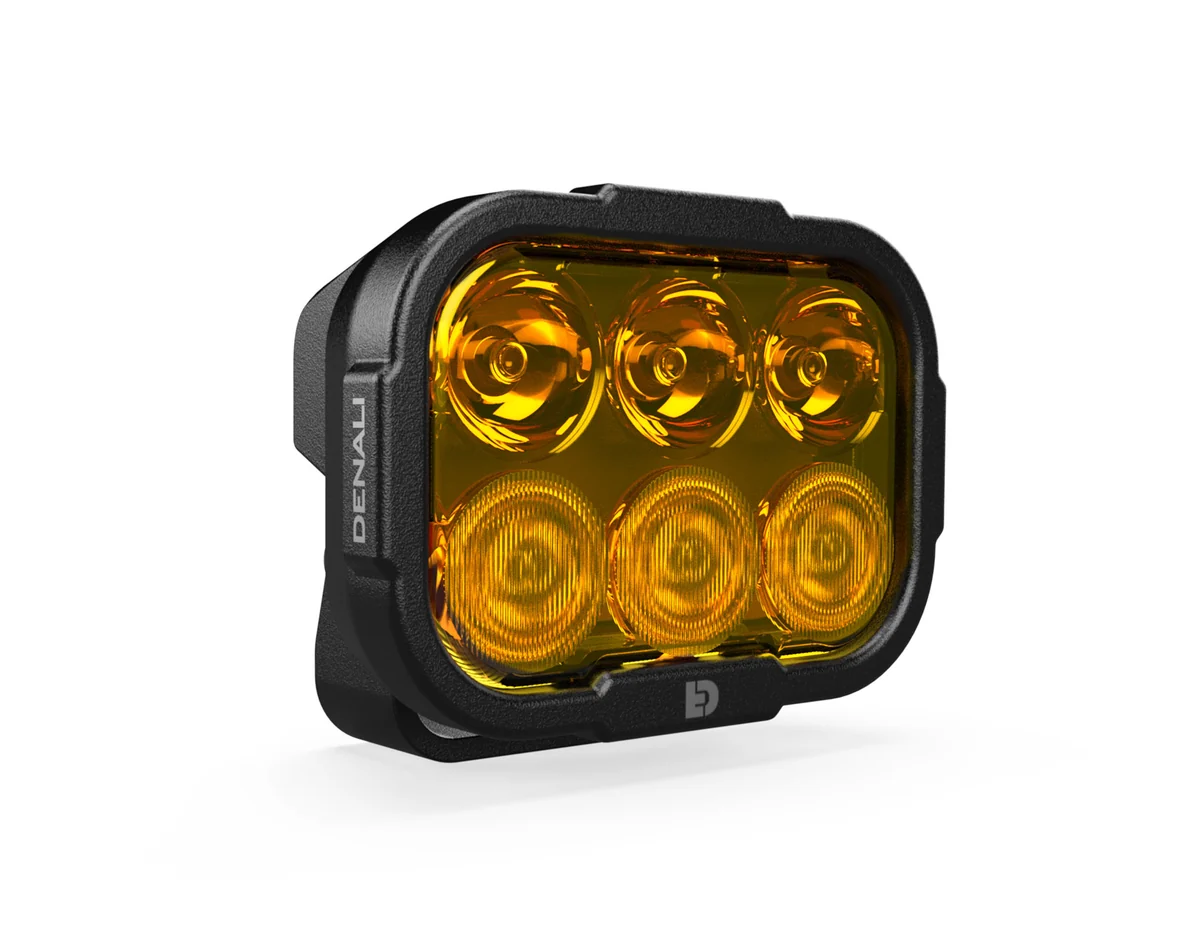

DENALI DL6 Auxiliary LED Lights - Amber - Lights Only - DNL.DL6.050.A

DENALI DL6 Auxiliary LED Lights - Amber - Lights Only - DNL.DL6.050.A

The DENALI DL6 Auxiliary LED Lights are high-performance motorcycle driving lights designed to deliver powerful illumination, excellent beam performance, rugged durability, and reliable visibility. Engineered from years of customer feedback, the DL Series combines advanced optical technology, robust construction, and DENALI's signature dimming technology in an affordable package.

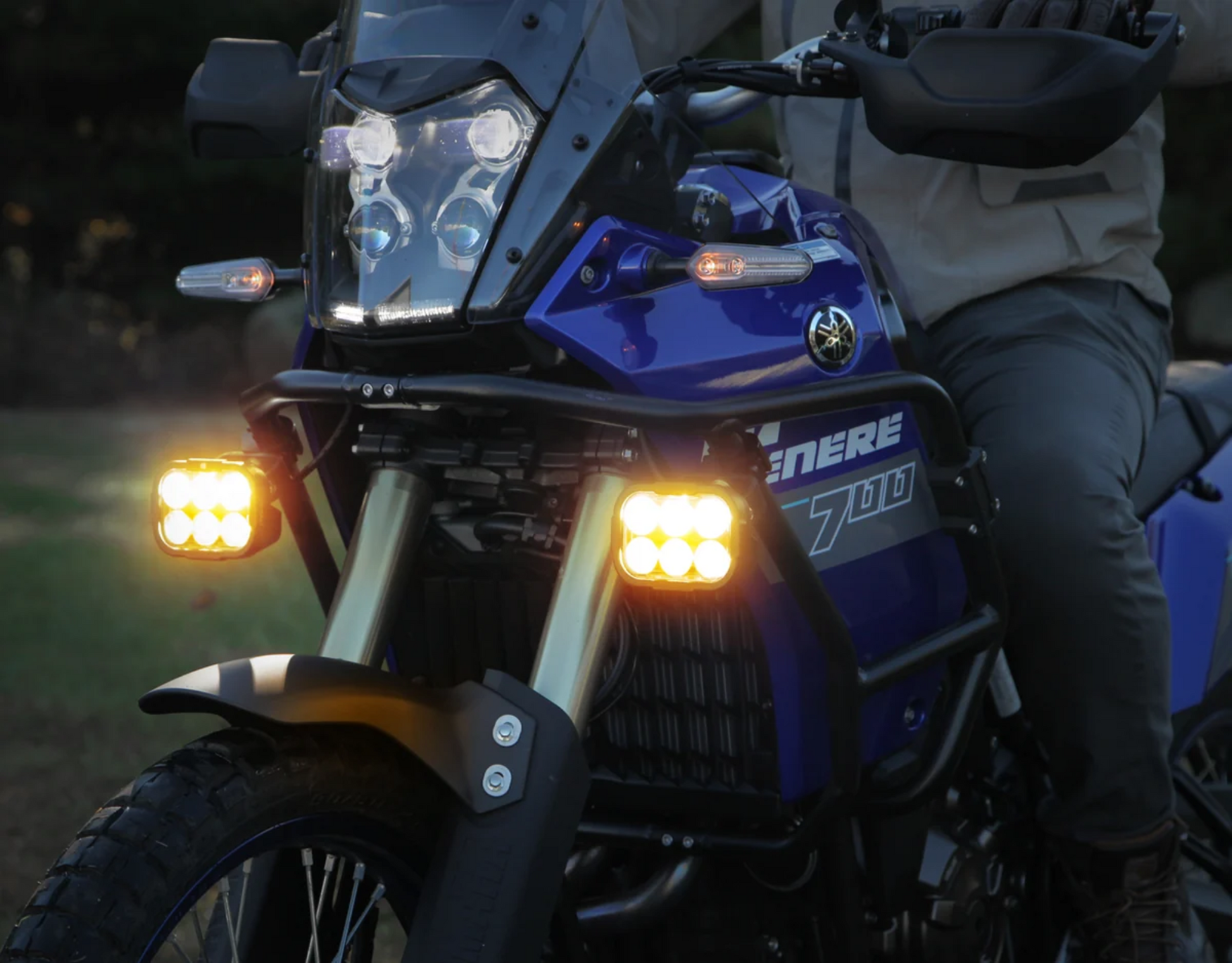

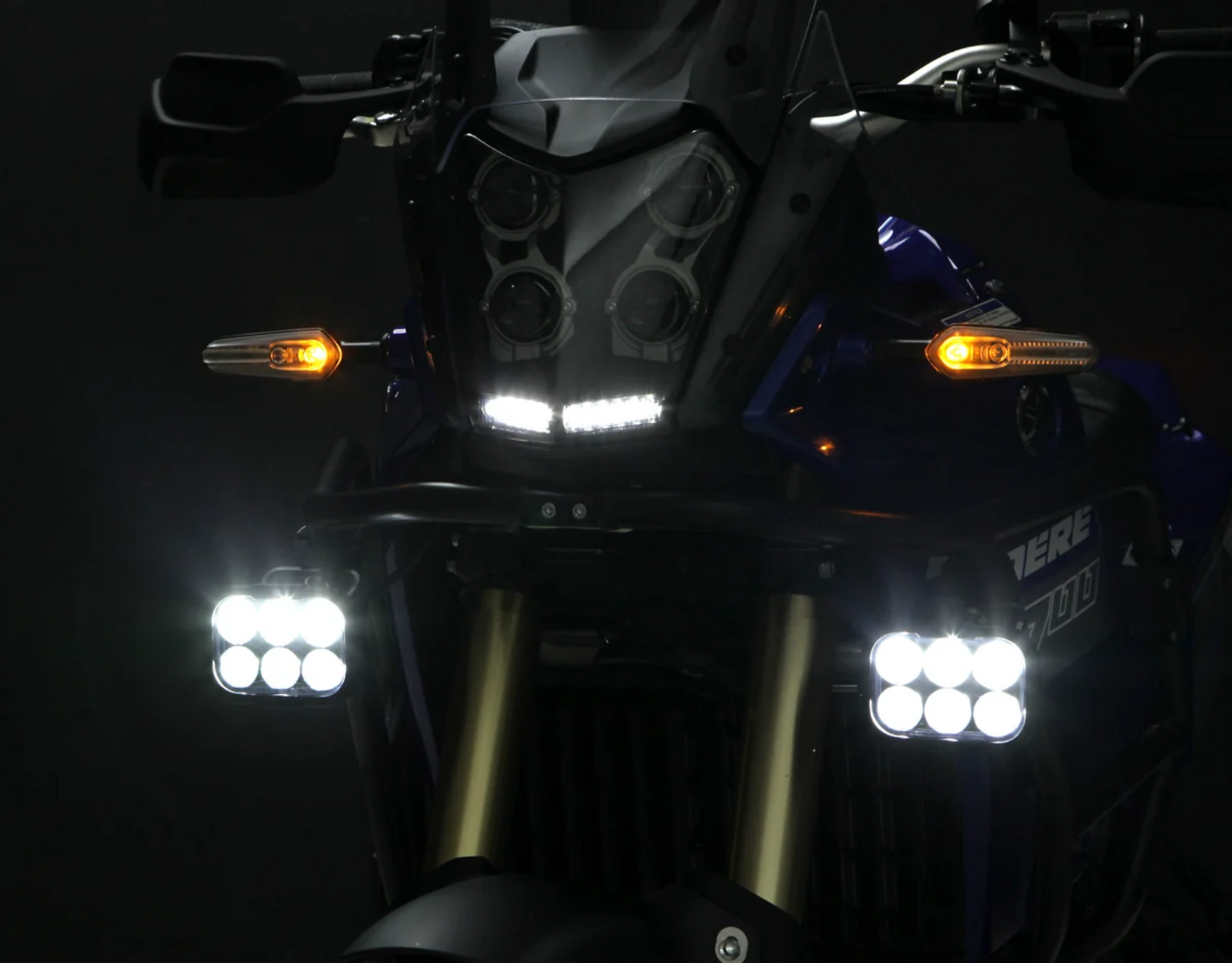

The DL6 features a unique rectangular profile, making it one of the most low-profile driving lights in its performance class. Its size and shape make it an ideal choice for primary auxiliary driving lights on medium to large motorcycles.

Built with a single-piece TIR optic and robotically sealed construction, the DL6 reduces component count while maintaining high-quality LEDs, circuitry, and optical performance. The result is a rugged, waterproof, and submersible light pod designed for demanding motorcycle applications.

Features

• HiDrive LEDs delivering up to 10,200 lumens per pair
• Top-bin CREE XPL HI LEDs driven at 8 watts each
• Oversized TIR optics with a perfected hybrid driving beam
• Efficient beam distribution for excellent distance and width
• DataDim™ plug-and-play dimming capability
• Dedicated 3-wire dimming design for reliable operation
• Plug-and-play compatibility with DENALI lighting harnesses, DialDim, and CANsmart controllers
• DrySeal™ sealed beam construction
• Robotically sealed lens and internally potted cable entry
• IP68 and IP69K waterproof, submersible, and high-pressure spray resistant
• 4mm thick powder-coated steel brackets
• Robust heatsink construction with 21G vibration rating
• UV hard-coated polycarbonate lenses
• ECE-compliant hybrid driving beam

Product Specifications

Variant: Amber

SKU: DNL.DL6.050.A

UPC: 887009962047

LEDs: Cree XPL HI, 8W each

Power Consumption: 48W per light / 96W per pair

Amp Draw: 4A per light / 8A per pair

Raw Lumens: 5,100 per light / 10,200 per pair

Beam Distance: 1,000 ft (305m) per light / 1,330 ft (406m) per pair

Beam Width: 203 ft (62m) per light / 270 ft (82m) per pair

Connector: DataDim-compatible 3-wire DT

Color Temperature: 6000K

Operating Voltage: 9-32 VDC

Pod Size: 3" x 4.5" rectangle x 2" deep

Pod Weight: 1.5 lbs per light / 3 lbs per pair

Product Weight: 1.87 lbs

IP Rating: IP68 & IP69K Waterproof, Submersible & High-Pressure Spray Resistant

Beam Certification: ECE R149 Driving Beam (Auxiliary High Beam)

EMC: R10, CISPR 25, CE, UKCA Compliant

Product Type: Driving Lights

Beam Performance

The DL6 uses oversized TIR optics to produce a perfected hybrid driving beam. Its rectangular housing provides an effective combination of beam distance and width while maintaining a low-profile design suitable for medium to large motorcycles.

Dimming & Control

DENALI DataDim™ technology provides plug-and-play dimming through the dedicated 3-wire design. The DL6 can be connected to compatible DENALI lighting harnesses, DialDim controllers, and CANsmart controllers for flexible lighting control and intensity management.

Wiring & Switching Options

• Standard Powersports Harness: Robust, low-profile waterproof switch for a basic single-intensity installation.
• Standard Automotive Harness: Provides additional wire length and an illuminated flush-mount rocker switch for dash mounting.
• Premium Powersports Harness: Features overmolded wiring and an illuminated switch with a handlebar mounting kit.
• DataDim Module: Allows the lights to change intensity in sync with the factory high-beam switch.
• DialDim Lighting Controller: Enables independent on/off switching and dimming of two sets of lights, along with additional lighting functions.

What’s Included

• 1 x DENALI DL6 Auxiliary LED Light Pod
• Mounting Hardware
• 1 x 3-wire Pigtail

Installation Information

The light pods and harness options are packaged separately in their respective retail packaging. A compatible wiring harness or lighting controller should be selected separately to complete the DENALI lighting installation.

Fitment

This is a universal fit item designed to fit many vehicles. Universal products may require a vehicle-specific fit kit, sold separately, or other modifications for installation. Universal products are not guaranteed to fit every vehicle. Check the installation requirements before purchasing.

Important Information

The hybrid driving beam is ECE certified for street-legal use as a primary or auxiliary high beam in the European Union. Amber and yellow lens options are not compliant for street-legal high-beam use.

Instruction Manual

• PDF Instruction Manual (English)
