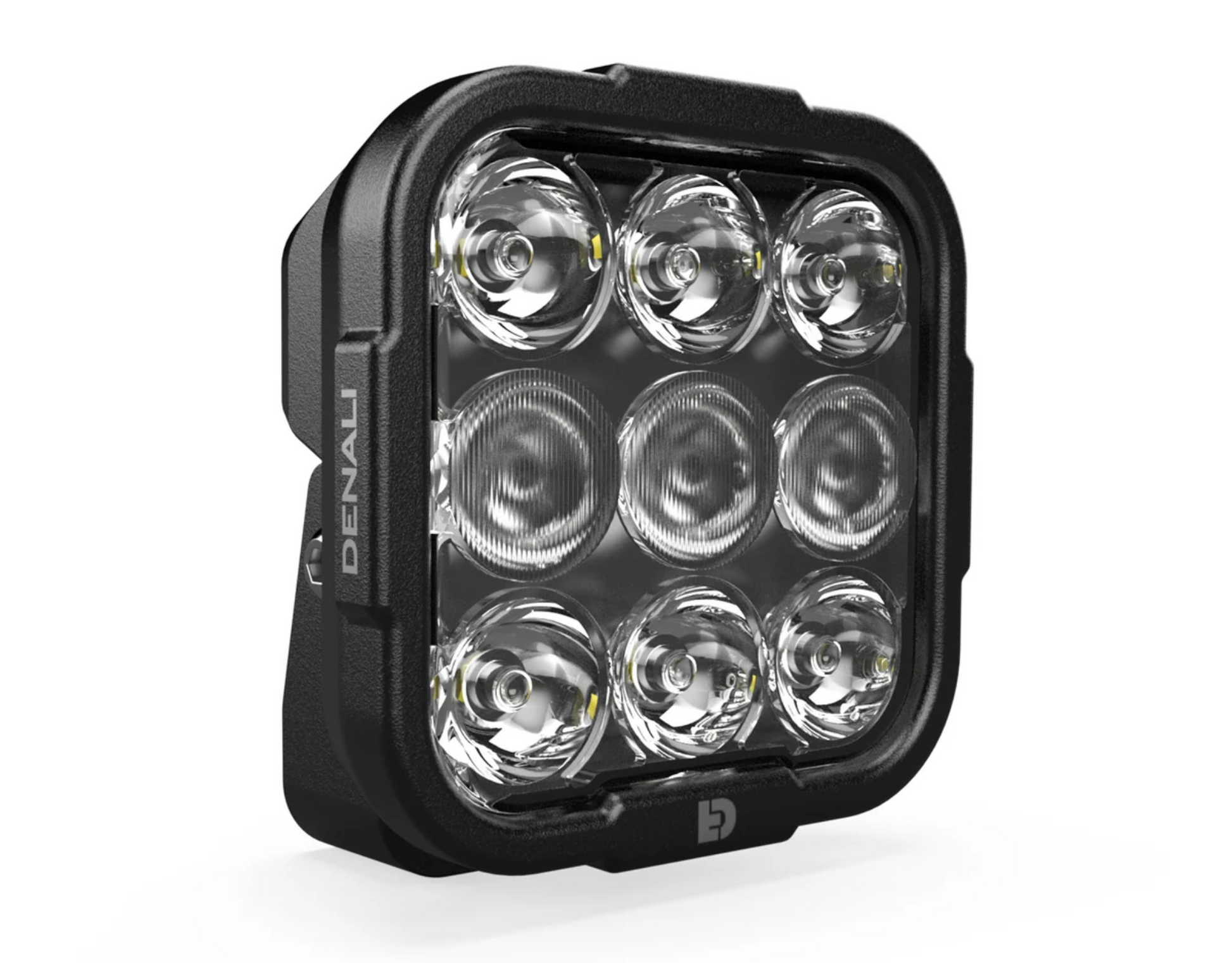

DENALI DL9 Auxiliary LED Lights - White - Lights Only - DNL.DL9.050.W

DENALI DL9 Auxiliary LED Lights - White - Lights Only - DNL.DL9.050.W

The DENALI DL9 Auxiliary LED Lights are high-performance motorcycle driving lights designed to deliver exceptional beam performance, rugged durability, and powerful illumination. Engineered from years of customer feedback, the DL Series combines advanced optical technology, reliable construction, and DENALI's signature dimming capability in a cost-effective package.

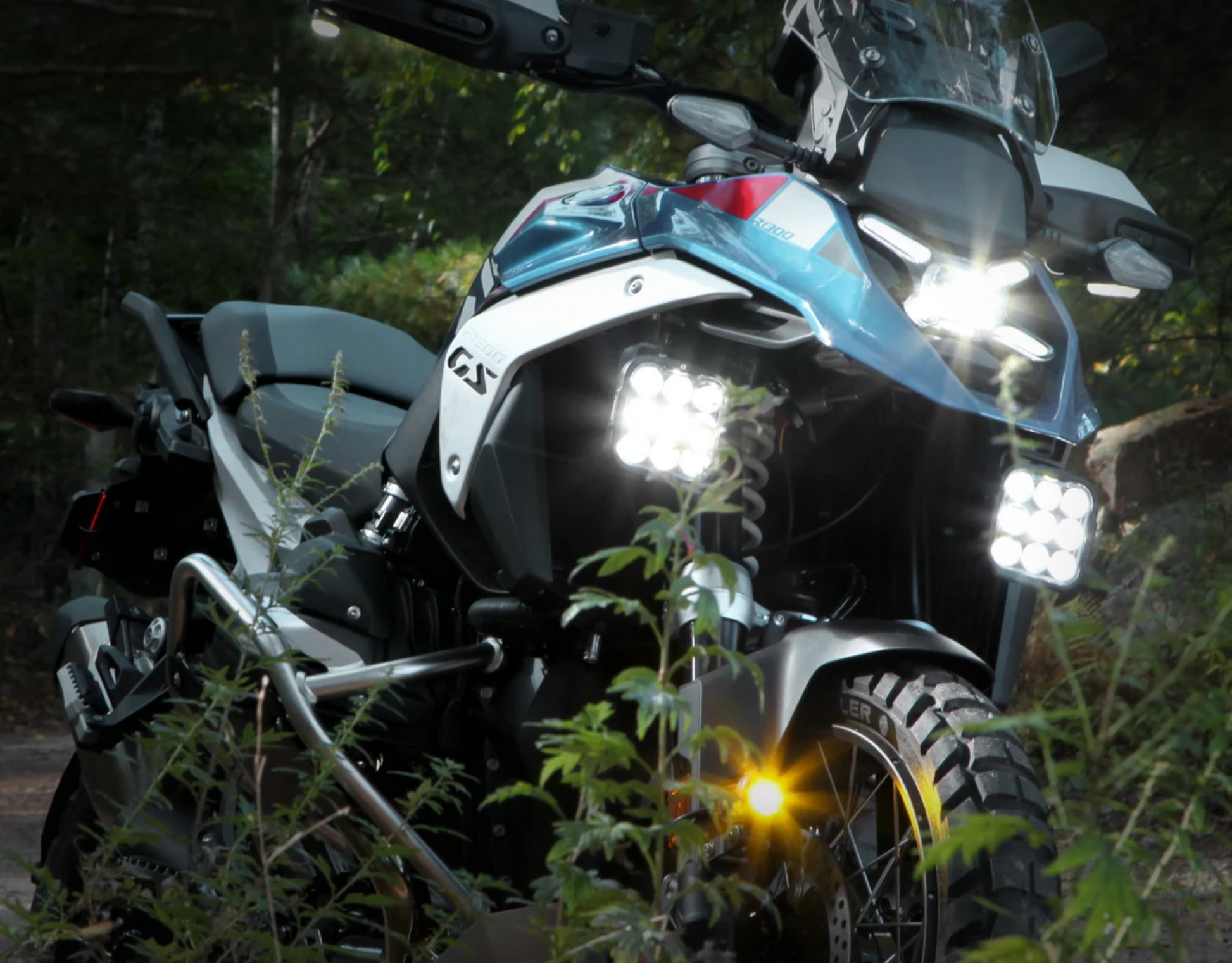

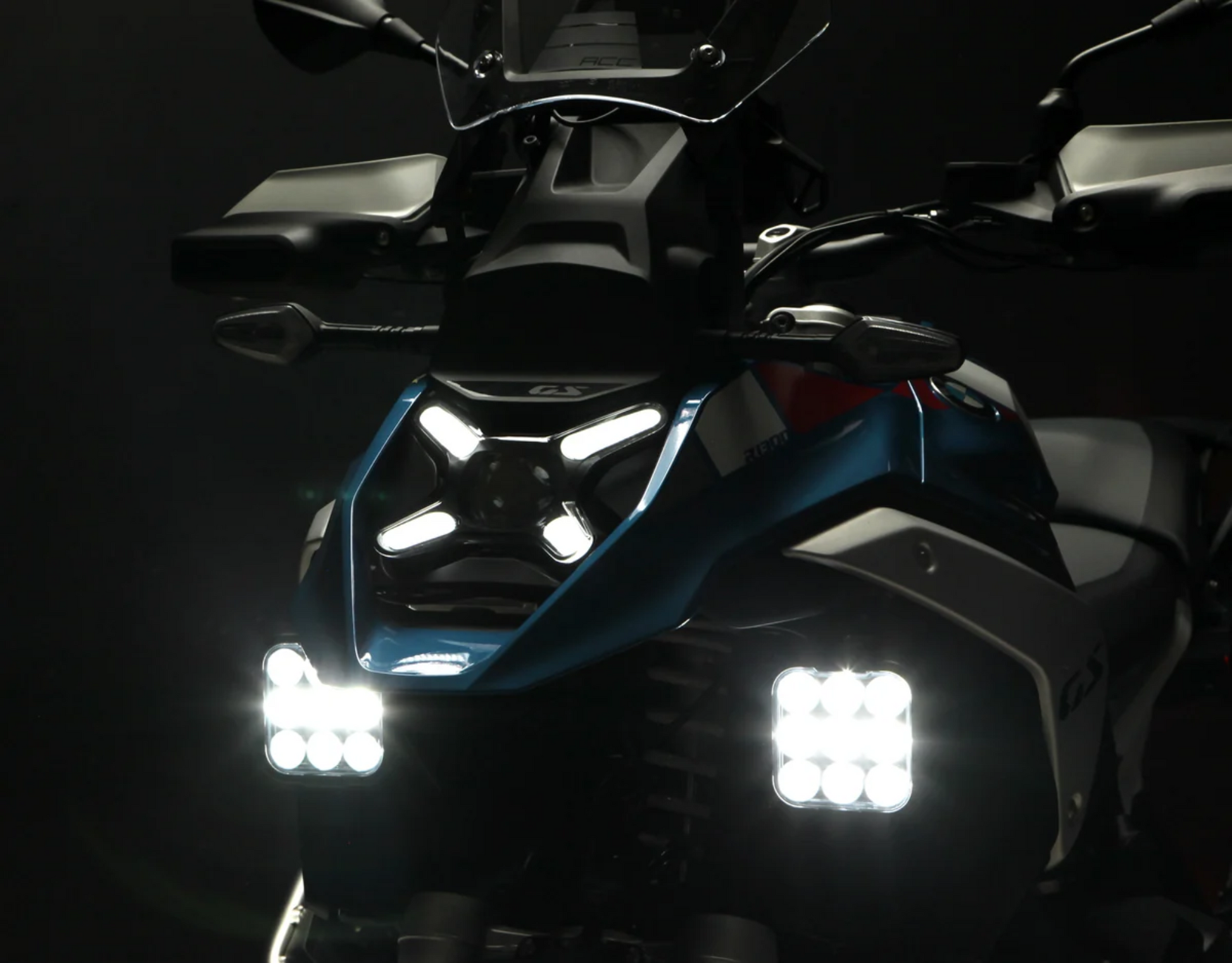

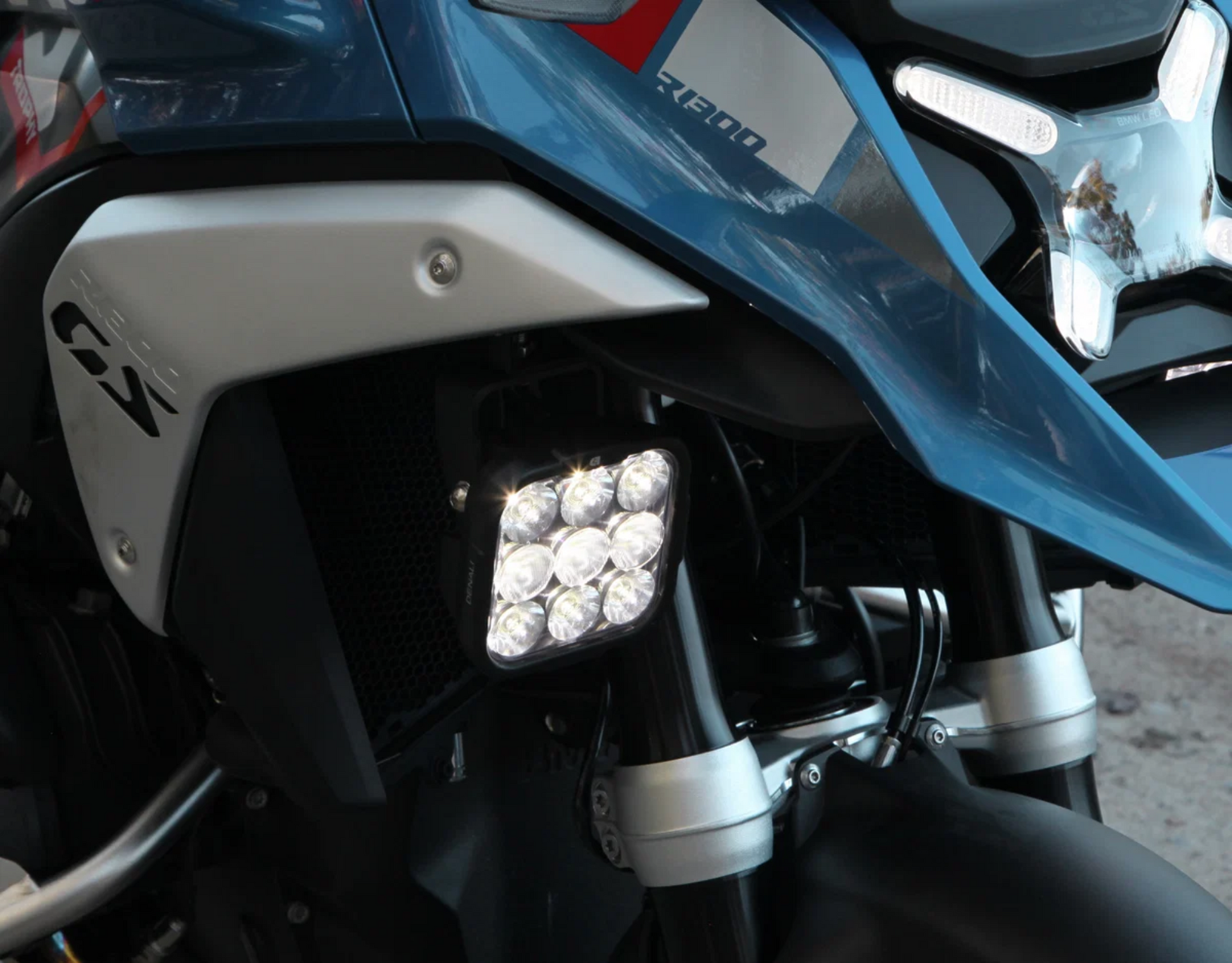

The DL9 is designed for heavy-weight adventure motorcycles where maximum light output is a priority. Its large 9-LED square profile delivers an impressive combination of distance and beam width, making it an excellent choice for riders who demand powerful auxiliary lighting for challenging road and adventure riding conditions.

Features

• HiDrive LEDs delivering up to 15,300 lumens per pair
• Top-bin CREE XPL HI LEDs driven at 8 watts each
• Oversized TIR optics with a perfected hybrid driving beam
• Excellent beam distance and width from a compact optical design
• DataDim™ plug-and-play dimming capability
• Dedicated 3-wire dimming design for reliable operation
• Plug-and-play compatibility with DENALI lighting harnesses, DialDim, and CANsmart controllers
• DrySeal™ sealed beam construction
• Robotically sealed lens and internally potted cable entry
• IP68 and IP69K waterproof, submersible, and high-pressure spray resistant
• 4mm thick powder-coated steel brackets
• Robust heatsink construction with 21G vibration rating
• UV hard-coated polycarbonate lenses
• ECE-compliant hybrid driving beam

Product Specifications

Variant: White

SKU: DNL.DL9.050.W

UPC: 887009962085

LEDs: Cree XPL HI, 8W each

Power Consumption: 72W per light / 144W per pair

Amp Draw: 6A per light / 12A per pair

Raw Lumens: 7,650 per light / 15,300 per pair

Beam Distance: 1,380 ft (421m) per light / 1,835 ft (560m) per pair

Beam Width: 230 ft (70m) per light / 306 ft (93m) per pair

Connector: DataDim-compatible 3-wire DT

Color Temperature: 6000K

Operating Voltage: 9-32 VDC

Pod Size: 4.5" x 4.5" rectangle x 2" deep

Pod Weight: 2.2 lbs per light / 4.4 lbs per pair

Product Weight: 2.62 lbs

IP Rating: IP68 & IP69K Waterproof, Submersible & High-Pressure Spray Resistant

Beam Certification: ECE R149 Driving Beam (Auxiliary High Beam)

EMC: R10, CISPR 25, CE, UKCA Compliant

Product Type: Driving Lights

Beam Performance

The DL9 uses oversized TIR optics to produce a perfected hybrid driving beam. The optical design efficiently distributes light to provide impressive beam distance and width, making the DL9 particularly well suited to heavy-weight adventure motorcycles and riders looking for maximum auxiliary lighting performance.

Dimming & Control

DENALI DataDim™ technology provides plug-and-play dimming through the dedicated 3-wire design. The DL9 can be connected to compatible DENALI lighting harnesses, DialDim controllers, and CANsmart controllers for flexible lighting control and intensity management.

Wiring & Switching Options

• Standard Powersports Harness: Robust, low-profile waterproof switch for a basic single-intensity installation.
• Standard Automotive Harness: Provides additional wire length and an illuminated flush-mount rocker switch for dash mounting.
• Premium Powersports Harness: Features overmolded wiring and an illuminated switch with a handlebar mounting kit.
• DataDim Module: Allows the lights to change intensity in sync with the factory high-beam switch.
• DialDim Lighting Controller: Enables independent on/off switching and dimming of two sets of lights, along with additional lighting functions.

What’s Included

• 1 x DENALI DL9 Auxiliary LED Light Pod
• Mounting Hardware
• 1 x 3-wire Pigtail

Installation Information

The light pods and harness options are packaged separately in their respective retail packaging. A compatible wiring harness or lighting controller should be selected separately to complete the DENALI lighting installation.

Fitment

This is a universal fit item designed to fit many vehicles. Universal products may require a vehicle-specific fit kit, sold separately, or other modifications for installation. Universal products are not guaranteed to fit every vehicle. Check the installation requirements before purchasing.

Important Information

The white DL9 hybrid driving beam is ECE R149 certified for use as a primary or auxiliary high beam in the European Union. Yellow and amber lens options are not compliant for street-legal high-beam use.

Instruction Manual

• PDF Instruction Manual (English)
