DENALI DRL Daytime Running Light With Waterproof Flush Mounting Kit - White - DNL.DRL.10200.W

DENALI DRL Daytime Running Light With Waterproof Flush Mounting Kit - White - DNL.DRL.10200.W

The DENALI DRL Daytime Running Light with Waterproof Flush Mounting Kit is designed to flush mount a single DENALI DRL pod to a flat surface on your vehicle, providing maximum daytime visibility to oncoming traffic. The compact, low-profile housing delivers powerful illumination while maintaining a clean appearance once installed.

The included silicone gasket provides a watertight seal, while the supplied hardware supports both through-bolt installation and blind self-tapping installation into suitable plastic surfaces. The integrated dual-intensity circuit allows the DRL to operate at 50% or 100% intensity, or automatically switch between intensities using the vehicle's original high beam switch.

The waterproof connector and Posi-Tap pigtail are designed to connect directly to the vehicle's running light circuit, allowing the DRL to turn on and off with the vehicle's ignition. The DRL can also be connected plug-and-play to a DENALI CANsmart Accessory Controller or DENALI 2.0-series wiring harness using the included wiring adapter.

Features

• Dual intensity circuit with 50% and 100% intensity modes
• 180-degree viewing angle
• 12 extremely bright LEDs
• Low 12-watt power consumption
• Compact, low-profile design
• Waterproof mounting gasket included
• Designed for maximum daytime visibility
• Can connect to the vehicle's running light circuit
• Plug-and-play compatible with DENALI CANsmart Controller
• Compatible with DENALI 2.0-series wiring harnesses

Product Specifications

Product: DENALI DRL Daytime Running Light with Waterproof Flush Mounting Kit

Part Number: DNL.DRL.10200.W

Variant: White

Power Draw: 0.5 Amp

Voltage: 12V DC

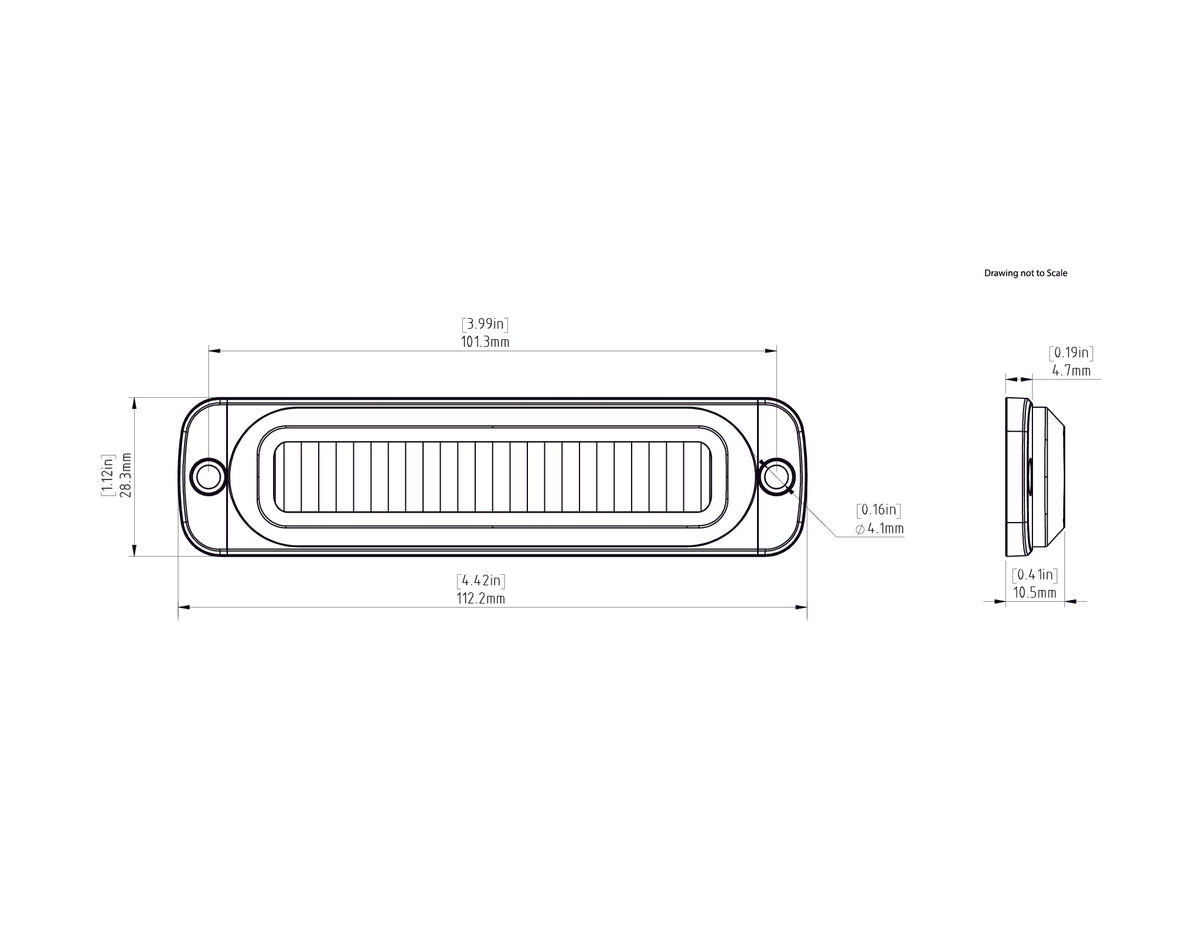

Size: 4.4" x 1.1" x 0.42"

Raw Lumens: 870

Waterproof Rating: IP67

Weight: 0.4 lb

Product Type: DRL & Backup Lights

Color: White

Lighting & Control

• 50% and 100% intensity operation
• Can automatically switch between intensity levels with the vehicle's original high beam switch
• When connected to a DENALI 2.0-series harness, the DRL operates in high-intensity mode only
• When connected through a DENALI CANsmart Controller, the DRL can be fully dimmed

What's In The Kit?

• DENALI DRL Visibility Pod x 1
• Flush Mount for DRL & B6 Visibility Pods x 1

Compatibility

This is a universal-fit product designed to fit many vehicles. Universal products may require a vehicle-specific fit kit or other modifications for installation and are not guaranteed to fit every vehicle.

Installation

The flush mount is designed for installation on a flat surface using the supplied hardware and silicone gasket. The waterproof connector and Posi-Tap pigtail allow the DRL to be integrated into the vehicle's running light circuit. The included wiring adapter also allows plug-and-play connection to a DENALI CANsmart Controller or DENALI 2.0-series wiring harness.

Important Information

The DRL Visibility Pod and flush mounting components are packaged separately and may ship in separate boxes.

Instruction Manual

DENALI DRL Flush Mount Installation Instruction Manual
