Denali Gen II CANsmart Controller For BMW R1300GS - DNL.WHS.25900

Denali Gen II CANsmart Controller For BMW R1300GS - DNL.WHS.25900

The DENALI CANsmart™ Controller GEN II harnesses the flexibility and intelligence of your BMW motorcycle's CAN bus electrical system to make accessory installation easier. It provides plug-and-play installation and integrated control of up to four accessories, with customizable settings accessible through the BMW WonderWheel or the CANsmart™ Accessory Manager Software.

The four CANsmart circuits are preprogrammed to connect and independently control two sets of DENALI 2.0 lights, a SoundBomb™ horn and a B6 auxiliary brake light.

GEN II - More Features, More Power, More Versatile

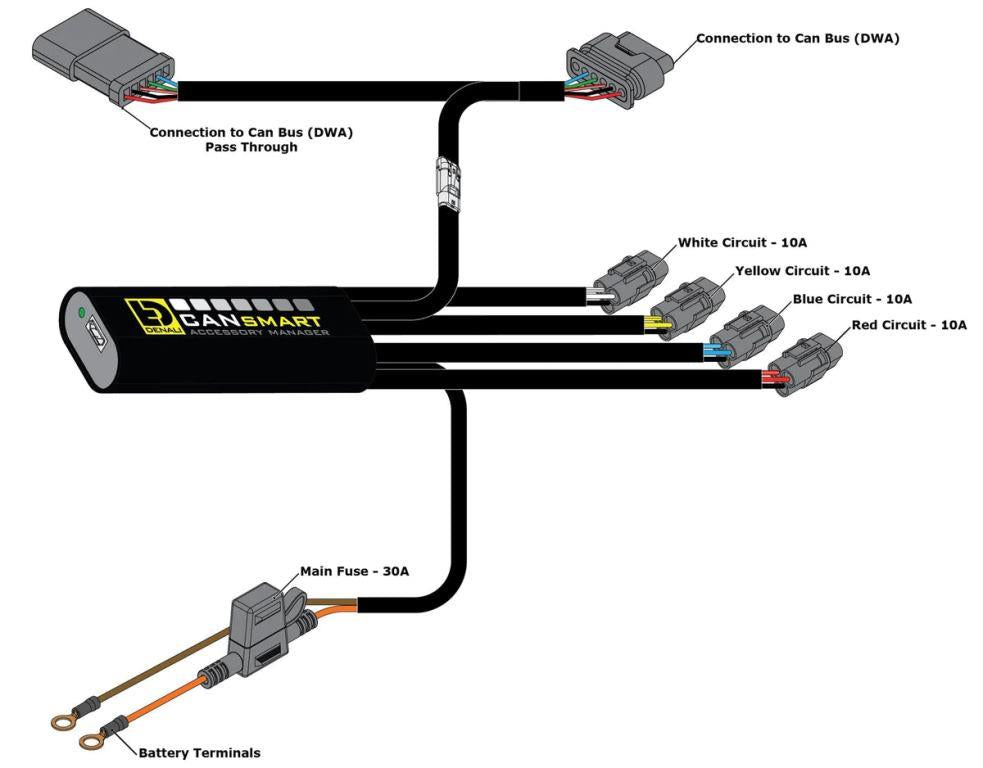

All four circuits of the GEN II CANsmart™ can provide up to 10 amps of continuous power, and each circuit can be configured to run any accessory type. The maximum power draw for the complete unit remains at 30 amps continuous. The GEN II also adds auxiliary lighting functions including light modulation and independent cancellation of left and right auxiliary lights when the corresponding turn signal is activated.

Features

• High/Low Sync: Set auxiliary lights to switch between programmable high and low settings using the factory high-beam switch.
• ON/OFF and Dim: Independently control two sets of lights and adjust their intensity for day and night using the original vehicle switches.
• Modulate Lights: Set auxiliary lights to modulate to increase visibility to other motorists.
• Flash to Pass: Pulse the high-beam switch three times to make the auxiliary lights strobe three times rapidly.
• Cancel With Turn Signal: Automatically cancel the corresponding auxiliary light when the turn signal is activated to prevent the auxiliary lights from overpowering the signal.
• Inverse Flashing With Hazards: Flash auxiliary lights inversely with the hazard lights to increase visibility during roadside emergencies.
• Plug & Play Horn Installation: Connect high-power aftermarket horns such as the SoundBomb™ without requiring an additional harness or relay.
• Strobe with Horn: Automatically strobe auxiliary lights when the horn is activated using the CANsmart™ software.
• Deceleration Activated Smart Brake Technology: Uses real-time vehicle speed information to activate the auxiliary brake light during deceleration before the brake is applied.
• Flash Pattern Braking: Provides four different flash patterns for auxiliary brake lights to increase visibility to motorists behind the motorcycle.
• Circuit Function Selector: Configure any of the four circuits to operate the accessory type of your choice using the CANsmart software.
• Switched Power Source: Provides clean switched 12V power that turns connected accessories on and off with the ignition.
• Delay Time Out: Allows accessories connected to the accessory circuit to remain powered for up to 30 seconds after the motorcycle is turned off.
• On Board Power: The accessory circuit can power devices such as GPS units, phones, heated gear and other electronic accessories.

What’s In The Box?

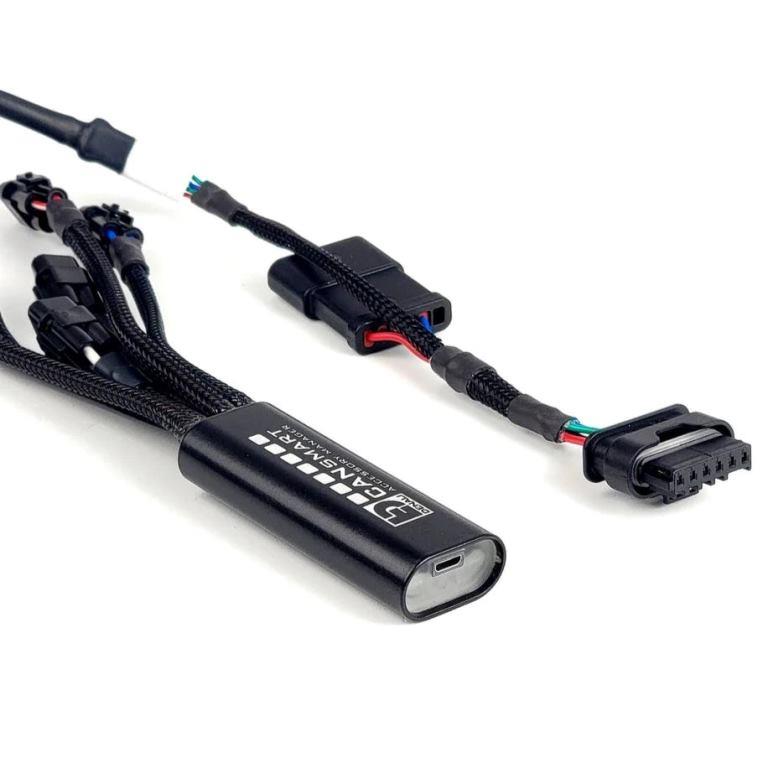

• CANsmart™ Controller
• 2 x 5.5 ft Light Extension Cables
• 5 ft SoundBomb Horn Extension Cable
• B6 Brake Light Wiring Adapter
• Zip-ties
• Adhesive Hook-and-Loop Fastener
• Micro USB Programming Cable

Vehicle Fitment

• BMW R1300GS Trophy (2024)
• BMW R1300GS Triple Black (2024)
• BMW R1300GS Option 719 Tramuntana (2024)

Product Specifications

SKU: DNL.WHS.25900

Product: DENALI Gen II CANsmart™ Controller

Maximum Continuous Power: 30 Amps for the complete unit

Maximum Continuous Power Per Circuit: 10 Amps

Number of Circuits: 4

Important Information

The CANsmart™ Controller is designed specifically for the listed BMW R1300GS models. Use the CANsmart™ Accessory Manager Software to configure the available accessory functions and settings.
