DENALI Plug-n-Play CANsmart Controller for Harley-Davidson Pan America 1250 & Pan America 1250 Special - Gen II - DNL.WHS.23800

DENALI Plug-n-Play CANsmart Controller for Harley-Davidson Pan America 1250 & Pan America 1250 Special - Gen II - DNL.WHS.23800

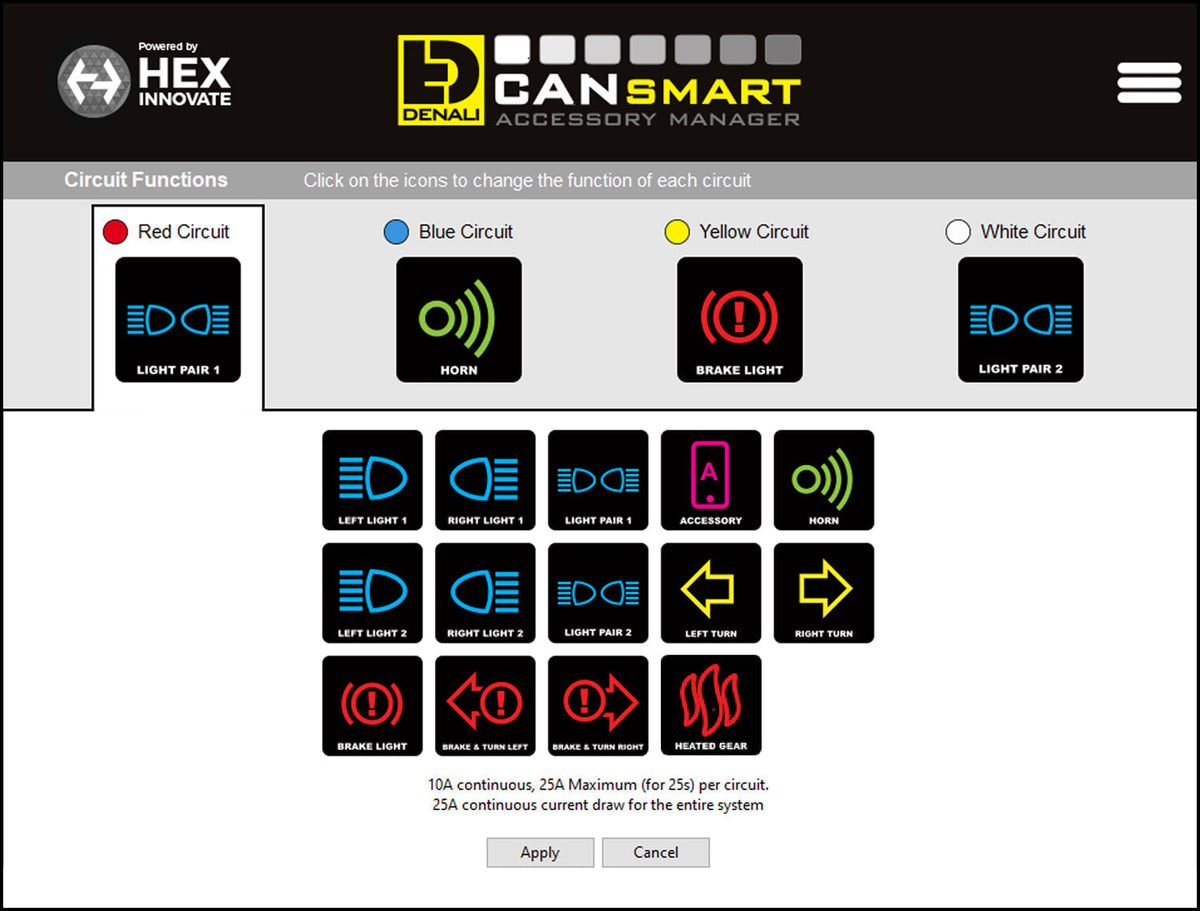

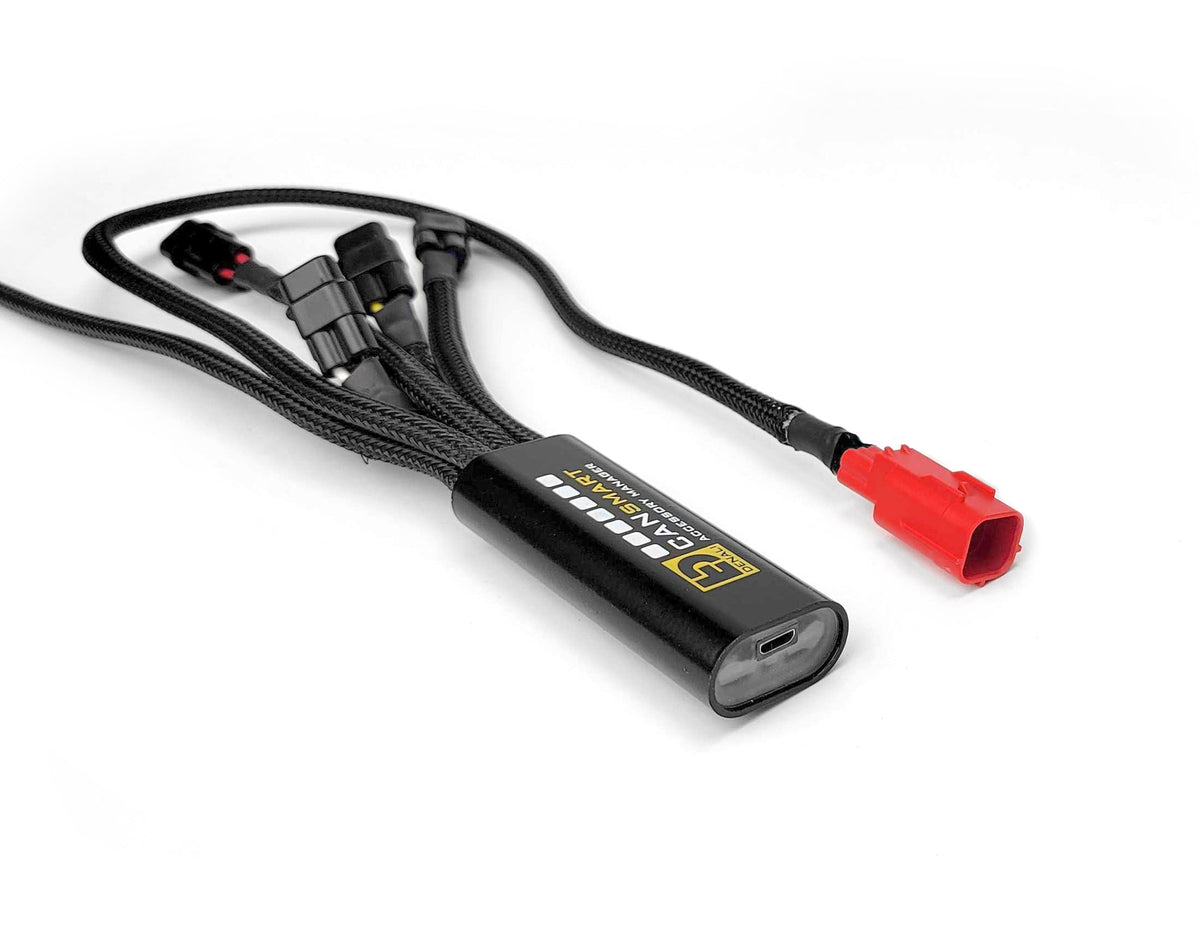

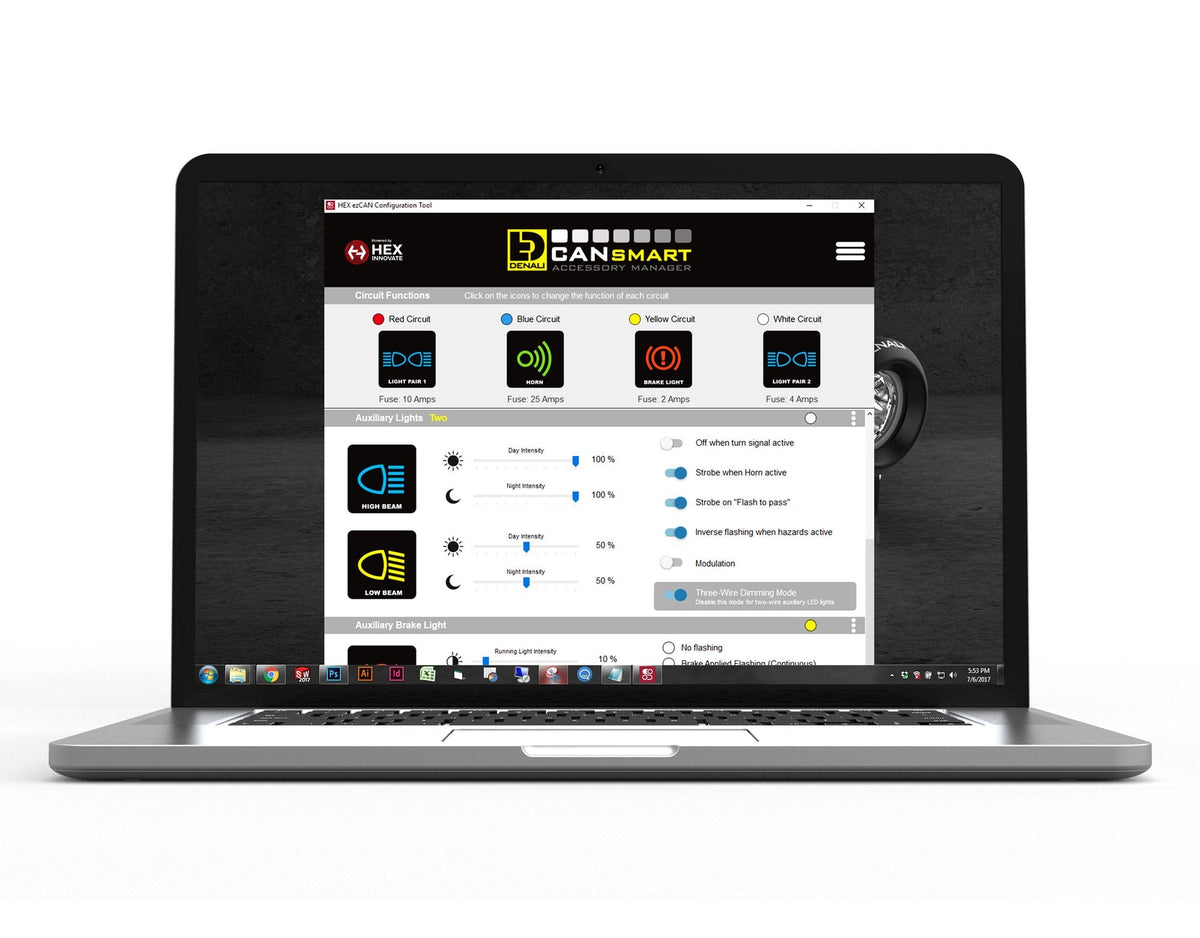

The DENALI CANsmart Controller Gen II provides plug-and-play connection and intelligent control of aftermarket and genuine Harley-Davidson accessories. Designed for the Pan America platform, it connects to the motorcycle's diagnostic port and allows you to control auxiliary lights, horns, brake lights, and other accessories using the factory switches or DENALI Accessory Manager Software.

Features

• Plug-and-play CANbus accessory controller for Harley-Davidson motorcycles.
• Provides access to more than 35 programmable accessory settings.

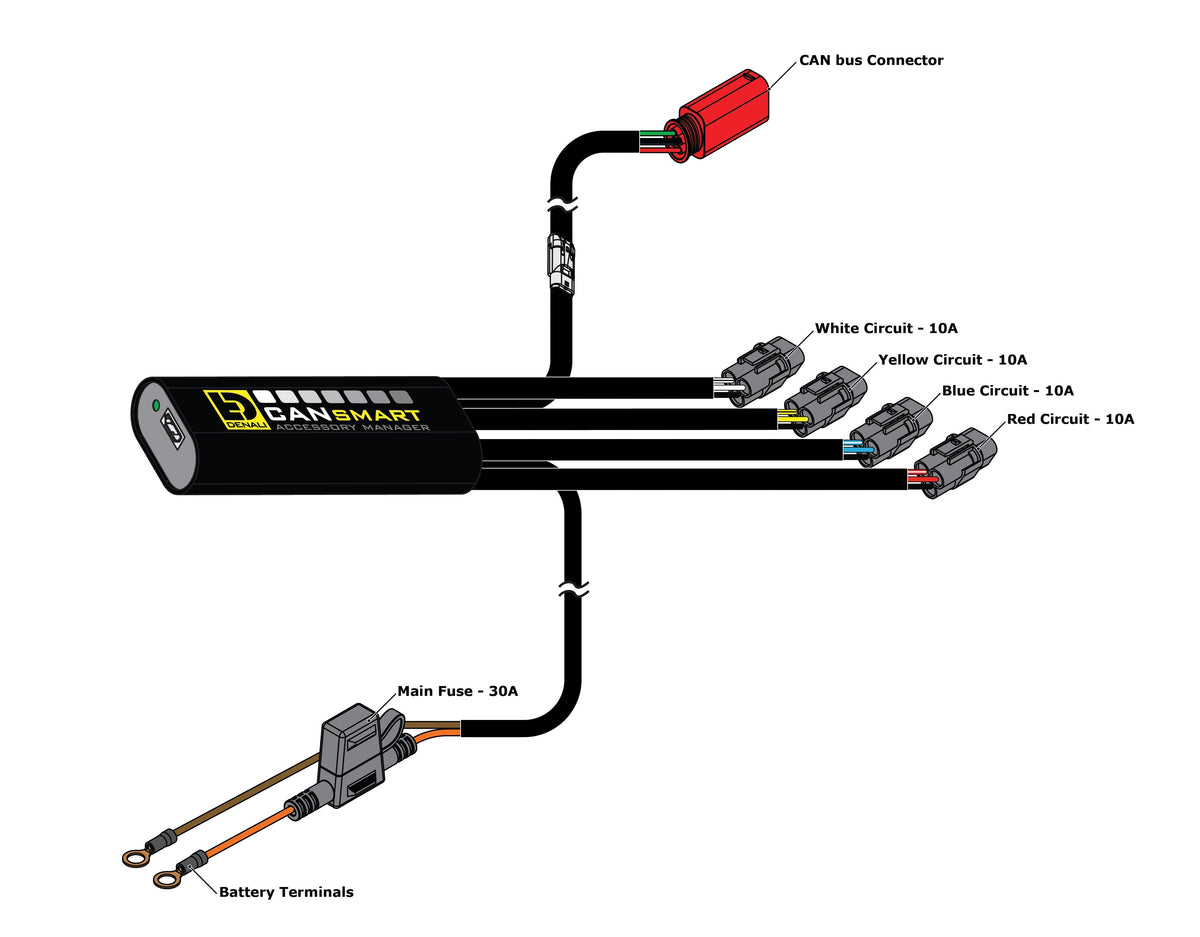

• Four electronically fused accessory circuits.
• Each circuit can provide up to 25 peak amps and 10 amps continuous.

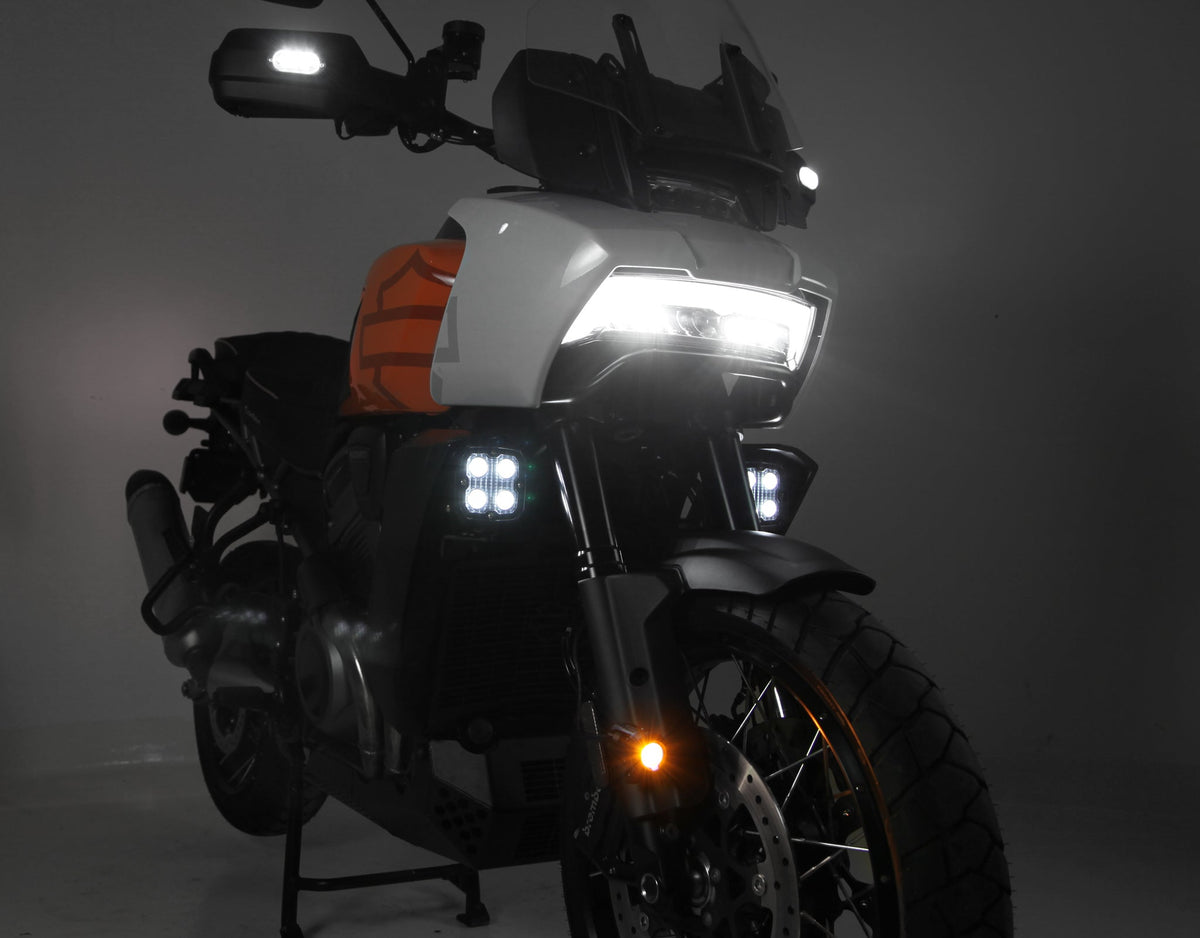

• High/Low Sync: Switch auxiliary lights between programmable high and low settings using the factory high beam switch.

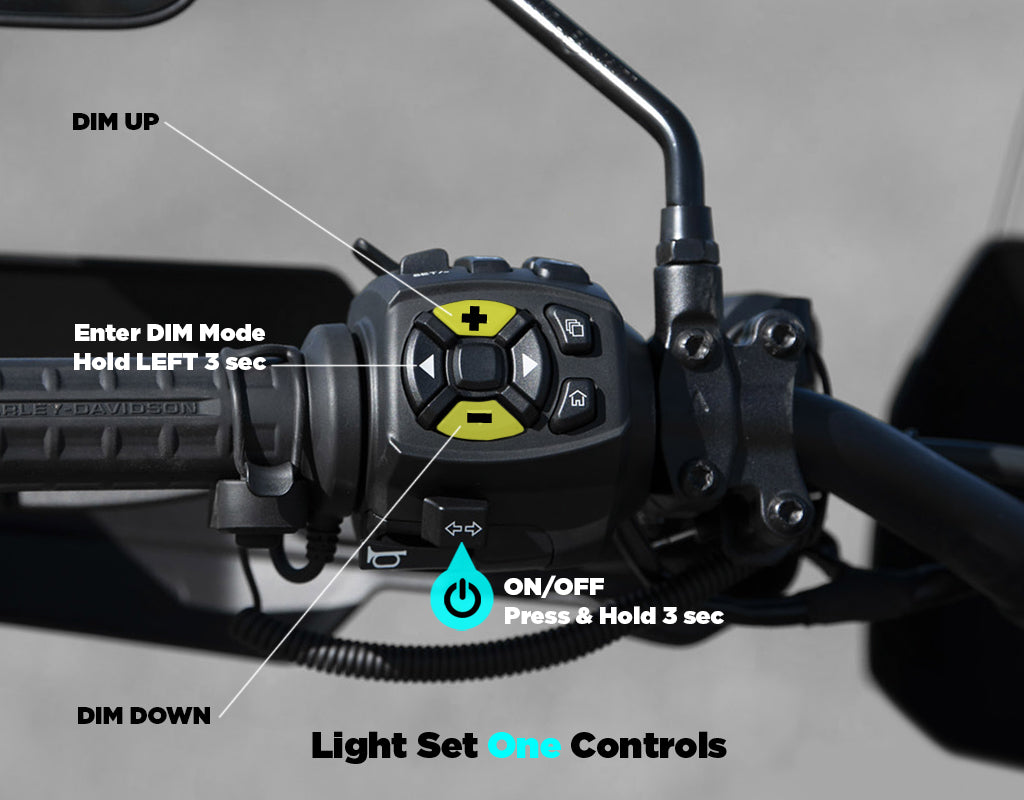

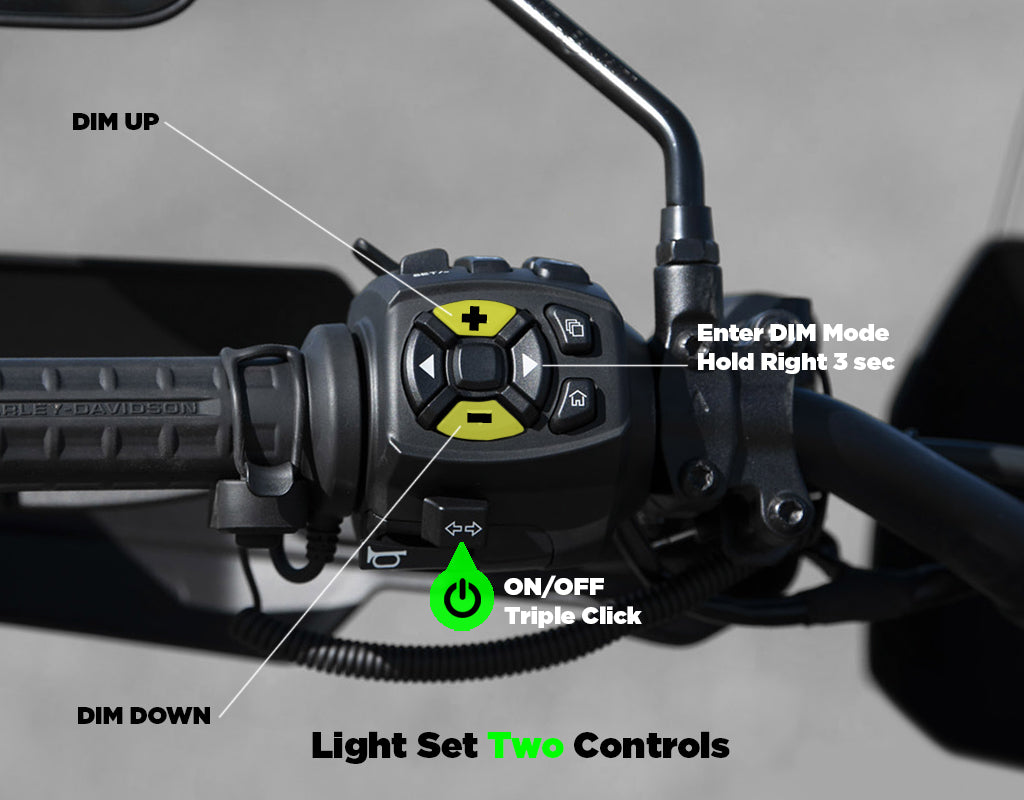

• ON/OFF & Dim: Independently control two sets of lights and adjust intensity from 10% to 100% using the factory trip switch.
• Modulate Lights: Modulate passing lamps or auxiliary lights to increase visibility.
• Flash to Pass: Pulse the high beam switch three times to rapidly strobe the auxiliary lights.
• Cancel With Turn Signal: Automatically cancel the corresponding auxiliary light when the turn signal is activated.

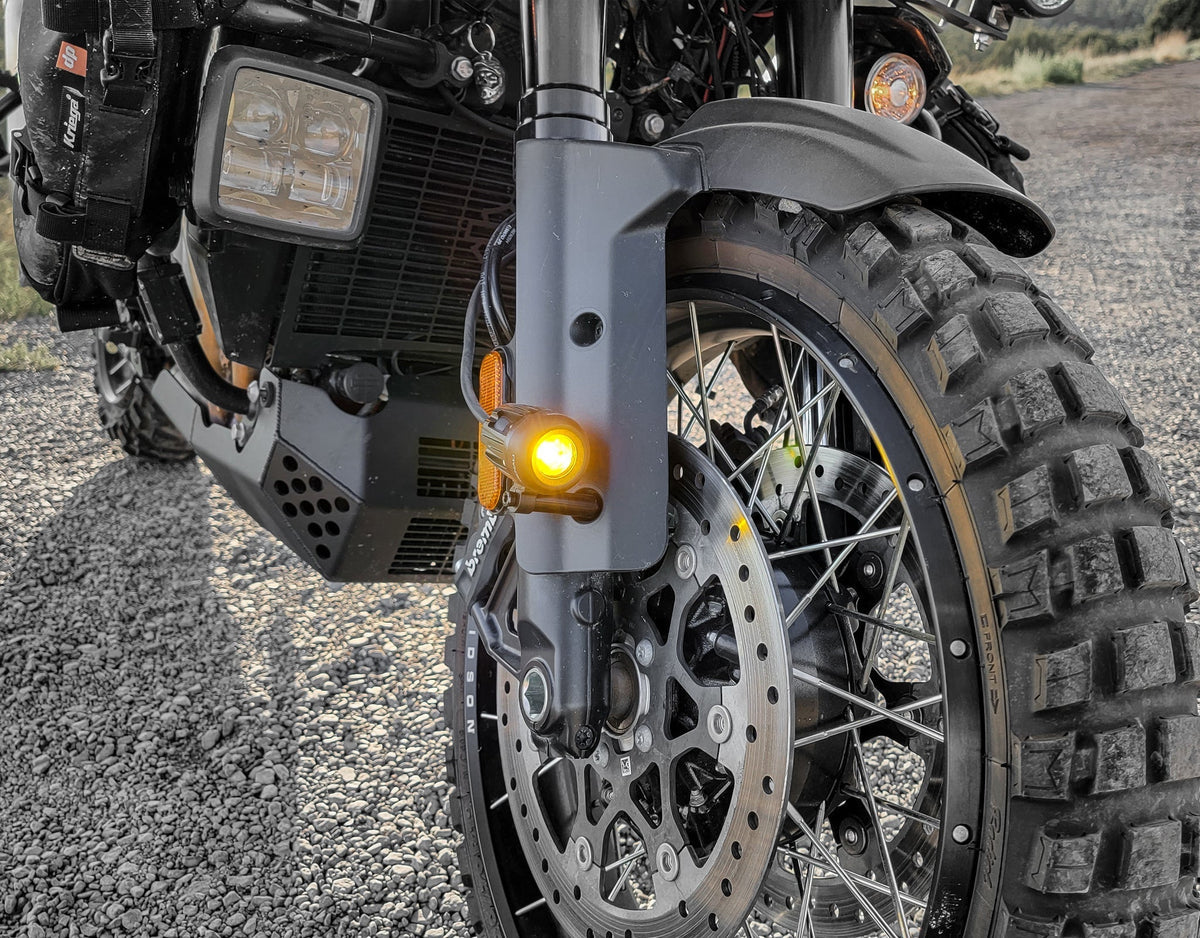

• Flash With Turn Signal: Use compatible auxiliary lights as turn signals.

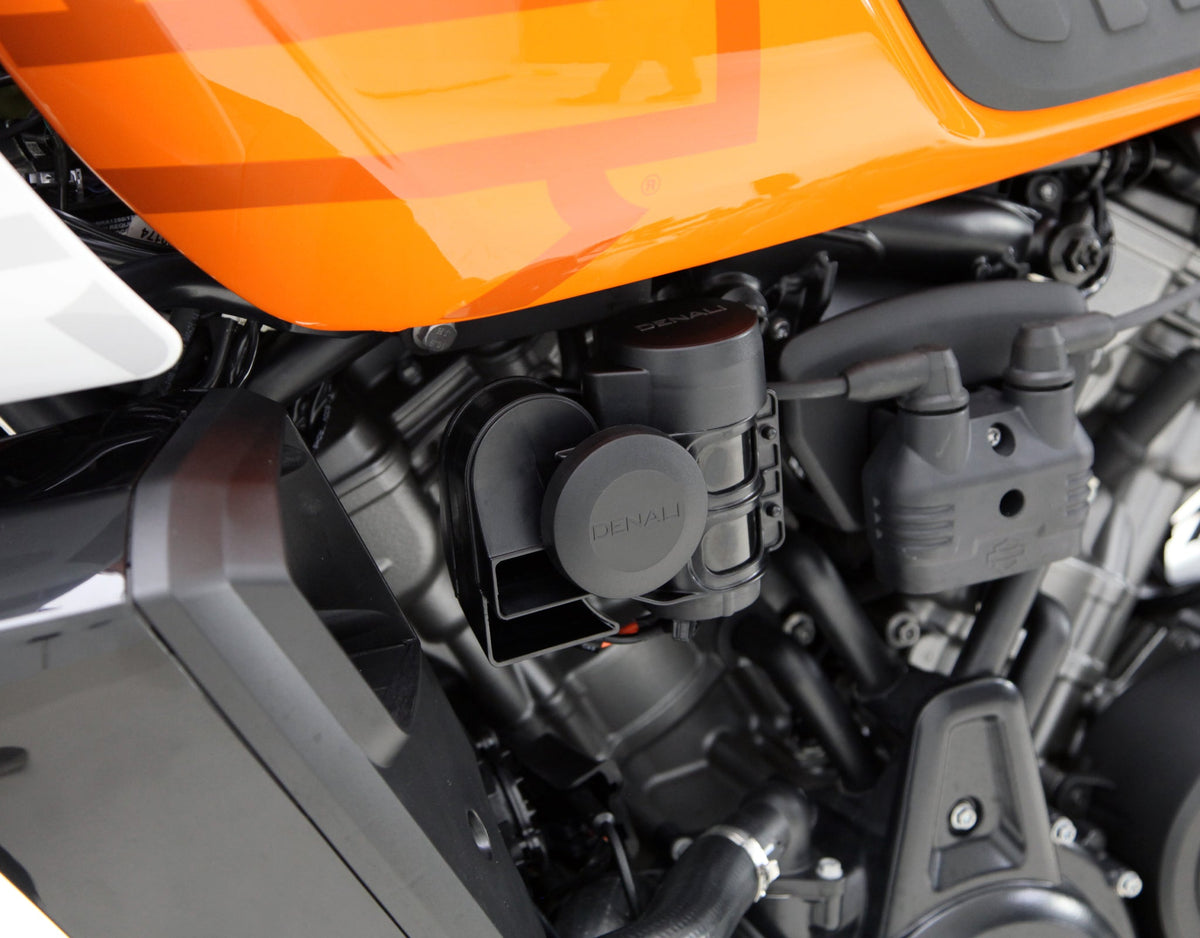

• Plug & Play Horn Installation: Connect high-power aftermarket horns without adding a separate harness or relay.
• Strobe With Horn: Automatically strobe passing lamps or auxiliary lights when the horn is activated.

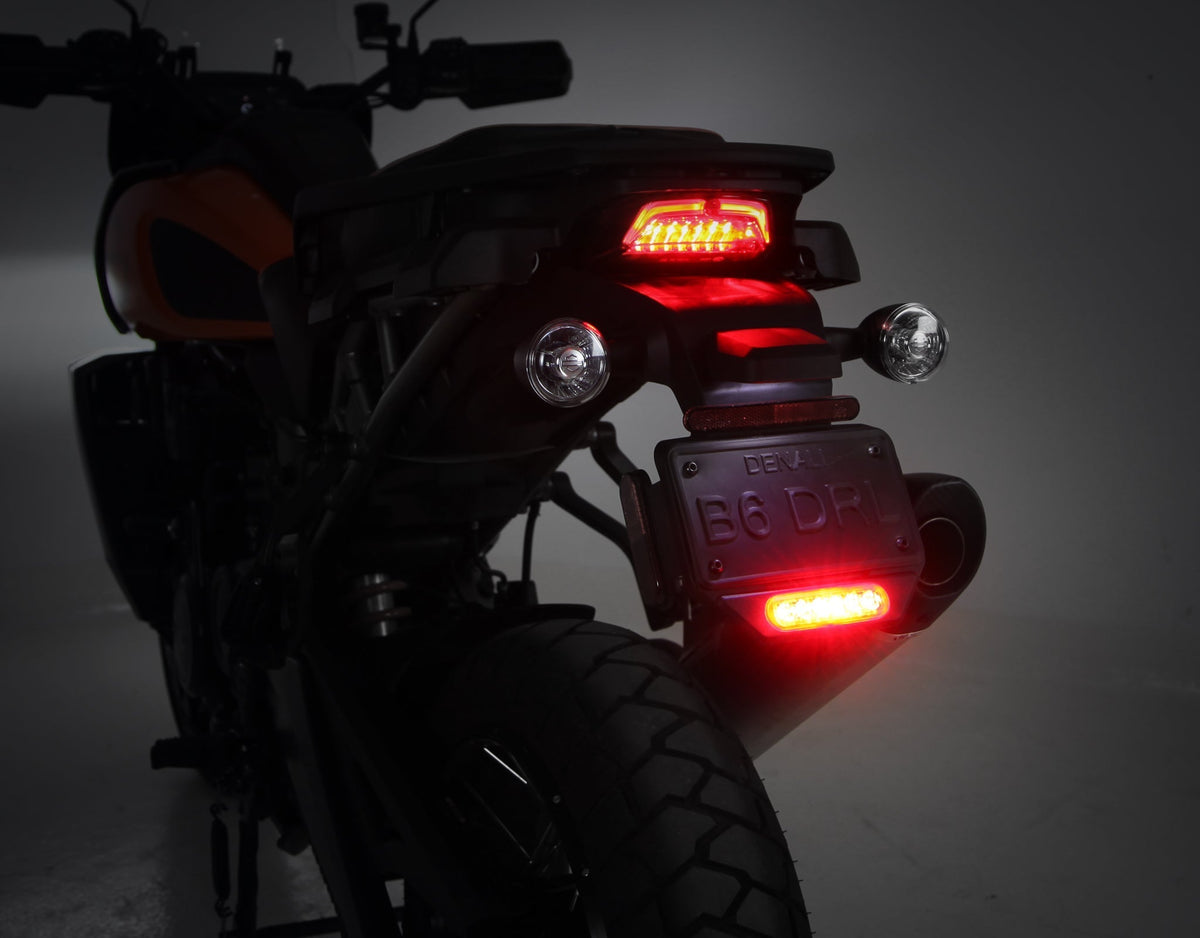

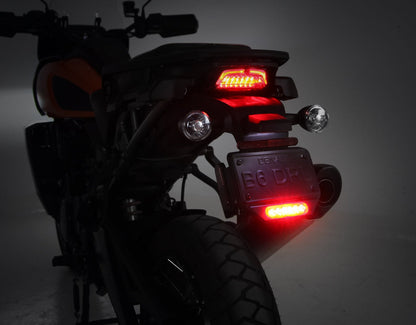

• Smart Brake Technology: Detects vehicle deceleration and activates an auxiliary brake light before the brake lever or pedal is applied.

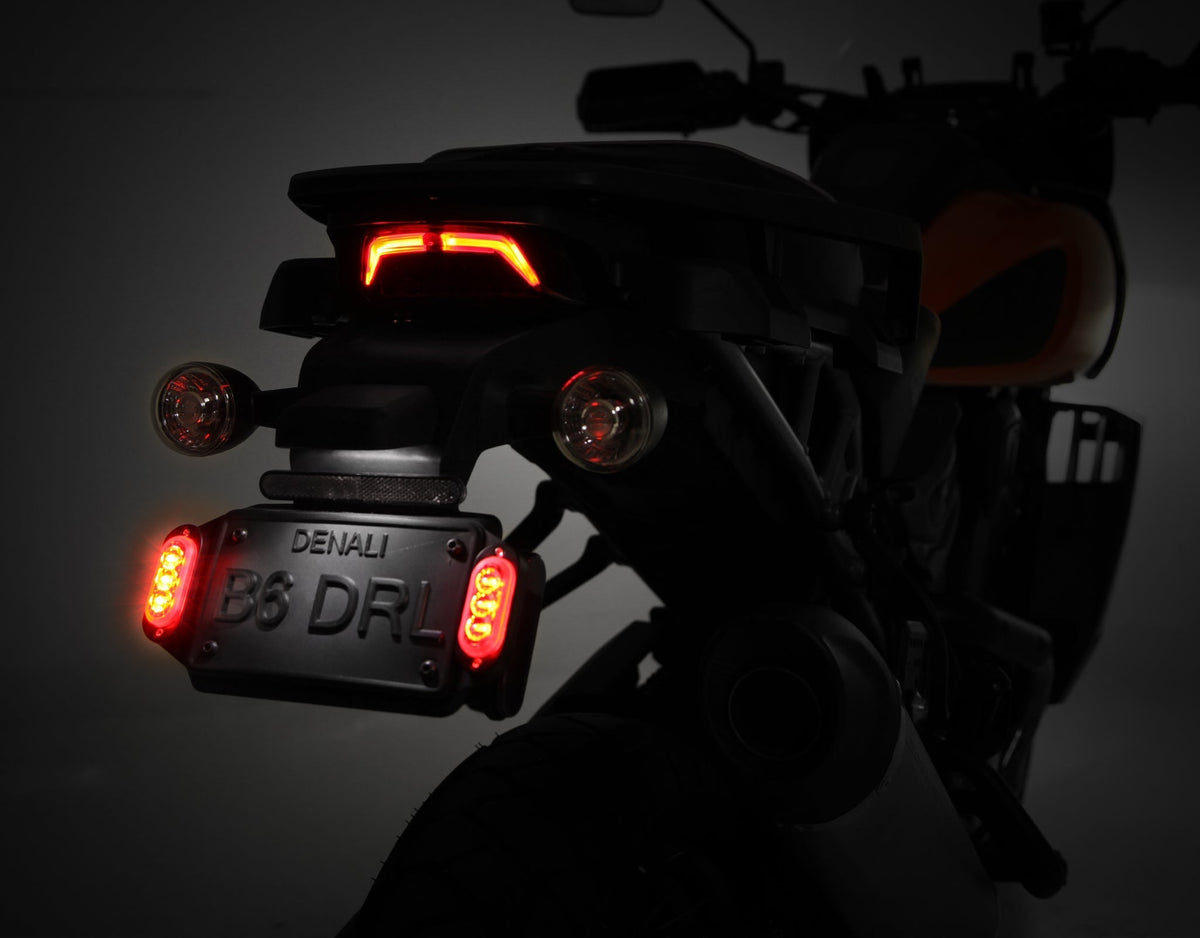

• Flash Pattern Braking: Provides four selectable brake light flash patterns for increased visibility.
• Switched Power Source: Provides clean switched 12V accessory power that turns on and off with the ignition.
• Delay Time Out: Keeps connected accessories powered for up to 30 seconds after the motorcycle is switched off.
• On Board Power: Suitable for powering GPS units, phones, heated gear, and other electronic accessories.

Product Specifications

Brand: DENALI Electronics

Part Number: DNL.WHS.23800

UPC: 810005873802

Weight: 1.27 lb

Product Type: CANbus Accessory Controller

Accessory Circuits: 4

Peak Output: Up to 25 amps

Continuous Output: Up to 10 amps per circuit

Vehicle Compatibility

• Harley-Davidson Pan America 1250 2021-2026
• Harley-Davidson Pan America 1250 Special 2021-2026

What’s in the Box?

• DENALI CANsmart Controller Gen II x 1
• 5.5 ft Extension Splitters x 2
• 5 ft SoundBomb Horn Extension Cable x 1
• B6 Brake Light Wiring Adapter x 1
• Zip-Ties
• Adhesive Hook-and-Loop Fastener
• Micro USB Programming Cable

Installation

The CANsmart Controller connects to the Harley-Davidson motorcycle's diagnostic port for plug-and-play integration with the factory CANbus system. Once installed, compatible accessories can be configured and controlled using the motorcycle's original switches or DENALI Accessory Manager Software.

Important Information

This is a vehicle-specific CANsmart Controller designed for the Harley-Davidson Pan America platform. Verify motorcycle model and year compatibility before installation. Accessory functions and settings may vary depending on the connected accessory and motorcycle configuration.

Installation Instructions

Refer to the DENALI installation instructions for detailed installation and configuration procedures.
