DENALI Plug-n-Play CANsmart Controller for Triumph Tiger 1200 and 900 Series - Gen II - DNL.WHS.2460

DENALI Plug-n-Play CANsmart Controller for Triumph Tiger 1200 and 900 Series - Gen II - DNL.WHS.24600

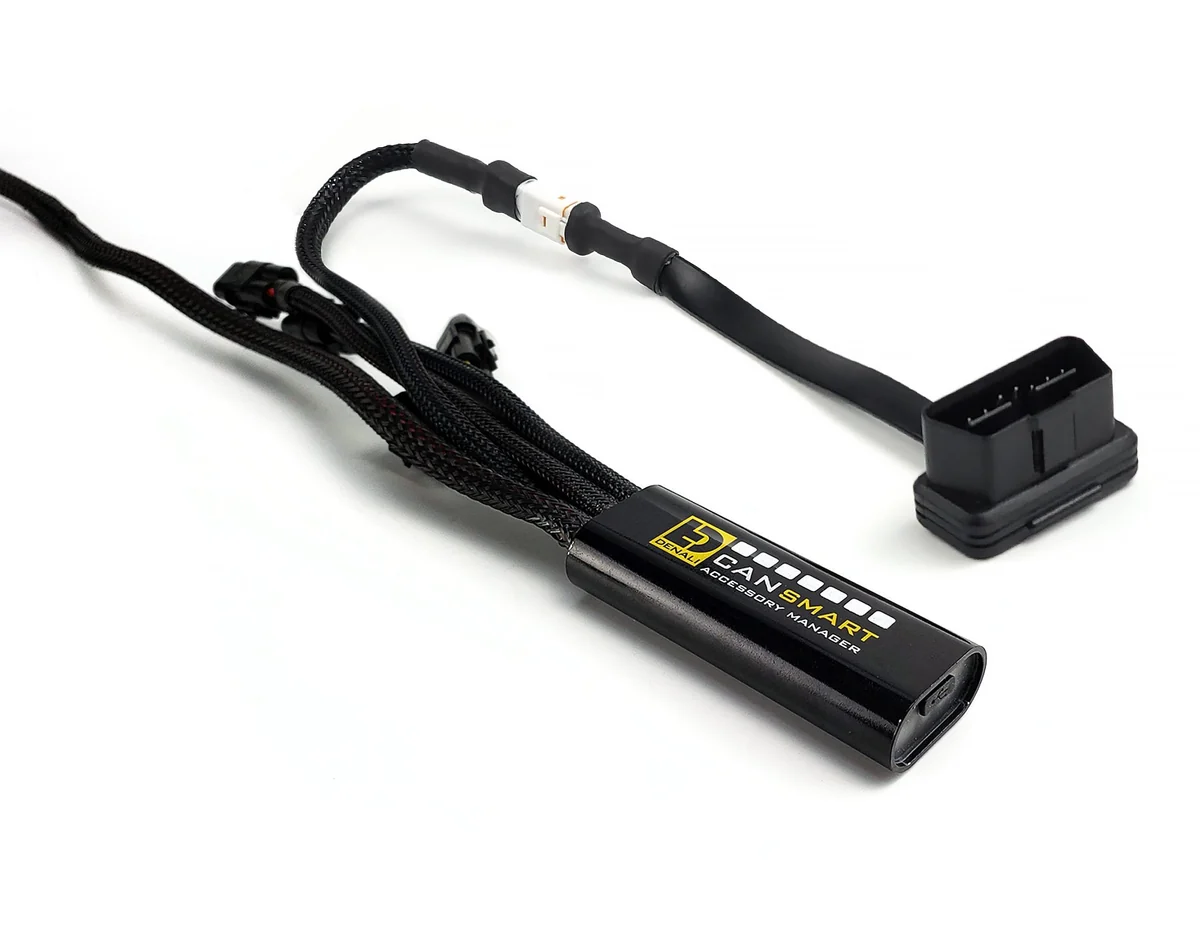

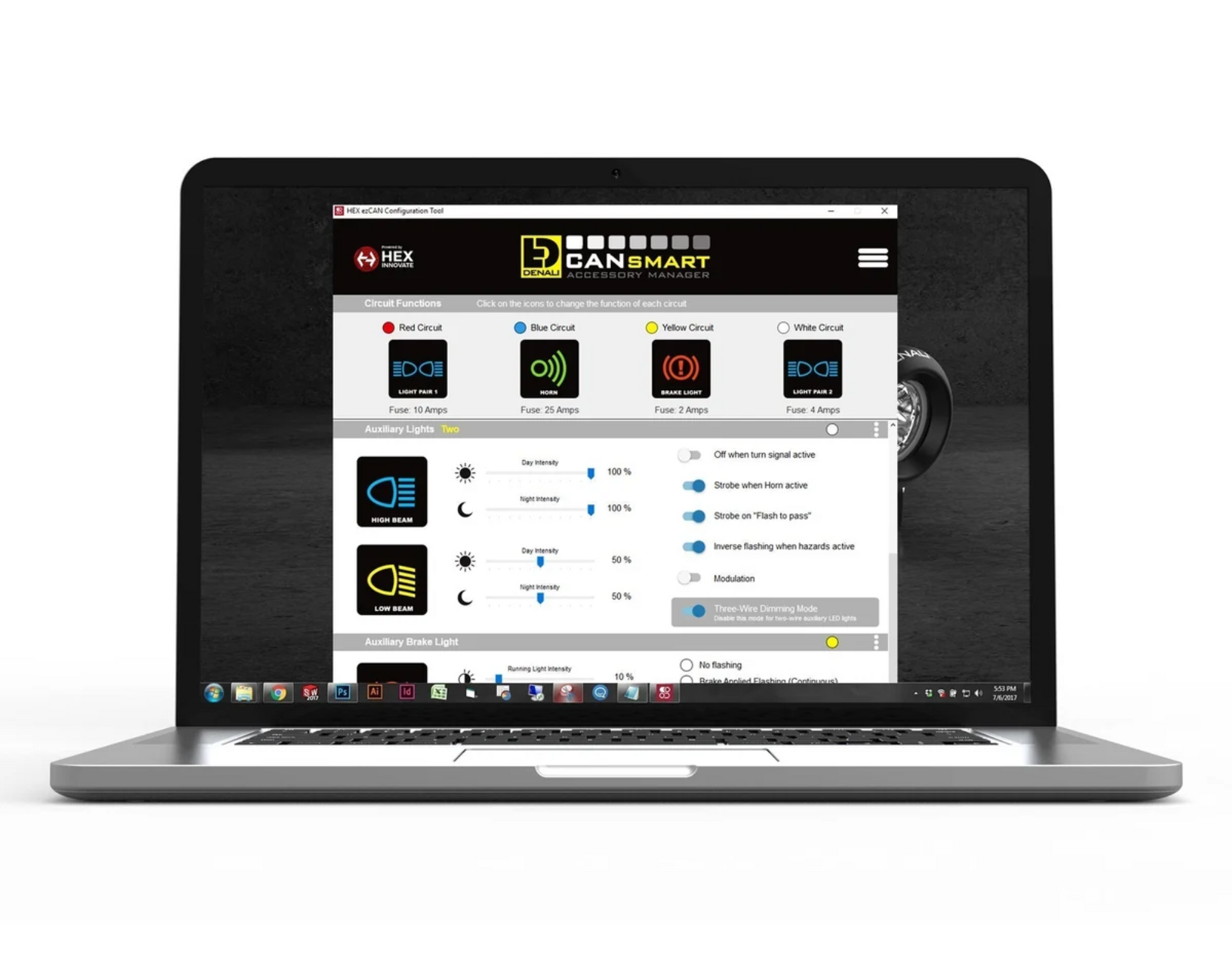

The DENALI CANsmart Controller Gen II harnesses the flexibility of your motorcycle's CANbus electrical system to make accessory installation easier. It provides plug-n-play installation and integrated control of up to four accessories, with numerous customizable settings that can be controlled using the motorcycle's original hand controls or the DENALI CANsmart Accessory Manager Software.

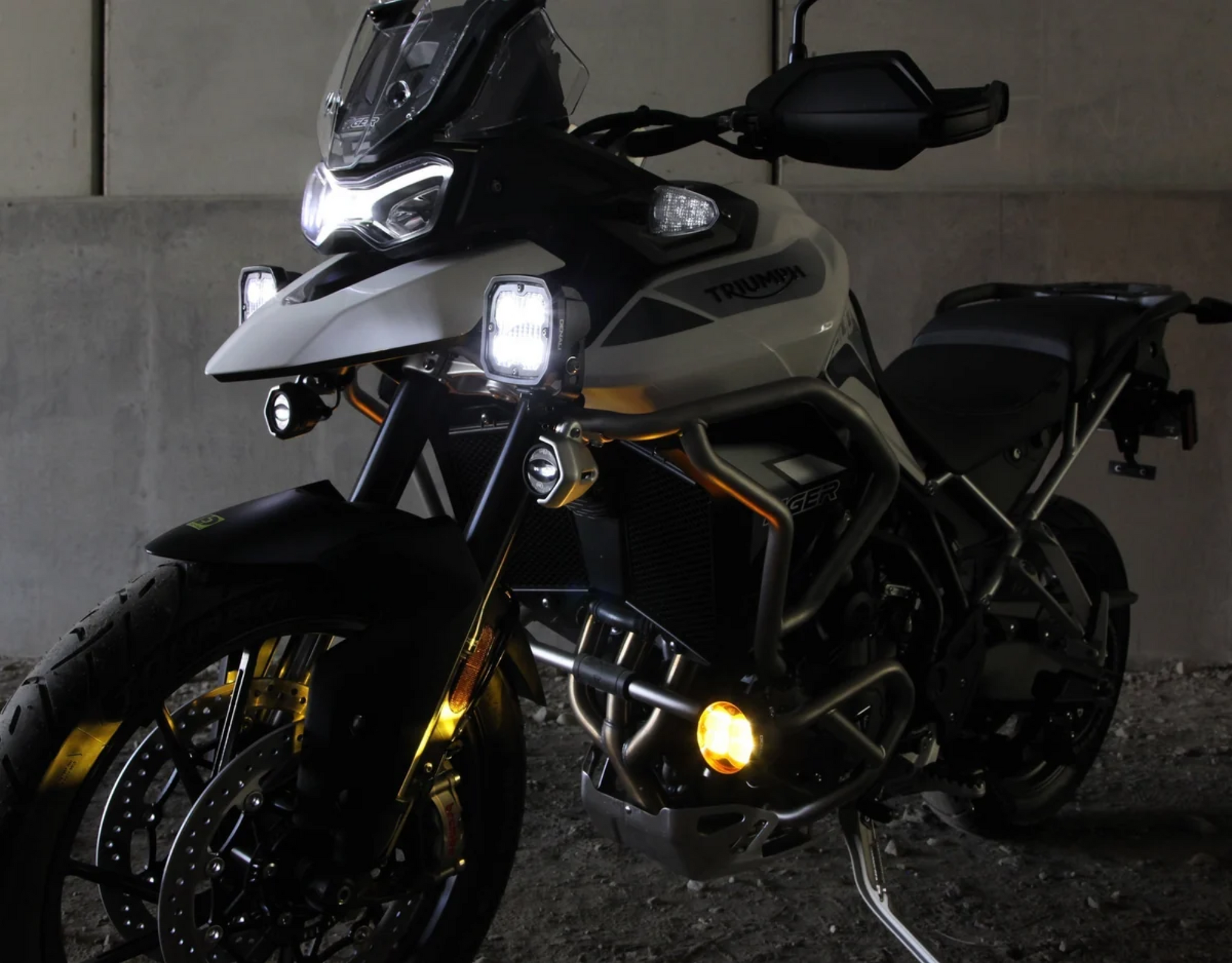

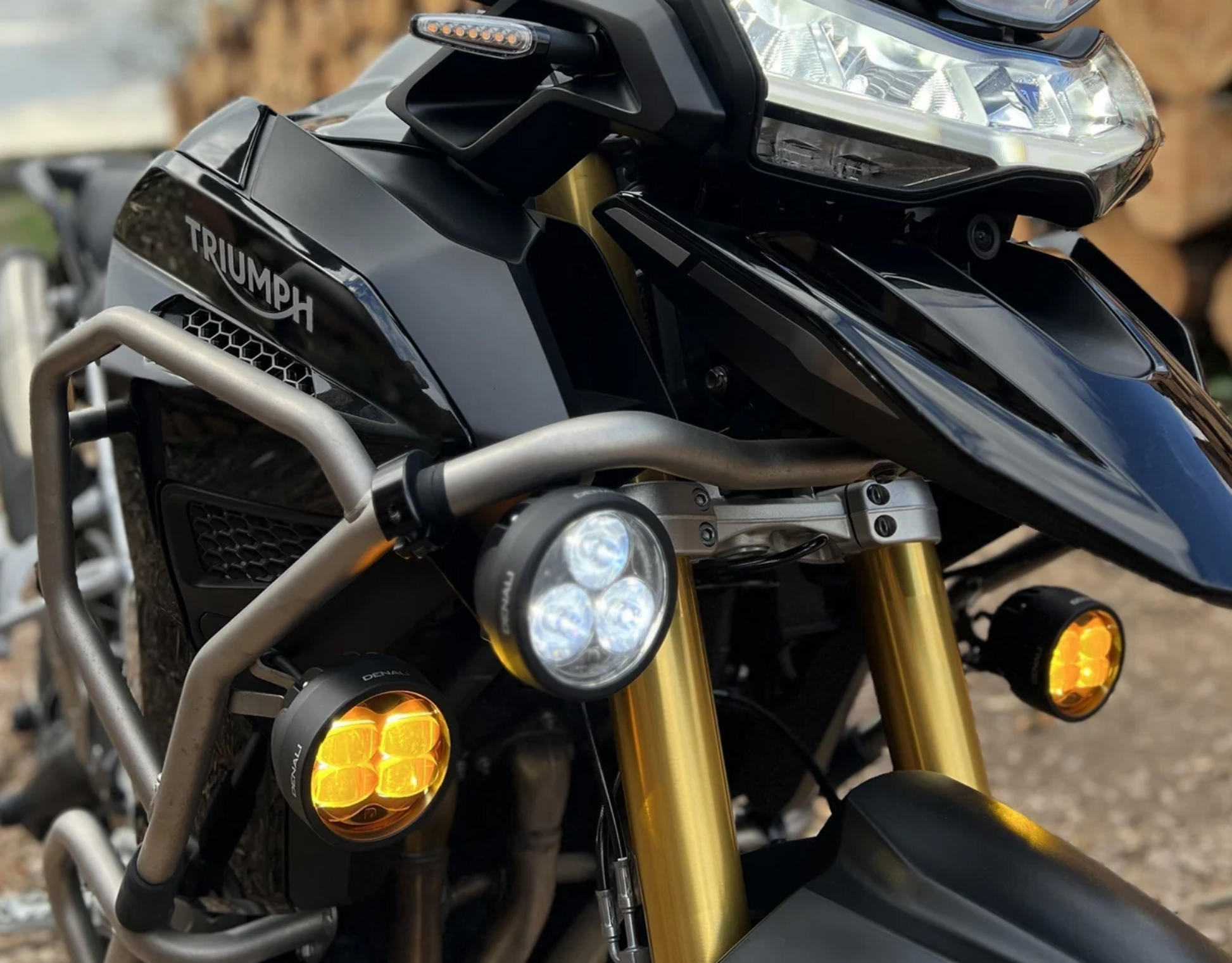

The four CANsmart circuits are preprogrammed to connect and independently control two sets of DENALI 2.0 lights, a SoundBomb horn, and a B6 auxiliary brake light. Each circuit can also be configured for different accessory functions through the CANsmart software.

Features

• High/Low Sync: Set auxiliary lights to switch between programmable high and low settings using the factory high beam switch.

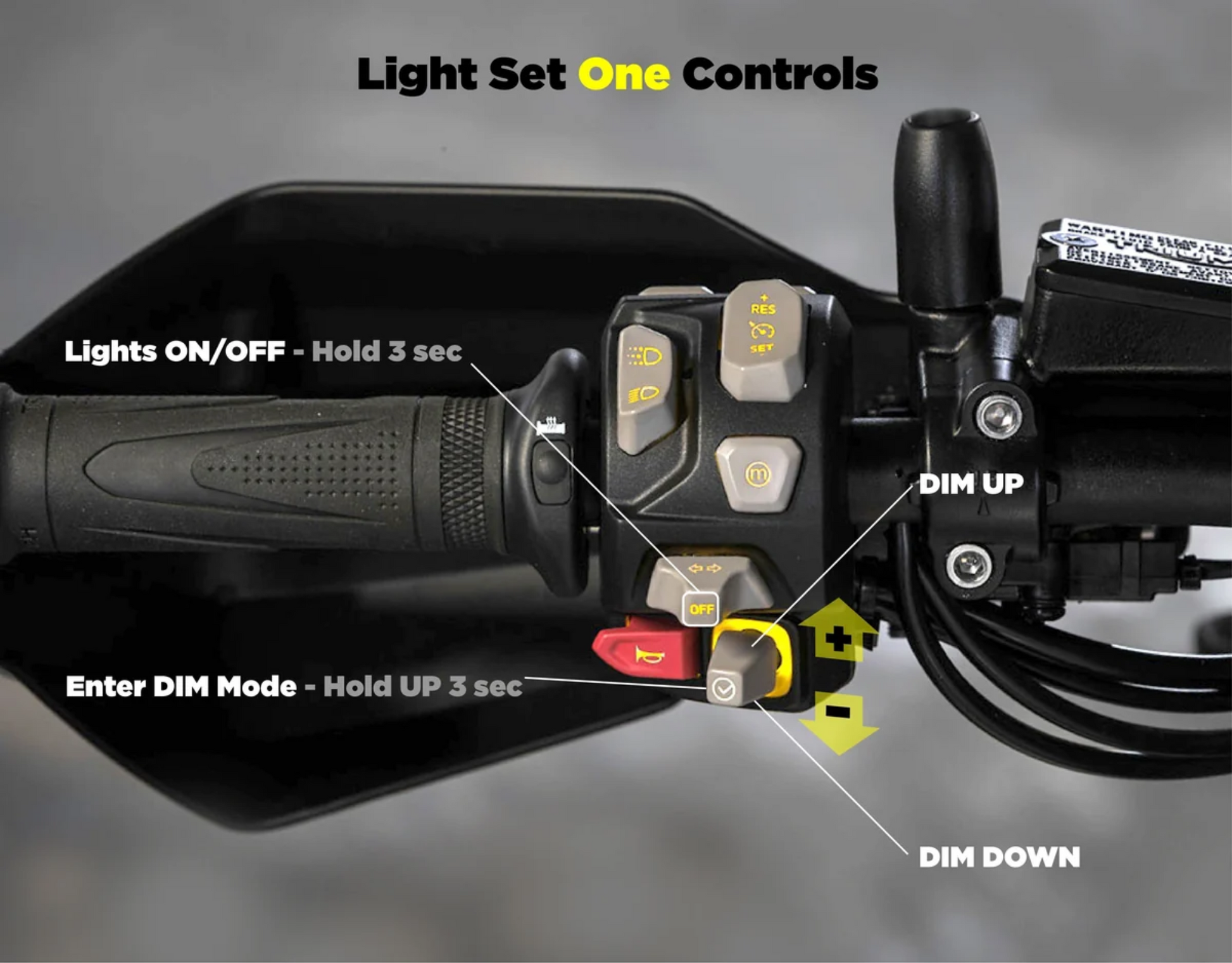

• ON/OFF and Dim: Independently control two sets of auxiliary lights and adjust their intensity for day and night riding using the original vehicle switches.
• Modulate Lights: Configure auxiliary lights to modulate for increased visibility to other motorists.
• Flash to Pass: Pulse the high beam switch three times to make the auxiliary lights strobe three times quickly.
• Cancel With Turn Signal: Automatically cancel the corresponding auxiliary light when the turn signal is activated, helping prevent the auxiliary light from overpowering the factory signal.
• Inverse Flashing With Hazards: Flash the auxiliary lights inversely with the hazard lights to increase visibility during roadside emergencies.
• Plug & Play Horn Installation: Easily connect high-power aftermarket horns such as the DENALI SoundBomb without adding an additional harness or relay.
• Strobe with Horn: Automatically strobe auxiliary lights when the horn is activated. This feature works with either the factory horn or a SoundBomb horn.
• Deceleration Activated Smart Brake Technology: Uses real-time vehicle speed information to activate the auxiliary brake light during deceleration before the brake is applied. Sensitivity and minimum activation speed can be adjusted.

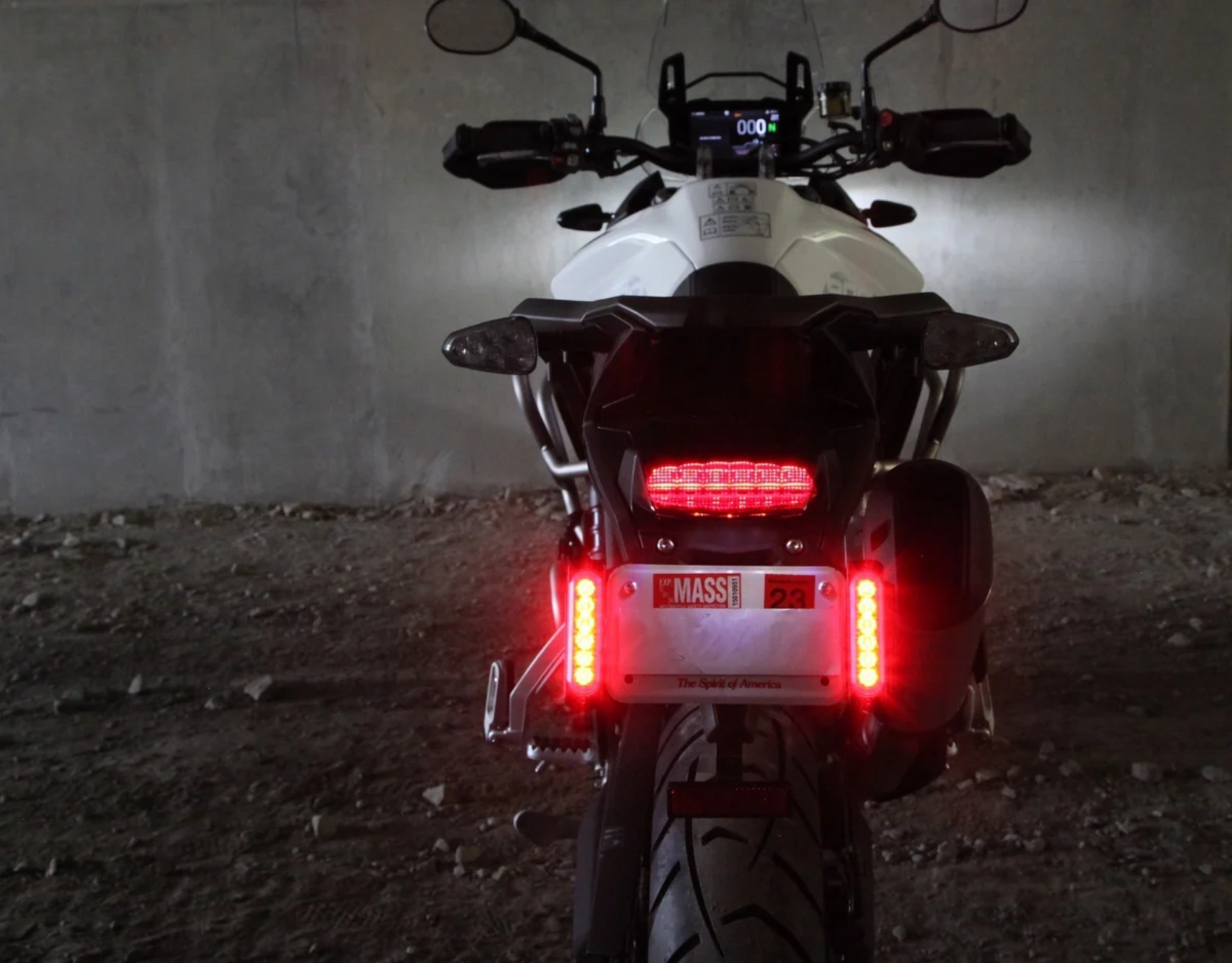

• Flash Pattern Braking: Choose from four brake-light flash patterns, including patterns that flash under hard braking, continuously flash while braking, or flash four times rapidly before remaining steady.

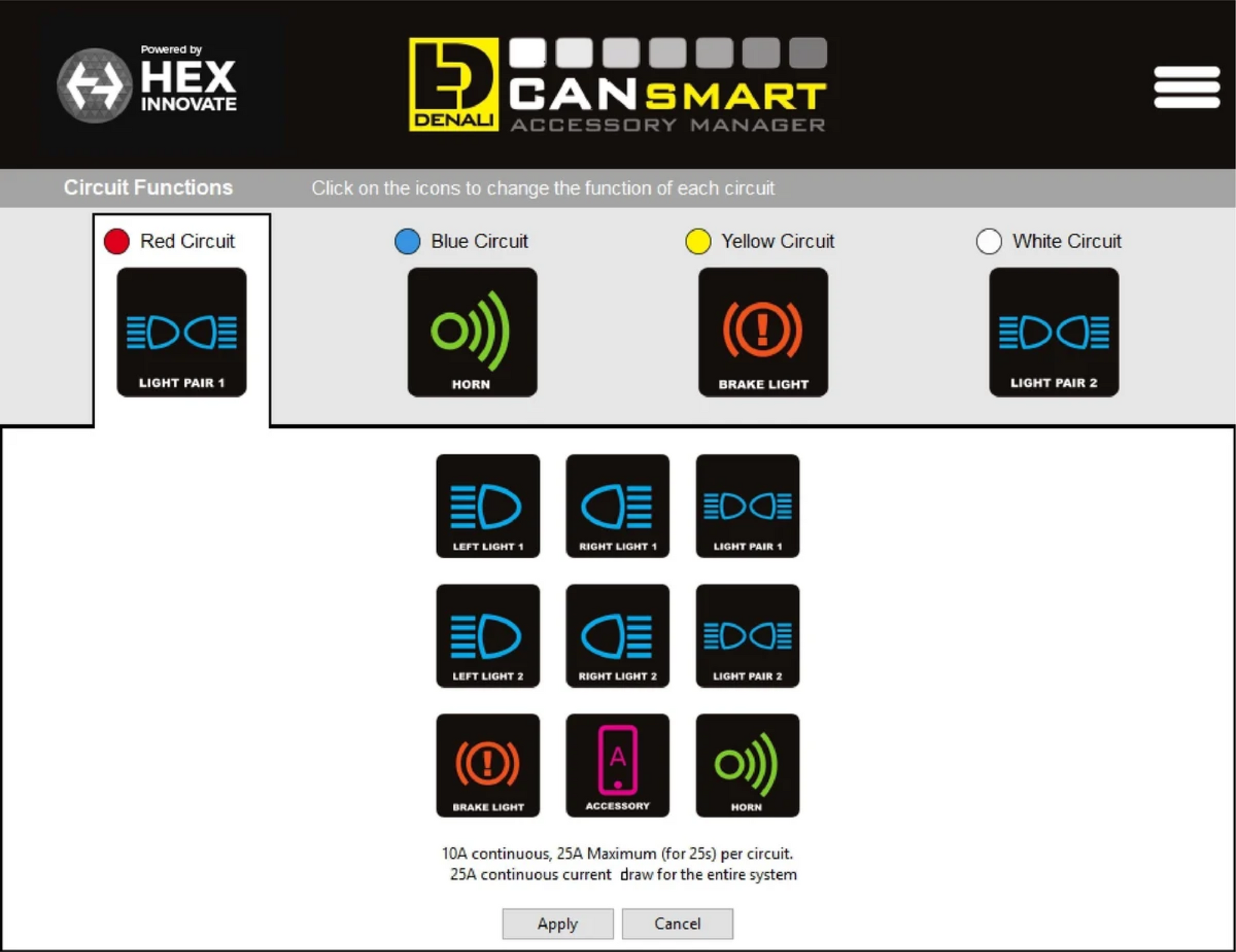

• Circuit Function Selector: Configure any of the four circuits for the desired accessory function through the CANsmart software.
• Switched Power Source: Provides clean switched 12V power for accessories that turn on and off with the motorcycle ignition.
• Delay Time Out: Keep accessories powered for up to 30 seconds after the motorcycle is switched off.
• On Board Power: The accessory circuit can be used to power devices such as GPS units, phones, heated gear, or other electronic accessories.

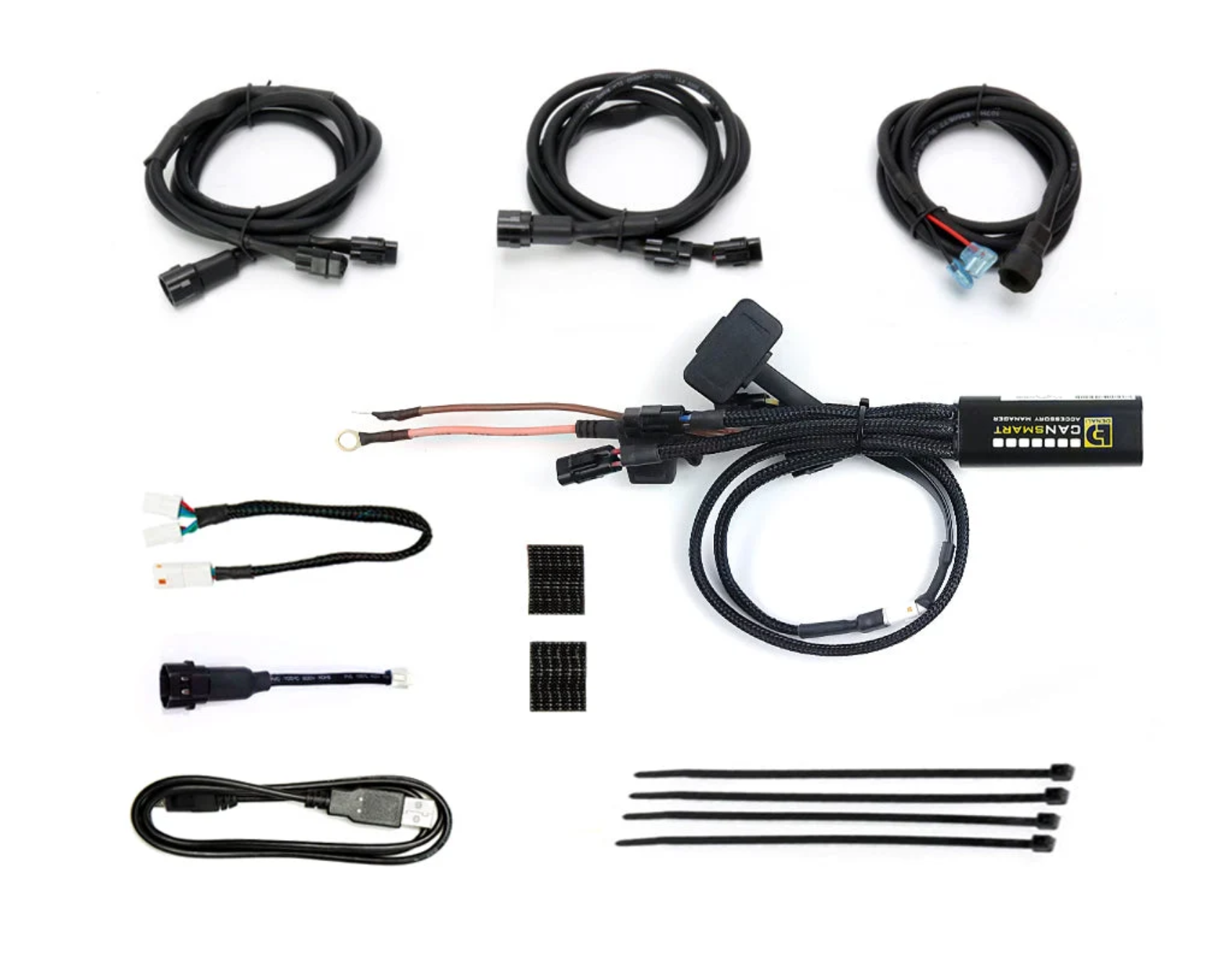

What's In The Box?

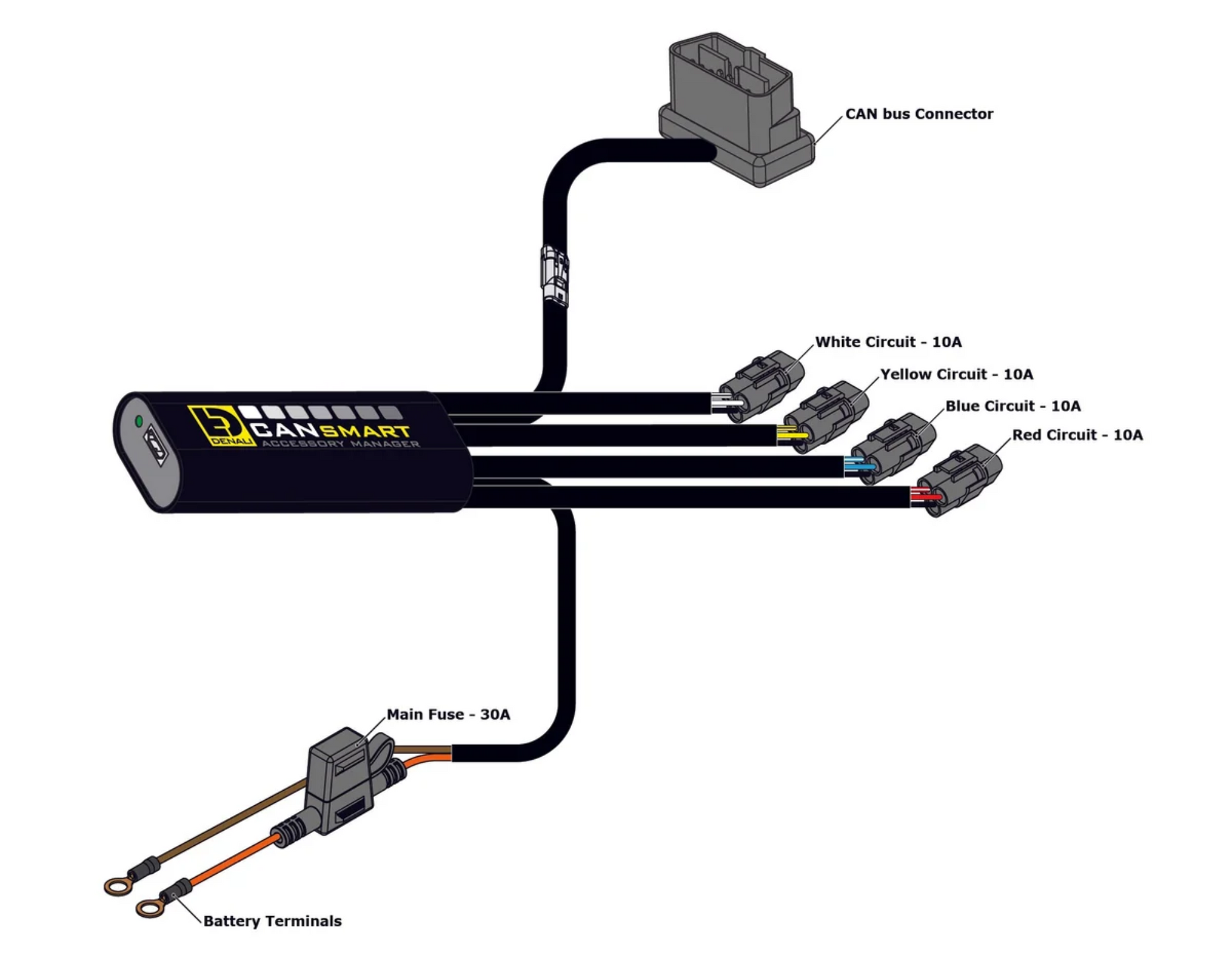

• CANsmart Controller
• 2 x 5.5 ft Light Extension Cables
• 5 ft SoundBomb Horn Extension Cable
• B6 Brake Light Wiring Adapter
• CAN bus Connection Splitter Cable
• Zip-ties
• Adhesive Hook-and-Loop Fastener
• Micro USB Programming Cable

Vehicle Fitment

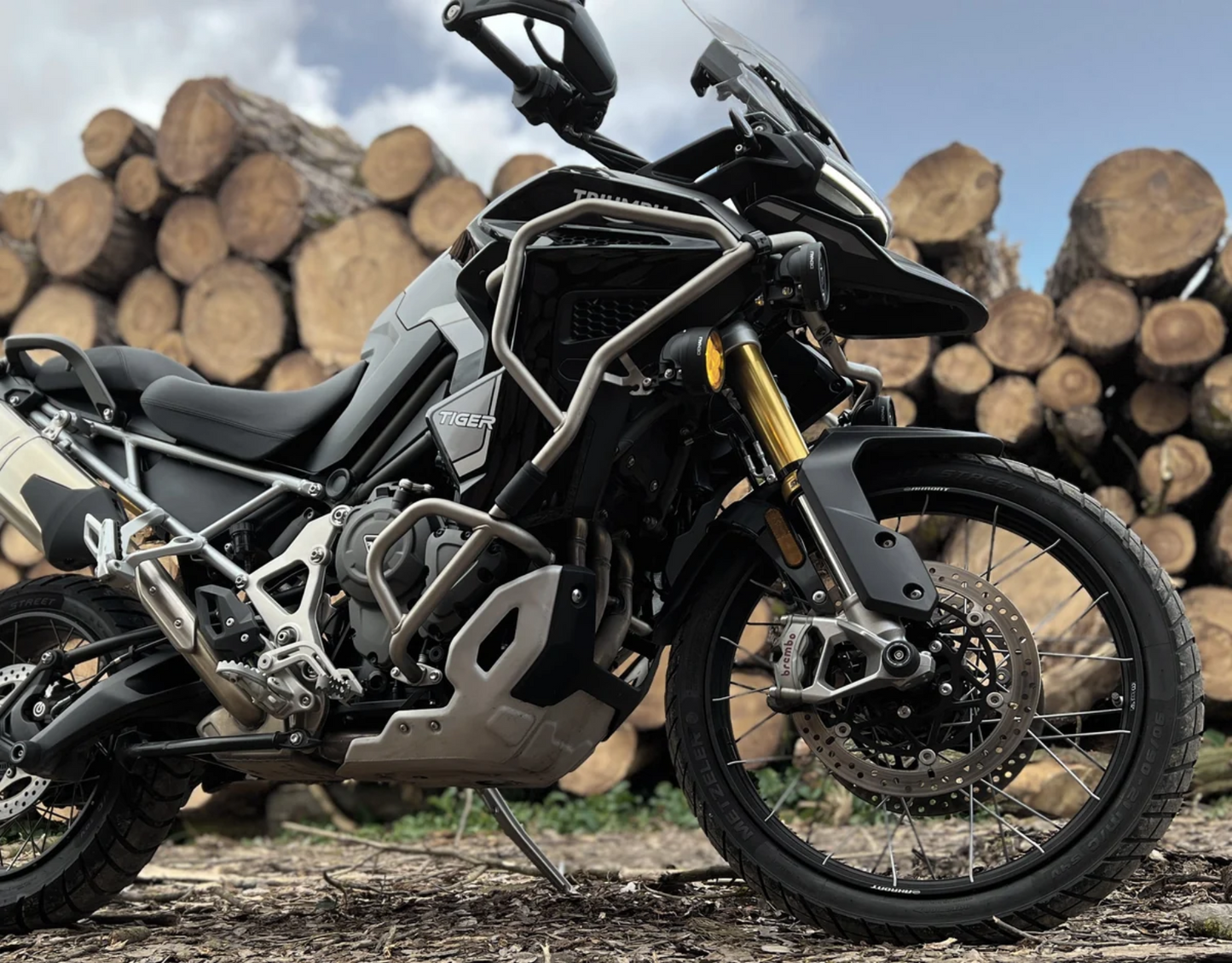

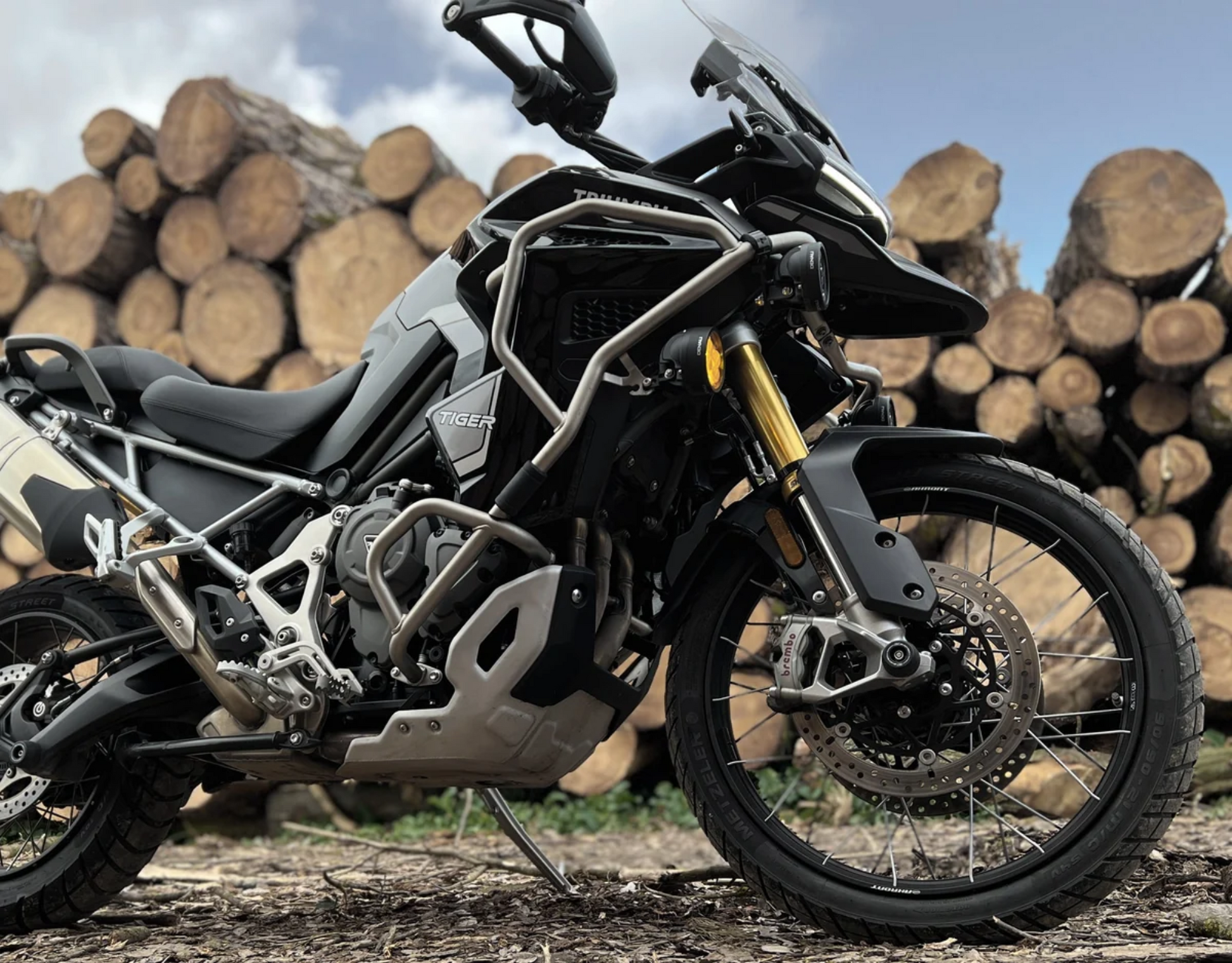

• Triumph Tiger 1200 GT (2022-2023)
• Triumph Tiger 1200 GT Pro (2022-2023)
• Triumph Tiger 1200 GT Explorer (2022-2023)
• Triumph Tiger 900 GT (2020-2023)
• Triumph Tiger 900 GT LOW (2020-2023)
• Triumph Tiger 900 GT Pro (2020-2023)
• Triumph Tiger 900 Rally (2020-2023)
• Triumph Tiger 900 Rally Pro (2020-2023)

Tiger 900 Limitations

• No Day/Night brightness differentiation for the Aux1 and Aux2 light circuits, and consequently no daytime modulation.
• Brake light function requires the KILL switch to be in the RUN position.

Product Specifications

SKU: DNL.WHS.24600

UPC: 810005873970

Weight: 1.27 lb

Product Type: CANbus Accessory Controller

Installation Instructions

Refer to the DENALI CANsmart Controller Gen II instruction manual for complete installation information and configuration details.
