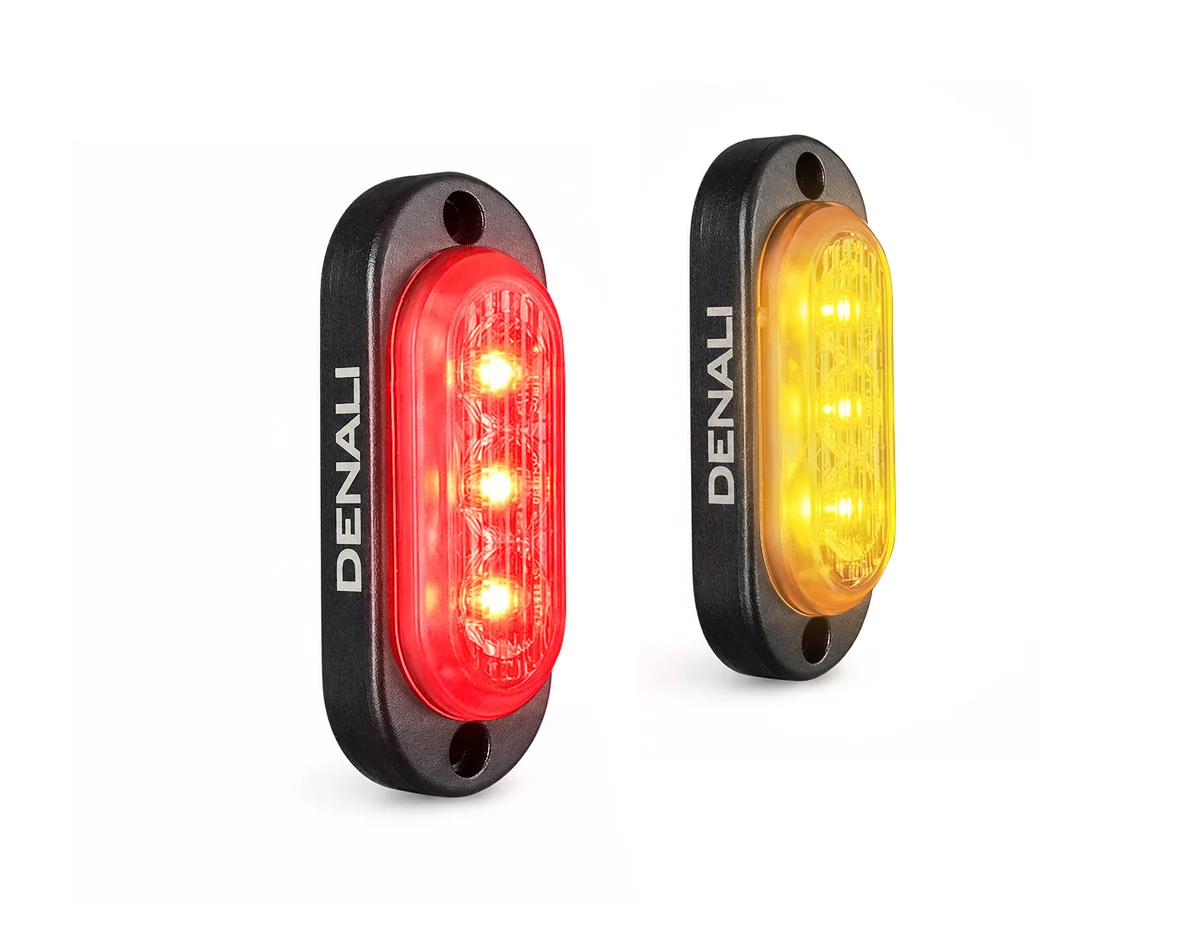

The DENALI T3-S Smart Signal Pods are an advanced rear visibility lighting solution designed to improve motorcycle visibility with intelligent control, dual-color switchback functionality, and seamless integration with DENALI CANsmart and ezCAN controllers. These compact LED pods provide bright red running and brake illumination that switches to amber and flashes in sync with the motorcycle's turn signals.

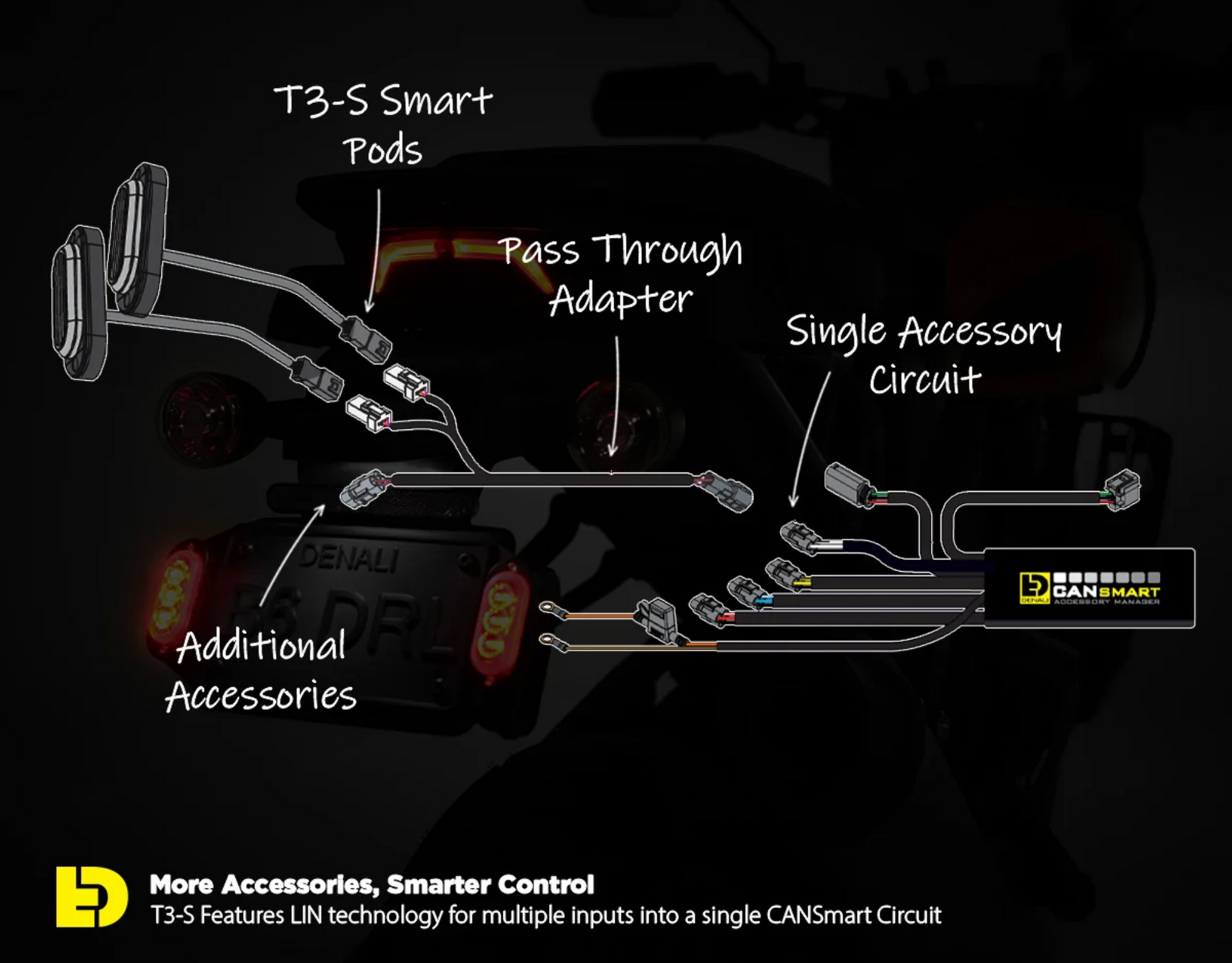

Featuring LIN-smart electronics, the T3-S system allows multiple smart lights and configurable lighting functions to be managed through a single CANsmart Circuit. Riders can customize brake flash patterns, deceleration-activated braking, and independent run, brake, and turn signal intensity for enhanced visibility and a modern appearance.

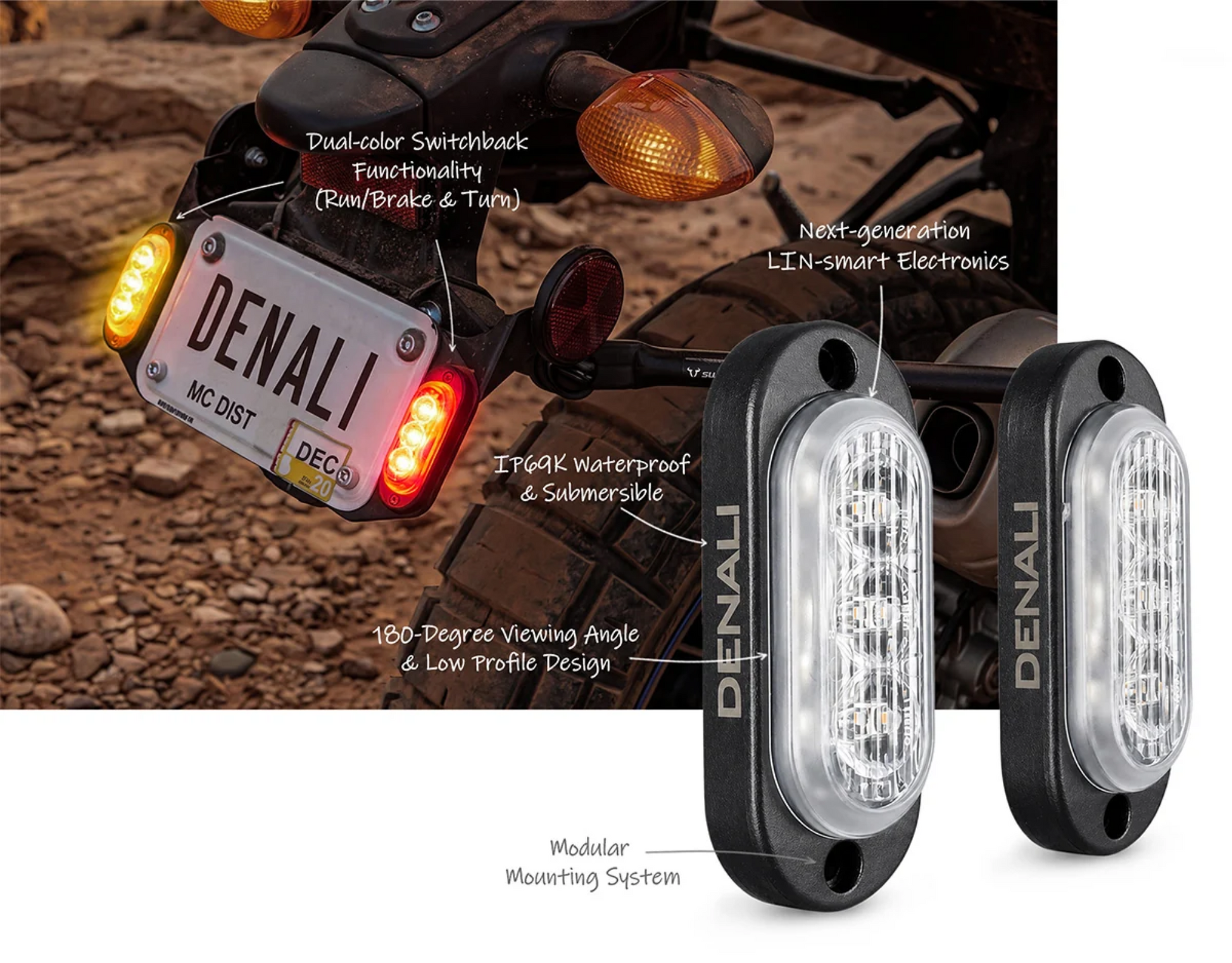

Features

• Next-generation LIN-smart electronics
• Dual-color switchback functionality with red run/brake and amber turn signals
• 180-degree viewing angle with a low-profile design
• Single-channel plug-and-play connection to DENALI CANsmart
• Intelligent brake and deceleration signaling
• Customizable flash patterns and dimming
• Modular mounting system supporting flush, surface, and license plate mounting
• IP69 waterproof and submersible construction
• ECE R6 and R7 certified turn signal and run/brake functions
• CANsmart wiring adapter included

Product Specifications

Product Type: Rear Turn Signal / Brake Light Pods

Variant: Default Title

SKU: DNL.T3S.10300

Input Voltage: 12V DC

Total Power Draw: 0.06A Run, 0.25A Brake, 0.55A Turn Signal

Size per Pod: 2.9" x 1.13" x 0.5"

Wire Length: 30"

Weight per Pod: 0.08 lbs

Product Weight: 0.6 lb

Raw Lumens: 870

Waterproof Rating: IP69 Submersible & High-Pressure Spray

Lighting Function

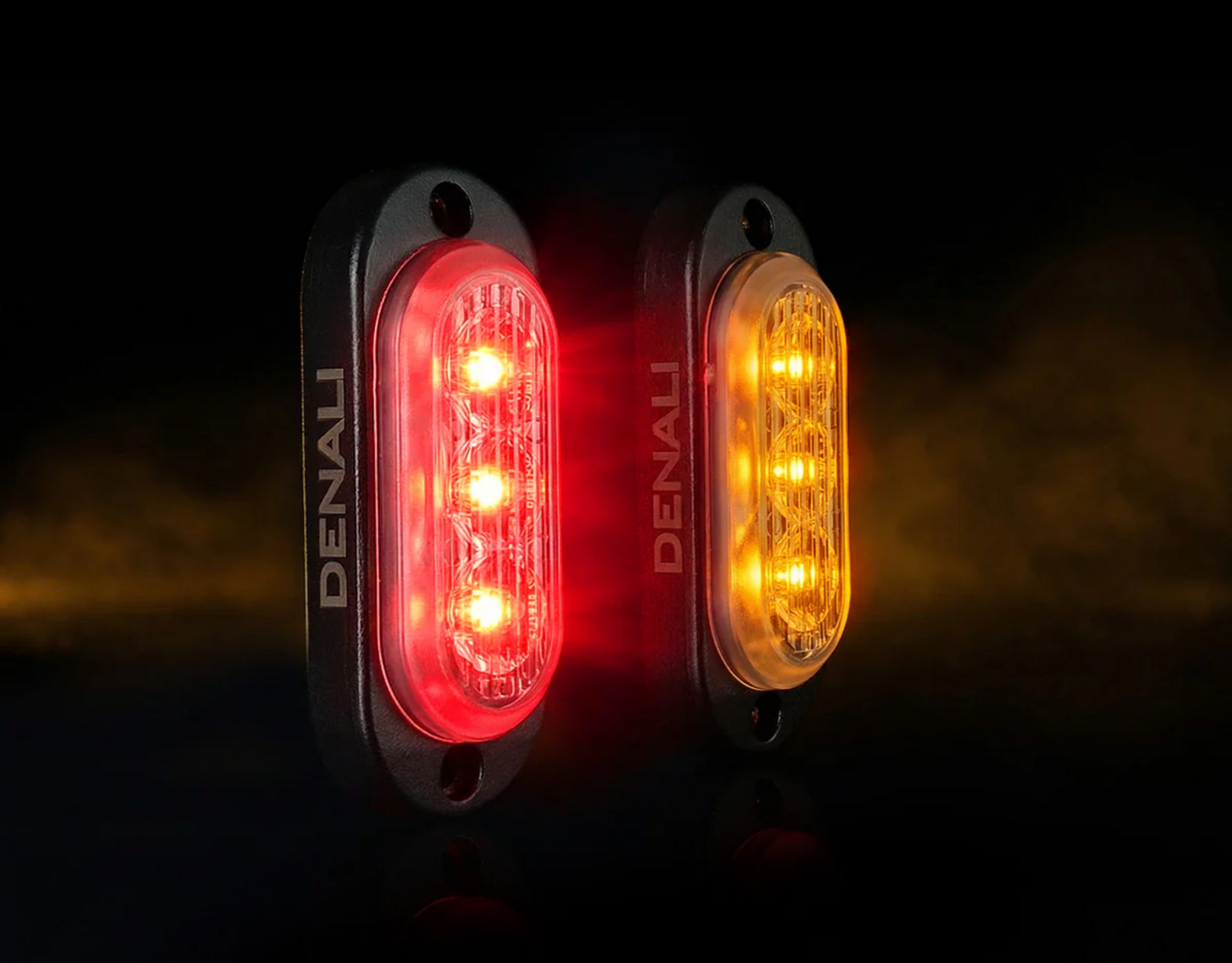

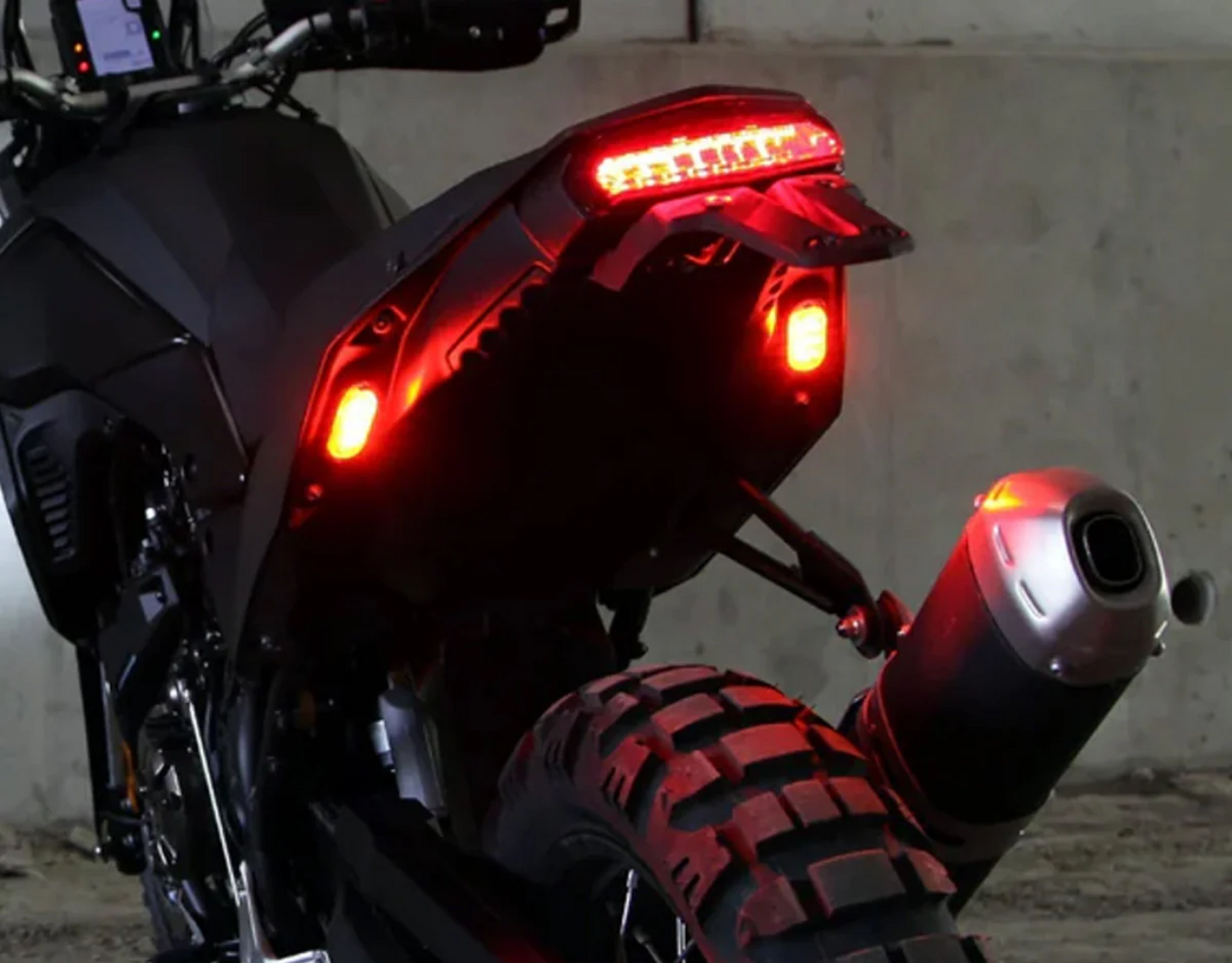

• Red light for running and brake functions
• Amber light for turn signal indication

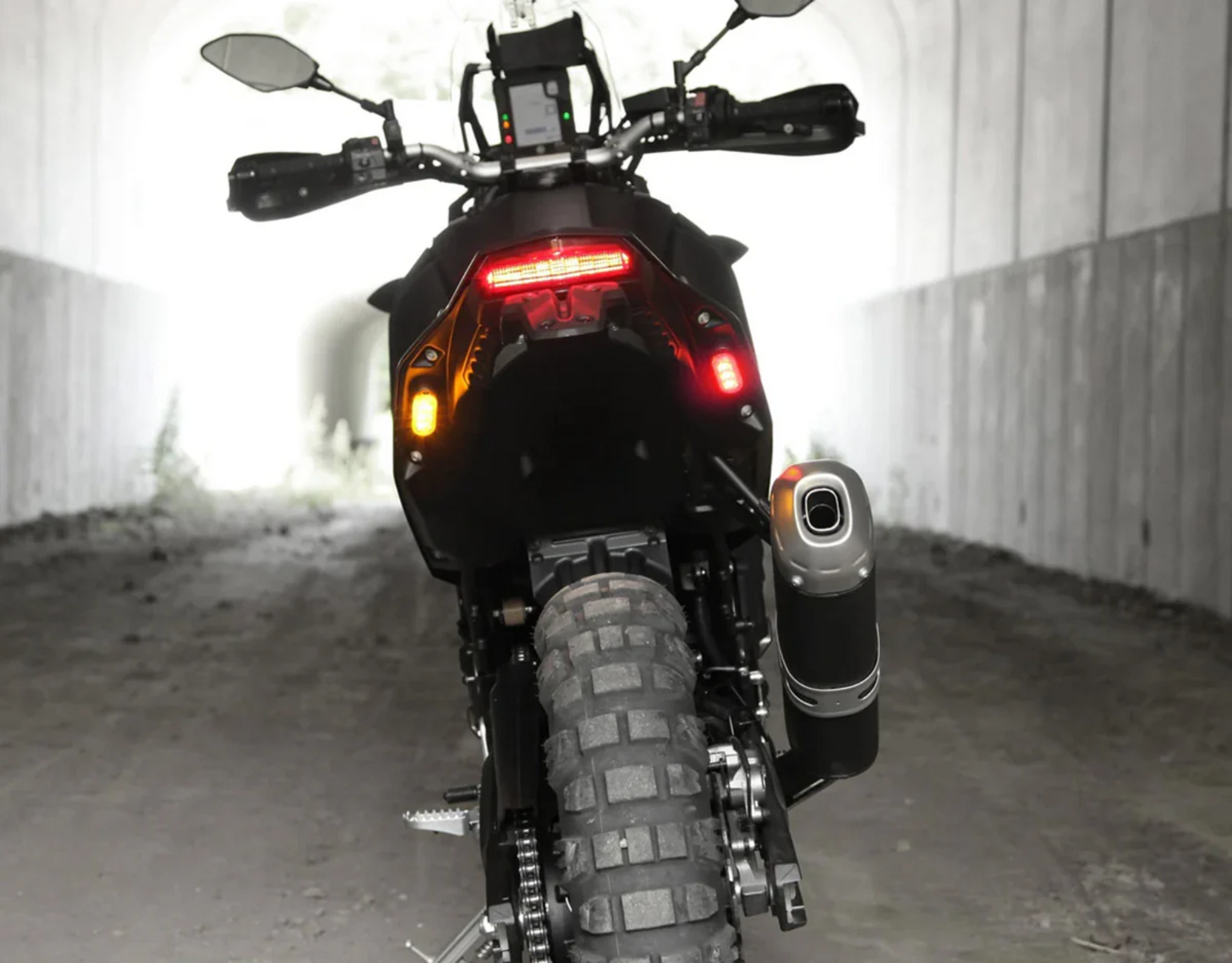

• Switchback operation synchronizes the amber turn signal with the factory indicators
• Brake flash patterns and deceleration-activated braking can be configured with compatible DENALI controllers
• Independent dimming of run, brake, and turn signal intensity is supported

Compatibility

• Designed for use with DENALI CANsmart and compatible ezCAN controllers
• Certified Hex ezBUS Ready
• CANsmart wiring adapter included for plug-and-play connection
• For universal applications without CANsmart controllers, DENALI standard T3 pods are recommended for direct connection to vehicle run, brake, and turn circuits

Mounting

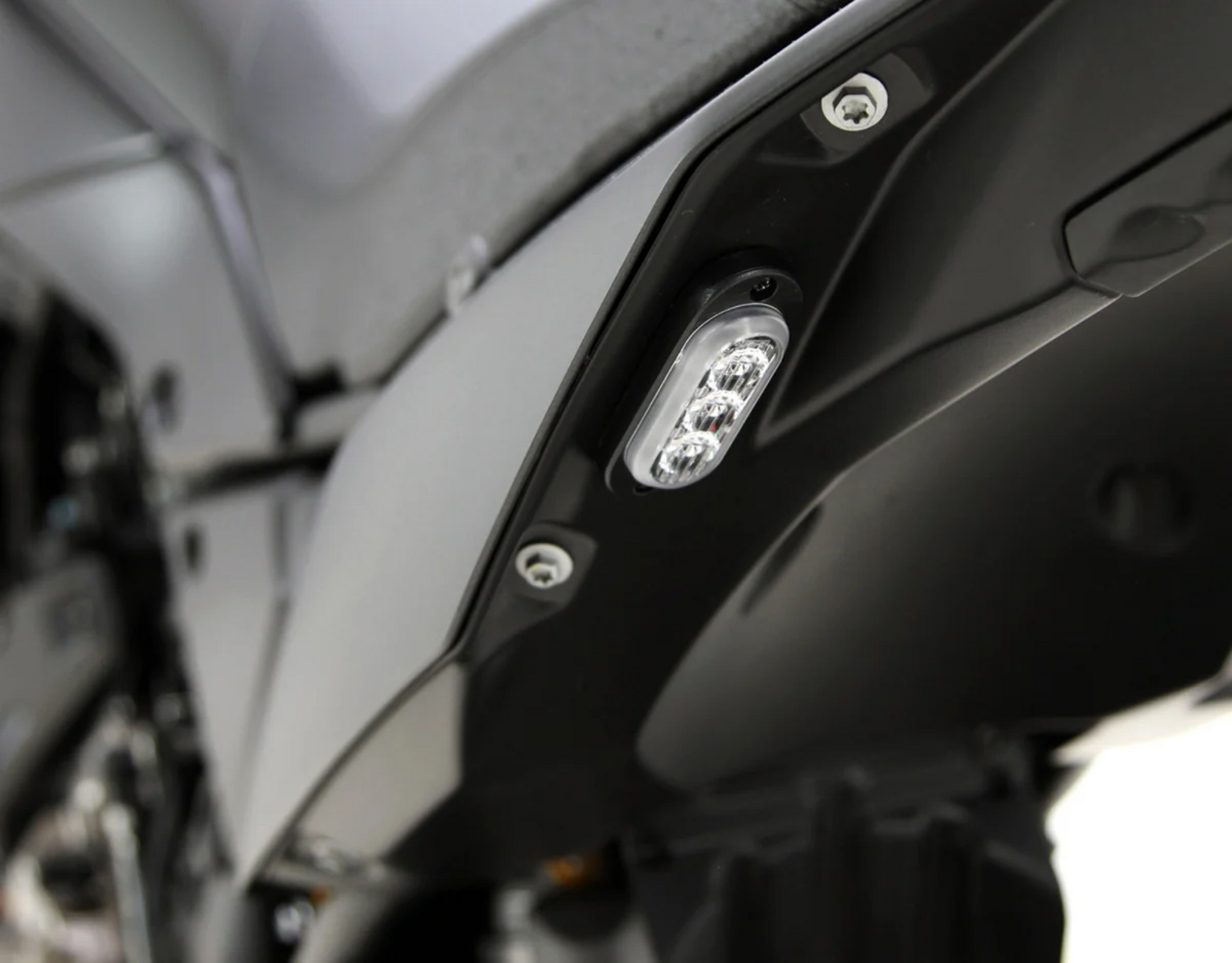

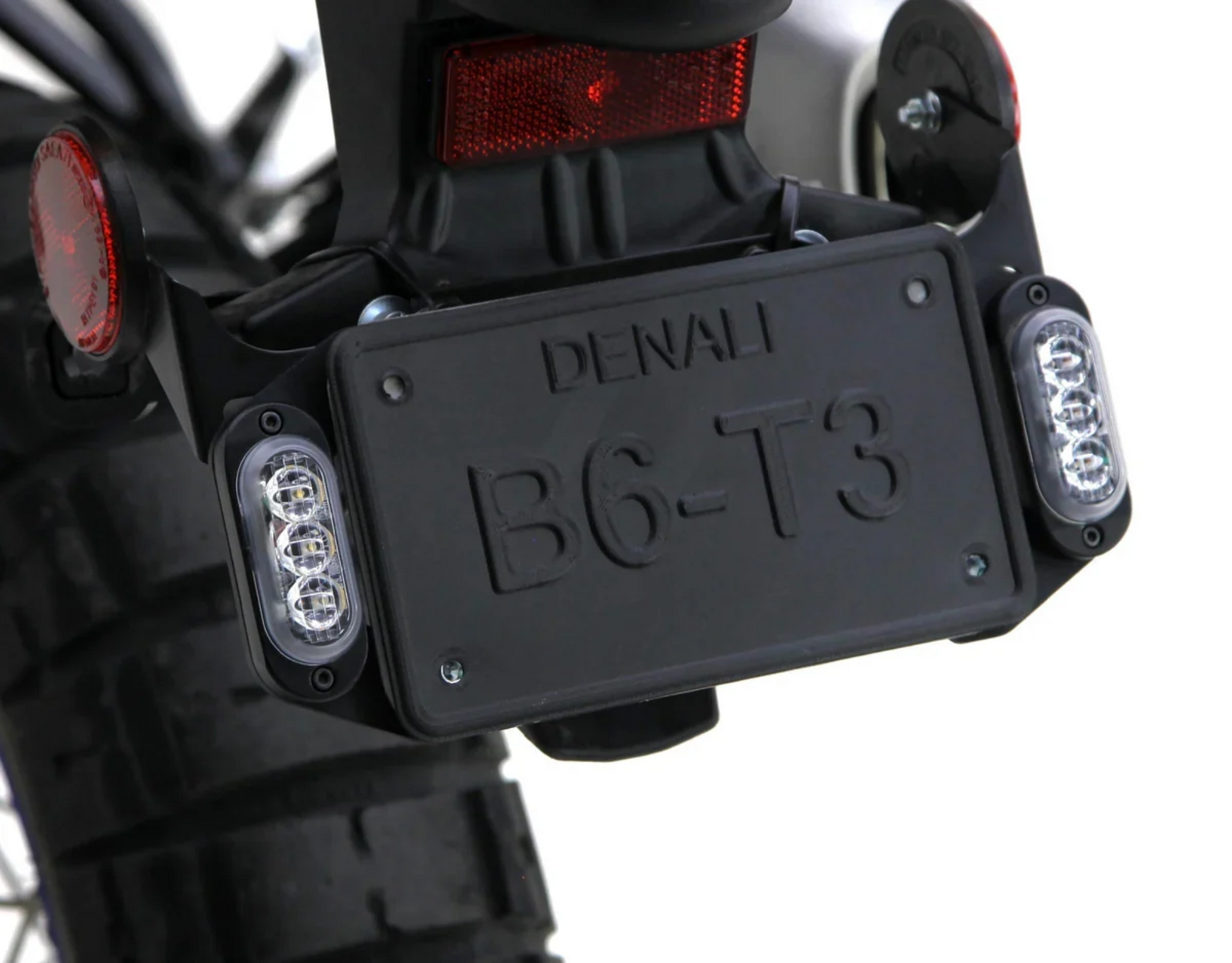

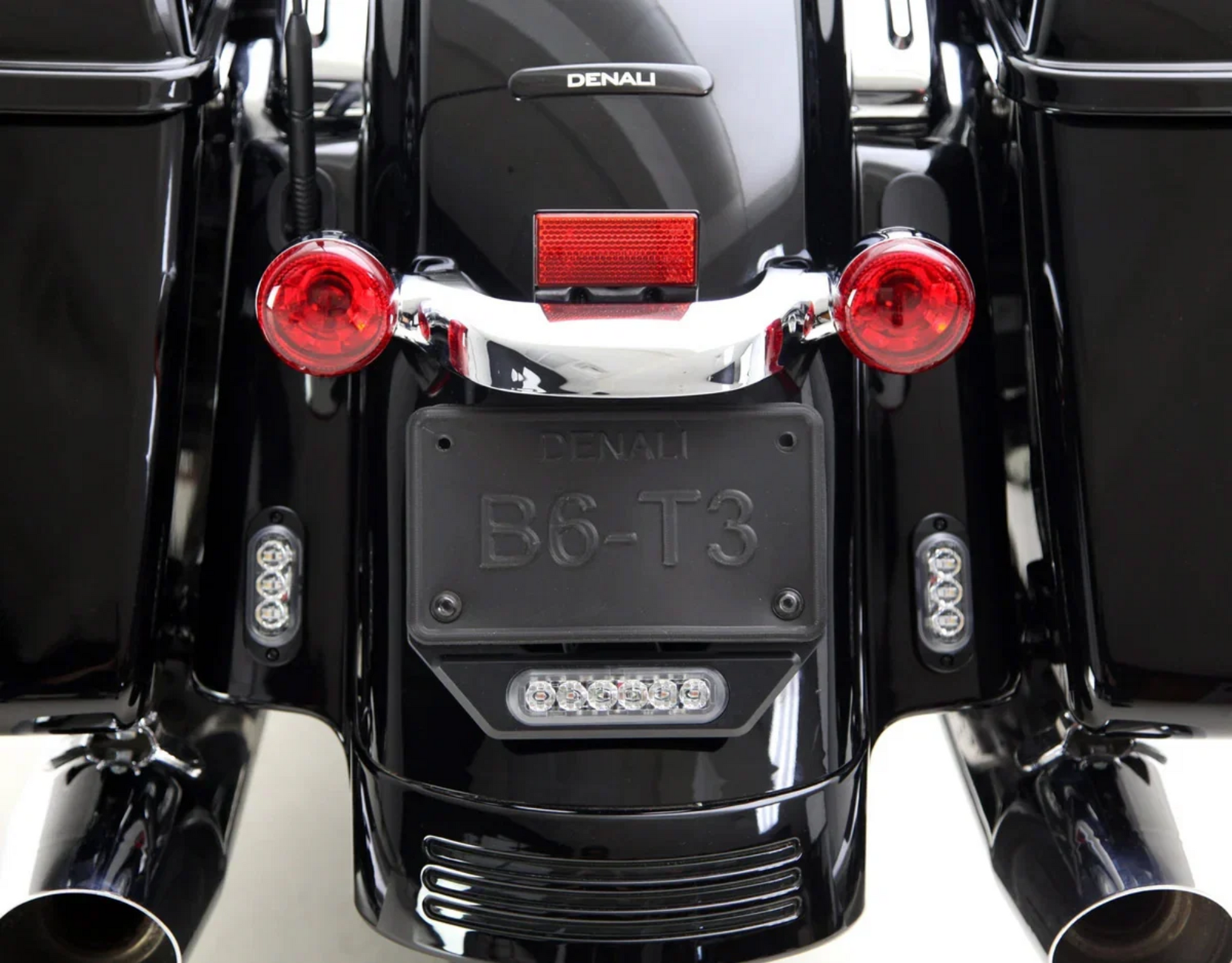

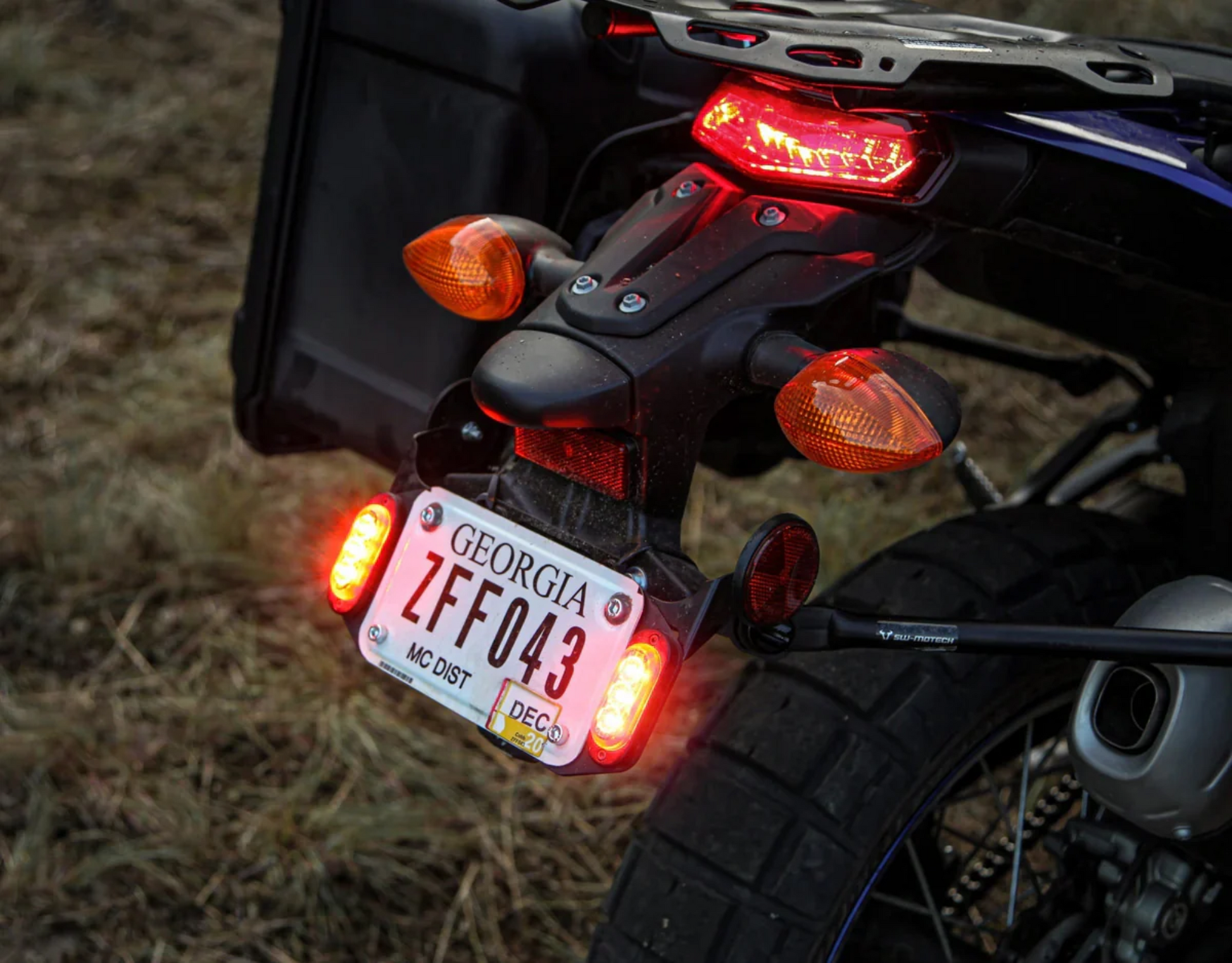

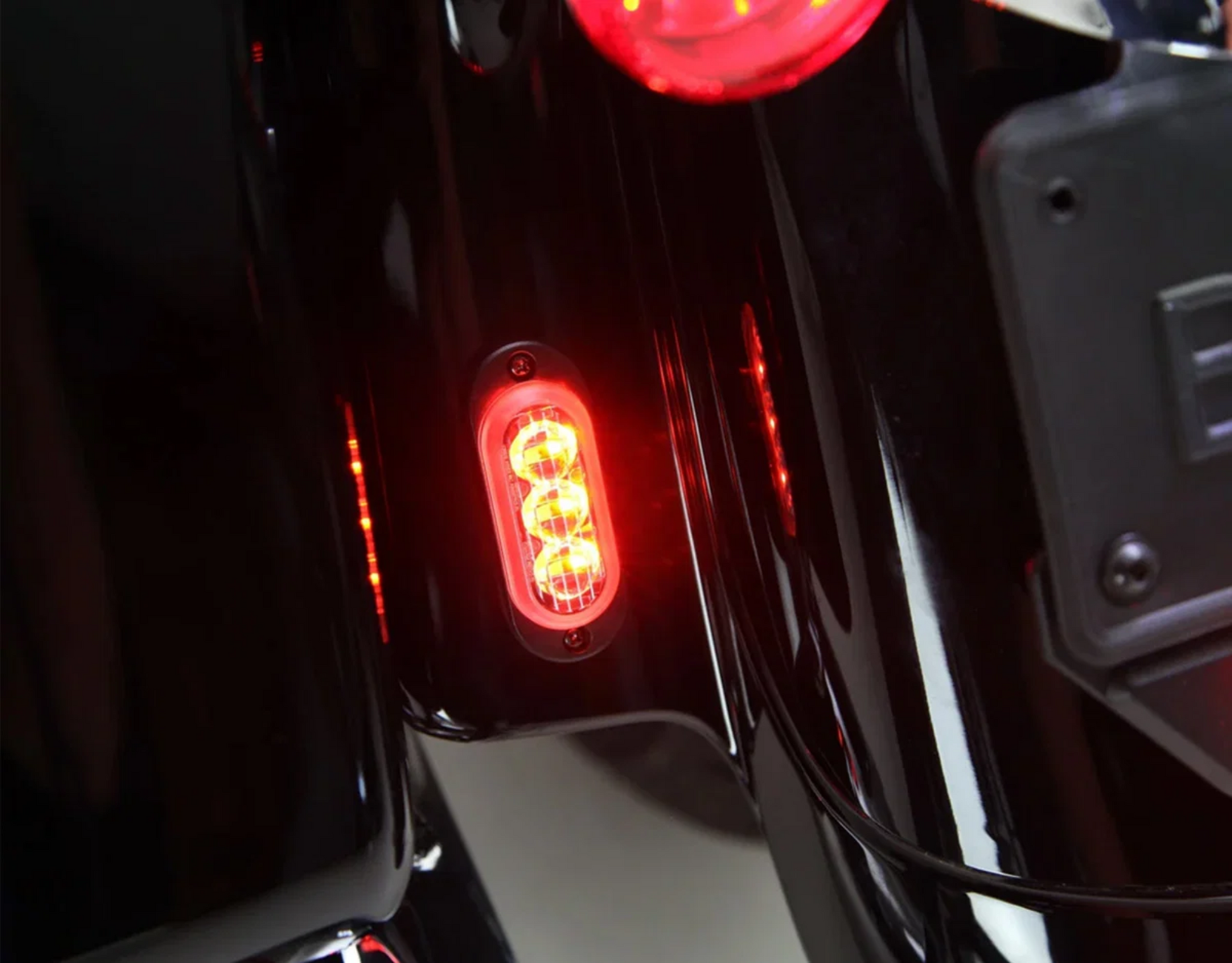

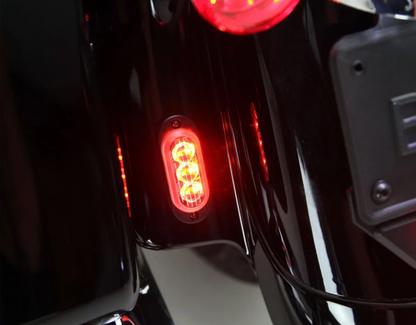

The modular pod design supports multiple installation configurations, including recess flush mounting, surface mounting, and license plate mounting.

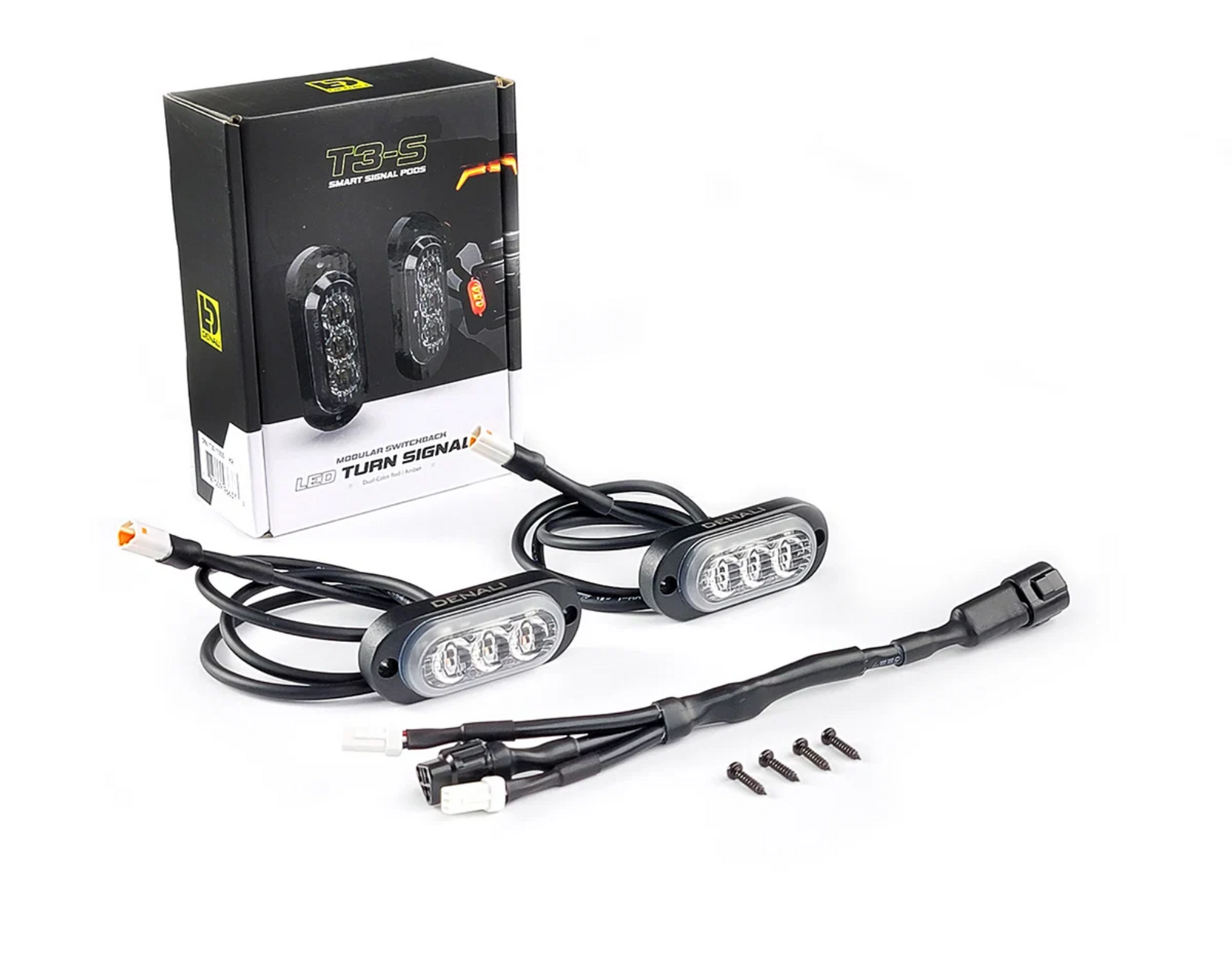

What’s Included

• 2 x T3-S Smart Rear Signal Pods
• 1 x Plug-and-play CANsmart Wiring Adapter
• Mounting Hardware
• Installation Instructions

Installation

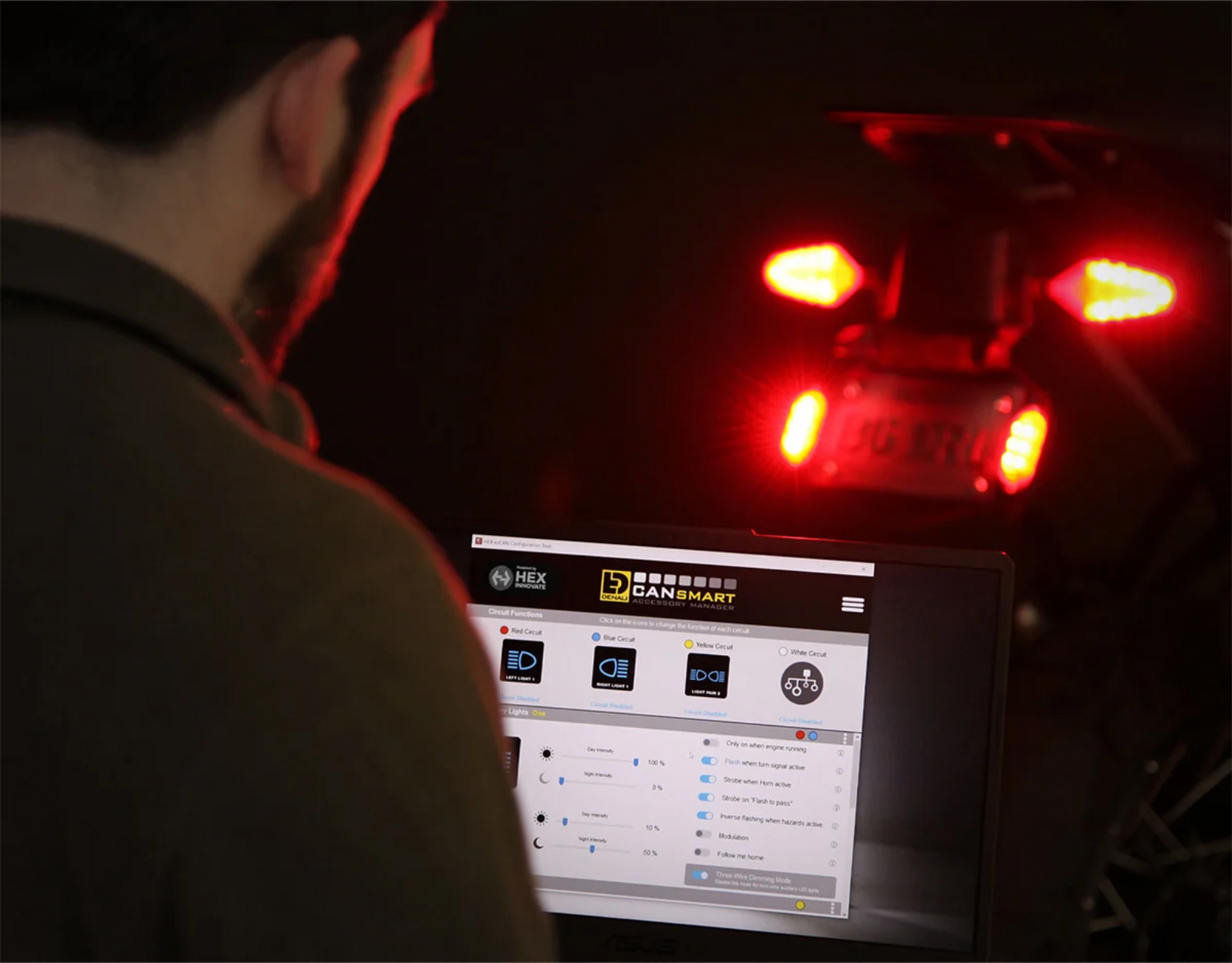

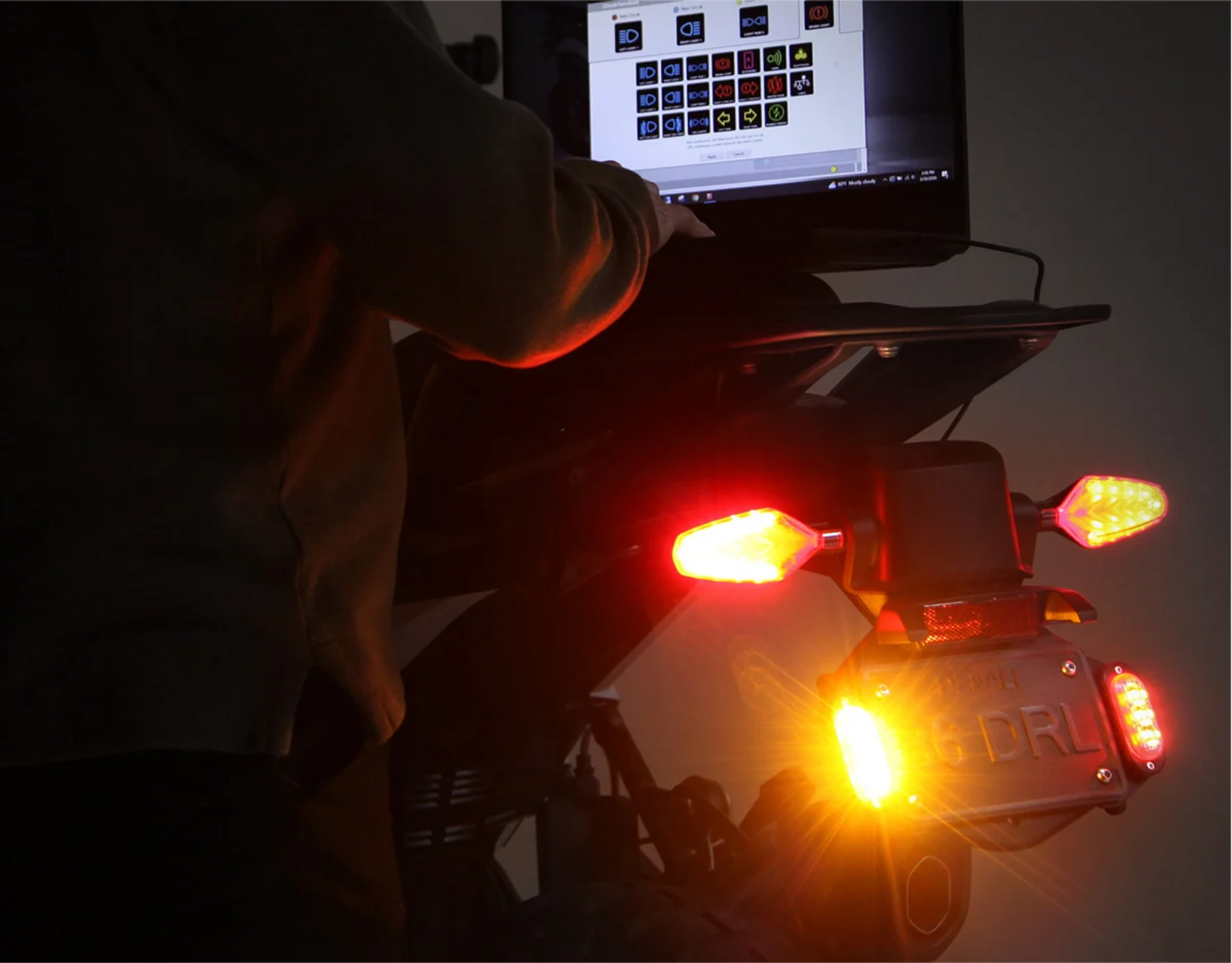

Install the T3-S Smart Signal Pods according to the supplied installation instructions. When used with a compatible DENALI CANsmart or ezCAN controller, the smart lighting functions can be configured through the controller.

Certification & Important Information

The red circuit is ECE R7 certified as a run/brake light, while the amber circuit is ECE R6 certified as a turn signal. The lamps are brighter than US DOT regulations but do not meet FMVSS 108 due to their compact footprint, which is designed to maximize light intensity in a small package.

Instruction Manual

• PDF Instruction Manual (English)

The Future of Motorcycle Visibility Is Smart

The DENALI T3-S Smart Signal Pods combine intelligent safety features, OEM-level integration, dual-color visibility, and durable construction in a compact modular lighting system. They are designed to help riders be more visible while providing customizable lighting functionality and a modern appearance.
