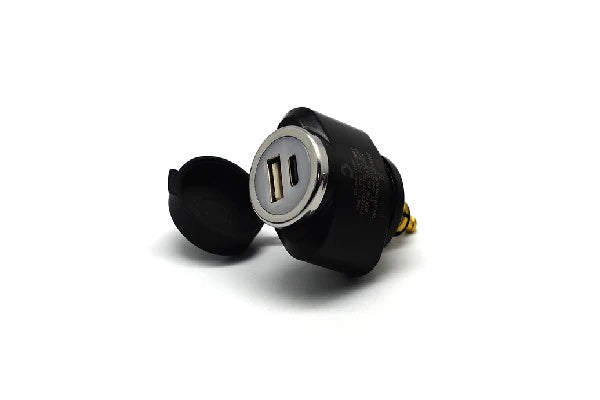

Cliff Top DIN (HELLA) to 36W PD USB-C + QC 3.0 (MINI) - TY-A2002

Cliff Top DIN Hella to 36W PD USB-C + QC 3.0 MINI Motorcycle USB Charger – TY-A2002

The Cliff Top TY-A2002 DIN Hella to 36W USB Charger is a compact and powerful motorcycle charging adapter designed for vehicles equipped with a compatible DIN / Hella power socket. Featuring an 18W USB-C Power Delivery (PD) port and an 18W USB-A Quick Charge 3.0 port, this MINI motorcycle USB charger provides convenient fast charging for compatible devices while riding.

With a 36W maximum combined output and a 12V–24V input range, the TY-A2002 allows you to charge two compatible USB devices from a single DIN/Hella motorcycle power socket. Its compact MINI design makes it an ideal choice for riders who want powerful charging without a bulky adapter.

Key Features

• 36W Dual USB Motorcycle Charger: Provides up to 36W of combined charging output.
• 18W USB-C Power Delivery: Fast-charging USB-C PD port for compatible smartphones and USB-C devices.
• 18W USB-A Quick Charge 3.0: Supports QC 3.0 fast charging for compatible devices.
• Dual-Port Charging: Charge two compatible USB devices simultaneously from one motorcycle power socket.
• 12V–24V Input: Designed for compatible motorcycle and vehicle electrical systems.
• 36W / 6A Maximum Output: Provides a combined maximum output of up to 36W.
• MINI Compact Design: Small form factor helps minimise clutter around the motorcycle power socket.
• DIN / Hella Compatible: Designed for compatible continental-style DIN/Hella motorcycle power sockets.
• Android & iOS Compatible: Suitable for compatible Android and iOS smartphones and other USB-powered devices.
• Multiple Safety Protections: Intelligent circuitry helps protect connected devices against over-current, over-charging, and overheating.
• Multi-Standard Compliance: Designed with RoHS, CE, FCC, and USB-IF compliance as specified.

Compact MINI DIN Hella USB Charger

The Cliff Top TY-A2002 MINI motorcycle USB charger is designed for riders who want high-power USB charging in a compact package. Its MINI construction takes up less space around the motorcycle's DIN/Hella power socket while still providing two USB charging ports.

The compact design is particularly useful for motorcycles where space around the power outlet is limited or where a larger USB charger would be inconvenient.

36W Dual-Port Fast Charging

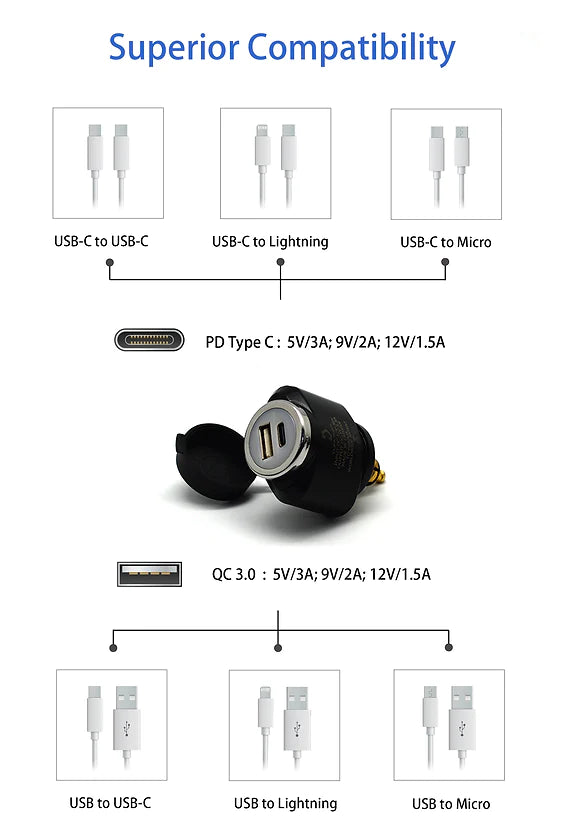

The TY-A2002 combines 18W USB-C Power Delivery and 18W Quick Charge 3.0 technology in one compact motorcycle charger. Both ports can be used at the same time to charge compatible devices, with a total maximum output of 36W / 6A.

Actual charging speed and power output depend on the connected device, charging protocol, cable and electrical requirements of the device.

18W USB-C PD Fast Charging

The integrated 18W USB-C Power Delivery port is designed for fast charging compatible USB-C devices. USB Power Delivery can provide faster charging than standard USB charging when the connected device supports the appropriate PD charging protocol.

The USB-C port can be used with compatible smartphones, navigation devices and other USB-C electronics.

18W USB-A Quick Charge 3.0

The 18W USB-A QC 3.0 port supports Quick Charge 3.0 technology for compatible devices. When paired with a compatible QC 3.0 device and suitable cable, it can provide faster charging than conventional USB charging.

Non-QC-compatible devices can also be connected to the USB-A port and will charge according to their supported charging requirements.

Ideal for Motorcycle Touring & Everyday Riding

The TY-A2002 is a practical charging solution for riders who need reliable access to USB power while travelling. It can be used to charge compatible smartphones, GPS navigation devices and other USB-powered electronics directly from a motorcycle's DIN/Hella power socket.

• Motorcycle smartphone charging
• USB-C PD fast charging
• Quick Charge 3.0 USB-A charging
• GPS and navigation device charging
• Dual-device charging
• Android smartphone charging
• Compatible iPhone and iOS device charging
• USB-powered motorcycle accessories

Designed for DIN / Hella Motorcycle Power Sockets

This DIN Hella USB charger is designed to connect directly to a compatible continental-style DIN / Hella power socket. It is suitable for compatible motorcycles and vehicles that use this type of auxiliary power outlet.

Before purchasing, verify that your motorcycle is equipped with a compatible DIN/Hella socket and that the vehicle's electrical system is within the specified 12V–24V input range.

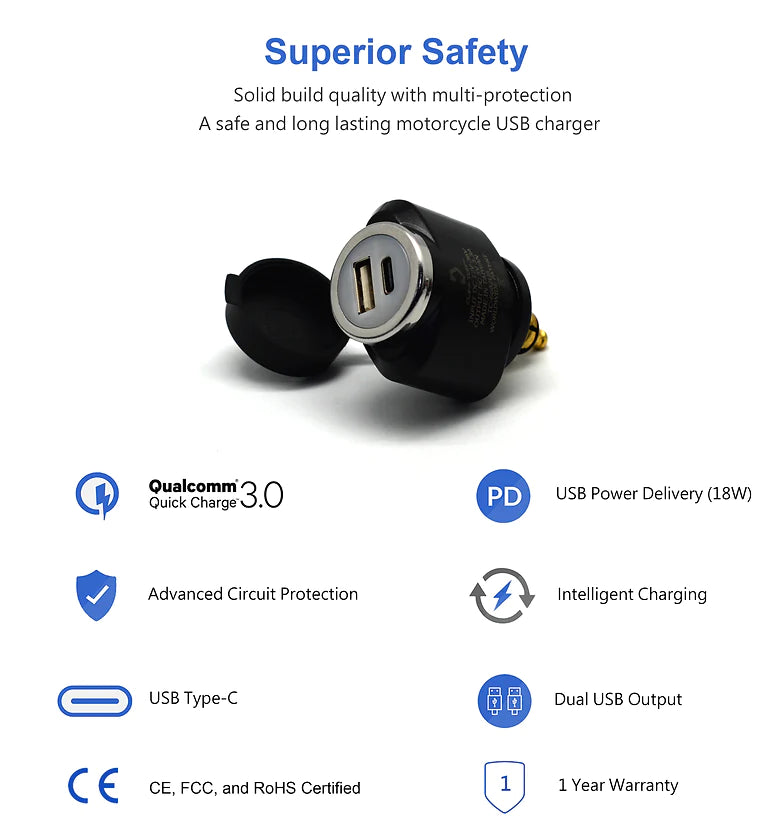

Intelligent Safety Protection

The TY-A2002 incorporates intelligent protection circuitry designed to help protect connected devices during charging. Protection features include safeguards against over-current, over-charging and over-heating.

The charger is specified as compliant with RoHS, CE, FCC and USB-IF requirements.

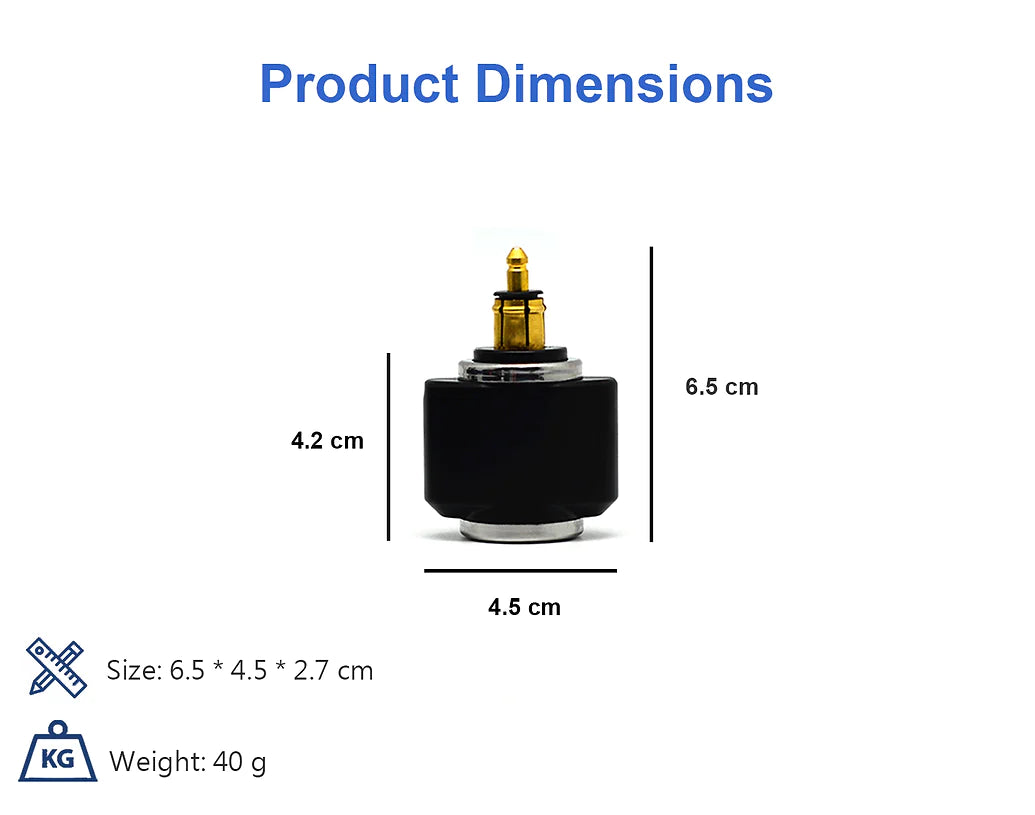

Technical Specifications

Fitment & Compatibility

Why Choose the Cliff Top TY-A2002?

The Cliff Top TY-A2002 MINI 36W DIN Hella USB charger combines high-speed charging and compact design in a single motorcycle power adapter. With 18W USB-C PD + 18W USB-A QC 3.0, it provides two convenient charging options while occupying minimal space around the motorcycle's DIN/Hella power socket.

Whether you are commuting, touring or riding long distances, the TY-A2002 provides a convenient way to keep compatible USB devices powered directly from your motorcycle.
