Prospec Easy Clutch for Benelli 302R – EC Pro Plus – EC 245
Prospec Easy Clutch for Benelli 302R – EC Pro Plus – EC 245
Pro-Spec
SKU:PRSP-EC245-05
Couldn't load pickup availability
- With Bill
- Fast Shipping
- Safe Packing

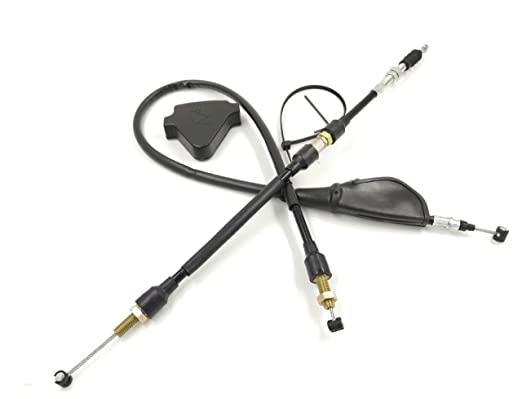

Thank you for choosing the Pro-Spec Easy Clutch Pro Plus for your ride. The Easy Clutch has been designed
to reduce the load applied on the clutch lever while shifting gears. This makes riding more comfortable in
traffic conditions.
| SI. | DESCRIPTION | Part Number | QTY. |
| B03 Aluminium Housing with Cover | PS EC 200-1 | 1 NO | |
| 1 | 03x08 SS Allen Cap Screws | PS SSACS 0308 | 3 NOS |
| Hardened Pin, Teflon Washer, Long Fulcrum, Bearing | PS EC BO 200-1/3/4/6 | 1 SET | |
| 3mm Spring Washer | PS SS SW 03 | 3 NOS | |
| 2A/B | Easy Clutch Long Cable V5 | PS CLC V5 | 1 SET |
| 3 | Dust boot for lever end | PS DB 01 | 1 NO |
| 4 | 2.5 mm L Allen Key | PS HTAK 2.5 | 1 NO |
| 5 | Cable Tie | PS EC 200-7 | 2 NOS |
| 6 | Clutch Plug Adjuster | PS EC 200-2 | 1 NO |
Please follow the instructions carefully to make sure the Easy Clutch is the desired benefit.
1. Remove the cable head from the clutch lever as shown in Fig-A by loosening the Lock nuts (1) at the
Engine Yoke as shown in Fig – B. Remove the cable head from the engine yoke as well.
2. The Easy Clutch Pro Plus can now be installed by inserting the 2B cable into the engine end in a
reverse removal procedure as shown in Fig-B. Ensure the lock nuts are made to give maximum
slack for the cable.
3. Route the Easy Clutch cable following an unobstructed path to achieve smooth cable operation.
Insert the 2A cable head into the lever by following the reverse process of Step 1 shown in Fig.
Adjust the clutch release point at around 50% of the clutch lever release.
• Should you find the release point below
40%, THREAD OUT THE ADJUSTER on the
right the left side of the Easy Clutch housing
(Fig -C) until the release point is achieved.
• Should you find the release point beyond
60%, THREAD IN THE ADJUSTER on the right or the left side of the Easy Clutch housing (Fig – E) until the release point is achieved. Should you need any further adjustment in both the above cases you can also adjust the cable at the engine end as shown in Fig – D or as per Fig – F, where “a” would bring the release point closer and “b” would take the release point away from the hand grip.
NOTE:For best results and safety of the clutch plate please follow the above adjustment guide strictly. If the clutch lever has excessive free
play, the clutch may not disengage fully. This will cause difficulty in changing gears and selecting neutral which would also relate to an early
clutch release point much below 40%. Conversely, if the clutch lever has Insufficient free play or a release point beyond 60%, the clutch
may not engage fully, causing the clutch to slip, which will reduce performance and cause premature clutch wear.
