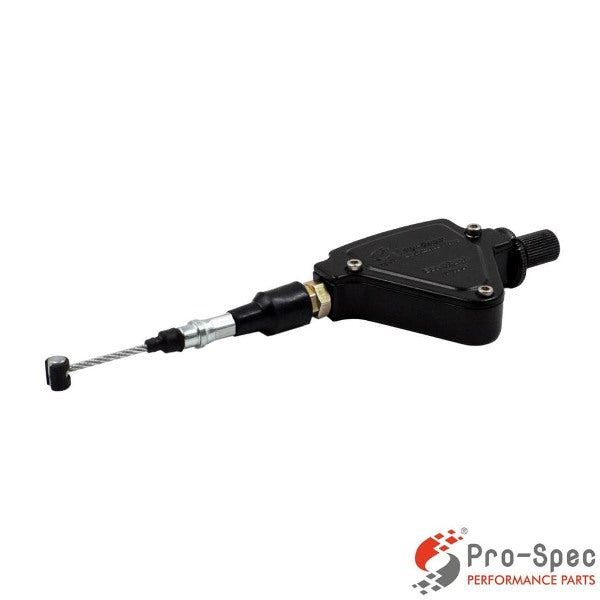

Pro-spec Easy Clutch for BMW G 310 GS- EC Pro - EC230
For BMW G 310 GS / G 310 R
Experience effortless city commuting with the Pro-Spec Easy Clutch Pro (Model: EC230), engineered exclusively for the BMW G 310 GS and G 310 R. Designed to reduce clutch lever effort by up to 40%, this performance upgrade significantly enhances comfort during gear shifts, especially in stop-and-go traffic conditions.
Crafted from aerospace-grade aluminum and tuned for Indian riding environments, the Easy Clutch Pro maintains international quality standards while providing superior durability and performance.

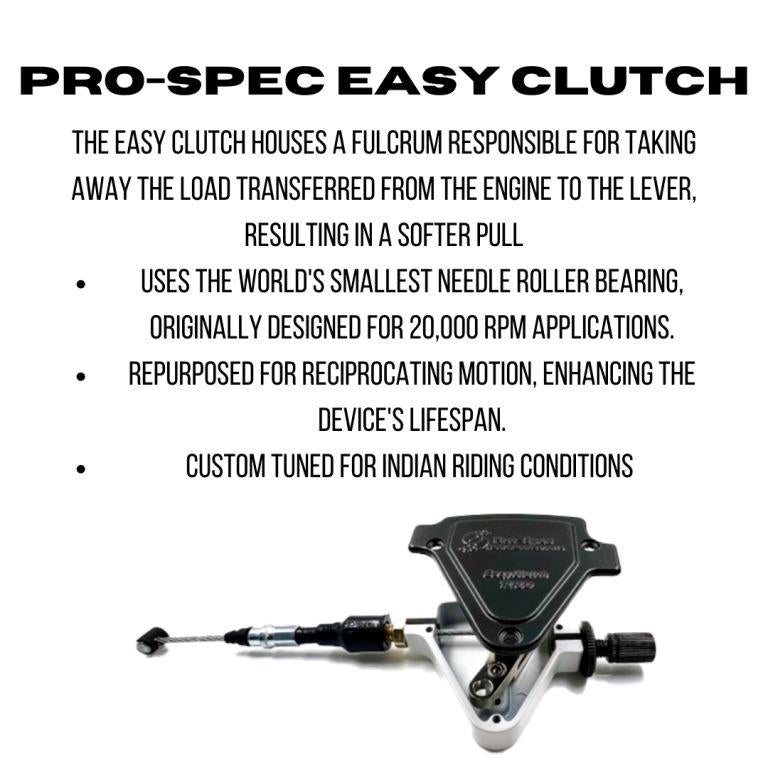

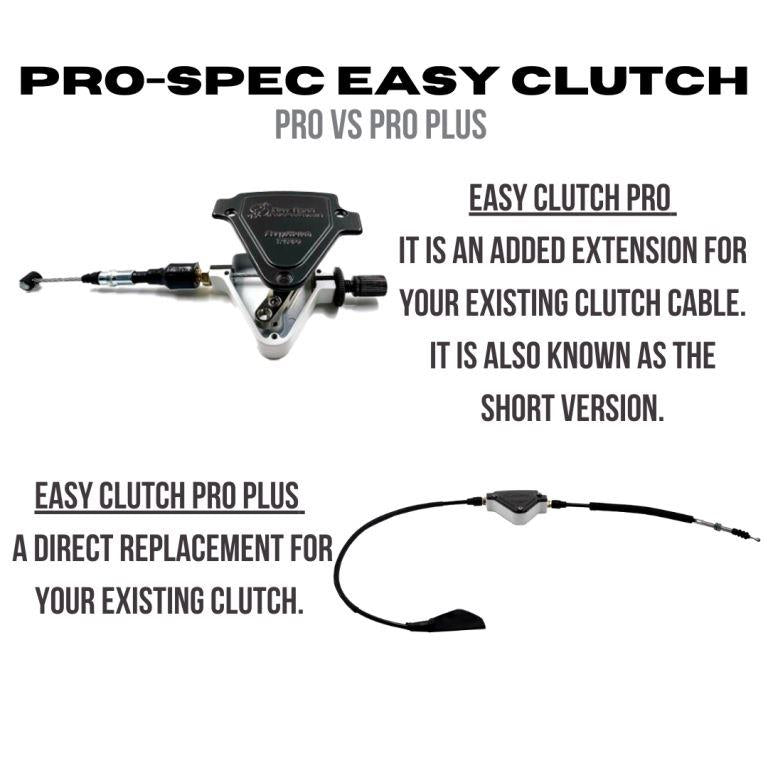

The Easy Clutch Pro functions as an extension to the OEM clutch cable, incorporating a mechanical assist system to ease clutch actuation without compromising reliability or engagement feel.
Key Features
- Model :EC230
- Clutch effort reduction : p to 40%
- Material : Arospace-grade aluminum
- Tuned for : Uran riding conditions in India
- Compliance : Conorms to global mechanical standards
- Installation : Diret-fit, no permanent modifications required
Package Contents
| Sl. No. | Description | Part Number | Quantity |
|---|---|---|---|
| 1 | Aluminum Housing with Internal Mechanism | PS EC 200-1 | 1 No |
| 3 mm x 8 mm SS Allen Cap Screws with Washers | PS SSACS 0308, PS SS SW 03 | 3 Nos | |
| Fulcrum, Hardened Pin, Teflon Washer, Bearing | PS EC 200-2/3/4/6 | 1 Set | |
| 2 | Easy Clutch Short Cable | PS AFG-CLC-00219 | 1 No |
| 3 | Dust Boot | PS EC BO 01 | 1 No |
| 4 | Cable Tie | PS EC 200-7 | 1 No |
| 5 | Cable Adjuster | PS EC BO 200-8 | 1 No |
| 6 | Allen Key (2.5 mm) | PS HTAK 2.5 | 1 No |
Installation Guide
Please follow the instructions carefully to ensure optimal performance and safety.
Installation Steps:-
Detach OEM Cable
- Disconnect the clutch cable from the lever (refer to Fig. A).
- Loosen the cable at the engine yoke using the lock nut (Fig. B) to release tension.
Prepare Easy Clutch Housing
- Unscrew the housing (Sl. No. 1) to access internal components.
- Remove the fulcrum assembly.
Connect the OEM Cable
- Insert the OEM cable into the right-side adjuster.
- Seat the cable head securely into the fulcrum (Fig. C).
Connect Pro-Spec Short Cable
- Thread the short cable (Sl. No. 2) into the left side of the housing.
- Insert its head into the fulcrum.
- Connect the other end to the clutch lever and secure the dust boot.
Final Adjustments
- Reassemble the housing with the provided screws and washers.
- Adjust the clutch release point to approximately 50% of lever travel using the adjusters on either side of the housing.
Clutch Adjustment Guidelines
-
If the release point is below 40% :
→ Thread OUT the adjuster (Fig. D) -
If the release point is beyond 60% :
→ Thread IN the adjuster (Fig. E) - For further fine-tuning, use the OEM cable adjuster at the engine end (Figs. F & G):
- Turning “a”: Moves rthe elease point closer to the grip
- Turning “b”: Moves the release point further away from grip
Important Notes & Disclaimer
- Ensure there is minimal free play in the clutch lever for proper disengagement.
- Excessive free play may prevent full disengagement, making gear shifts and neutral selection difficult.
- Insufficient free play may cause clutch slip, reduced performance, and premature wear.
- Lubricate the OEM cable using WD-40 or a recommended cable lubricant to ensure smooth operation.
- Always test the clutch operation thoroughly before riding.
Compatibility:-
| Brand | Model |
|---|---|
| BMW | G 310 GS |
| BMW | G 310 R |
