Pro-spec Easy Clutch for Royal Enfield Super Meteor 650 – EC Pro Plus – EC 215

Pro-spec Easy Clutch for Royal Enfield Super Meteor 650  – EC Pro Plus – EC 215

The Pro-Spec Easy Clutch Pro Plus – EC 215 is designed to reduce clutch lever effort by up to 40%, providing improved comfort and easier clutch operation during city traffic, stop-and-go riding, and long-distance journeys. This model is engineered for motorcycles with clutch cable lengths between 1085 mm and 1115 mm and is specifically compatible with the Kawasaki Vulcan 650 and other listed motorcycles.

Built from aerospace-grade aluminum, the EC 215 combines strength, durability, and corrosion resistance. The system is optimized for Indian riding conditions and provides a simple bolt-on installation without permanent modifications to the motorcycle.

Key Features

• Up to 40% Clutch Effort Reduction: Makes clutch operation easier and more comfortable.
• Aerospace-Grade Aluminum: Lightweight, strong, and durable construction.
• Specific Cable Length: Designed for motorcycles using clutch cables between 1085 mm and 1115 mm.
• Improved Clutch Modulation: Helps provide smoother clutch operation and reduces hand fatigue.
• Long-Ride Comfort: Especially useful during heavy traffic and extended rides.
• Bolt-On Installation: Designed for installation without permanent modifications.
• Indian Road Tuned: Custom-tuned for Indian riding conditions while meeting global quality standards.

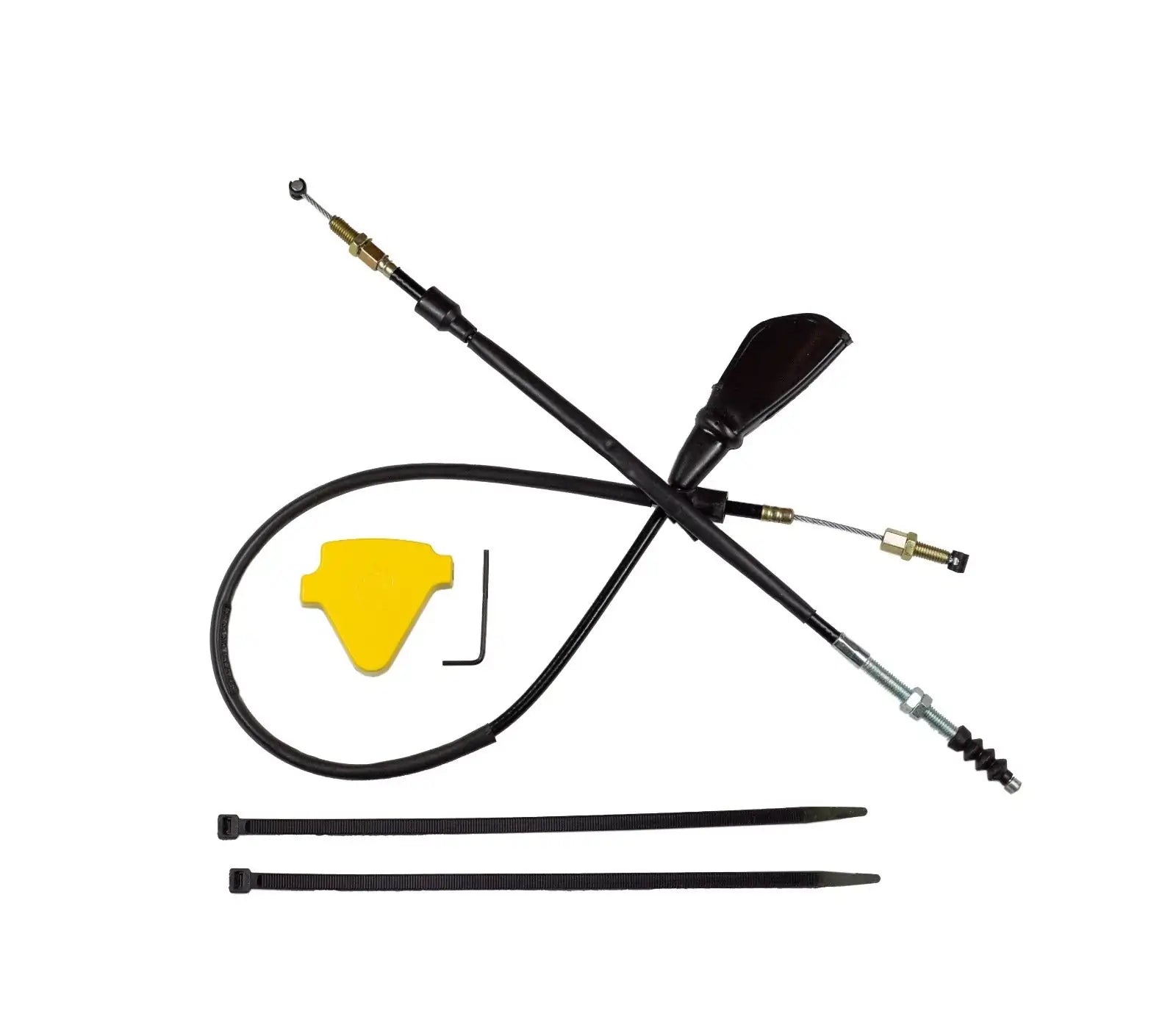

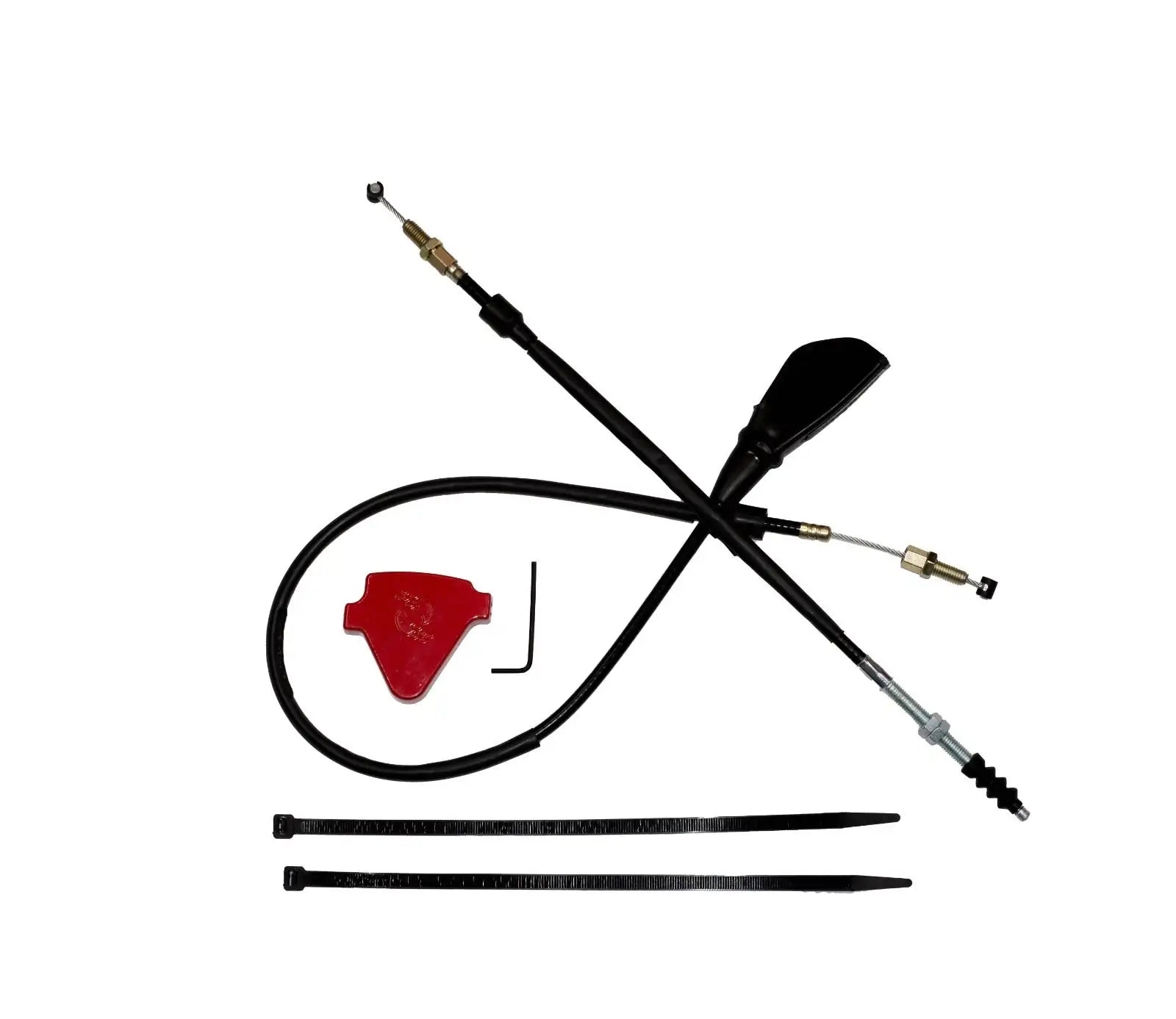

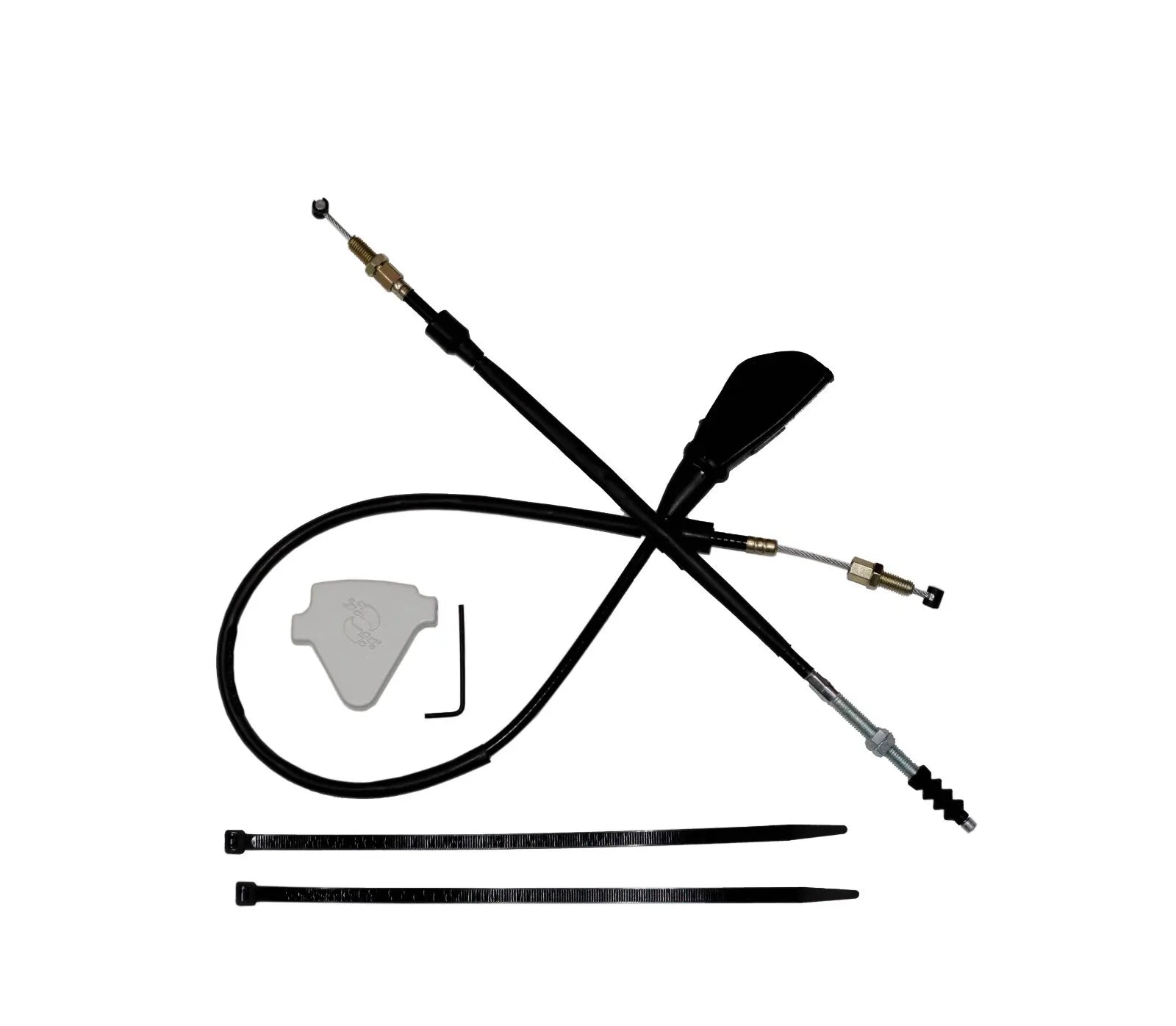

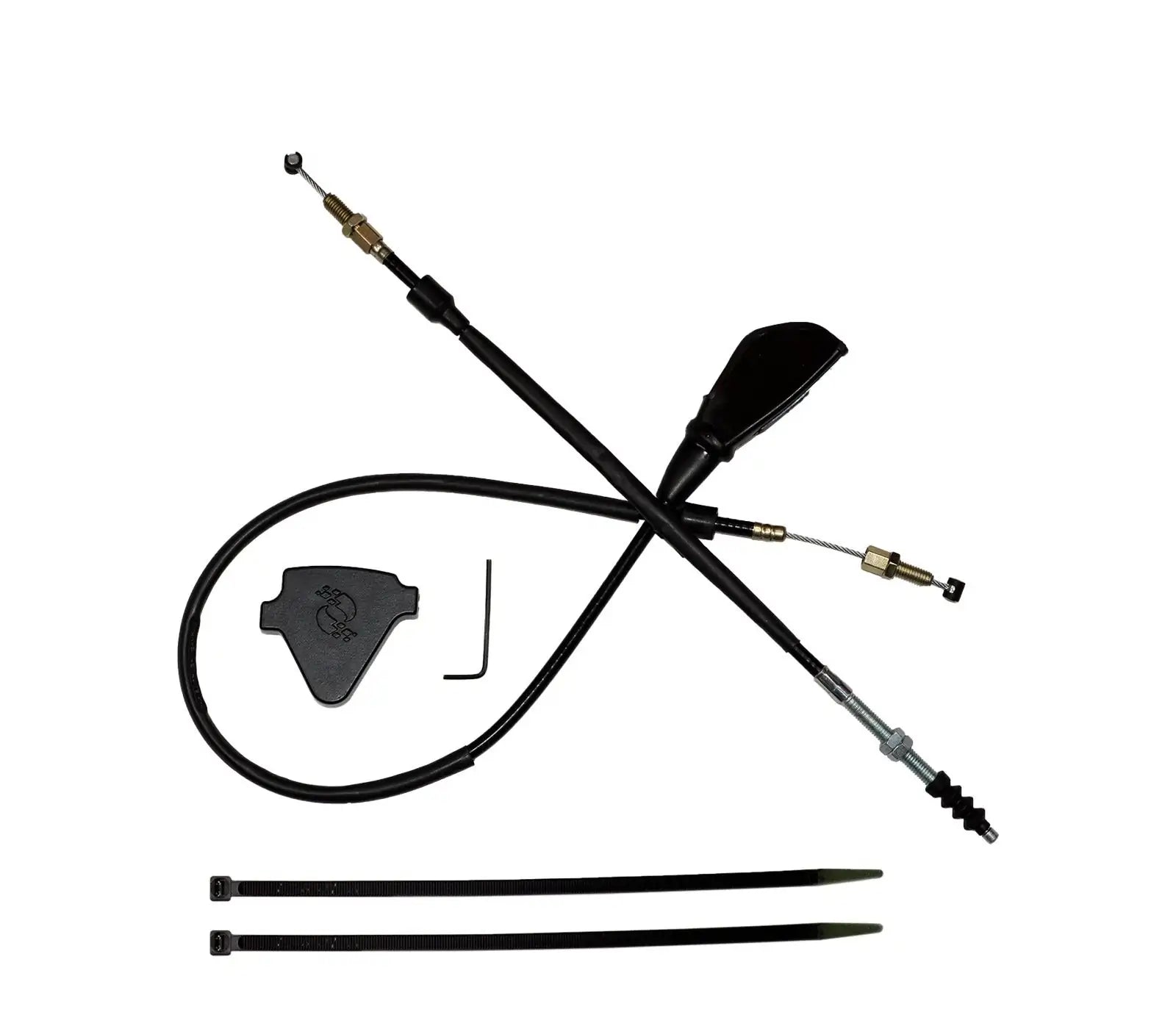

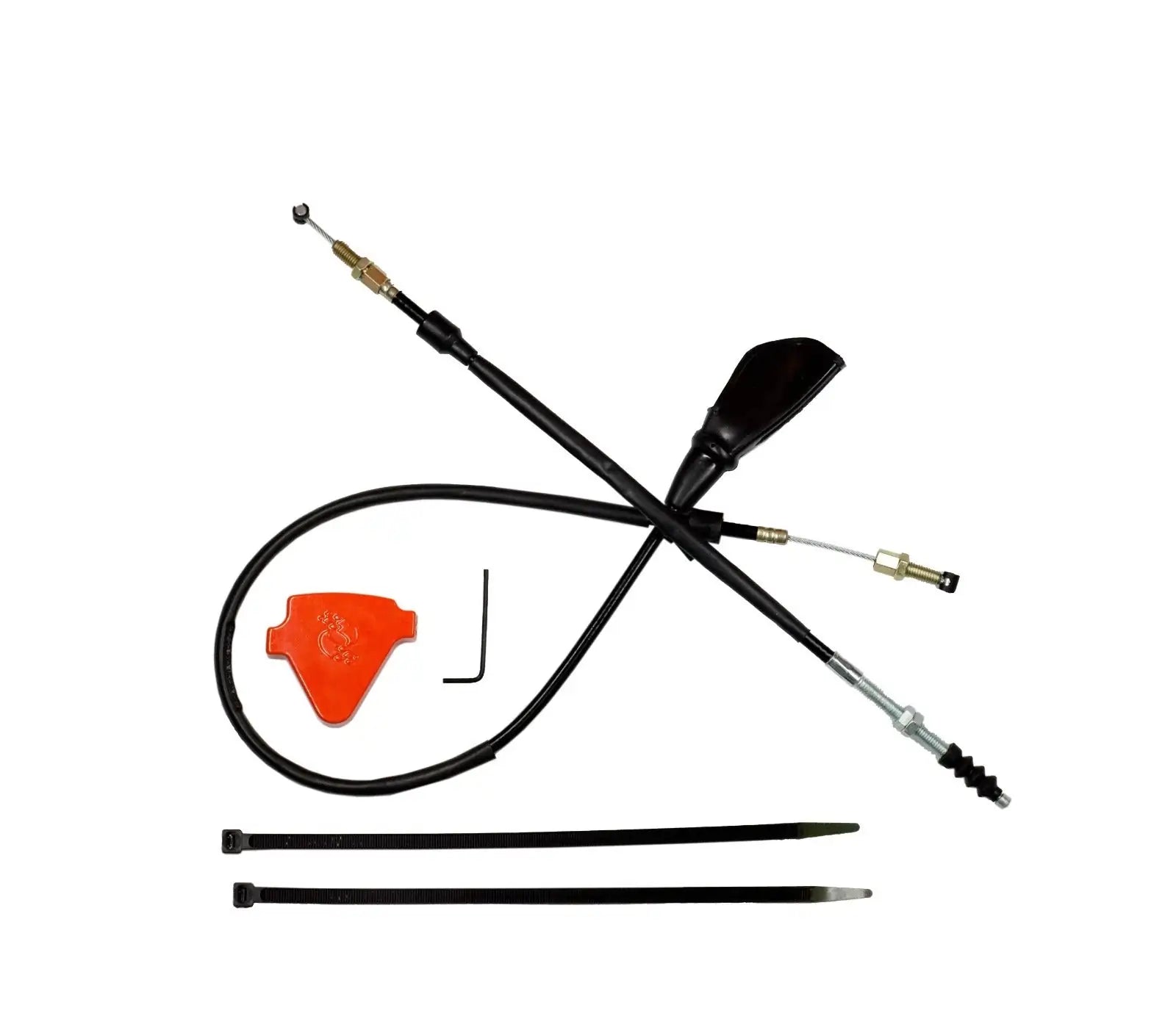

Package Contents

Installation Instructions

Pre-Installation: Lubricate the OEM clutch cable using WD-40 or a suitable cable lubricant before installation.

Step 1: Remove the Stock Clutch Cable

• Disconnect the clutch cable from the handlebar clutch lever as shown in Fig. A.
• Loosen the lock nuts at the engine yoke and remove the cable from the engine side as shown in Fig. B.

Step 2: Install the Easy Clutch Pro Plus

• Insert the 2B cable into the engine-side connection by reversing the cable removal procedure.
• Adjust the lock nuts to provide maximum cable slack during installation.
• Route the cable through a smooth and unobstructed path to ensure proper operation.
• Connect the 2A cable head to the clutch lever by reversing the removal procedure.

Step 3: Adjust the Clutch Release Point

Set the clutch release point at approximately 50% of the clutch lever travel for proper clutch engagement and disengagement.

• Below 40%: Thread out the adjuster on either side of the Easy Clutch housing until the desired release point is achieved.
• Above 60%: Thread in the adjuster until the desired release point is achieved.
• Engine-Side Fine Adjustment: Use the engine-side cable adjuster for additional adjustment. Position “a” brings the release point closer to the grip, while position “b” moves it farther away from the grip.

Usage & Safety Information

• Excessive Free Play: May prevent the clutch from fully disengaging, resulting in hard gear shifts, difficulty selecting neutral, and premature clutch wear.
• Insufficient Free Play: May prevent the clutch from fully engaging, causing clutch slippage, reduced performance, overheating, and accelerated clutch wear.
• Always check clutch operation and maintain the recommended release point between 40% and 60% of lever travel.
• Test the clutch thoroughly after installation before riding.

Motorcycle Compatibility

Fitment Note: The EC 215 is designed for motorcycles with compatible clutch systems and clutch cable lengths between 1085 mm and 1115 mm. Verify the cable length and motorcycle compatibility before installation.
