Pro-spec Easy Ride Windshield Extender Clip-on for Honda CB500X- ER 720

Pro-Spec Easy Ride Windshield Extender Clip-on for Honda CB500X - ER 720

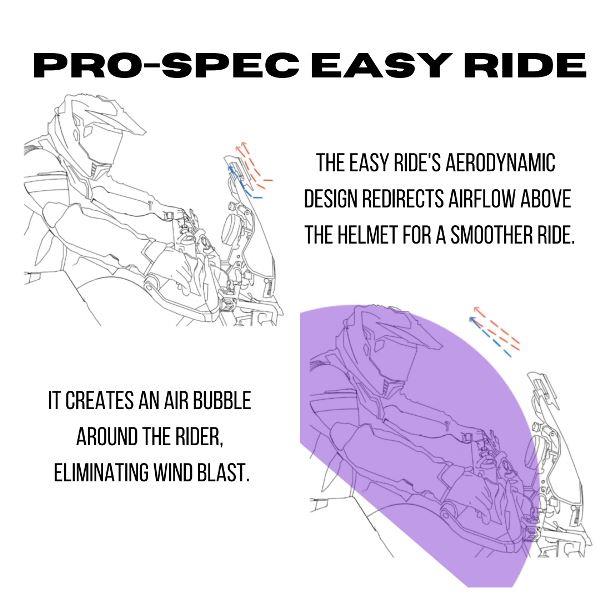

The Pro-Spec Easy Ride Windscreen Extender ER 720 is a compact, aerodynamic clip-on windshield extender designed to improve rider comfort on highways and long-distance rides. By creating smoother airflow over the original equipment (OE) windshield, it helps reduce wind buffeting, turbulence, helmet vibration, and wind noise for a quieter and less fatiguing riding experience.

The ER720 features a lip extender profile suitable for motorcycles with plain or soft-curved windscreens. Its height-adjustable design allows riders to fine-tune airflow according to their height, riding posture, and conditions.

Key Features

• Reduces Wind Buffeting: Helps smooth turbulent airflow and reduce helmet vibration during highway riding.
• Height Adjustable: Allows rider-specific adjustment of airflow and wind protection.
• Lip Extender Profile: Designed to redirect airflow over the rider for improved touring comfort.
• Non-Invasive Clip-On Mount: Installs onto the existing windshield without drilling or permanent modifications.
• Windscreen Compatibility: Suitable for OE windscreens with a thickness of 3–5 mm.
• DIY-Friendly Installation: Includes the required mounting components and 2.5 mm Allen key.
• Versatile Application: Suitable for tourers, adventure motorcycles, and cruisers with compatible windshield profiles.

Product Specifications

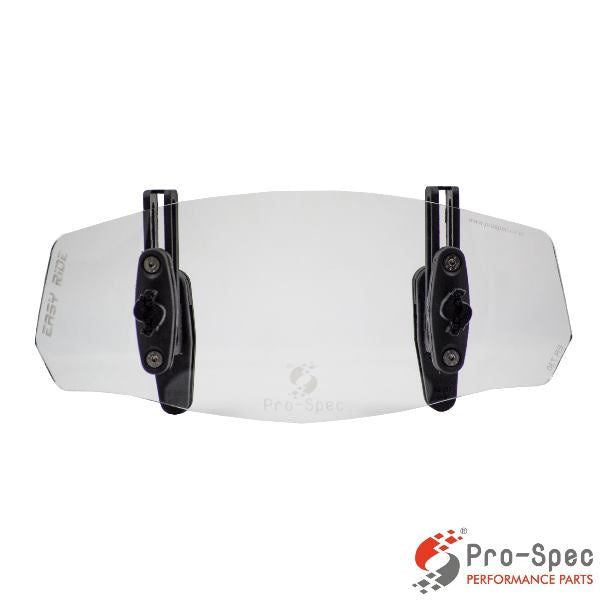

Product: Easy Ride Clip-on Windshield Extender

Model: ER720

Application: Motorcycle Windshield Extender

Mounting Type: Clip-On

Adjustment: Height Adjustable

Compatible Windscreen Thickness: 3–5 mm

Profile: Lip Extender Profile

What's in the Box

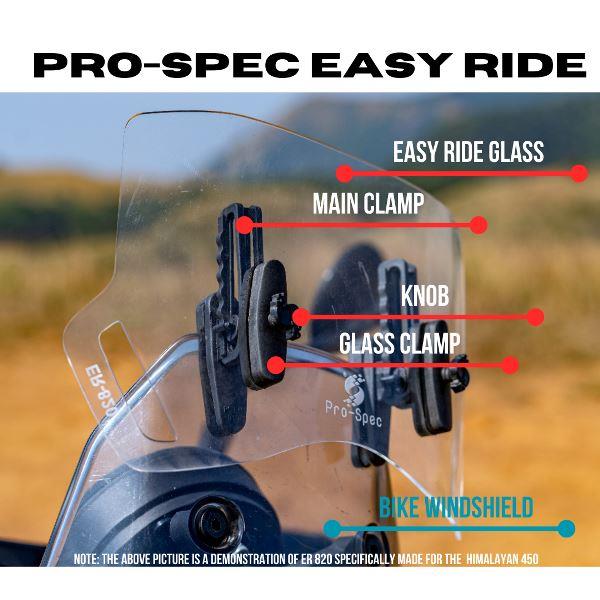

• Extender Screen: 1 No.
• Height Adjustment Slider (Set): 1 Set
• Clip-On Mount (Set): 1 Set
• Front Clamp (Set): 1 Set
• CSK Allen Head Screw M4 × 16: 4 Nos.
• CSK Allen Head Screw M4 × 12: 2 Nos.
• Height Adjusting Lock Screws (Set): 1 Set
• Allen Key 2.5 mm: 1 No.

Installation Instructions

Step 1 – Remove Lock Screws: Remove the two Lock Screws (7) from the clip-on mount set.

Step 2 – Position the Extender: Place the extender screen into the Height Adjustment Slider (2).

Step 3 – Secure the Front Clamp: Position the Front Clamp over the slider and secure it using the Lock Screws (7).

Step 4 – Loosen Adjustment Screws: Loosen the CSK Allen Head Screws (6) using the supplied 2.5 mm Allen key.

Step 5 – Align the Extender: Position the extender symmetrically over the OE windscreen and adjust it to the desired height.

Step 6 – Tighten Securely: Re-tighten the screws and ensure the extender is firmly clamped before riding.

Maintenance Guidelines

• Clean the extender using water, neutral soap, and a soft sponge or microfiber cloth.
• Do not use solvents, abrasive pads, or dry cloths, as these may scratch or damage the surface.
• Clean the OE windscreen thoroughly before installation.
• Ensure the OE windscreen is free from anti-scratch chemical coatings that may interfere with the clamp's grip.

Bike Compatibility

Important Compatibility Information

This product is specifically listed for the Honda CB500X and is also suitable for the other motorcycle applications listed above when the original windscreen profile and thickness are compatible.

The ER720 is compatible with windscreens measuring 3–5 mm in thickness. It may also be suitable for select aftermarket windshields, such as Carbon Racing screens, provided the curvature and thickness are appropriate.

Installation & Safety Note

The product is designed for DIY installation. If you are unfamiliar with windshield accessories or unable to achieve a secure fit, professional installation is recommended. Always ensure the extender is securely clamped and correctly aligned before riding.
