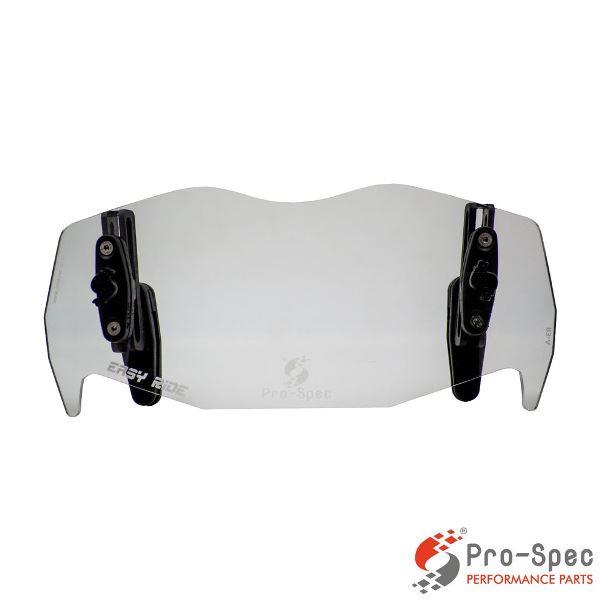

Pro-Spec Easy Ride Windshield Extender Clip-on for Triumph Tiger 800 XC - ER 700

Pro-Spec Easy Ride Windshield Extender Clip-on for Triumph Tiger 800 XC - ER 700

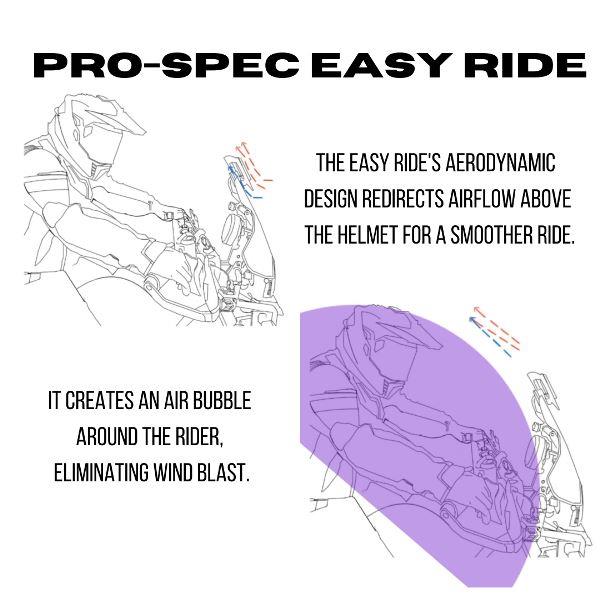

The Pro-Spec Easy Ride ER700 is a premium clip-on windshield extender designed to enhance rider comfort during highway and long-distance travel. Using the lip extender principle, it helps redirect airflow and create a more protective air pocket around the rider, reducing windblast, turbulence, and helmet buffeting for a quieter and less fatiguing ride.

Key Features

• Adjustable height to customize airflow according to rider preference and riding position.

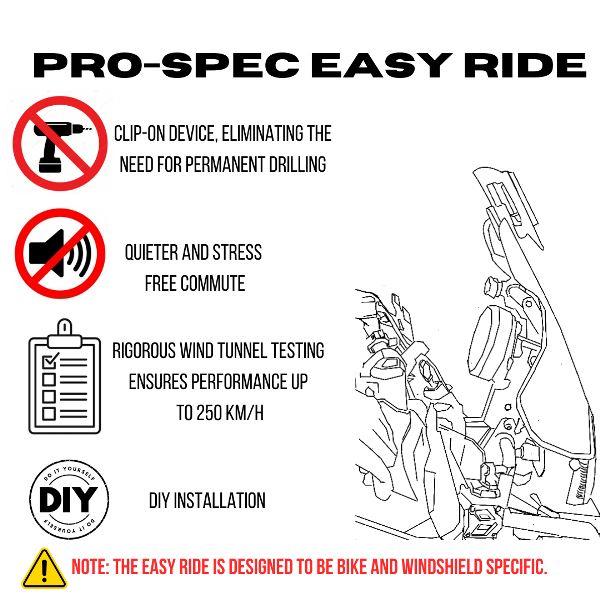

• Non-invasive clip-on mounting with no drilling or permanent modifications required.
• Aerodynamic design helps minimize wind noise and turbulence.
• Designed for OE short windscreens.
• Precision fit for windscreen thicknesses between 3–5 mm.

Compatible Motorcycles

Triumph: Tiger 800 XC

Triumph: Tiger 800 XR / XRX (2014–2017)

BMW: G 310 GS

Product Specifications

Product: Pro-Spec Easy Ride Windshield Extender

Part Number: ER 700

Type: Clip-on Windshield Extender

Mounting: Non-invasive clip-on system

Height: Adjustable

Recommended Windscreen Thickness: 3–5 mm

Package Includes

• Windshield Extender Screen – 1 piece
• Height Adjustment Slider Set – 1 set
• Clip-On Mount Set – 1 set
• Front Clamp Set – 1 set
• CSK Allen Head Screw M4 x 16 mm – 4 pieces
• CSK Allen Head Screw M4 x 12 mm – 2 pieces
• Height Adjusting Lock Screws Set – 1 set
• 2.5 mm Allen Key – 1 piece

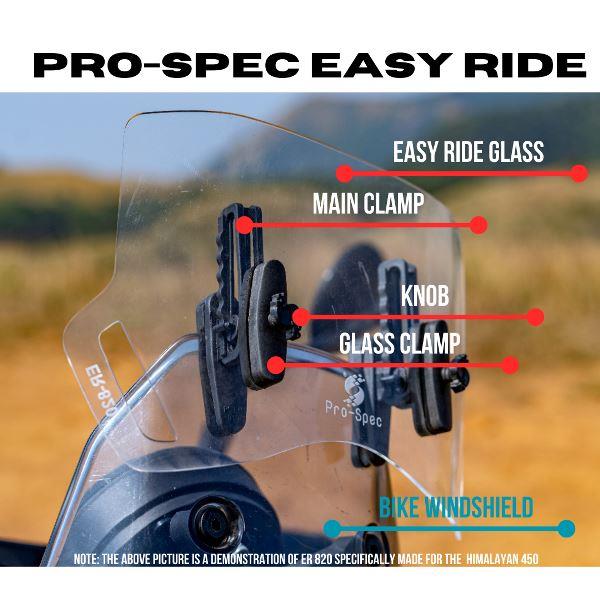

Installation Guide

• Remove the two lock screws from the clip-on mounting set.
• Place the extender screen with the front clamp over the slot in the height adjustment slider.
• Secure the extender using the height adjusting lock screws.
• Loosen the CSK Allen head screws using the supplied 2.5 mm Allen key.
• Position the extender symmetrically on the OEM windscreen.
• Retighten the screws once the desired position and alignment have been achieved.

Care Instructions

• Clean using water and neutral soap.
• Use a microfiber cloth or soft sponge for cleaning.
• Avoid dry cloths, solvents, and abrasive cleaners, as they may damage the surface.
• Ensure the OEM screen is free from anti-scratch chemical coatings, as these may reduce the effectiveness of the clamp grip.

Important Information

Some components may come pre-assembled. Although the ER700 is designed for easy DIY installation, professional assistance is recommended if required.
