Pro-spec Easy Ride Windshield Extender Clip-on for Triumph Tiger 800 XR/XRX - ER700
Built for Adventure — Comfort on Every Ride

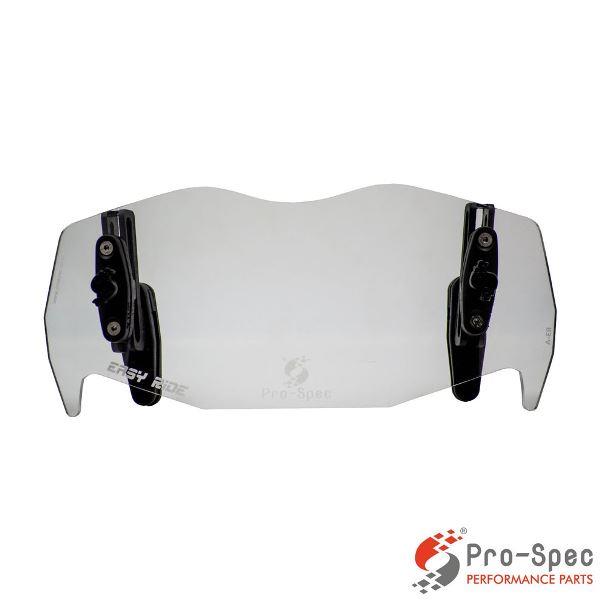

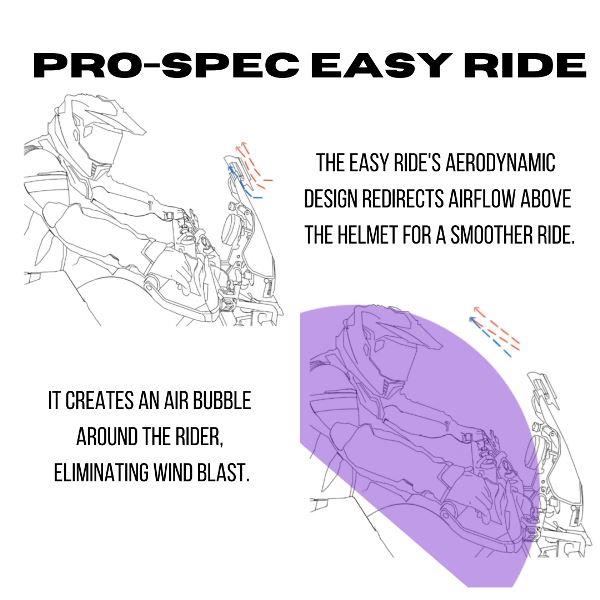

The Pro-Spec Easy Ride ER700 is a premium windshield extender designed to enhance rider comfort on highways and long-distance travel. Utilizing the lip extender principle, the ER700 creates a protective air pocket that significantly reduces windblast, turbulence, and helmet buffeting, delivering a quieter and less fatiguing ride.
Specifically shaped for OE short windscreens, such as those found on the Triumph Tiger 800 (2014–2017) and BMW G 310 GS, the ER700 offers a seamless fit and optimized wind deflection performance.
Key Features
- Adjustable Height: Customize for your preferred airflow and riding position.
- Clip-On Mounting: Non-invasive installation — no drilling or permanent modifications.
- Aerodynamic Efficiency: Designed to minimize wind noise and improve ride stability.
- Precision Fit: Suitable for windscreen thicknesses between 3 – 5 mm.
Package Contents
| Sl. | Item Description | Quantity |
|---|---|---|
| 1 | Windshield Extender Screen | 1 |
| 2 | Height Adjustment Slider (Set) | 1 |
| 3 | Clip-On Mount (Set) | 1 |
| 4 | Front Clamp (Set) | 1 |
| 5 | CSK Allen Head Screw – M4 x 16 mm | 4 |
| 6 | CSK Allen Head Screw – M4 x 12 mm | 2 |
| 7 | Height Adjusting Lock Screws (Set) | 1 |
| 8 | 2.5 mm Allen Key | 1 |
🛠️ Installation Guide
⚠️ Note: Some parts may be pre-assembled. Although designed for easy DIY setup, professional assistance is recommended if needed.
-
Remove Lock Screws
Detach the two Lock Screws (7) from the clip-on set. -
Assemble the Screen

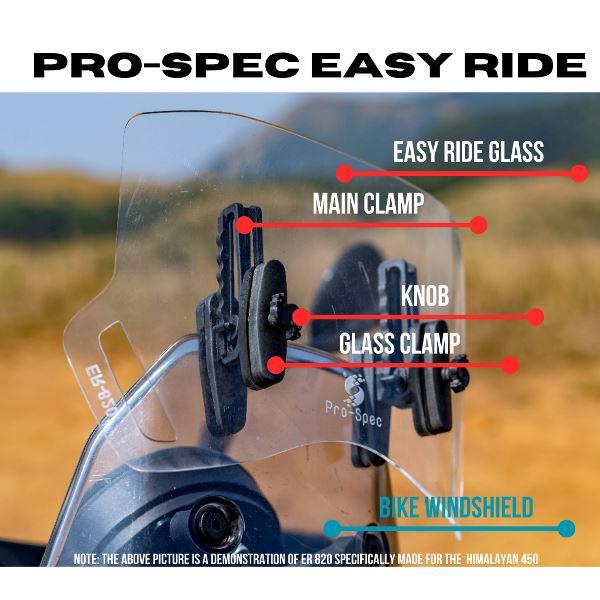

Place the extender screen with the front clamp over the slot in the height adjustment slider (2).
Secure it using the Lock Screws (7) as shown in figure “b”. -
Adjust and Align
Loosen the CSK Allen Head Screws (6) using the included 2.5 mm Allen key.
Position the extender symmetrically on the OE screen and retighten the screws.
Care Instructions
- Clean using water, neutral soap, and a microfiber cloth or sponge.
- Avoid using dry cloths, solvents, or abrasive cleaners, which may damage the surface.
- Ensure the OE screen is free from anti-scratch chemical coatings, as they may reduce the clamp’s grip effectiveness.
Compatible Motorcycles
BMW
- G 310 GS
Triumph
- Tiger 800 XR / XRX (2014–2017)
- Tiger 800 XC
📏 Recommended for windscreen thickness: 3 – 5 mm
