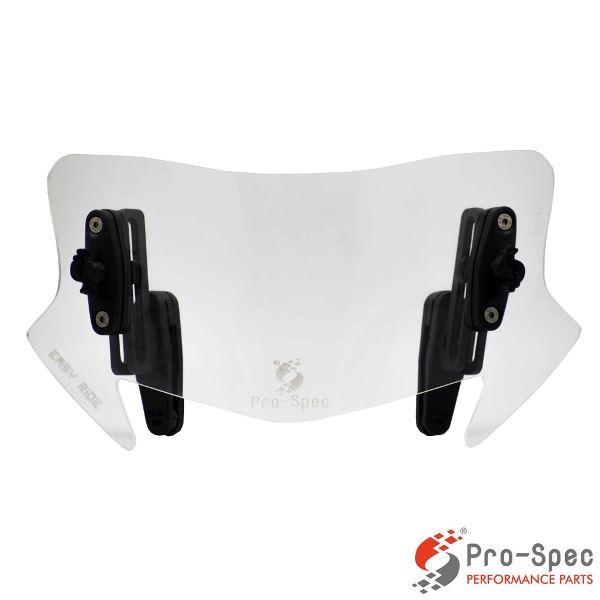

Pro-spec Easy Ride Windshield Extender Clip-on for Benelli TRK 502 / 502 X - ER 750

Pro-Spec Easy Ride Windshield Extender Clip-on for Benelli TRK 502 / 502X - ER 750

The Pro-Spec Easy Ride ER750 is a premium clip-on windshield extender designed for adventure-tourers seeking improved wind protection and greater long-distance riding comfort. Featuring an extended leading and trailing edge, the ER750 helps redirect turbulent airflow over and around the rider, reducing windblast and helmet wind noise.

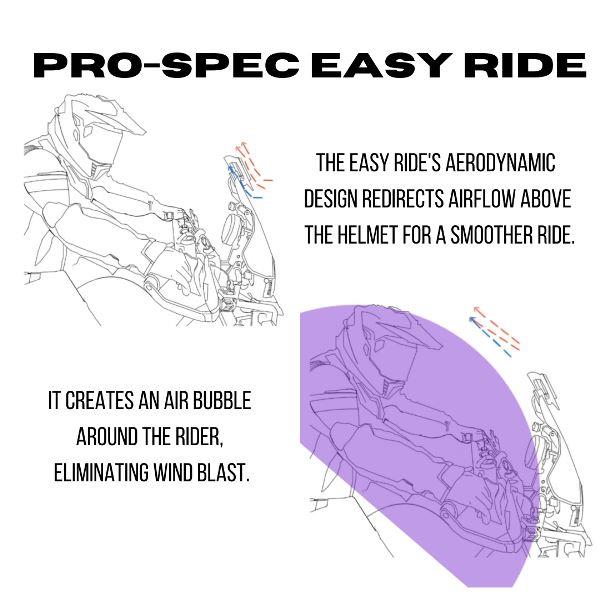

Using the proven lip extender principle, the ER750 helps create a smoother protective air pocket around the rider. Its height-adjustable design allows the airflow to be fine-tuned according to riding posture, speed, and personal comfort, making it an ideal windshield accessory for the Benelli TRK 502 / 502X.

Key Features

• Extended Lip Design: Flared front and rear edges help improve airflow management and wind deflection.
• Improved Wind Protection: Helps reduce turbulent airflow, windblast, and helmet wind noise during highway riding.
• Height Adjustable: Allows riders to customize the extender position according to their riding posture and comfort.

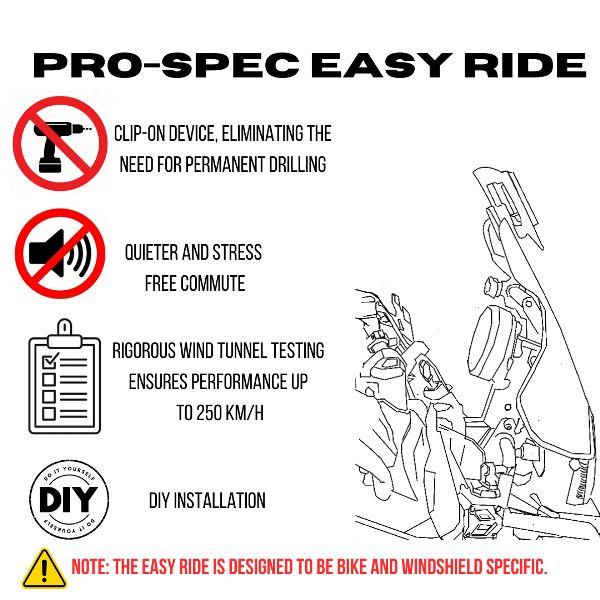

• Clip-On Mounting System: Installs without drilling or making permanent modifications to the OE windshield.
• Adventure-Touring Design: Developed for large adventure-style motorcycle windscreens.
• Easy Installation: Supplied with the required mounting components and 2.5 mm Allen key.
• Compatible Windscreen Thickness: Designed for windscreens measuring 3–5 mm in thickness.

Product Specifications

Product Type: Windshield Extender

Model: ER 750

Mounting Type: Clip-On

Adjustment: Height Adjustable

Design: Extended Leading and Trailing Edge

Recommended Windscreen Thickness: 3–5 mm

Primary Application: Adventure-Touring Motorcycles

Package Contents

Installation Instructions

Note: Some components may arrive pre-assembled. The ER750 is designed for simple DIY installation, but professional installation is recommended if required.

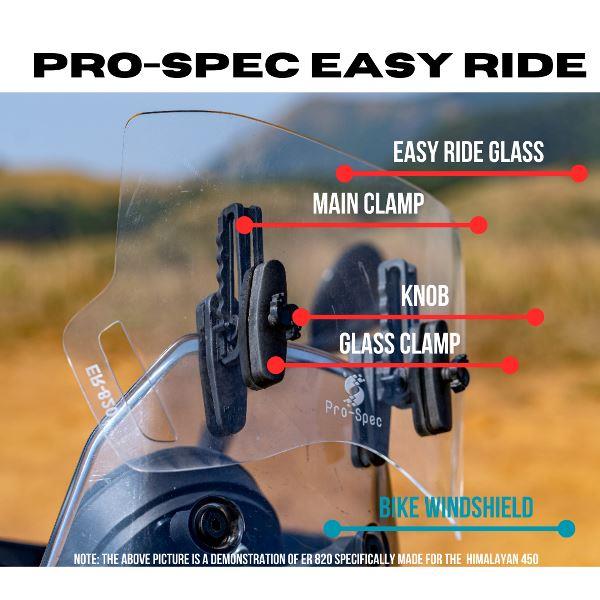

1. Remove Lock Screws: Detach the two Lock Screws (7) from the clip-on mount.
2. Assemble the Screen and Slider: Insert the windshield extender screen with the front clamp into the slot of the height adjustment slider (2).
3. Secure the Assembly: Tighten the assembly using the Lock Screws (7) as shown in Figure “b”.
4. Adjust the Position: Loosen the CSK Allen Head Screws (6) using the supplied 2.5 mm Allen key.
5. Center the Extender: Align the extender symmetrically over the stock windshield.
6. Final Check: Retighten all screws securely and ensure the extender is firmly clamped before riding.

Cleaning & Maintenance

• Clean the extender using water, neutral soap, and a soft sponge or microfiber cloth.
• Do not use dry cloths, abrasive materials, or solvents, as they may scratch or damage the finish.
• Ensure the OE windshield is clean before installation.
• Remove any anti-scratch chemical coatings that may reduce the grip of the clip-on clamps.
• Check that all mounting screws remain securely tightened before riding.

Motorcycle Compatibility

Windscreen Compatibility

The Pro-Spec Easy Ride ER750 is compatible with suitable OE or aftermarket windscreens having a thickness between 3 mm and 5 mm. Before installation, verify that the Benelli TRK 502 / 502X windshield meets the recommended thickness range and is suitable for the clip-on mounting system.
