Handlebar Extension Mount (Universal)

Specifications:

• Rod Material: Aluminium HE30 grade
• Mounting Plate: Mild-steel (CR)
• Manufactured via Laser cut, CNC bending
• Finished with Acid treated, sand-blasted, Powder-coated paint
• Spacers: Aluminium HE30 grade
• Included hardware: Stainless Steel Bolts & Washers

Dimensions:

• Rod : 137mm(L) x 22mm (D)

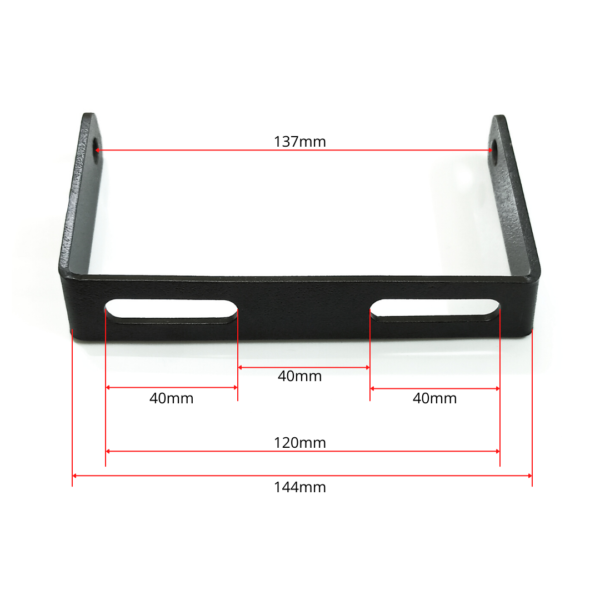

• Mounting Plate : 137mm (Base) x 77mm (Height)
• Mounting Slots : 9mm(W) x 40mm(L) each, 120mm max. adjustment distance

Compatibility:

• Universal Fit for motorcycles with Straight Handlebars (not clip-on handlebars)

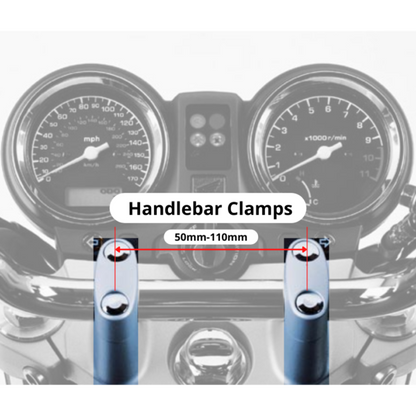

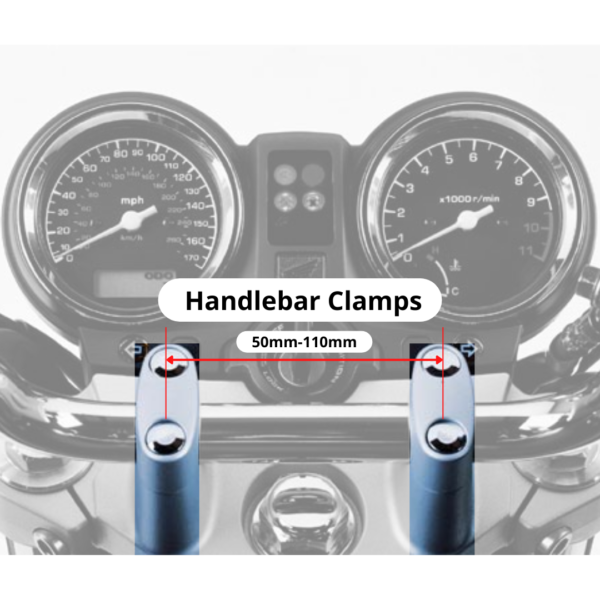

• Fit on Motorcycle Handlebar Clamp from 50mm up to 110mm (distance measured from the center of the clamp-screws. Refer to Image)
