LBC Moto 77 Millimeter Radar Blind Spot Detection

LBC Moto 77mm Motorcycle Blind Spot Detection Radar – 30m Rear Radar Alert & 130° Wide-Angle Monitoring

Ride with greater awareness and confidence with the LBC Moto 77mm Motorcycle Blind Spot Detection Radar, a compact motorcycle blind spot monitoring system designed to help riders detect vehicles approaching from the rear and sides. With a 130° rear detection angle, detection coverage of approximately 30 meters, separate left and right warning indicators, and waterproof construction, this motorcycle radar blind spot monitor provides an additional layer of visual awareness during lane changes and merging.

Designed for motorcycles, scooters, cruisers, touring bikes, sport bikes, street bikes, adventure motorcycles, rally bikes, and off-road motorcycles, the system features a universal mounting design and can be installed using the supplied adhesive mounting accessories. The radar unit can be connected to a motorcycle's ACC power line so that it powers on and off with the motorcycle.

Motorcycle Blind Spot Monitoring for Safer Lane Awareness

Motorcycle rearview mirrors can leave areas that are difficult for the rider to see, particularly when another vehicle approaches from the rear-side area. The LBC Moto blind spot radar is designed to monitor the rear-side detection zone and provide an early visual warning when approaching traffic is detected within the system's specified detection range.

The radar system works as an additional awareness aid alongside your motorcycle mirrors and normal shoulder checks. It is designed to help riders identify approaching vehicles before changing lanes or merging.

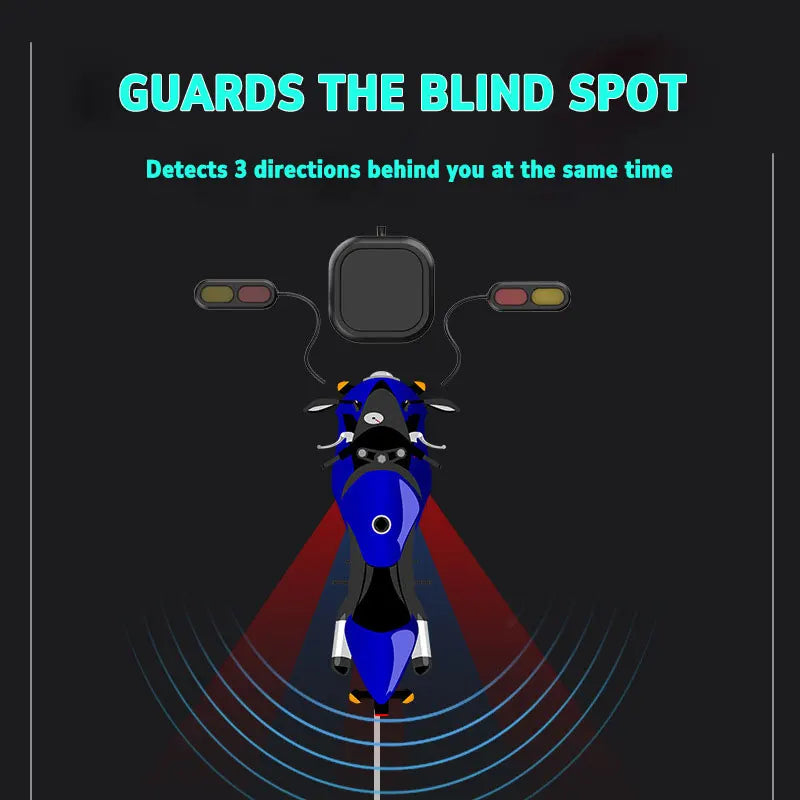

130° Wide-Angle Rear Blind Spot Detection

• Approximately 130° rear detection angle
• Approximately 30-meter rear detection distance
• Designed to monitor vehicles approaching from the rear and side areas
• Separate left and right warning indicators
• Automatic radar-based vehicle detection
• Designed for additional awareness during lane changes and merging

30-Meter Motorcycle Radar Detection Zone

The motorcycle radar blind spot monitor provides a rear detection range of approximately 30 meters. When approaching traffic enters the detection area and meets the system's trigger conditions, the corresponding warning indicator can alert the rider.

The stated trigger specification is based on a relative speed greater than 10 km/h, with a trigger time of less than approximately 3 seconds.

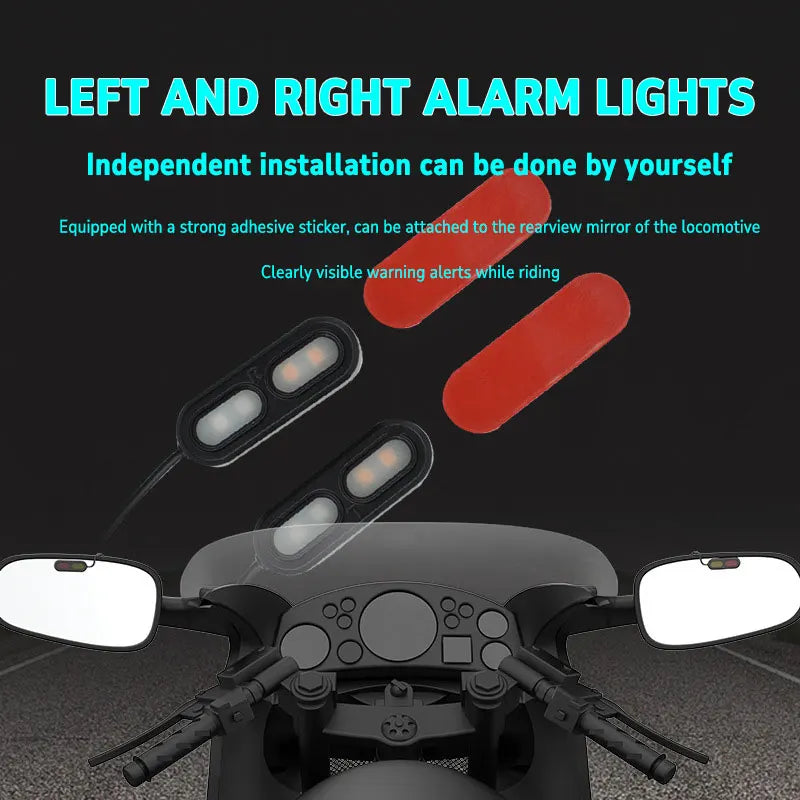

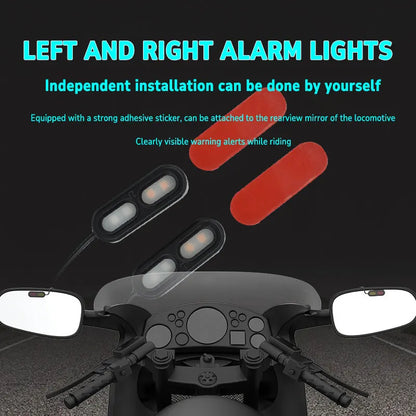

Separate Left and Right Blind Spot Warning Lights

The LBC Moto radar system includes separate warning indicators for the left and right sides. This allows the rider to identify the side from which the detected vehicle is approaching more easily.

The warning lights can be positioned where they are clearly visible while riding. The supplied adhesive accessories allow the warning indicators to be mounted without requiring complicated fabrication.

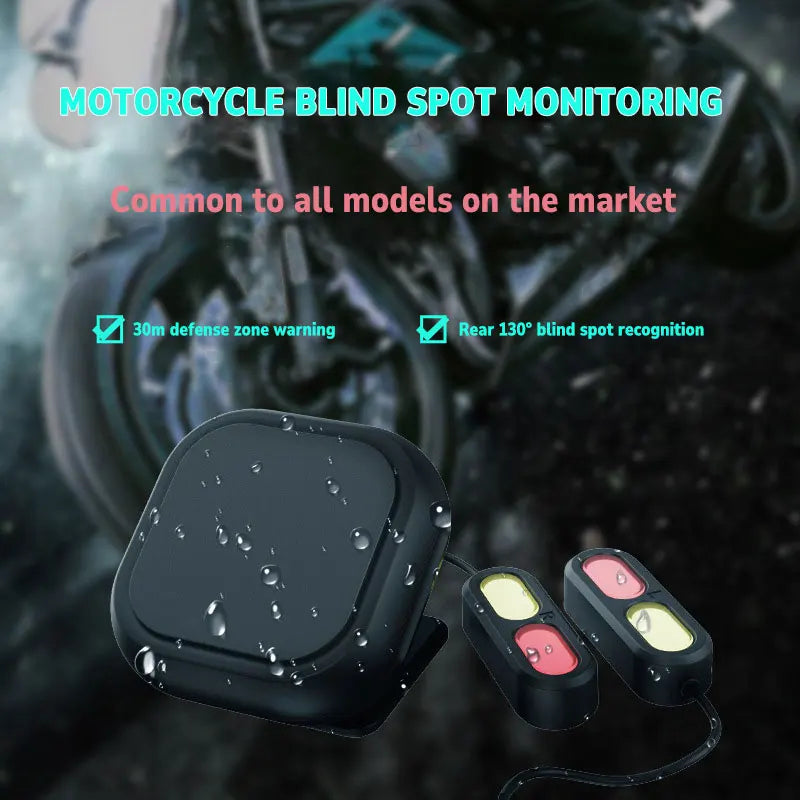

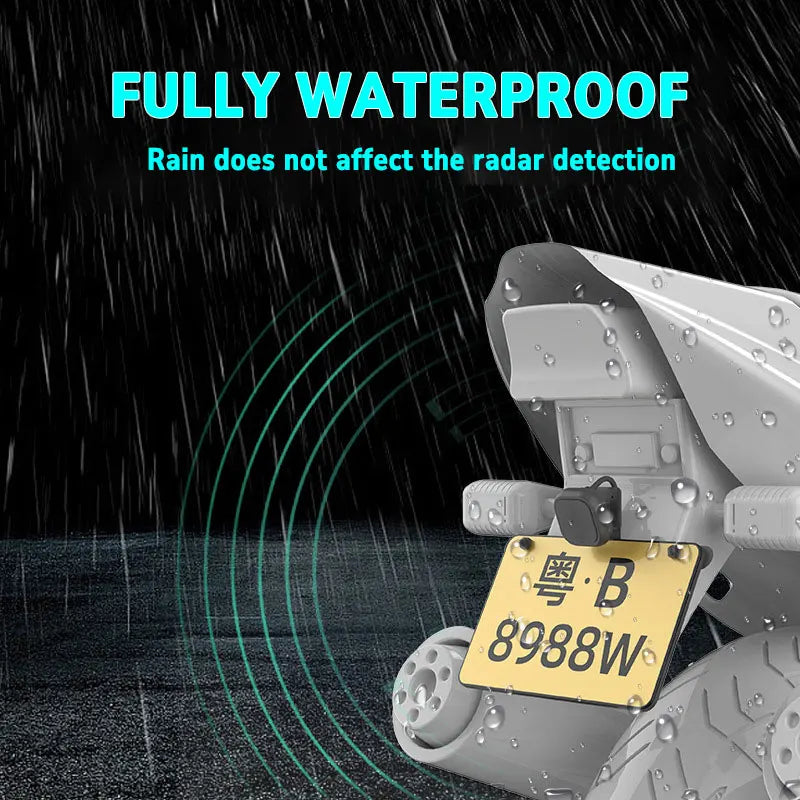

All-Weather Motorcycle Radar Monitoring

Built for motorcycle use, the system features a fully waterproof design intended to operate in changing riding conditions. The radar-based monitoring system is designed to provide detection assistance in conditions such as rain and fog where mirror visibility may be reduced.

• Waterproof construction
• Suitable for everyday motorcycle riding
• Designed for wet and changing weather conditions
• Radar-based detection does not rely solely on clear mirror visibility

Universal Motorcycle Installation

The compact radar system is designed to fit a wide range of motorcycle types. Its universal mounting approach makes it suitable for different motorcycle designs, including bikes with different body styles and configurations.

• Sport Bikes
• Street Bikes
• Scooters
• Classic & Vintage Motorcycles
• Cruisers
• Touring Motorcycles
• Adventure & Off-Road Motorcycles
• Rally Motorcycles

DIY Motorcycle Blind Spot Radar Installation

The LBC Moto blind spot detection system is supplied with mounting accessories for convenient installation. The warning lights can be positioned near the motorcycle's rearview mirror area using the supplied adhesive mounting stickers.

The system is designed for riders who want to add a motorcycle blind spot warning system without installing large external equipment.

Motorcycle ACC Power Connection

The radar system supports 12V–24V input and converts the power supply to 5V for the system. For motorcycles equipped with a suitable ACC circuit, the positive power connection can be connected to the motorcycle's ACC line and the negative connection to the battery negative terminal.

With an appropriate ACC connection, the system can switch on and off with the motorcycle ignition, helping avoid the need to manually operate the radar system each time you ride.

Important: Electrical installation should be performed carefully according to the motorcycle manufacturer's wiring configuration. If you are unsure about ACC wiring, professional installation is recommended.

Compact 77mm Motorcycle Radar Design

The 77mm motorcycle blind spot radar is designed to provide radar-based rear monitoring while maintaining a compact form factor. It can be integrated into a variety of motorcycle setups without requiring bulky equipment.

Motorcycle Blind Spot Detection System Features

• 77mm compact radar design
• 130° approximate rear detection angle
• Up to approximately 30m rear detection distance
• Relative speed trigger: >10 km/h
• Trigger time: less than approximately 3 seconds
• 12V–24V power input to 5V output
• Waterproof construction
• Separate left and right warning lights
• Radar-based approaching vehicle detection
• Universal motorcycle mounting design
• DIY-friendly adhesive mounting accessories
• ACC power installation support
• Suitable for multiple motorcycle styles

Technical Specifications

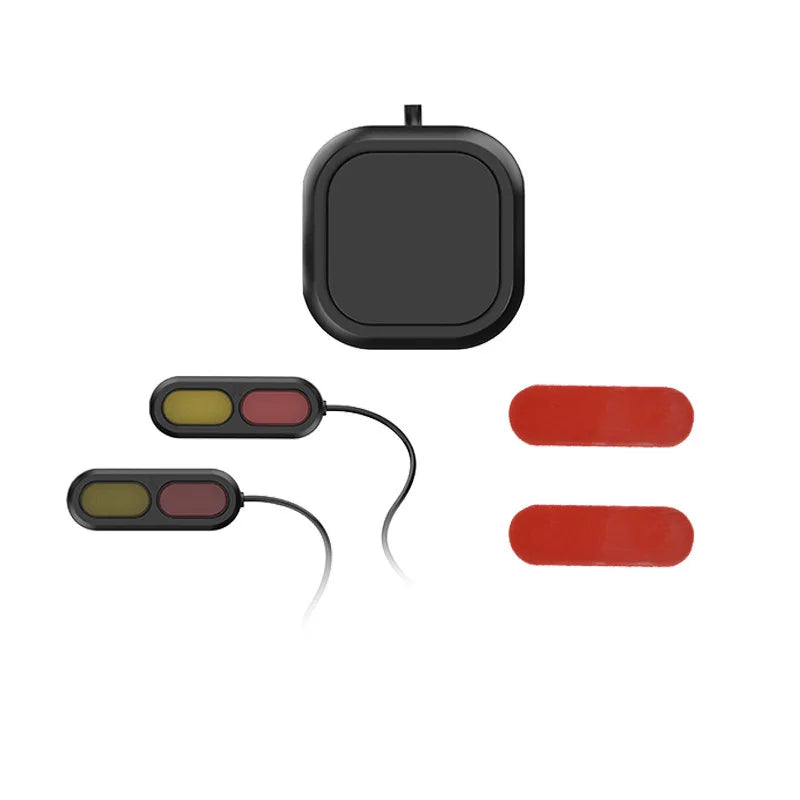

What's Included in the Box

• 1 × Radar Host Unit
• 1 × Host Mounting Bracket
• Host Bracket Adhesive Sticker
• Left/Right Early Warning Lights
• Warning Light Adhesive Stickers
• Nuts and Wrenches
• Power Cable

Why Add a Motorcycle Blind Spot Radar?

Blind spots are a common visibility challenge for motorcycle riders, particularly when changing lanes or merging into traffic. The LBC Moto 77mm Motorcycle Blind Spot Detection Radar adds an electronic detection layer to your existing mirrors and visual checks.

With wide-angle rear monitoring, approximately 30-meter detection coverage, left and right warning indicators, and waterproof construction, it is designed for riders looking for additional motorcycle safety technology and improved awareness of surrounding traffic.

Compatible With Multiple Motorcycle Types

This motorcycle radar blind spot monitoring system is suitable for a wide range of motorcycle applications, including sport bikes, street bikes, scooters, cruisers, touring motorcycles, vintage motorcycles, adventure bikes, rally motorcycles, and off-road motorcycles.

Important Safety Information

This product is an assistance and warning device and should not replace motorcycle mirrors, shoulder checks, safe lane-changing practices, or the rider's direct observation of traffic. Radar detection performance can vary depending on vehicle position, speed, road conditions, installation position, surrounding objects, weather, and other environmental factors.

Always check mirrors and blind spots directly before changing lanes or merging, maintain a safe distance from other vehicles, and follow applicable traffic laws and riding practices.

Installation Figure
