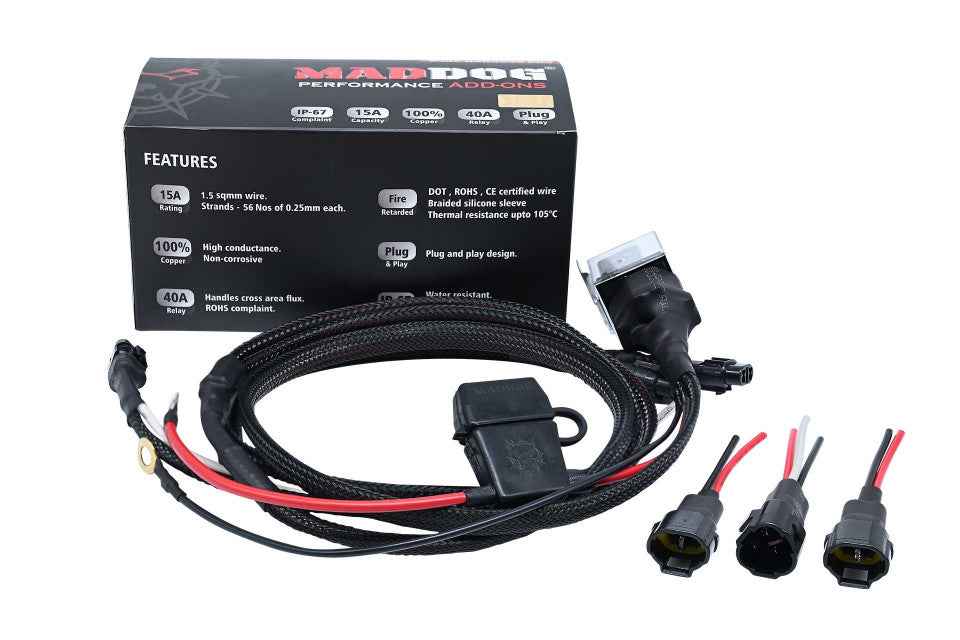

Maddog Wire Harness Pro
Maddog Wire Harness Pro
Maddog
SKU:GF001312
Couldn't load pickup availability
- With Bill
- Fast Shipping
- Safe Packing

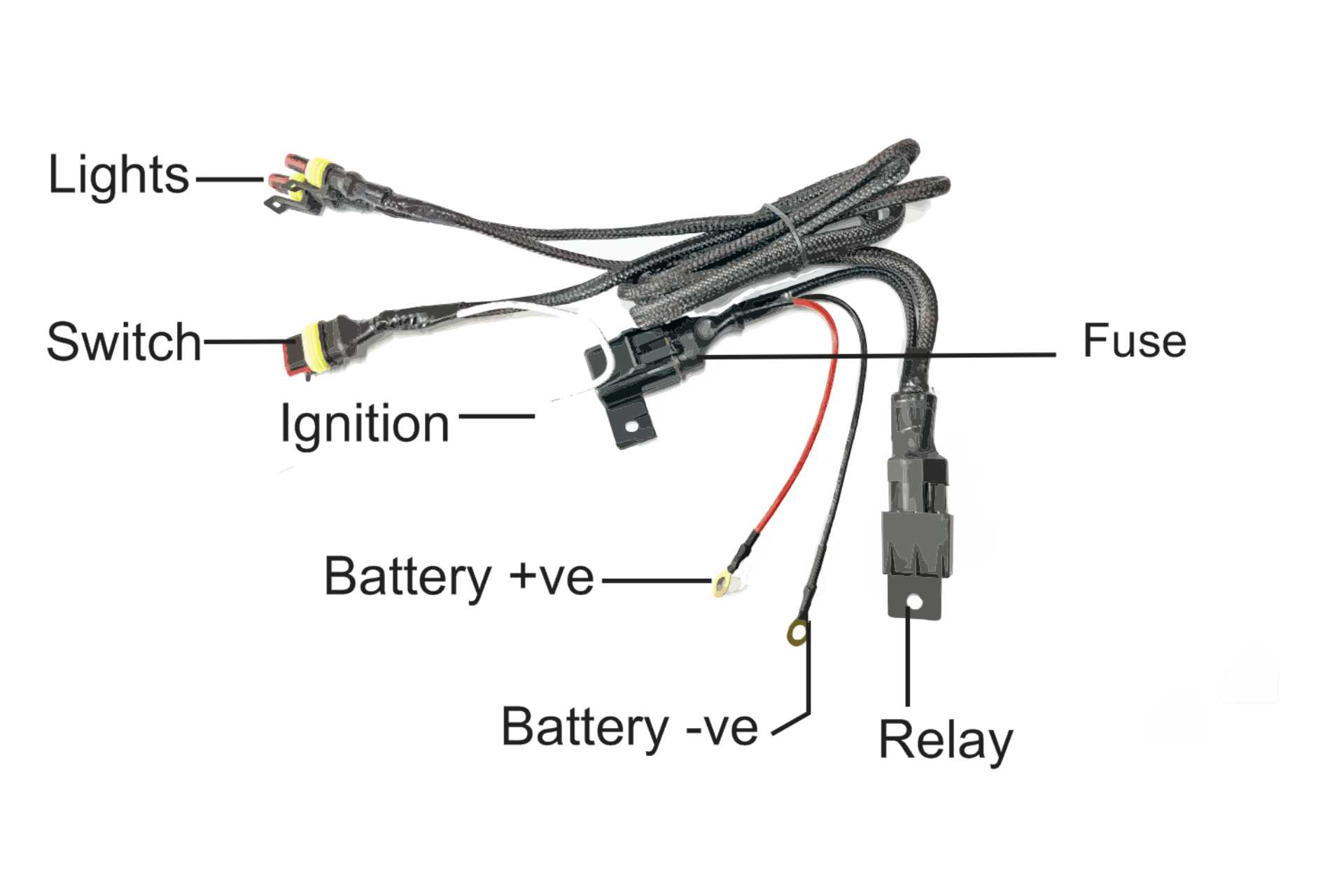

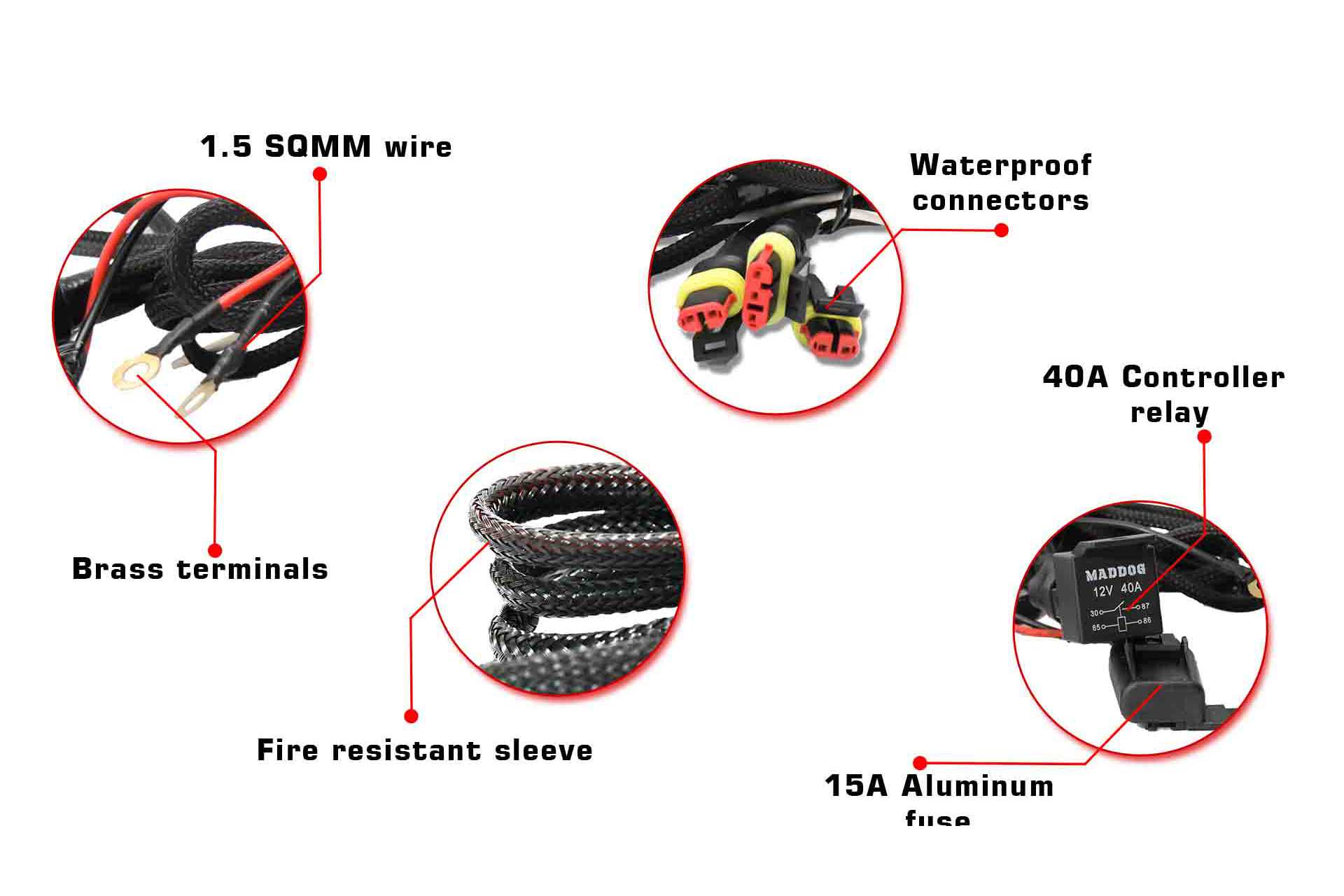

Our Pro Wiring Harness features high-quality waterProof connectors and other components ,is designed to power ANY Auxiliary Light upto 15Amps / 150Watts .

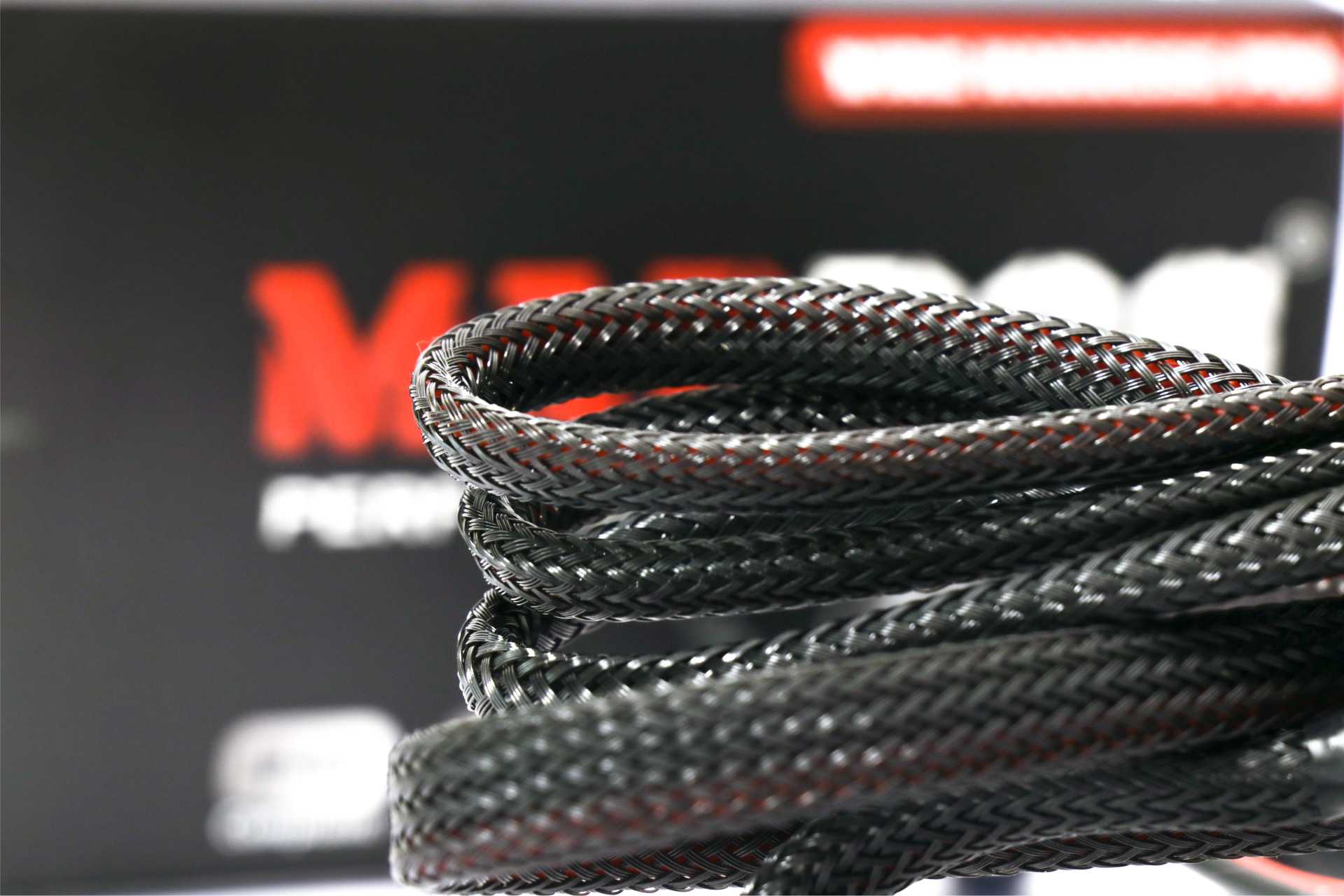

Braided mess sleeve for rugged production from dust, heat and harsh weather.
1.5 Sqmm Automotive class wiring.
100% pure Copper Wire.
Specifications
Wire Thickness : 1.5 Sqmm
Wire Capacity : 0 - 18A (Max)
Fuse : 15 A
Relay : 40 A
Outer : Braided sleeve
Operating Voltage : DC 9-32V
Operating Temp : -10°C to +50°C
Life-span : Upto 5 Years
Total Length : 1.5 M
IP Rating : IP-67 Certified
Terminals : Copper / Tin copper
Terms & Conditions
Product once sold will not be returned or replaced unless it has manufacturing defects.
The product has a 18-Month limited time warranty period.
The product will be replaced only if there are any manufacturing defects recognized by the manufacturer's technical team.
Warranty will be void IF:
- The serial umber is tampered or damaged or removed.
- Improper installation.
- Installation on incompatible vehicle without necessary clamp.
- Wiring harness is damaged or connecting the plug/wire to a AC power connection.
- Any physical damage.
- Seal tampering.
