Pro-spec Easy Clutch for TVS Apache RR 310 - EC Pro Plus - EC 235

Pro-spec Easy Clutch for TVS Apache RR 310 - EC Pro Plus - EC 235

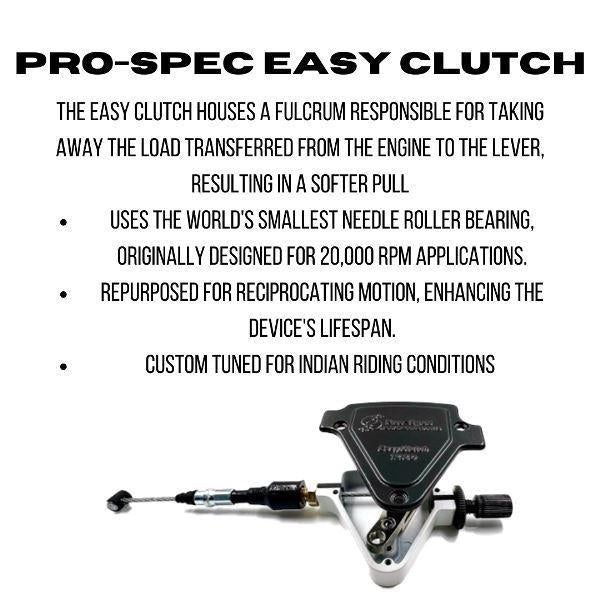

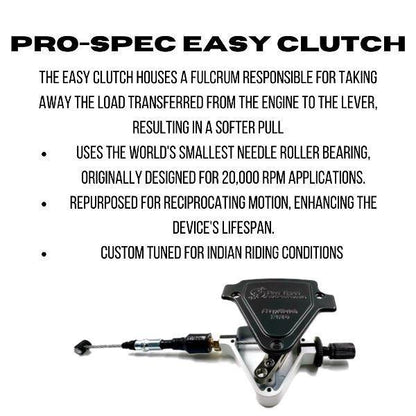

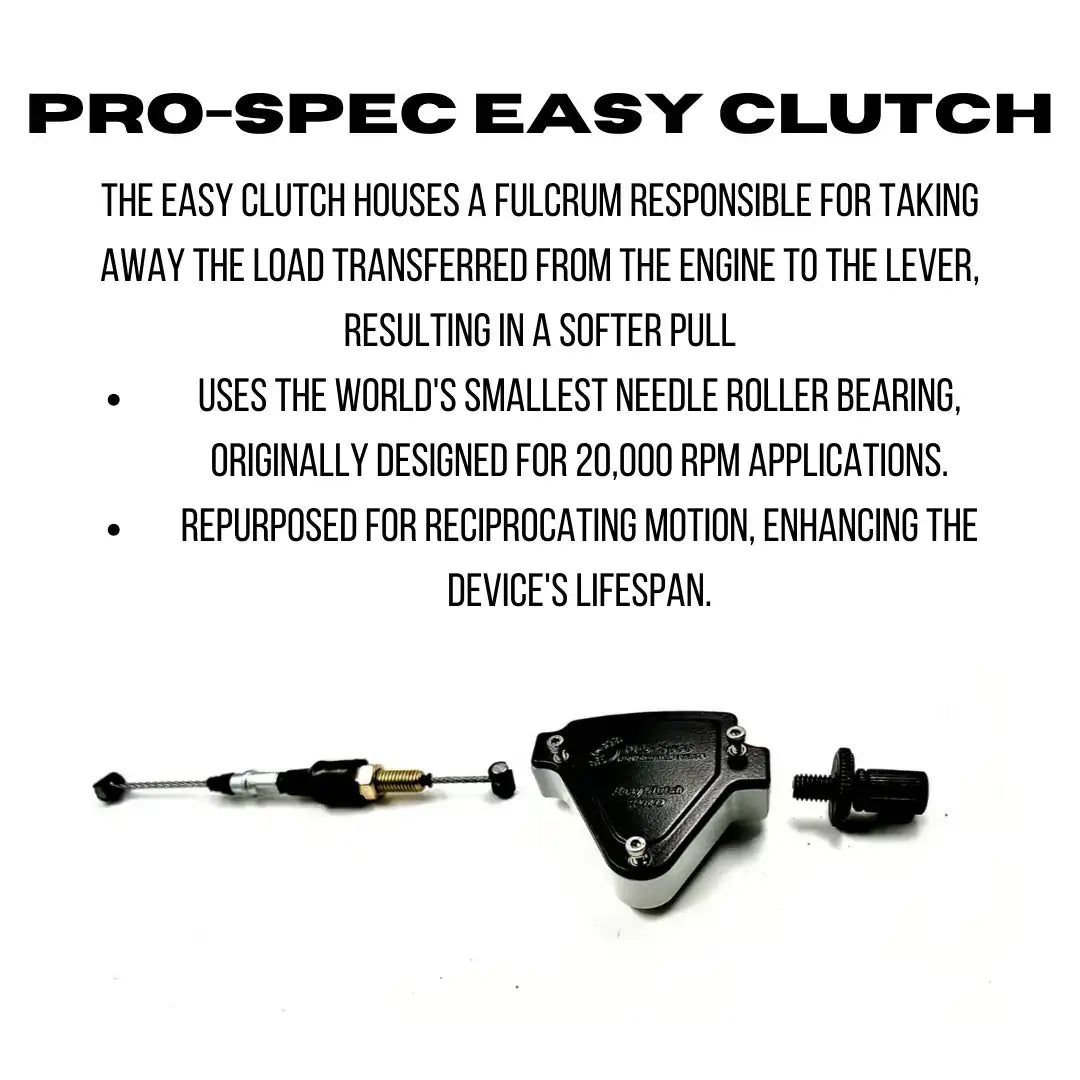

The Pro-Spec Easy Clutch Pro Plus (EC Pro Plus - EC 235) is designed to significantly reduce clutch lever effort by up to 40%, helping improve comfort and reduce hand fatigue during daily commuting, traffic-heavy riding and long journeys. It is designed for the TVS Apache RR 310 and compatible BMW G and F Series motorcycles.

Constructed using aerospace-grade aluminum, the Easy Clutch Pro Plus combines strength, durability and lightweight performance. Its design is custom-tuned for Indian riding conditions while maintaining international quality standards, providing smoother clutch operation and more comfortable gear shifting.

Features

• Up to 40% Reduced Clutch Effort: Helps make clutch operation lighter and more comfortable.
• Aerospace-Grade Aluminum: Durable and lightweight housing designed for long-term use.
• Corrosion Resistant: Aluminum construction provides resistance against corrosion.
• Custom-Tuned Design: Engineered for Indian road and riding conditions.
• Smoother Gear Shifts: Helps reduce hand fatigue and improves clutch operation in urban traffic.
• Plug-and-Play Design: Designed to work with factory-fit clutch systems.

Product Specifications

Product: Pro-Spec Easy Clutch Pro Plus

Model: EC Pro Plus - EC 235

Type: Mechanical Clutch Assist System

Clutch Effort Reduction: Up to 40%

Construction: Aerospace-Grade Aluminum Housing

Application: Compatible TVS and BMW motorcycles

Motorcycle Compatibility

• TVS Apache RR 310
• BMW G 310 RR
• BMW G 310 R
• BMW G 310 GS
• BMW F 850 GS
• BMW F 750 GS
• BMW F 900 XR
• BMW F 900 R

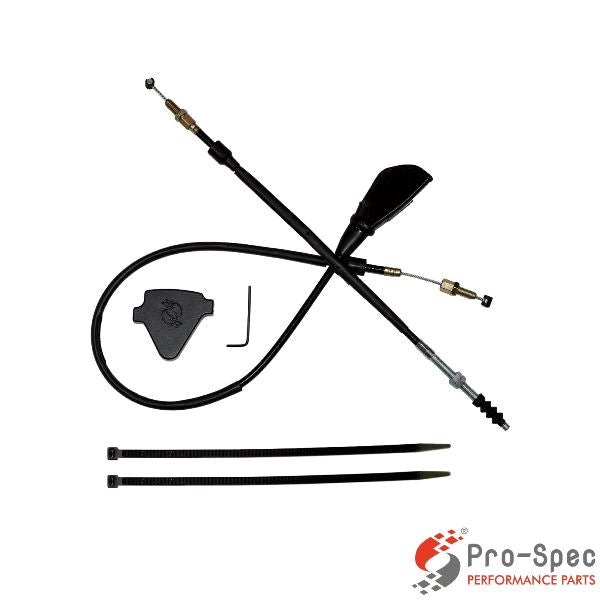

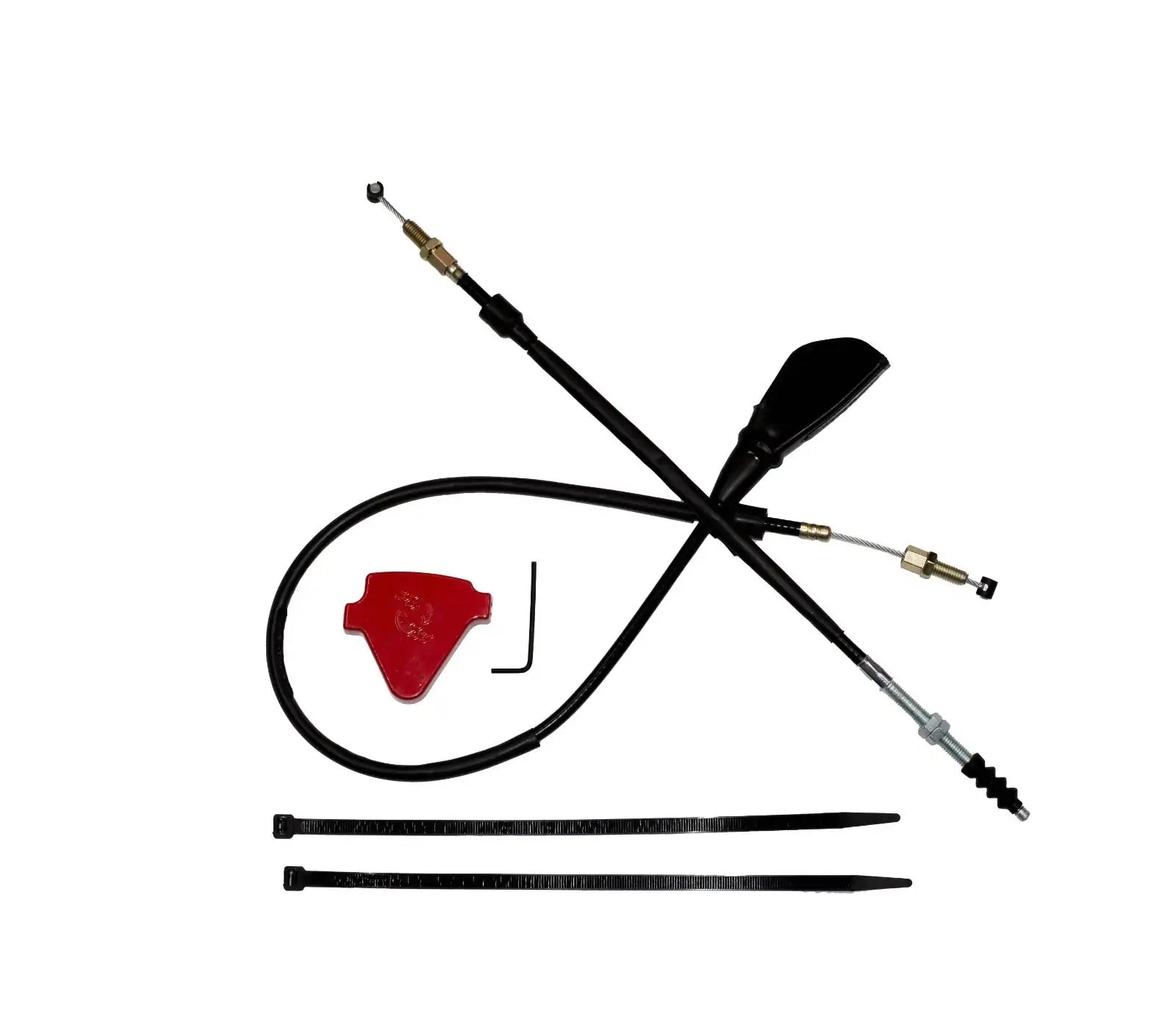

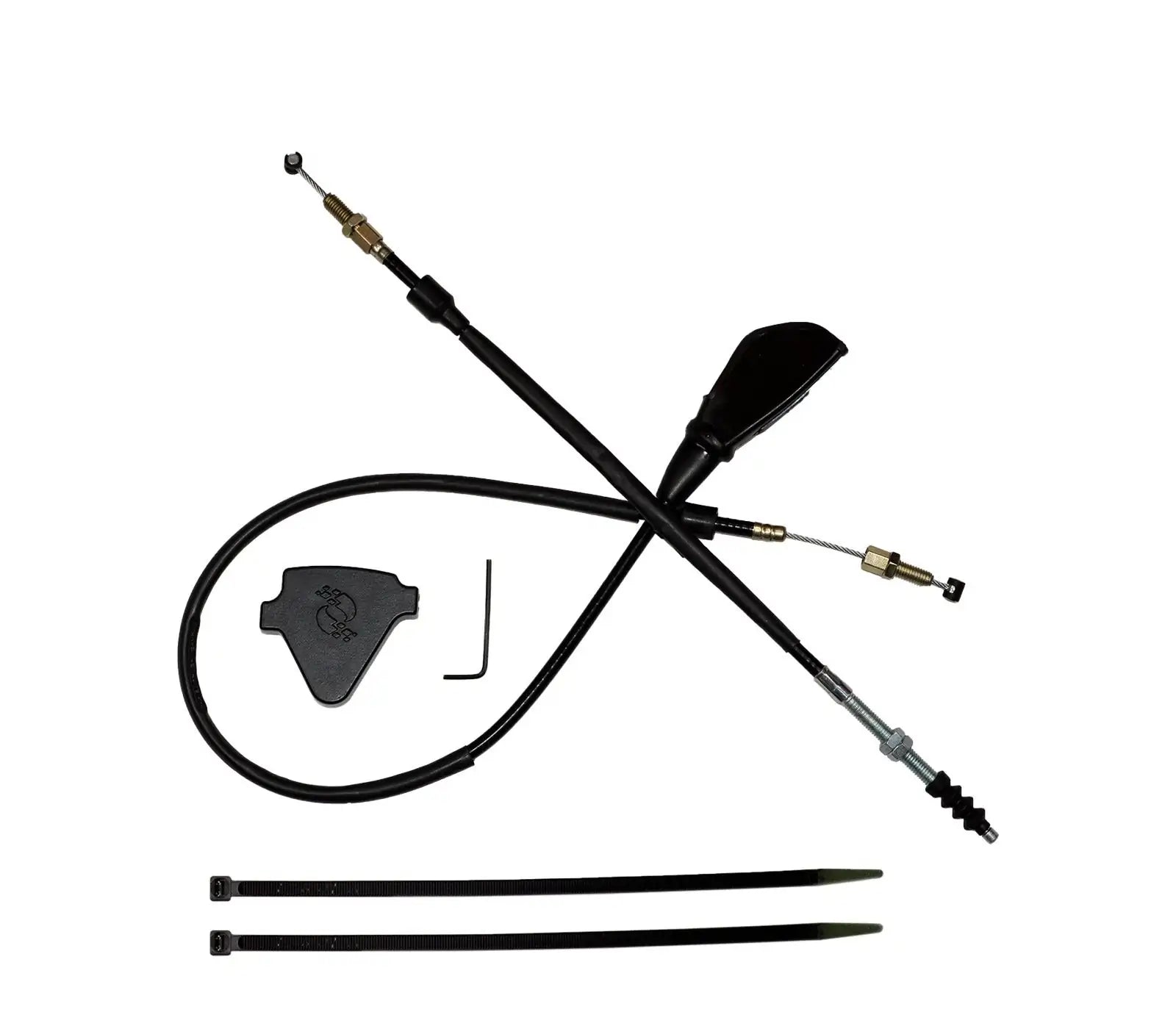

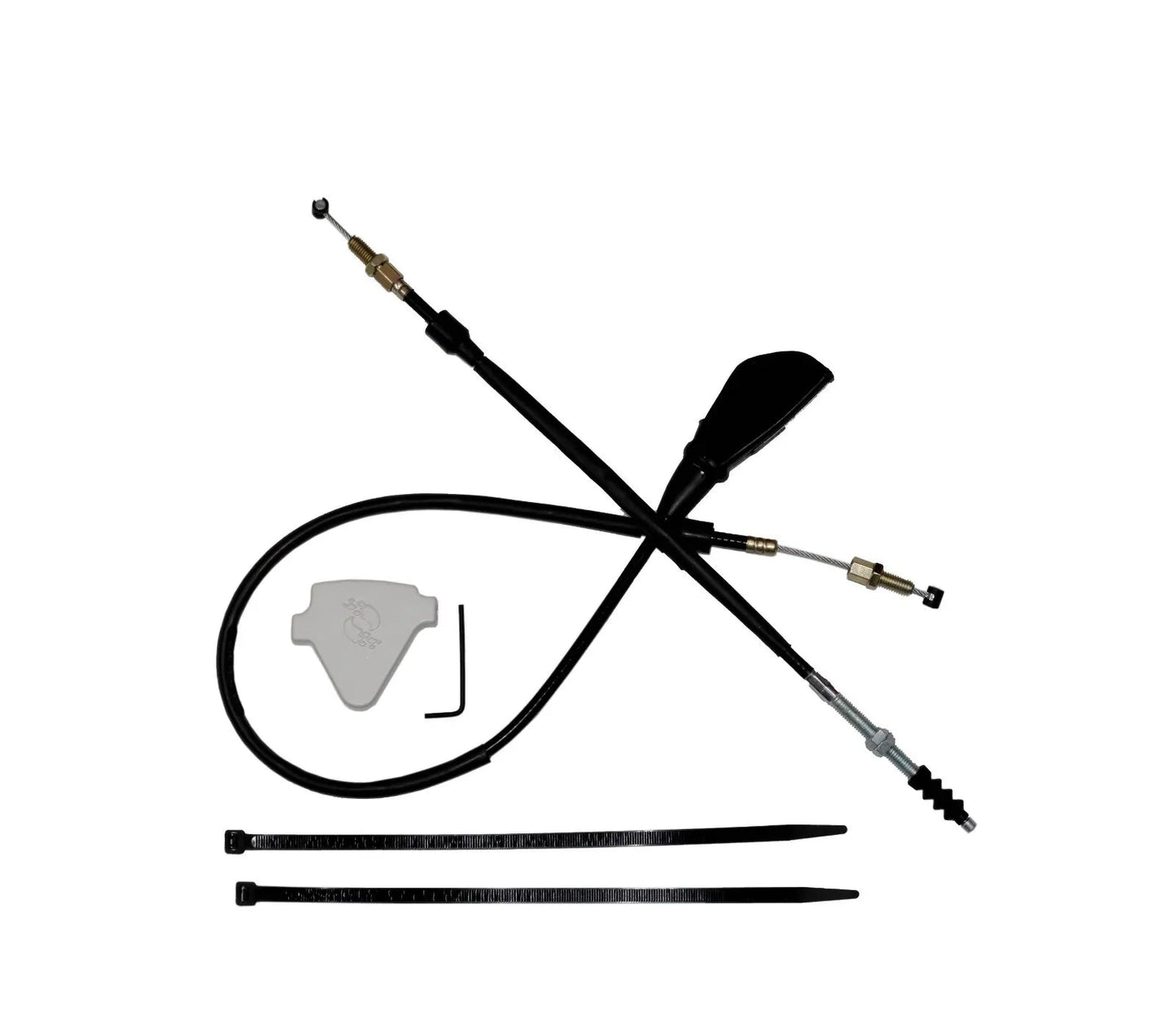

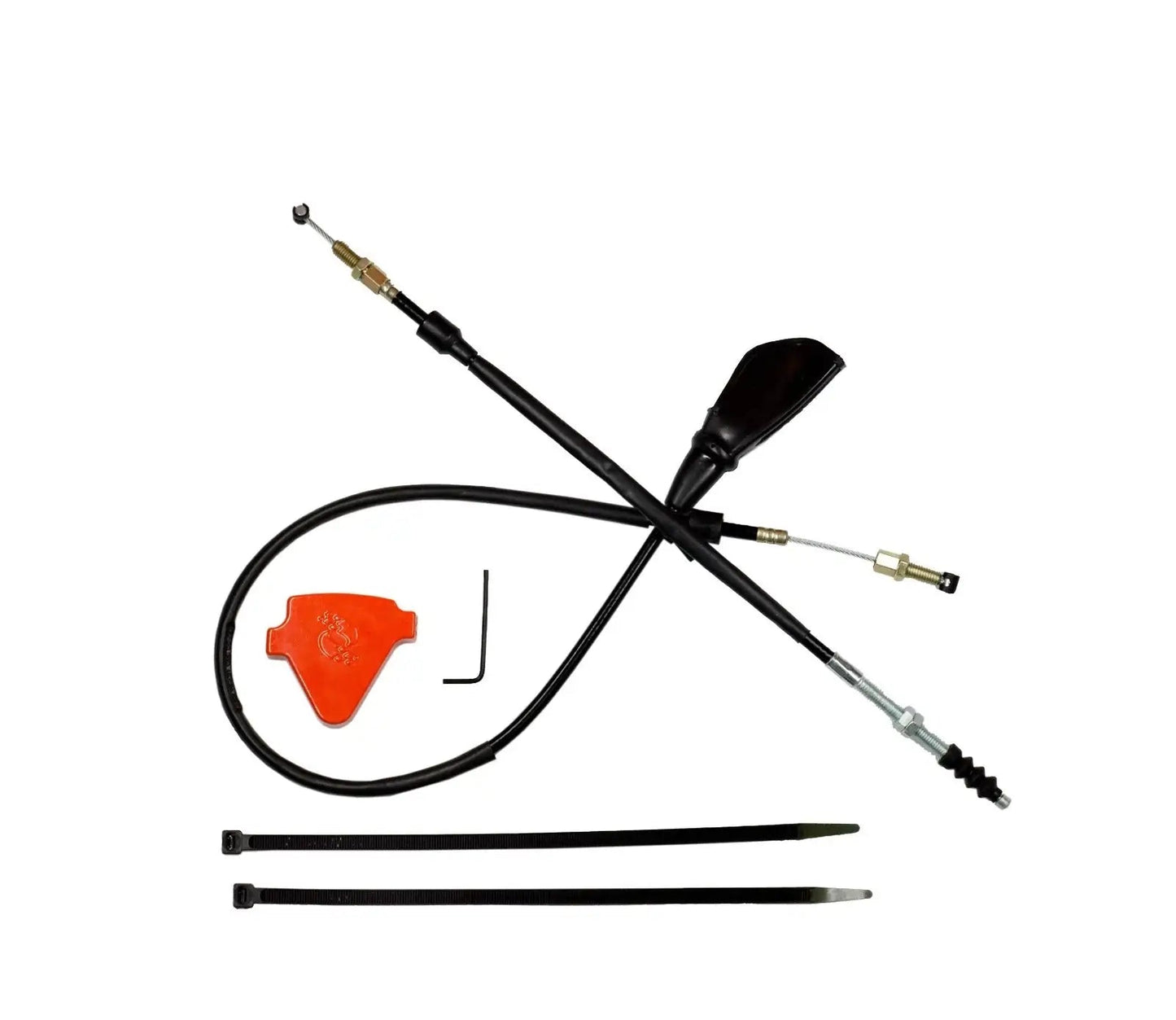

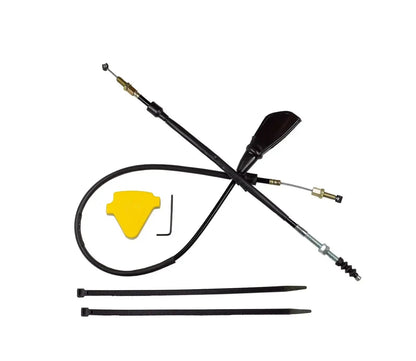

Package Includes

• Aluminum Housing with Cover – Part No. PS EC 200-1 – Qty: 1
• SS Allen Cap Screws (3 x 8) – Part No. PS SSACS 0308 – Qty: 3
• Hardened Pin, Teflon Washer, Long Fulcrum and Bearing – Part No. PS EC BO 200-1/3/4/6 – Qty: 1 Set
• Spring Washer (3 mm) – Part No. PS SS SW 03 – Qty: 3
• Easy Clutch Long Cable V5 – Part No. PS CLC V5 – Qty: 1 Set
• Dust Boot for Lever End – Part No. PS DB 01 – Qty: 1
• 2.5 mm Allen Key – Part No. PS HTAK 2.5 – Qty: 1
• Cable Ties – Part No. PS EC 200-7 – Qty: 2
• Clutch Plug Adjuster – Part No. PS EC 200-2 – Qty: 1

Installation Instructions

Ensure all components are clean and properly lubricated before installation. Use WD-40 or an equivalent cable lubricant on the OEM clutch cable for optimal performance.

• Remove OEM Clutch Cable: Detach the clutch cable from the clutch lever. Loosen the lock nuts at the engine yoke and remove the cable head.
• Install Easy Clutch Pro Plus: Insert the 2B cable into the engine end by reversing the removal procedure. Route the cable smoothly while avoiding sharp bends or obstructions.
• Connect Clutch Lever: Connect the 2A cable head to the clutch lever by reversing the removal procedure.
• Adjust Release Point: Set the clutch release point to approximately 50% of the clutch lever travel.

Clutch Adjustment

• If the release point is below 40%, thread out the adjusters on either side of the clutch housing.
• If the release point is above 60%, thread in the adjusters.
• Fine-tune the engine-side cable adjuster to position the release point correctly.
• Turning the adjuster in the specified direction can bring the release point closer to or move it away from the grip.

Important Information

Correct clutch free play is essential for proper clutch operation and long-term component life. After installation, always verify the clutch lever free play and adjust it as required.

• Excessive Free Play: May prevent the clutch from fully disengaging, potentially causing hard gear shifts or difficulty selecting neutral.
• Insufficient Free Play: May prevent the clutch from fully engaging, potentially causing clutch slippage and reduced clutch longevity.

Ensure the clutch operates smoothly and the release point is correctly adjusted before riding the motorcycle. Professional installation is recommended if you are unsure about cable routing, adjustment or fitment.
