Pro-Spec Easy Clutch Pro for Bajaj Avenger Cruise 220 – EC220

Pro-Spec Easy Clutch Pro for Bajaj Avenger Cruise 220 – EC220

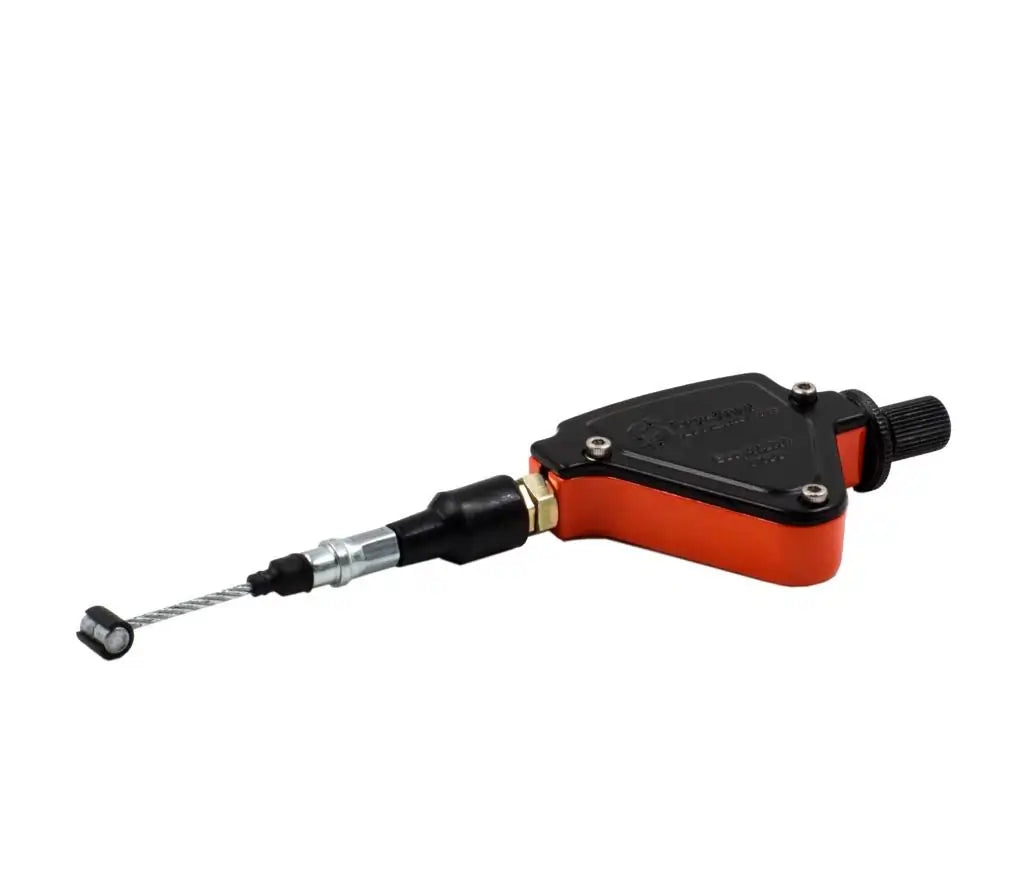

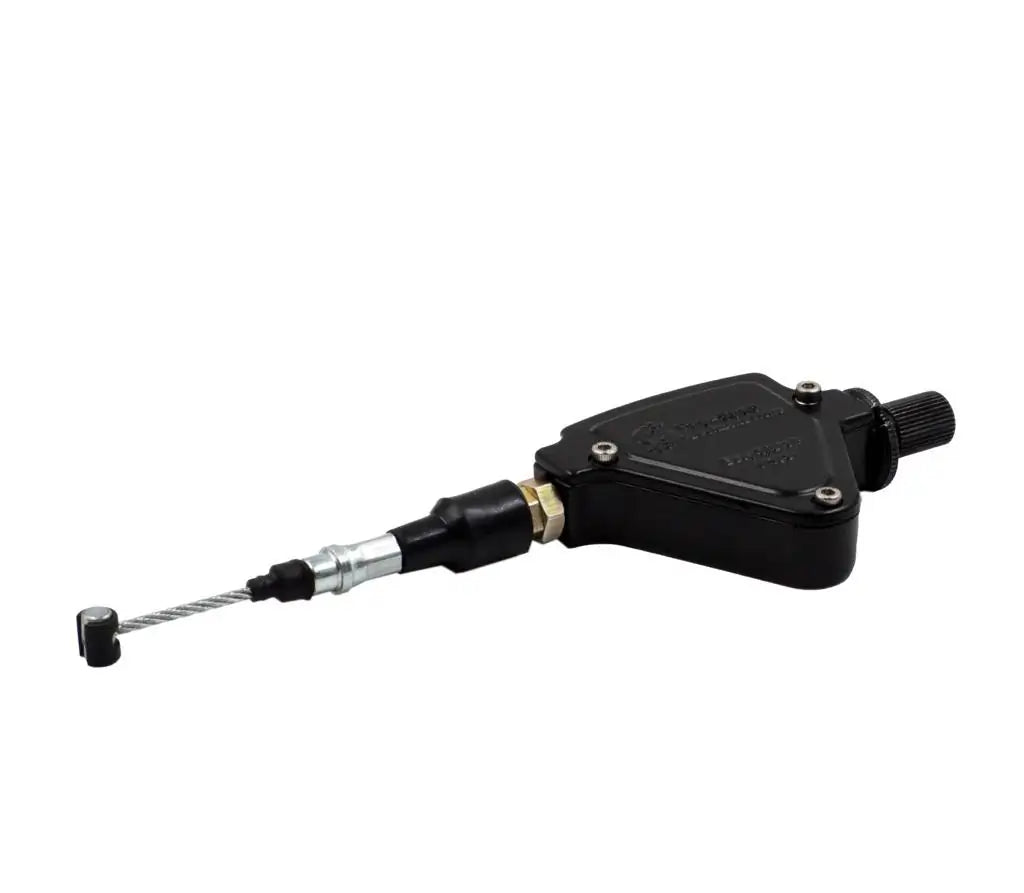

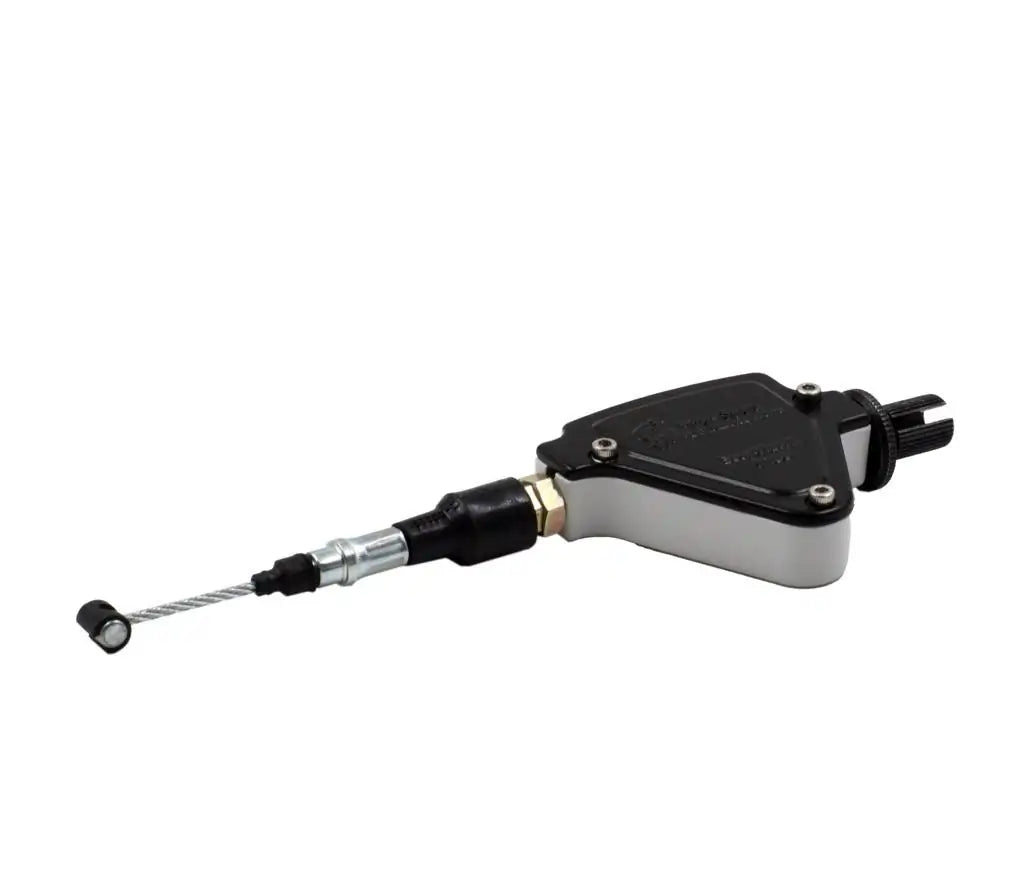

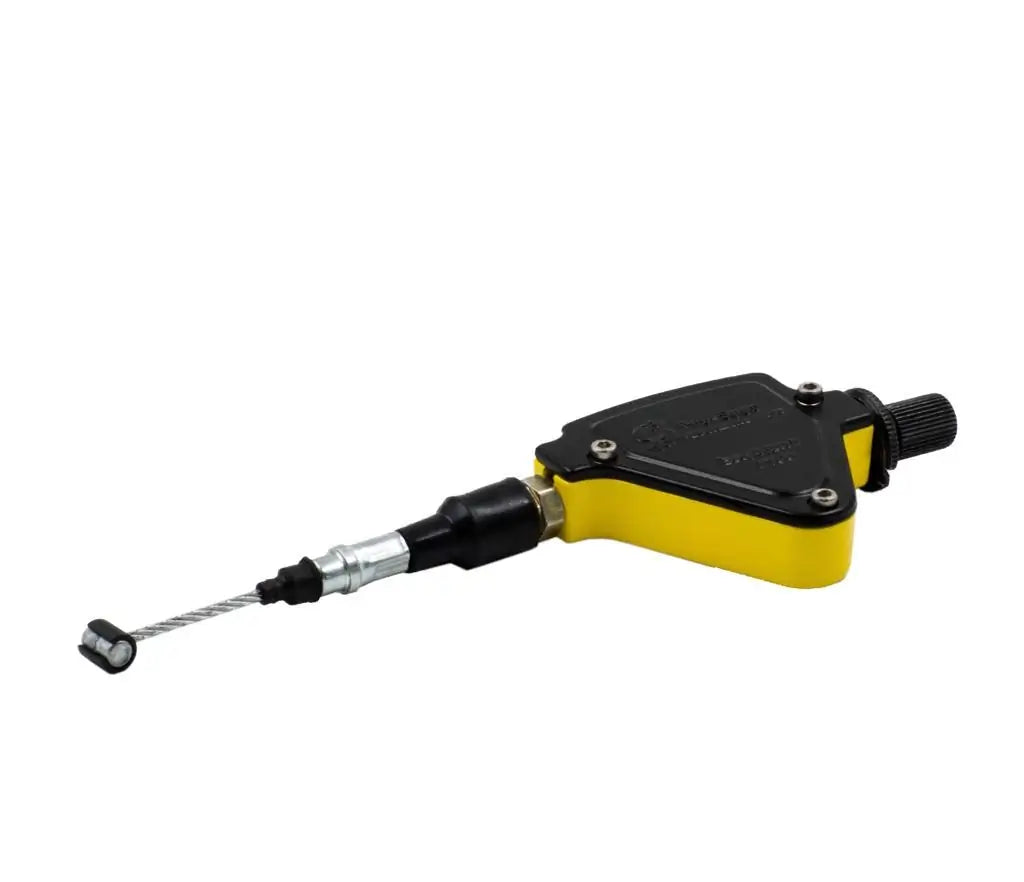

The Pro-Spec Easy Clutch Pro EC220 is a mechanical clutch-assist device designed to make city commuting, gear shifting, and long-distance riding more comfortable. It can reduce clutch effort by up to 40% when applied to the lever, helping reduce hand fatigue in traffic and during extended rides.

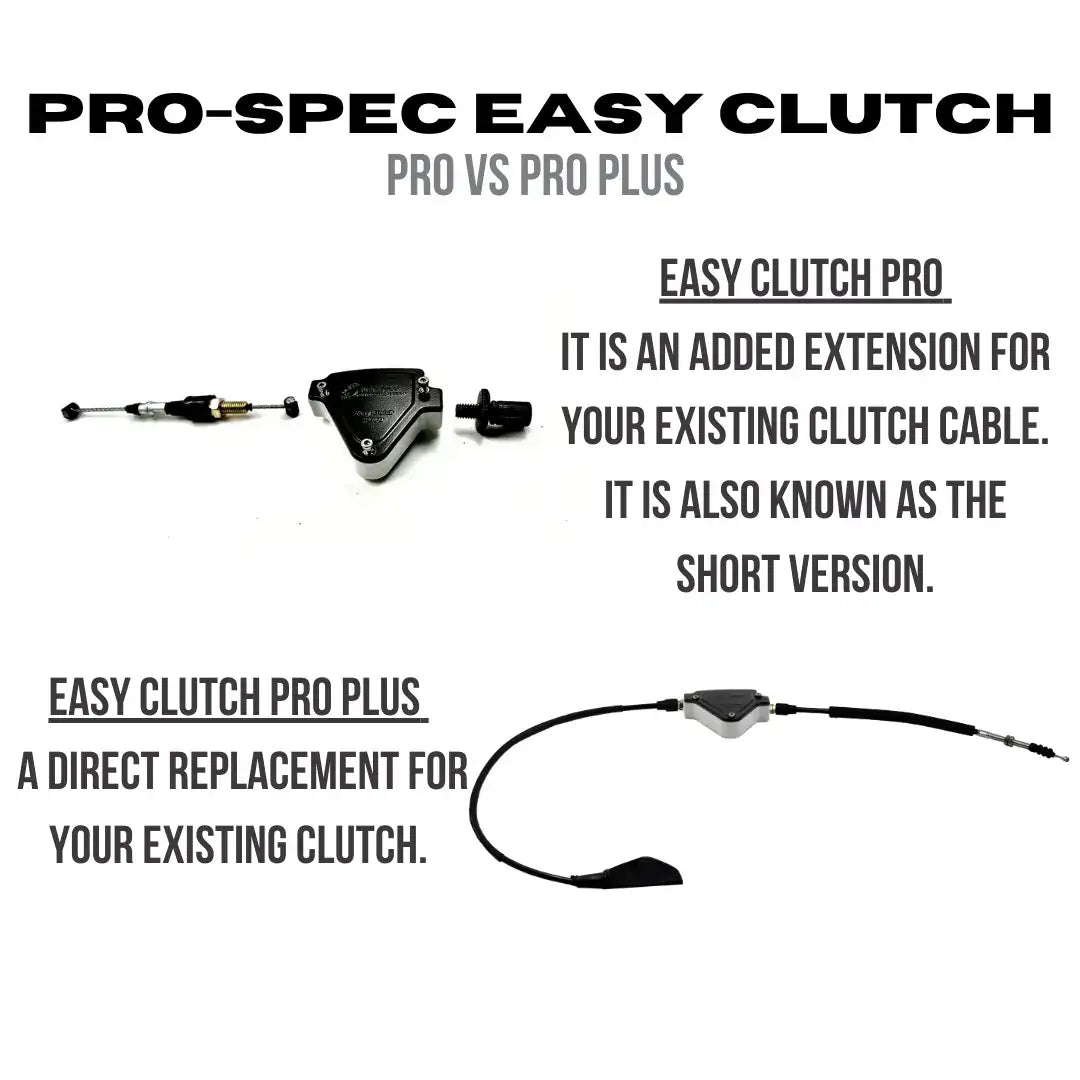

Designed with Indian traffic and riding conditions in mind, the Easy Clutch Pro uses an aerospace-grade aluminum housing and works as an inline extension of the OE clutch cable for smoother and lighter clutch operation.

Key Features

• Aerospace-Grade Aluminum: Durable housing designed for reliable performance.
• Reduced Clutch Effort: Reduces clutch lever effort by up to 40% when properly installed and adjusted.
• Universal Fitment: Compatible with a wide range of motorcycle models listed below.
• Custom-Tuned: Designed with Indian road and riding conditions in mind.
• Mechanical Operation: Works as a simple mechanical extension of the OE clutch cable.
• Global Standards: Designed to conform to global standards.

Kit Contents

• Aluminum Housing (PS EC 200-1): 1 No
• Allen Screws + Washers (PS SSACS 0308, PS SS SW 03): 3 Nos

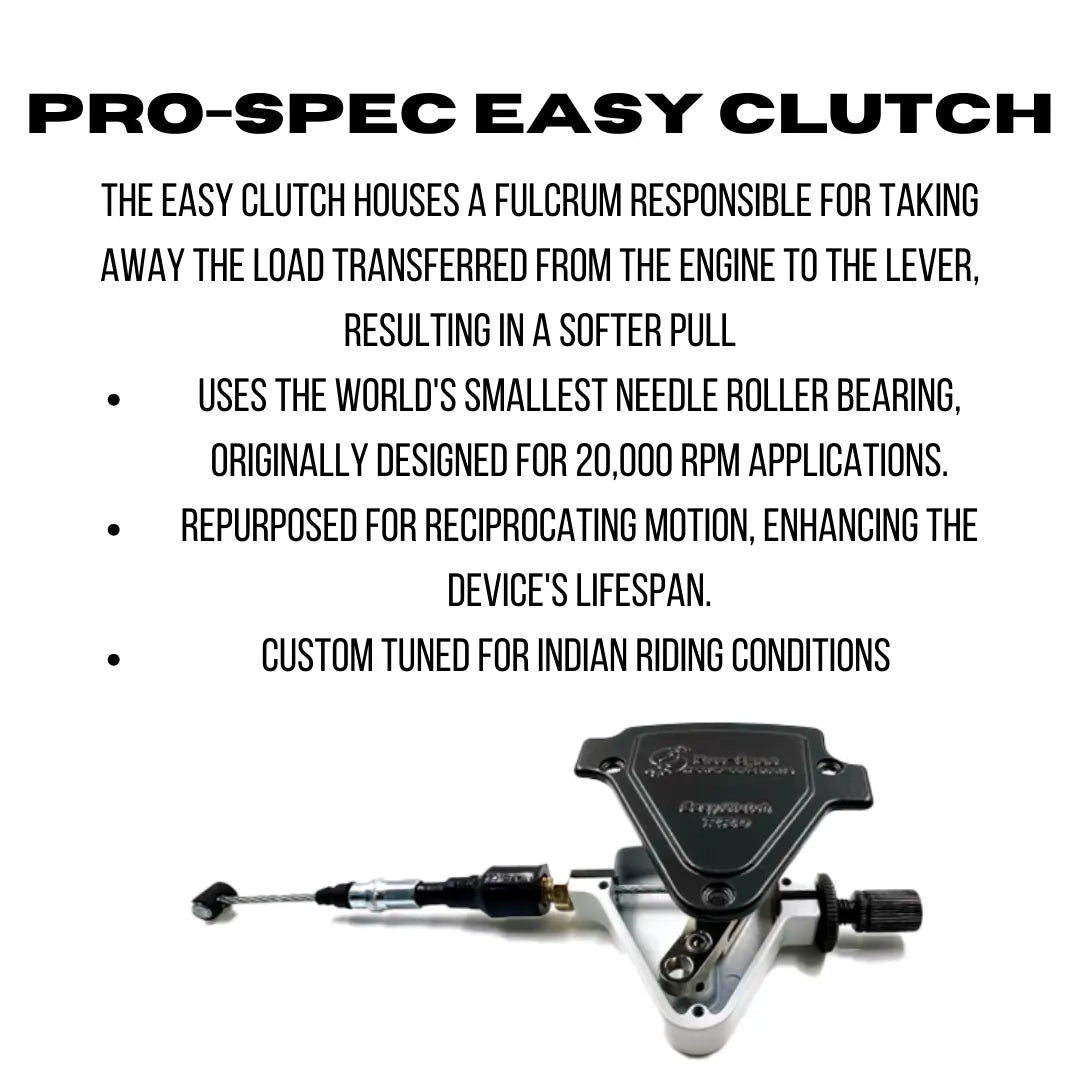

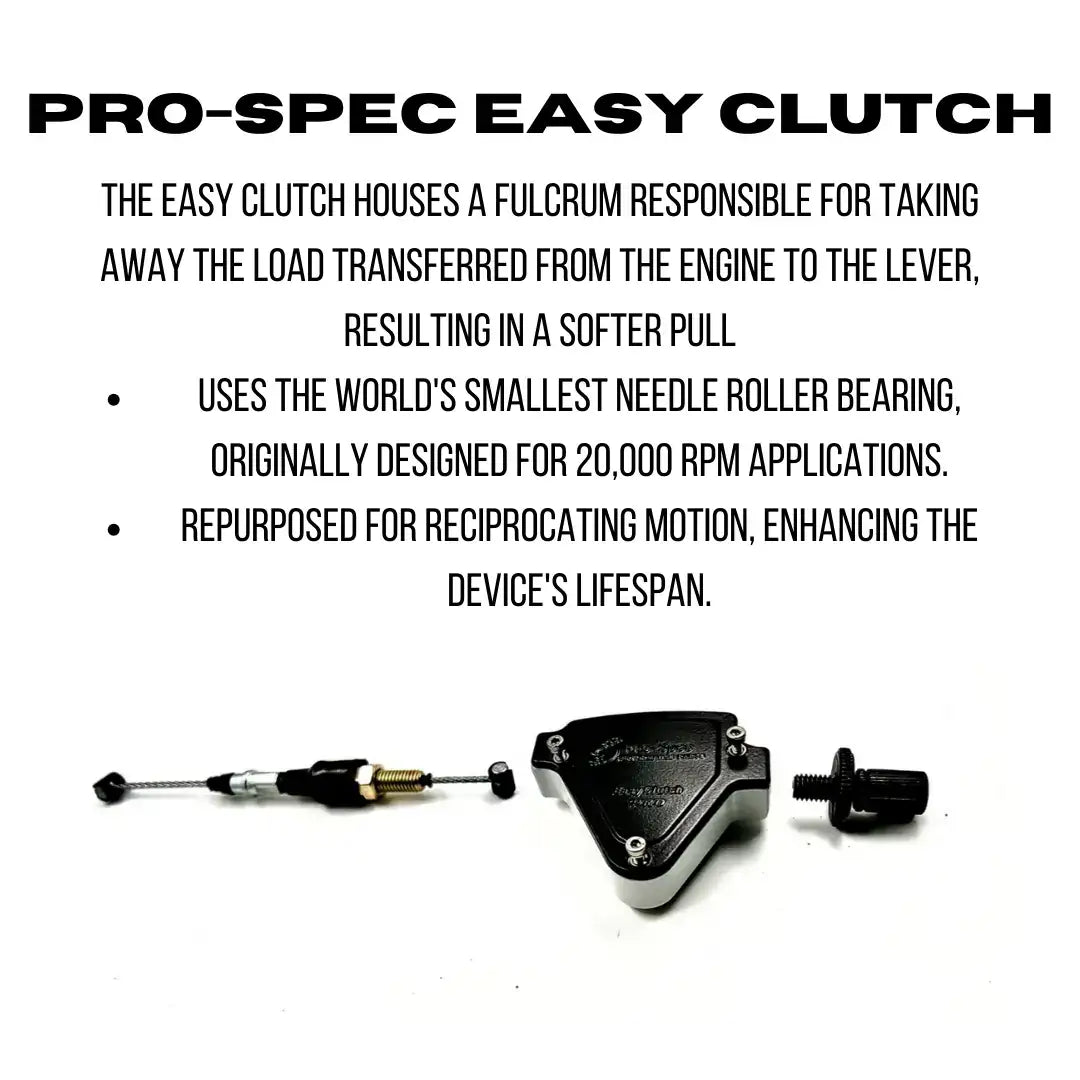

• Fulcrum Assembly including Bearing, Washer and Pin (PS EC 200-2/3/4/6): 1 Set
• Easy Clutch Short Cable (PS AFG-CLC-00219): 1 No
• Dust Boot (PS EC BO 01): 1 No
• Cable Tie (PS EC 200-7): 1 No
• Cable Adjuster (PS EC BO 200-8): 1 No
• 2.5 mm Allen Key (PS HTAK 2.5): 1 No

Installation Instructions

• Remove the OE clutch cable from the lever and loosen the engine yoke adjuster to free the cable.
• Disassemble the Pro-Spec housing by removing the three screws.
• Insert the OE clutch cable head into the fulcrum inside the housing.
• Connect the Pro-Spec short cable to the other side of the housing.

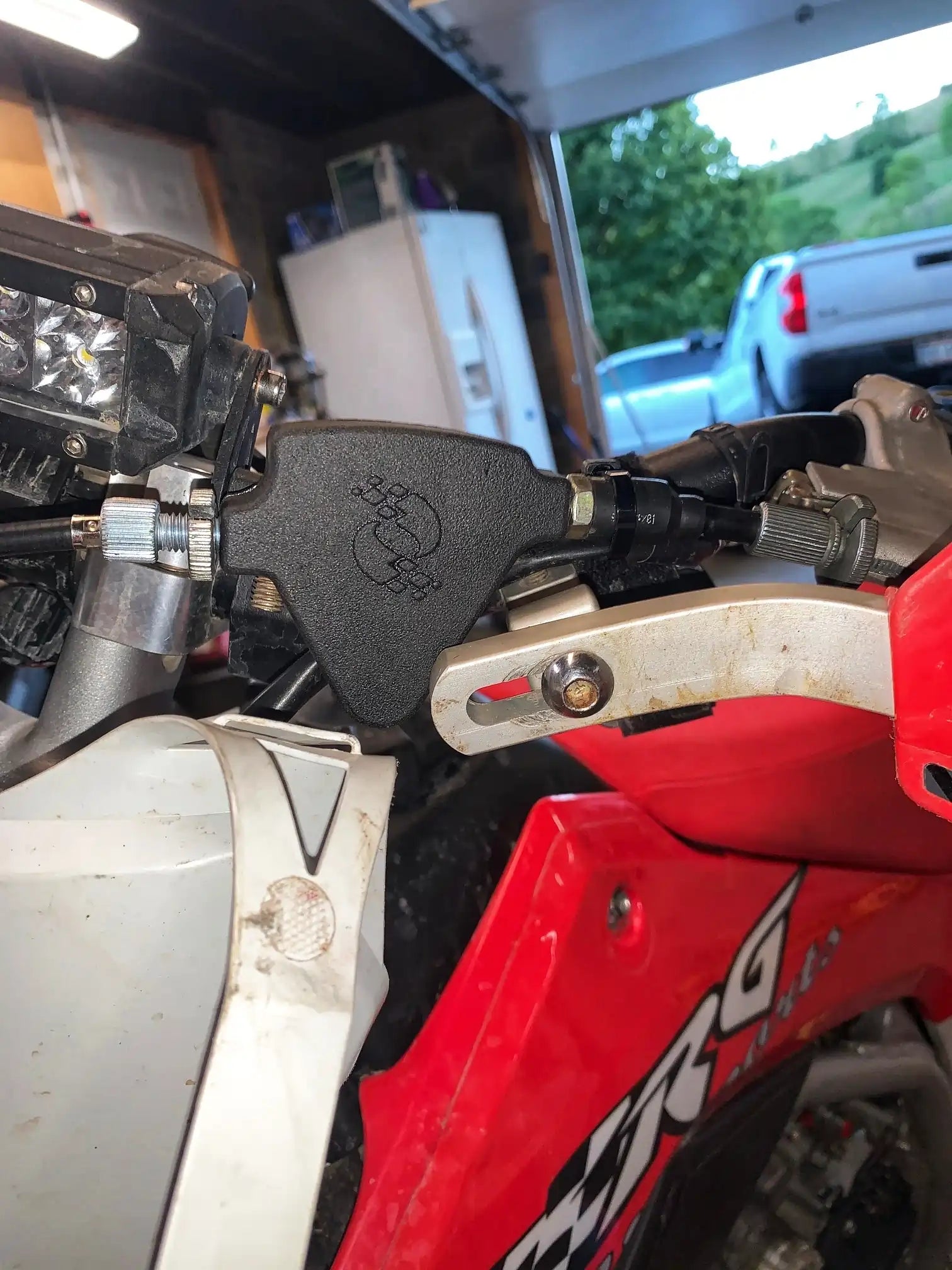

• Fit the short cable to the clutch lever and position the dust boot correctly.
• Secure and reassemble the housing using the supplied screws.

Adjustment Guidelines

Adjust the clutch release point to approximately 50% of the clutch lever movement.

• If the release point is below 40%: Thread the adjuster OUT.
• If the release point is above 60%: Thread the adjuster IN.
• Engine-Side Yoke Adjustment: Adjust the engine-side yoke as required to fine-tune the release point.
• Adjustment “a”: Moves the release point closer to the grip.
• Adjustment “b”: Moves the release point further from the grip.

Compatible Motorcycles

Bajaj

• Avenger Cruise 220
• Dominar 250
• Dominar 400

Royal Enfield

• Thunderbird
• GT 535
• GT 650 (2018–2022)
• GT 650 (2023+)
• Interceptor 650 (2018–2022)
• Interceptor 650 (2023+)
• Super Meteor 650
• Bear 650

Honda

• CB 200X
• NX 500
• CB 500X

Hero

• Xpulse 200 2V
• Xpulse 200 4V
• Xpulse 200 Rally/Pro

Harley-Davidson

• X440

Jawa

• Forty Two

KTM

• 125 RC
• 200 Duke
• 200 RC
• 250 Adventure
• 390 Duke
• 390 Duke (2023+)
• 390 RC

Kawasaki

• Ninja 300
• Ninja 400
• Ninja 650
• Ninja 650 (2023+)
• Z250
• Z650
• Versys 300
• Versys 650
• Versys 650 (2022+)
• KX 250
• KLX 250

Mahindra

• Mojo

Suzuki

• Gixxer 250
• Gixxer SF 250
• V-Strom 250
• V-Strom 650 XT

TVS

• Ronin 226

Triumph

• Scrambler 400
• Trident 660

Yamaha

• FZ 25
• FZS 25

Yezdi

• Scrambler
• Roadster
• Adventure (AVD)

Important Tips

Ensure the clutch has the correct amount of free play after installation and adjustment.

• Too much free play: The clutch may not disengage properly, resulting in hard shifting and poor neutral engagement.
• Too little free play: The clutch may slip, potentially causing performance loss and premature wear.
• Cable Lubrication: Lubricate the OE clutch cable with WD-40 or suitable cable lubricant for optimal performance.
