Pro-Spec Easy Clutch Pro for Indian Scout Bobber – EC 225

Pro-Spec Easy Clutch Pro for Indian Scout Bobber – EC 225

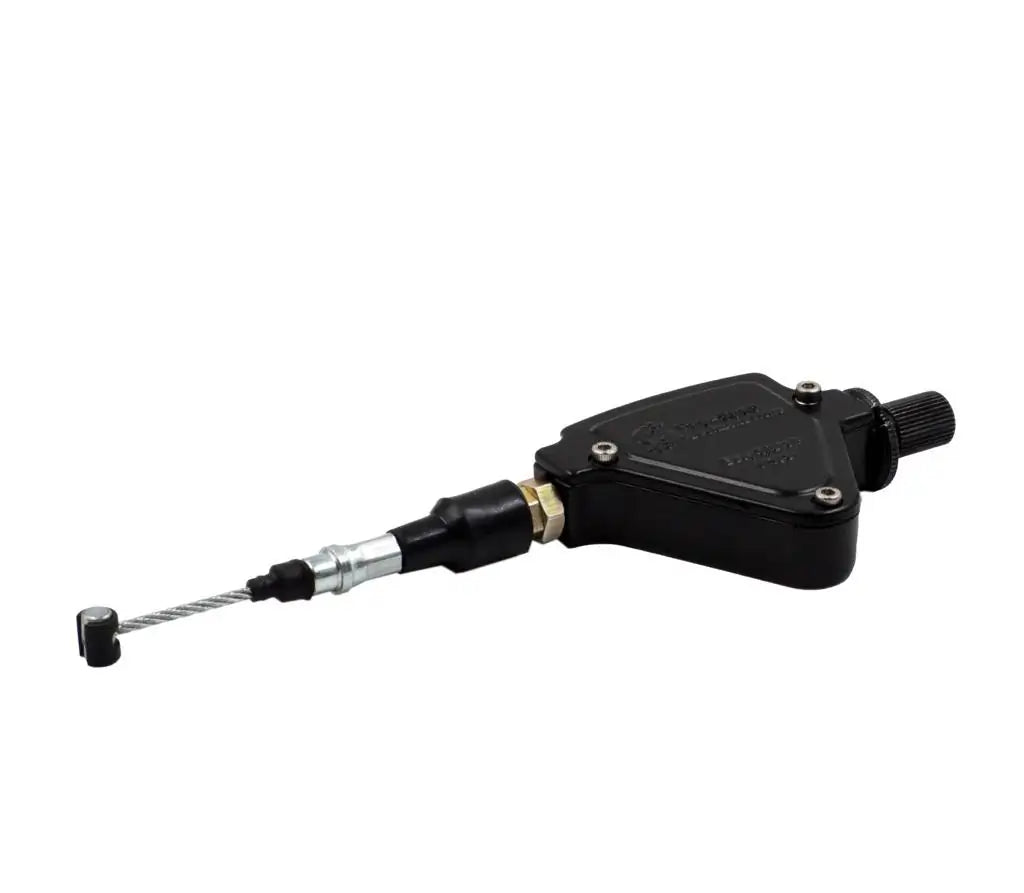

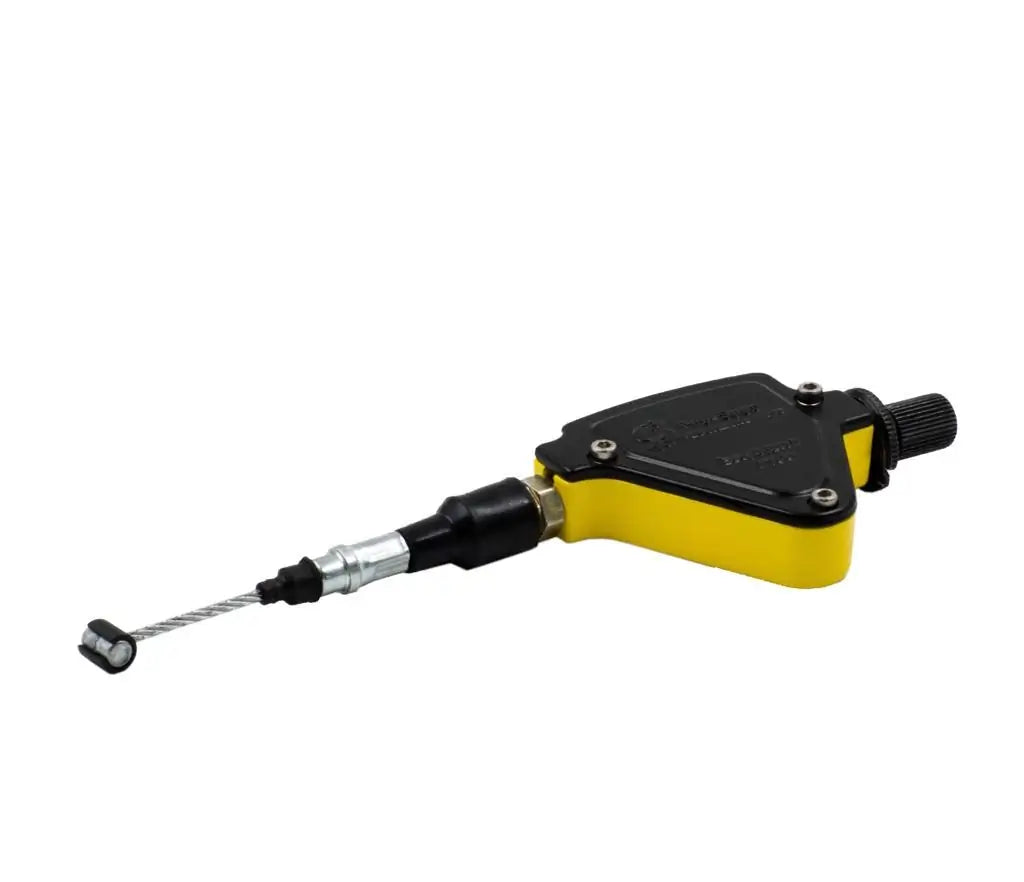

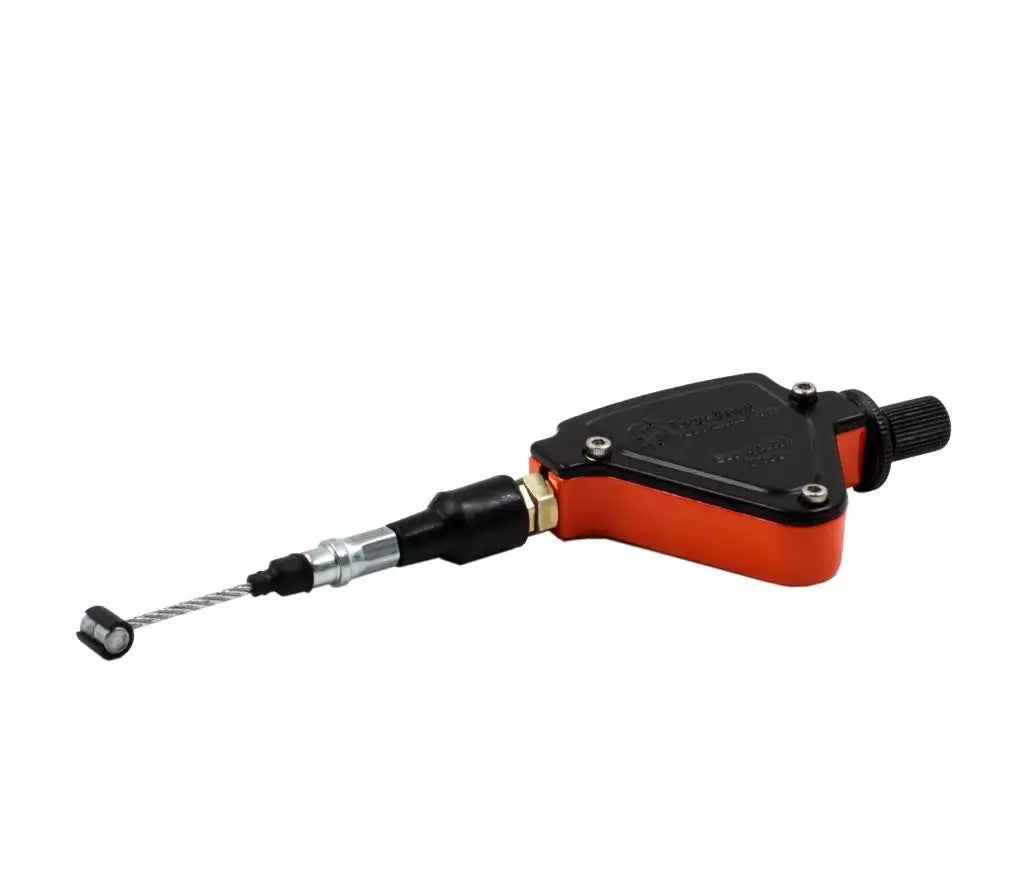

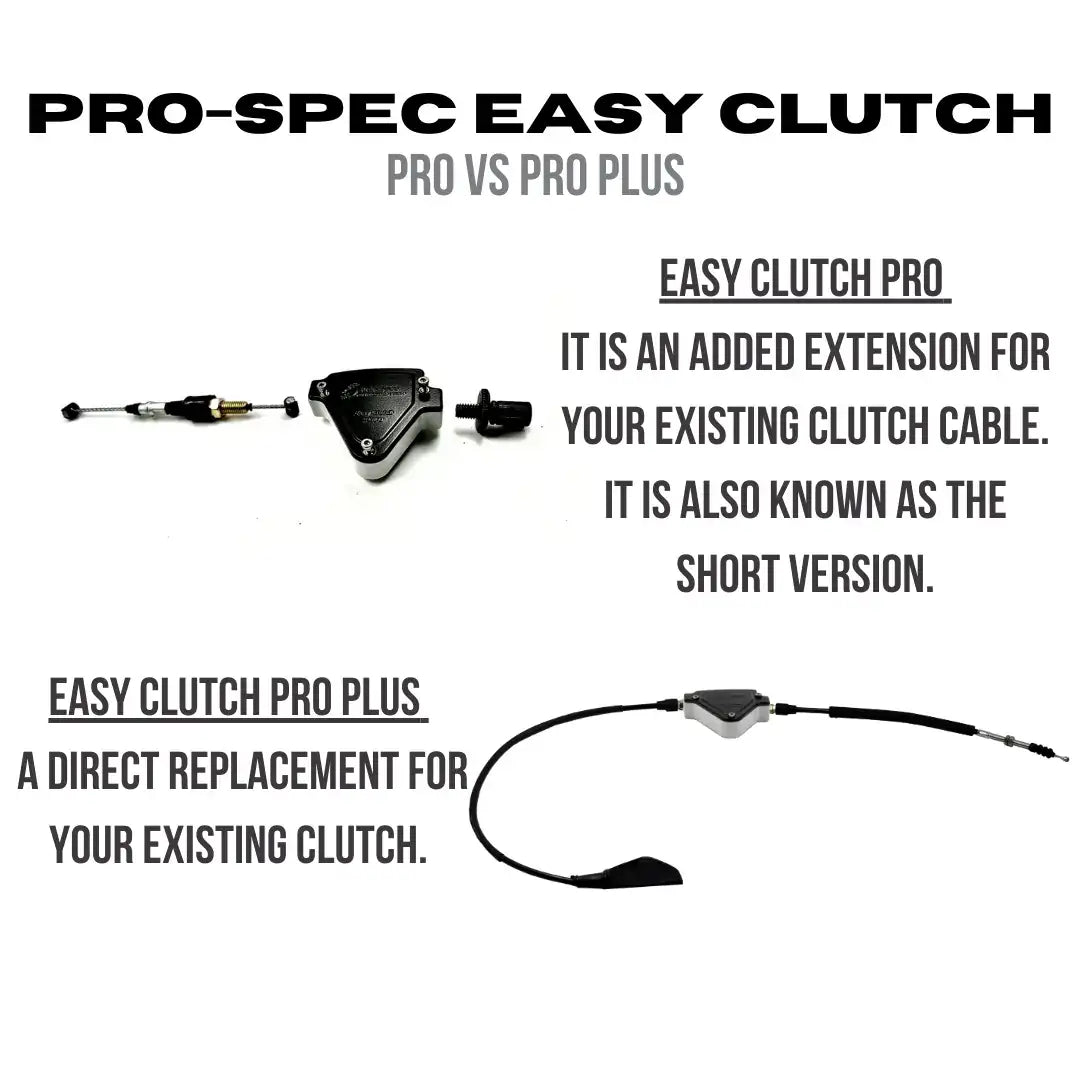

The Pro-Spec Easy Clutch Pro EC 225 is a high-performance mechanical clutch assist system designed to reduce clutch lever effort by up to 40%. It helps reduce hand and wrist fatigue during city commuting, stop-and-go traffic and long-distance touring while providing smoother and more comfortable clutch operation.

Manufactured from aerospace-grade aluminum with precision-engineered internal components, the Easy Clutch Pro combines lightweight construction, durability and reliable performance. It is custom-tuned for Indian riding conditions and designed for motorcycles with cable-operated clutch systems, subject to the compatibility listed below.

Key Features

• Up to 40% Reduction in Clutch Effort: Helps make clutch operation lighter and reduces rider fatigue.
• Plug & Play Fitment: Designed for installation without permanent modifications.
• Lightweight & Durable: Aerospace-grade aluminum construction provides strength with low weight.
• Precision Adjustment: Dual adjusters allow accurate tuning of the clutch release point.
• Custom-Tuned for Indian Roads: Optimized for frequent gear changes, city traffic and mixed riding conditions.

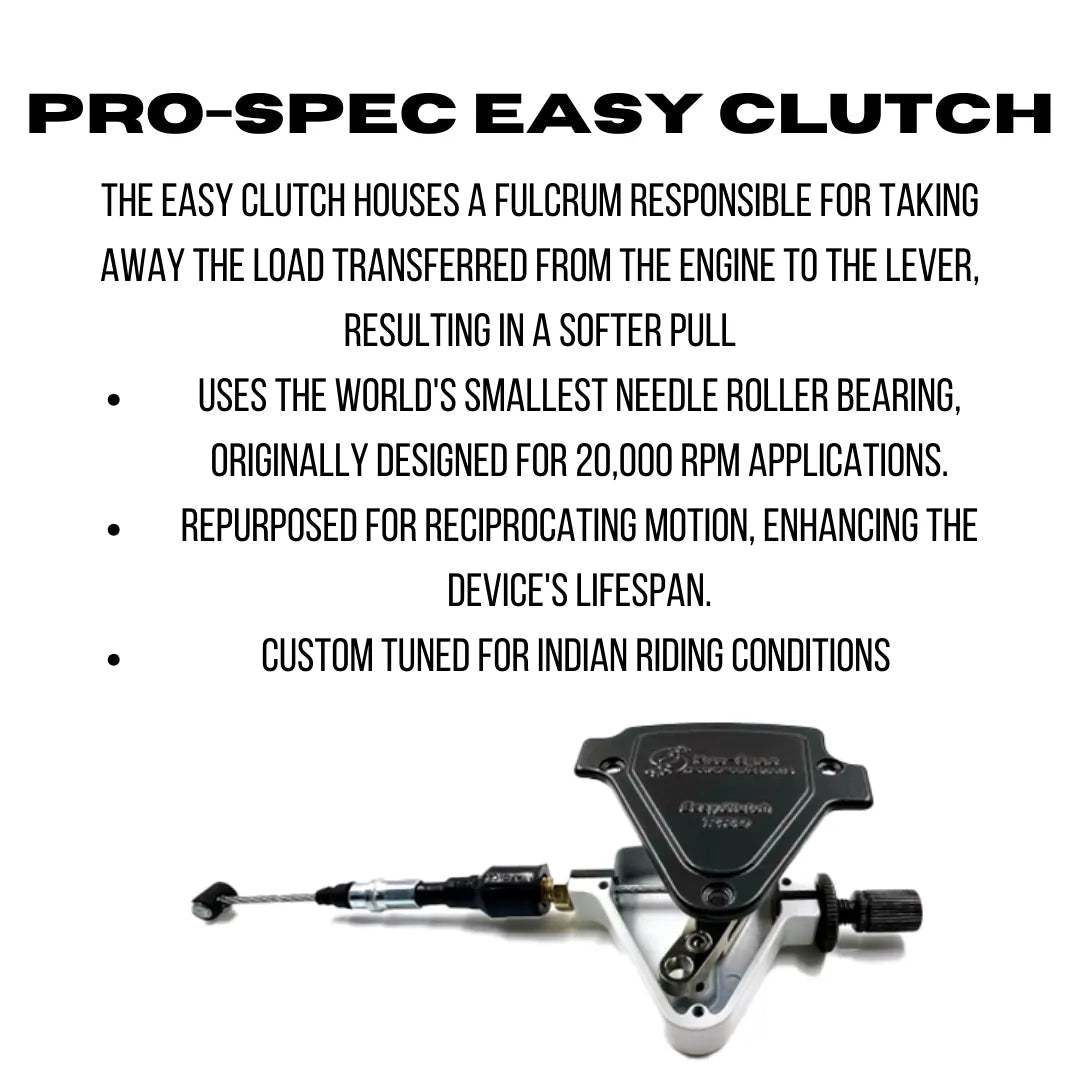

• Premium Internal Mechanism: Includes hardened pins, Teflon washers and bearings for smooth operation.
• Dust Protection: Includes a dust boot to help protect the cable connection from dust and grime.
• Global Quality Standards: Designed and manufactured according to international quality and performance benchmarks.

Product Specifications

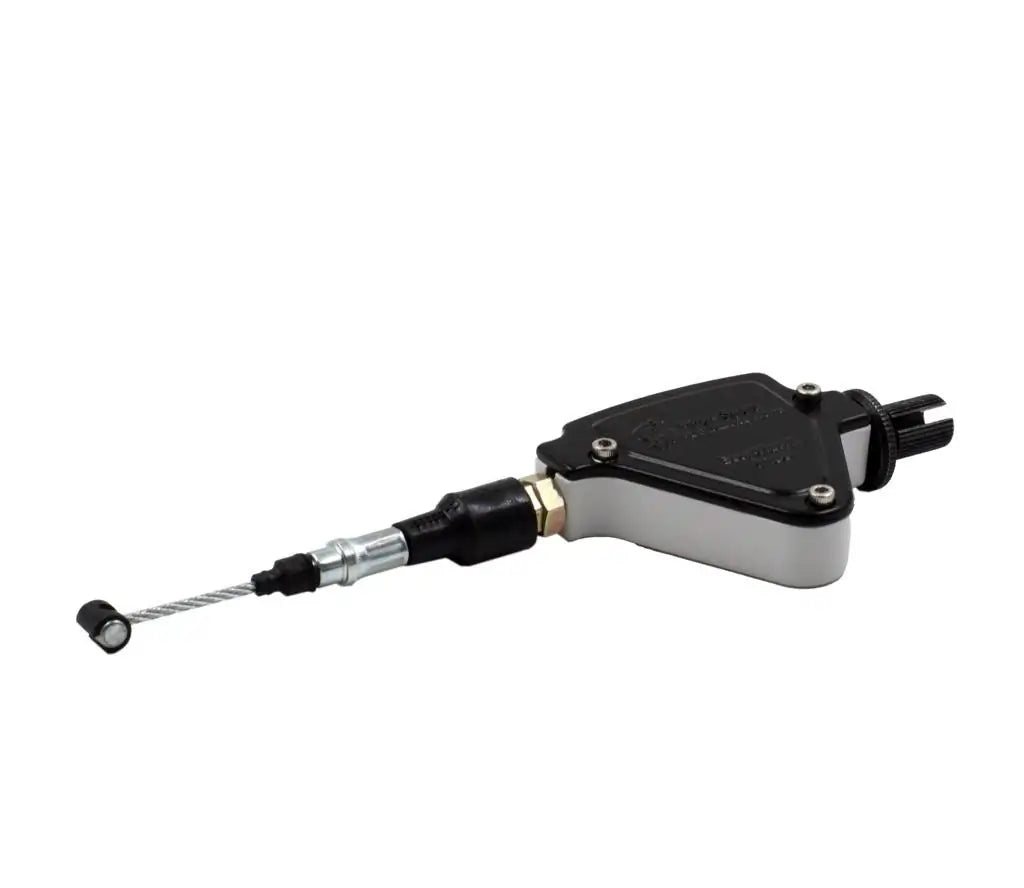

Product: Pro-Spec Easy Clutch Pro

Model: EC 225

Type: Mechanical Clutch Assist

Clutch Effort Reduction: Up to 40%

Material: Aerospace-Grade Aluminum

Application: Motorcycles 750cc and Above

Clutch System: Cable-Operated Clutch

Adjustment: Clutch Release Point Adjustment

Motorcycle Compatibility

Package Contents

Installation Instructions

Follow the installation procedure carefully to ensure correct clutch operation. Professional installation is recommended if you are unsure about clutch cable routing or adjustment.

• Remove OE Cable: Detach the original clutch cable head from the clutch lever. Loosen the lock nut at the engine end if required for cable removal.

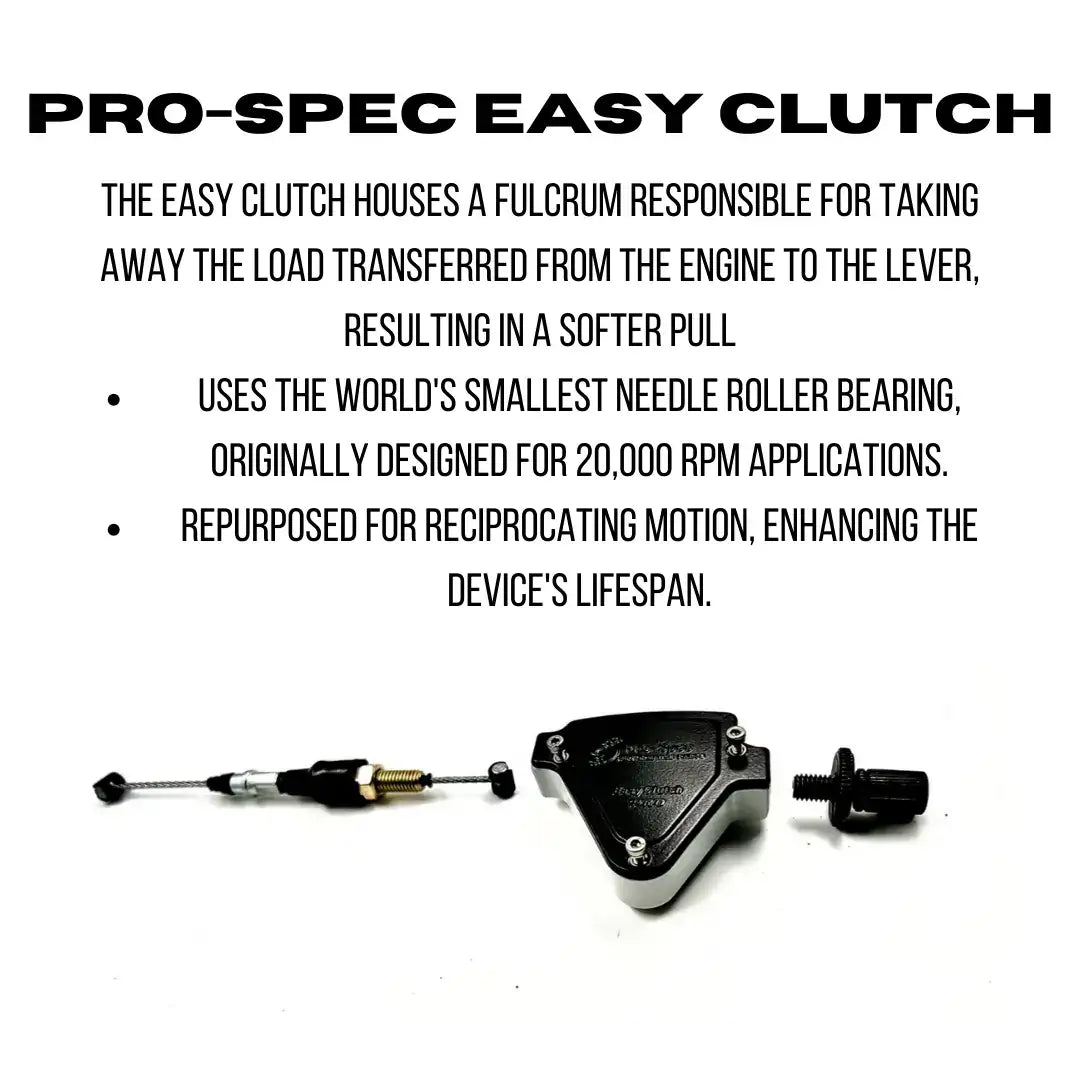

• Open Easy Clutch Housing: Remove the Allen screws from the housing to access the internal fulcrum.
• Connect OE Cable: Insert the OE cable into the right-side adjuster and securely position its cable head into the fulcrum.
• Fit Short Cable: Thread the Pro-Spec short cable into the left side of the housing and insert its cable head into the fulcrum.

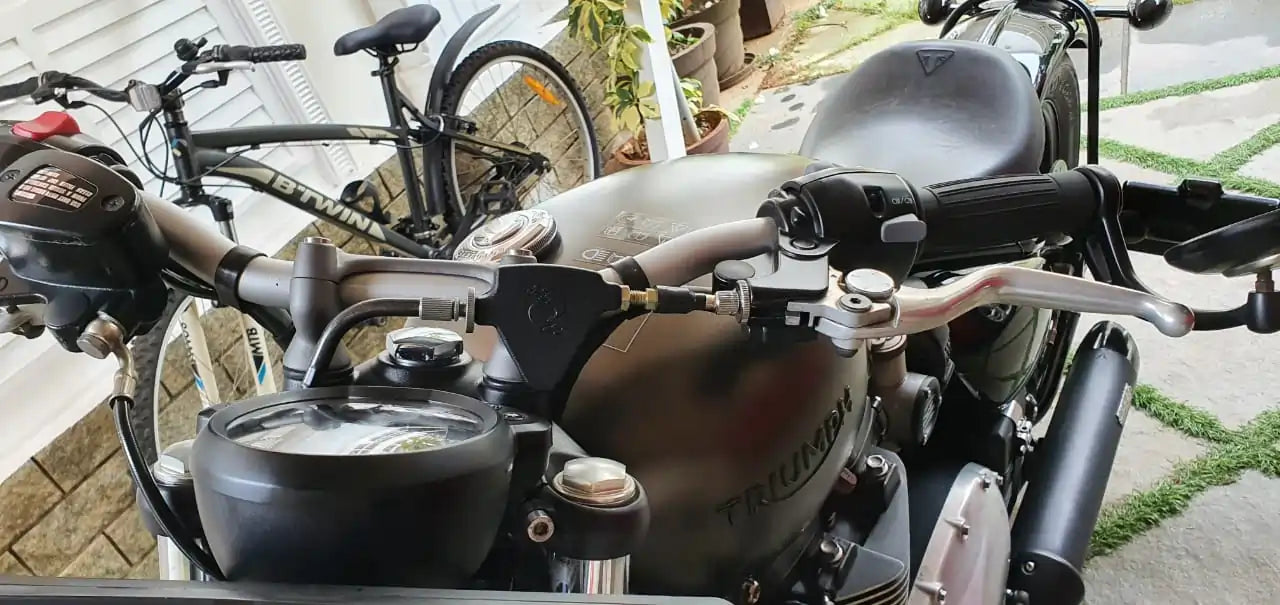

• Reconnect to Lever: Connect the short cable head to the clutch lever and install the dust boot over the lever connection.
• Secure Housing: Reassemble and secure the housing using the supplied screws and washers.

Clutch Adjustment

Set the clutch release point at approximately 50% of the lever travel for smooth clutch engagement and disengagement.

• If the release point is below 40%, thread out the adjuster.
• If the release point is above 60%, thread in the adjuster.
• Additional fine-tuning can be performed using the engine-end cable adjuster.
• Adjustment position “a” moves the release point closer to the grip.
• Adjustment position “b” moves the release point further away from the grip.

Maintenance & Safety

• Ensure proper clutch lever free play after installation and adjustment.
• Too much free play may prevent the clutch from disengaging properly and can cause clutch drag or gear-shifting difficulties.
• Too little free play may cause clutch slip, reduced performance and premature clutch wear.
• Lubricate the OE clutch cable regularly using WD-40 or a suitable cable lubricant for smooth operation.
• Always test clutch operation thoroughly before riding.

Important Disclaimer

Incorrect installation or improper adjustment may result in clutch malfunction, gear-shifting issues, clutch slippage or premature wear. Follow the installation and adjustment instructions carefully and verify proper clutch operation before riding. Pro-Spec is not liable for damage caused by misuse, incorrect installation or improper setup.
