Pro-spec Easy Ride Windshield Extender Clip-on for Hero Xpluse 200 4 V - ER770

Pro-Spec Easy Ride Windshield Extender Clip-on for Hero Xpulse 200 4V - ER770

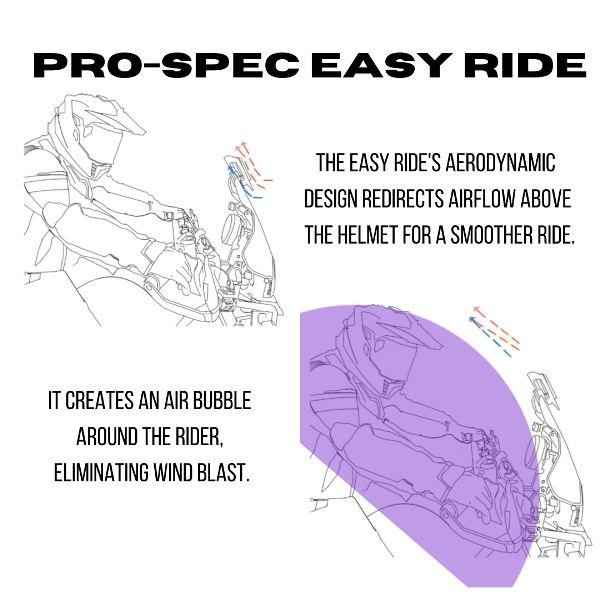

The Pro-Spec Easy Ride ER770 is a tall-profile, clip-on windshield extender designed for motorcycles with short adventure-style windscreens. Using the lip extender principle, it helps create a protective air bubble around the rider by redirecting airflow, reducing windblast, turbulence, and rider fatigue, especially during long-distance rides.

The ER770 is particularly effective for motorcycles such as the Hero Xpulse 200 4V, where the stock windscreen height can result in wind buffeting. Its taller profile helps redirect airflow for enhanced riding comfort and reduced helmet noise.

Key Features

• Tall Extender Profile: Provides improved wind deflection over short OE adventure windscreens.
• Reduces Buffeting: Helps reduce turbulence and windblast caused by the original windscreen for improved riding comfort and stability.
• Height Adjustable: Fine-tune the extender height according to your riding style and road conditions.
• Clip-On Mounting: Quick to install and remove without permanent modifications to the motorcycle.
• Compatible Windscreen Thickness: Designed for windscreens with a thickness of 3–5 mm.

Product Specifications

Product: Easy Ride Windshield Extender

Model: ER770

Design: Tall-Profile Clip-On Windshield Extender

Application: Short Adventure-Style Windscreens

Adjustment: Height Adjustable

Recommended Windscreen Thickness: 3–5 mm

Package Contents

• Windshield Extender Screen – 1
• Height Adjustment Slider (Set) – 1
• Clip-On Mount (Set) – 1
• Front Clamp (Set) – 1
• CSK Allen Head Screw – M4 x 16 mm – 4
• CSK Allen Head Screw – M4 x 12 mm – 2
• Height Adjusting Lock Screws (Set) – 1
• 2.5 mm Allen Key – 1

Installation Instructions

Note: While the ER770 is designed for easy DIY installation, professional assistance is recommended if needed. Some components may arrive pre-assembled.

1. Remove Lock Screws: Detach the two Lock Screws (7) from the clip-on mount.

2. Fit the Screen to the Slider: Align the extender screen with the front clamp and slide it into the height adjustment slider (2). Secure using the Lock Screws (7) as shown in Figure “b”.

3. Adjust and Tighten: Loosen the CSK Allen Head Screws (6) using the included 2.5 mm Allen key. Center the extender over the stock screen, then tighten the screws to lock it securely in place.

Care & Cleaning

• Clean using water, neutral soap, and a microfiber cloth or soft sponge.
• Do not use dry cloths, solvents, or abrasive cleaners, as these may scratch or damage the extender surface.
• Ensure the OE screen is free from anti-scratch coatings, which may affect clamp grip.

Motorcycle Compatibility

• Yezdi Adventure
• Hero Xpulse 200 Rally / Pro
• Hero Xpulse 200 4V
• Hero Xpulse 200 2V
• Kawasaki Versys 650 (2022+)

Important Information

The Pro-Spec Easy Ride ER770 is designed for compatible short adventure-style windscreens with a recommended thickness of 3–5 mm. Ensure the original equipment windscreen is clean and free from coatings that may affect clamp grip before installation.
