Pro-Spec Easy Ride Windshield Extender Clip-on for Kawasaki Ninja 1000-ER800
Pro-Spec Easy Ride Windshield Extender Clip-on for Kawasaki Ninja 1000-ER800
Pro-Spec
SKU:
Couldn't load pickup availability
- With Bill
- Fast Shipping
- Safe Packing

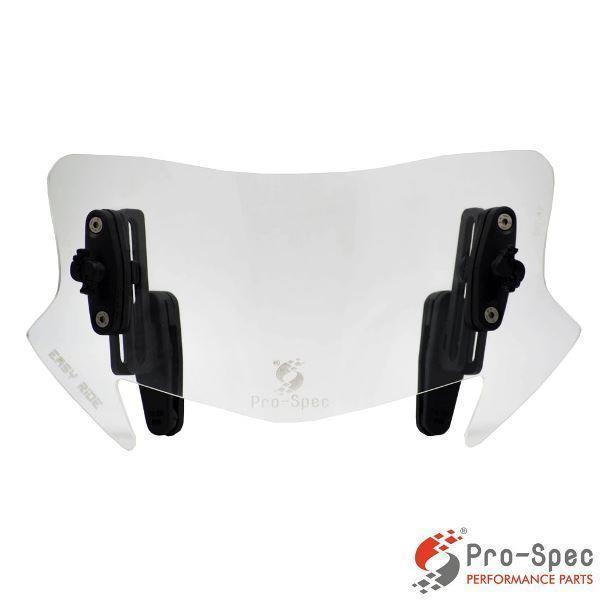

Pro-Spec Easy Ride Windshield Extender Clip-on for Kawasaki Ninja 1000-ER800
Designed for: Honda CBR 650F, Kawasaki Ninja 1000
Type: Sport Touring – Curved Windscreen Fit

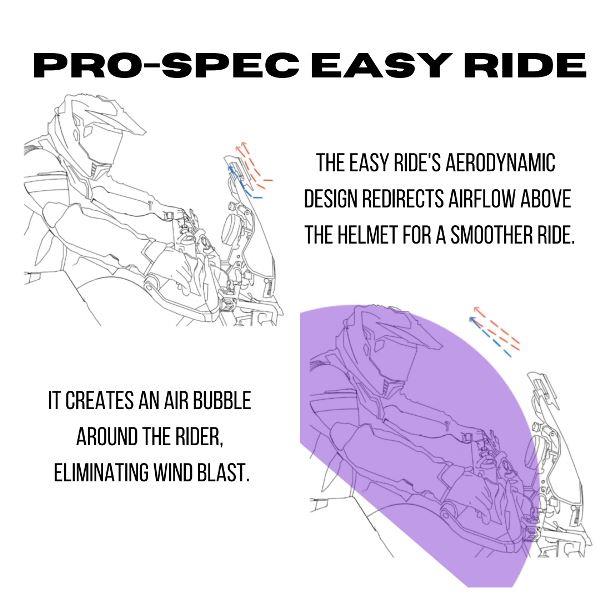

The Pro-Spec Easy Ride ER800 is a clip-on windshield extender tailored for sports touring motorcycles equipped with curved OEM windscreens. Built on the proven lip extender principle, it effectively redirects high-velocity airflow over the rider, reducing helmet buffeting, windblast, and long-distance fatigue.
Its extended leading and trailing edges offer greater surface coverage—ideal for motorcycles like the CBR 650F or Ninja 1000 that blend performance with touring ergonomics.

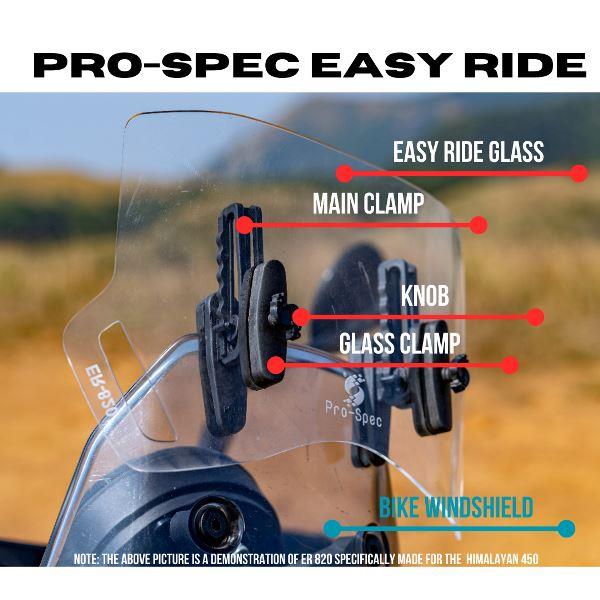

Key Features
- Curved Windscreen Compatibility: Specifically designed for bikes with contoured/tapered windshields.
- Lip Extender Technology: Redirects turbulent airflow, reducing wind noise and rider strain.
- Height Adjustable: Easily adaptable for rider height and seating posture.
- Tool-Assisted Clip-On Mount: No drilling required—mounts securely using the included clamp system.
- Fits Windscreen Thickness : 3 – 5 mm
What’s in the Box?
| Sl. | Description | Qty. |
|---|---|---|
| 1 | Windshield Extender Screen | 1 |
| 2 | Height Adjustment Slider (Set) | 1 |
| 3 | Clip-On Mount (Set) | 1 |
| 4 | Front Clamp (Set) | 1 |
| 5 | CSK Allen Head Screw – M4 x 16 mm | 4 |
| 6 | CSK Allen Head Screw – M4 x 12 mm | 2 |
| 7 | Height Adjusting Lock Screws (Set) | 1 |
| 8 | 2.5 mm Allen Key | 1 |
🛠️ Installation Instructions
⚠️ Note: Some components may come pre-assembled. Though DIY-friendly, professional installation is recommended if needed.
-
Remove Lock Screws
Detach the two Lock Screws (7) from the clip-on mount. -
Attach the Extender to the Slider
Align the extender screen with the front clamp, position it on the height adjustment slider (2), and secure using the Lock Screws (7) (see figure “b”). -
Adjust Final Position
Loosen the CSK Allen Head Screws (6) using the provided 2.5 mm Allen key.
Center the extender over the OE screen and tighten once aligned.
Care & Maintenance
- Clean with neutral soap, water, and a microfiber cloth or soft sponge.
- Avoid using dry cloths, harsh solvents, or abrasive materials to prevent surface damage.
- Ensure the OEM screen is free from anti-scratch coatings, which may interfere with clamp adhesion.
Bike Compatibility
| S. No. | Brand | Model |
|---|---|---|
| 1 | Honda | CBR 650F |
| 2 | Kawasaki | Ninja 1000 |
📏 Recommended Windscreen Thickness : 3 – 5 mm
